NXMD-400 Series External Circuit Breaker

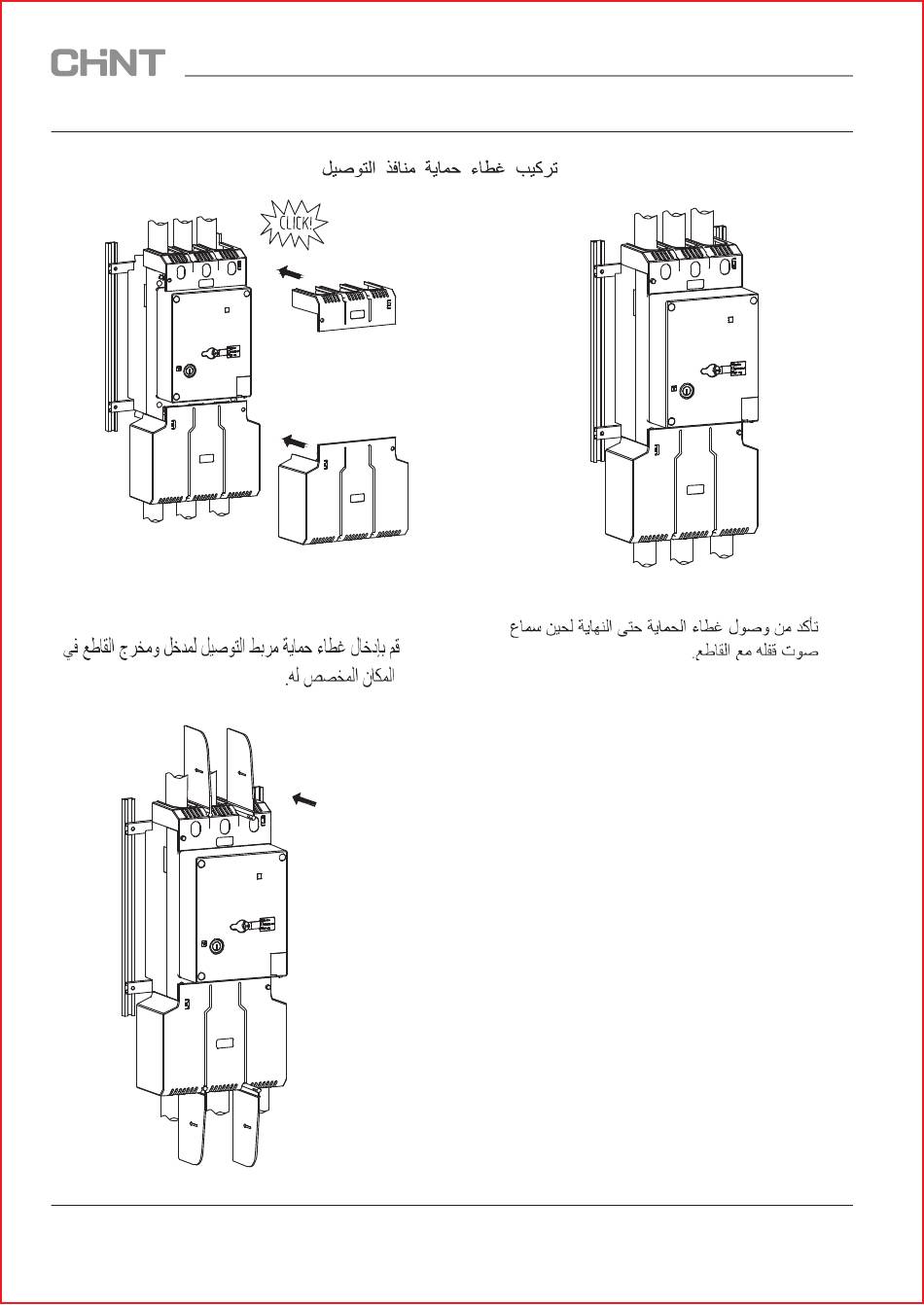

Installation terminal cover and phase barrier
Insert terminal cover at incoming and
①
outgoing terminals of breaker respectively
②
①
③
Insert Phase barriers in the direction of arrow
marked on it, Push the phase barrier into terminal cover
ﻗﻢ ﺑﺘﺮﻛﯿﺐ ﻋﻮازل اﻷطﻮار ﻓﻲ اﻟﺴﻜﺔ اﻟﻤﺨﺼﺼﺔ ﻟﮭﺎ وﻓﻘﺎ ﻹﺗﺠﺎه
05
Install the terminal cover in place
ﺣﺘﻰ ﺗﺼﻞ ﻟﻨﮭﺎﯾﺘﮭﺎ
②
③
اﻟﺴﮭﻢ
