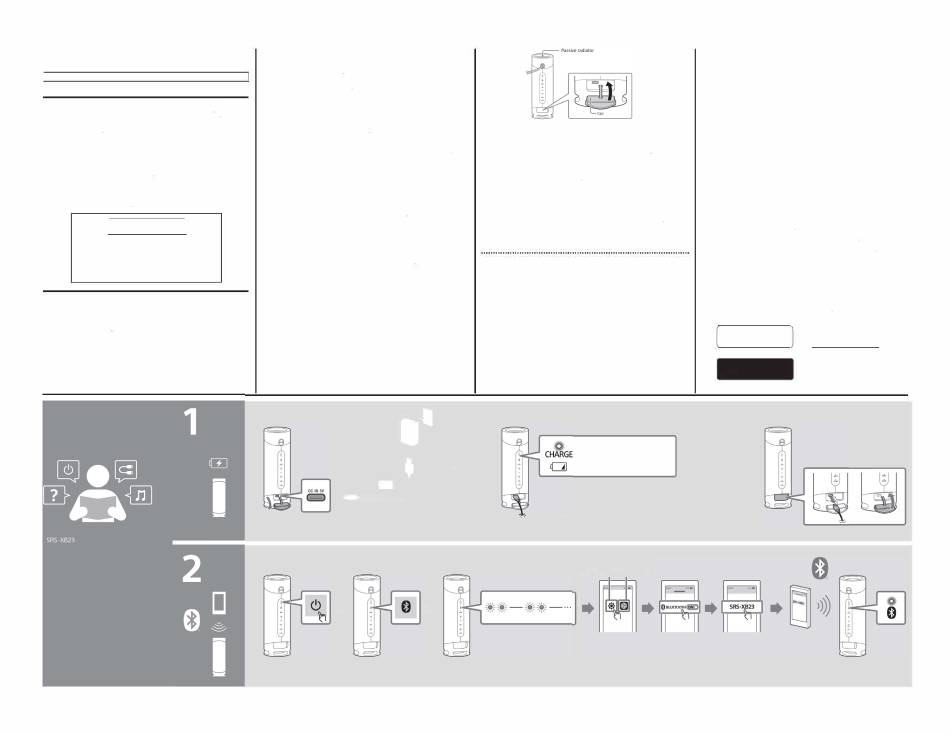

SONY:
Wireless speaker
Reference Guide
[
Wireless speaker
Before operatingthe unit,please read this guide thoroughly and retain it for future reference.
CAUTION
Do not expose the c1ppliance to naked flame sources (for example, lighted candles)
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet
Do not expose the batteries {battery pack or batteries installed) to excessive heat such as sunshine.
fire orthe like for a longtime
Do not expose the batteries to extreme low temperature conditions that may result in overheating
and thermal runaway. Do not dismantle, open or shred secondary cells or batteries. In the event of
a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been
made, wash the affected area with copious amounts of water and seek medical advice. Secondary
cells and batteries need to be charged before use. Always use the correct charger and refer to the
manufacturer's instructions or equipment manual for proper charging instructions. After extended
periods of storage, it may be necessary to charge and discharge the cells or batteries several times
to obtain maximum performance. Dispose of properly
Do not place this product close to medical devices
This product (including accessories) has magnet(s)which may interfere with pacemakers,
programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place
this product close to persons who use such medical devices. Consult your doctor before using this
,&
product if you use any such medical device
I I
(S)
Caution on charging
Inserting the USB plug while it is wet may cause a short circuit due
to foreign matter or liQuid (tap water, salt water, soft drinks, etc.)
getting onthe mainunitor charging cable.This maycause
malfunctions or abnormal overheating.
Never insert the USB plug while the main unit or
charging cable is wet.
Precautions
on safety
• If your skin touches this product for a long time when the power is on, it may cause a low
temperature injury.
• Important information such as the model name is located on the inner and outer surfaces of the
cap on therear side of the unit
On placement
• To eliminate therisk of malfunctions,avoid the followinglocations whenplacingor leavingthis
unit.
- A place subject to hightemperatures,such as under direct sunlight or lightingequipment,near
a heat source,or in a sauna
- Inside a vehicle with the windows closed (especially in summertime)
- A placesubjectto excessivedust
- A placesubjectto strongv;bration
• Place this unit on a flat, level surface. When placed on a sloped surface, the unit may fall over or
fall offthe surface due to its own vibration,resultingin injuries,malfunctions,or performance
degradation.
• Depending on the conditions where this unit is placed, it may fall over or fall off the surface. Do
notleaveany valuables nearthe unit
•This unit isnot anti-magnetic.Keep objectssusceptible to magnetism(recordedtapes,watches,
cash cards and credit cards with magnetic coding, etc.) away from the unit. When you carry
aroundthe unit,keep this in mindas well
Others
• Do not use or leave the unit in an extremely cold or hot environment (temperature outside the
range of 5 •c- 35 •c (41 "F- 95 "F)). lfthe unit is used or left in outside the above range, the unit
may automatically stopto protectintemal circuitry.
• At high temperature, the charging may stop or the volume may reduce to protect the battery.
• Even if youdo notintend to use the unit for a long time,charge the battery to its full capacity
once every 6 months to maintain its performance
About the Voice Guidance
IMPORTANT: THE SOUND GUIDANCE IS AVAILABLE IN THIS PRODUCT ONLY IN ENGLISH
Depending on the status of the unit,the voice guidanceoutputs fromtheunitas followings
• When entering pairing mode: "BLUETOOTH pairing·
• When establishing a BLUETOOTH connection: "BLUETOOTH connected"
• When disconnecting a BLUETOOTH connection: "BLUHOOTH disconnected"
• When pressing the BATT (battery) button to check the battery power during the unit is turned on:
"Battery fully charged/Battery about 70%/Battery about 50%/Battery about 30%/Please charge"
• When pressing and holding the ST PAIR button duringthe Stereo Pair function:"Left/Right"
On Copyrights
• Android, Google Play and other related marks and logos are trademarks of Google LLC.
• LOAC ™ is a trademark of Sony Corporation.
• The BLUETOOTH• word mark and logos are registered trademarks owned by the Blue tooth SIG,
lnc.and any use of suchmarksby SOnyCorporation is underlicense
• Apple, the Apple logo, iPhone, iPod and iPod touch are trademarks of Apple Inc., registered in the
U.S.andother countries.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
• Use of the Made for Apple badge means that an accessory has been designed to connect
specifically tothe Appleproduct ( s) identified inthe badge,and hasbeen certified bythe
developer to meet Apple performance standards. Apple is not responsible for the operation of
thisdevice or its compliance withsafetyand regu1atory standards.
• USB Type-(• and USB-C• are trademarks of USB Implementers Forum.
• Other trademarks and trade names are those of their respective owners
• ,.. and • marks are omitted in the documents.
To avoid deterioration of waterproof and dust proof performance
Checkthe following anduse the unit correctly.
• The unit passes the drop test from 1.22 m (4 ft) on plywood of 5 cm (2 in) thickness conforming to
MIL-ST0810H Method 516.8-Shock. However, this does not guarantee no damage, no breakdown,
or waterproof and dust proof performance in all conditions. Deformation or damage from
dropping the unit or subjecting it to mechanical shock may cause deterioration of the waterproof
and dust proof performance.
• Thisunit does nothave a design thatis resistant towater pressure.Use of the unit in a location
where high water pressure is applied, such as in the shower, may cause a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer or any other appliance on
the unit directly. Also never use the unit in a place subject to high temperatures, such as in a
sauna or near a heatsource.
• Handle the cap with care. The cap plays a very important role in maintenance of the waterproof
and dust proof performance. When using the unit, make sure that the cap is closed completely.
When closing the cap, be careful not to allow foreign objects inside. If the cap is not closed
completely the waterproof and dust proof performance may deteriorate and may cause a
malfunction ofthe unit as a result ofwateror dustparticles entering theunit.
OJ,§]
6
m
+
cCP-----2.J
.. ..
How to care for the unit
Although the fabric part of the unit has water repellent treatment applied, you can use the unit
more comfortably and for a longer period of time by following the maintenance procedure below.
• If the surface of the unit gets dirty in the following cases, wash the unit with fresh water (tap
water, etc.) promptly to remove the dirt. Leaving dirt on its surface may cause the fabric part or
the passive radiator section to discolor or deteriorate, or the unit 10 malfunction
,,.
-When salt.sand,etc.is stuck onthe unit afterusing it on a beach,poolside,etc.
-When theunitis stainedwithforeign substances(sunscreen,suntan oil,etc.)
• If the unit gets wet, wipe off the moisture using a dry soft cloth immediately. In addition, dry the
unit in an airyplaceuntilno moistureremains
• Thesound quality maychangewhen water enters thespeakeror passiveradiator section of the
unit. It is not malfunction. Wipe off the moisture on its surface, and put the unit on a dry soft
cloth to drain the collected water inside the unit. Then. dry the unit in an airy place until no
moisture remains.
Note
• lf the surface of the unitgets dirty,do notuse detergent,thinner,benzine,alcohol,etc.to clean
theunitbecauseit will affectthe water repellentfunction of the fabric part of the unit
• Especially incold regions,be sure to wipeoffthe moisture afterusingthe unit.leavingmoisture
onits surface maycausetheunitto freezeand malfunction.
• If sand grains, etc. enter the fabric or other part of the unit, remove them carefully. Never use a
vacuum cleaner, etc. on the unit. It may cause damage of the speaker section or other part of the
unit.
Specifications
Speaker section
Full range unit Approx. 42 mm "51 mm (1 n116 in x 2 I/a in) (2)
Enclosure type Passive radiator model
BLUETOOTH
Communication System
BLUETOOTH Specification version 5.0
Maximum communication range
Une of sight' 1 approx.30 m(98ft)
Frequency band 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation method FHSS
Compatible BLUHOOTH Profiles' 2
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
HSP(HeadsetProfile)
HFP(Hands-freeProfile)
Supported Codec" 1
SBC (Subband Codec)
AAC (Advanced Audio Coding)
LDAC
Transmissionrange(A2DP)
20 Hz· 20,000 Hz (Sampling frequency 44.1 kHz)
..
04h:OOmt1.s•1
----+
Android iPhone
™
' 1 The actual range will vary depending on factors such as obstacles between devices, magnetic
fields around a microwave oven, static electricity, reception sensitivity, antenna's performance,
operating system, software application, etc.
• 1 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communications between
devices.
• 3
Codec: Audio signal compression and conversion format
Note
Depending on the network environment, there may be an interruption at the high bitrate
transmission.
Microphone
Type Electretcondenser
Directional characteristic
Omnidirectional
Effective frequency range
100 Hz - 7,000 Hz
General
Power DC S V (using a commercially-available USB AC adaptor capable of feeding in
1.S A) or. using built-in lithium-ion battery
Lithium-ion battery life (with playback via a BLUETOOTH connection)
Approx.12hours• 4 •7
Approx.10hours•S•7
Approx.3hours•6•7
Dimensions(including projecting partsand controls)
Approx. 76 mm (3 in) dia." 218 mm (B S / e in) (H)
Mass Approx. 580 g (1 lb S oz) including battery
Supplied accessory USB Type-C• cable(USB-A to USB-C• / Max. 1.5 A) (1)
Strap(l)(attached to the unit)
• 4 Measured value acquired by playing our specified music source with the volume level of the unit
set to 34, the sound mode set to STAMINA
•S Measured value acquired by playing our specified music source with the volume level of the unit
set to 31 and with the factory default settings (sound mode: EXTRA BASS)
• 6 Measured value acquired by playing our specified music source with the volume level of the unit
set to maximum and with the factory default settings (sound mode: EXTRA BASS)
• 7 Actual performance time may vary from the listed time due to the volume, songs played,
surroundingtemperature,and usage conditions.
use
System requirements for charging battery using
Using a commercially-available USB AC adaptor capable of feeding in 1.5 A
Compatible iPhone/iPod models
iPhone XS Max, iPhone XS, iPhone XR. iPhone X, iPhone B Plus. iPhone B. iPhone 7 Plus, iPhone 7,
iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone Ss, iPod touch (6th generation)
The unit is compatible with iOS 10.0 or later.
Design and specifications are subject to change without notice
CWI I
Made for
a iPhone I iPod
0
Bluetooth·
GETITON
�
p• Google Play
..
•
CHARGE
�
