Summary of Contents for Osaki 4D Orion Duo Mech

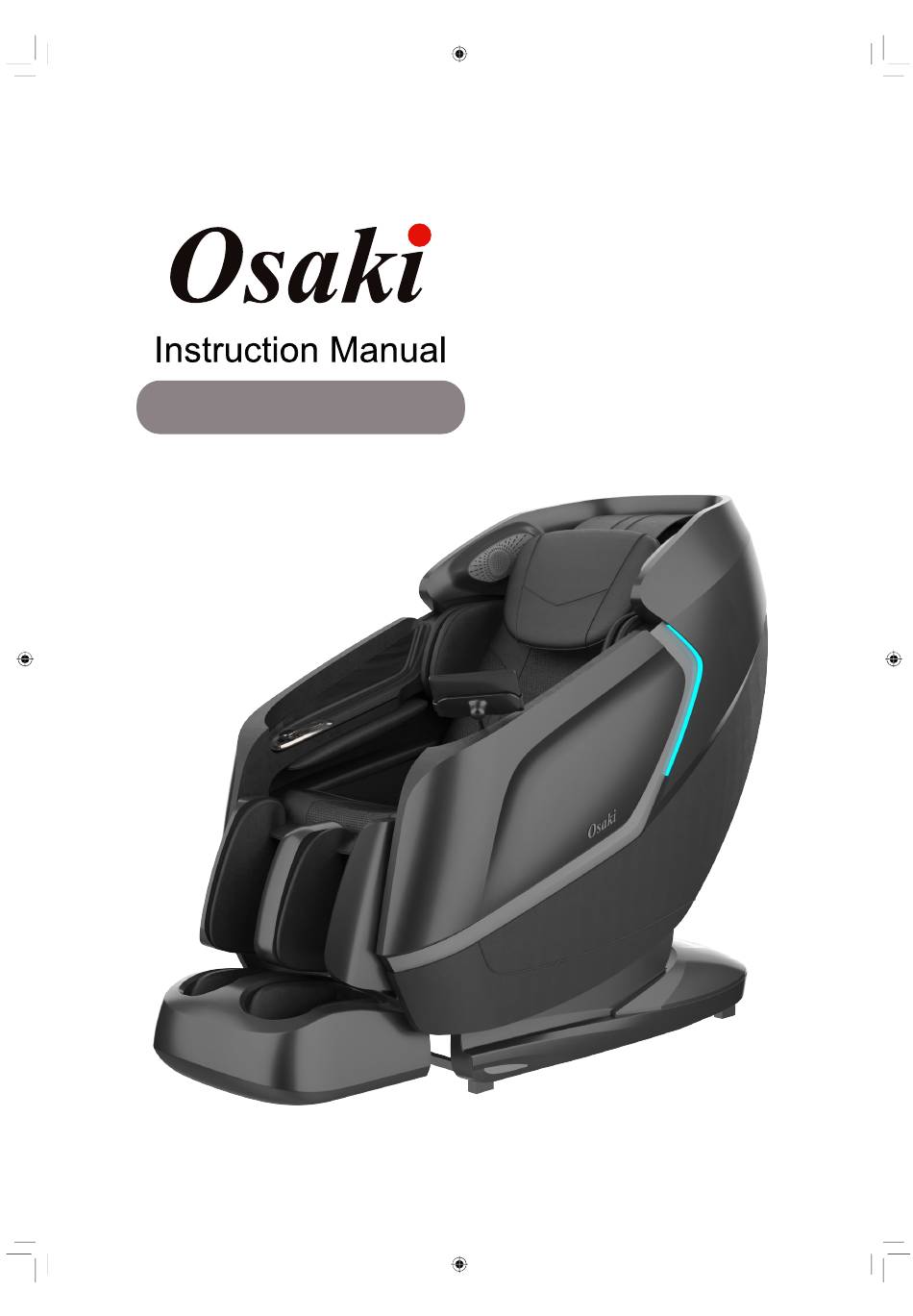

- Page 1 �D Orion Duo Mech...
-
Page 2: Table Of Contents
Important Safety Instructions Product Parts Things To Know And Do Before Use How To Use The Remote Operation Guide Voice Control After Massage Cleaning And Maintenance Troubleshooting Specification FCC Radiation Exposure Statement Industry Canada Notice... -
Page 3: Important Safety Instructions
Important Safety Instructions IMPORTANT SAFETY INSTRUCTIONS When using this product, basic precautions should always be followed, including the following: Read all instructions before using (this product). DANGER-To reduce the risk of electric shock: • Always unplug this product from the electrical outlet after using and before cleaning. •... - Page 4 Any person with a pacemaker cannot use this Persons with any injuries should not use product. The chair may cause an electronic tthis product. malfunction to the medical device; Persons with higher or lower regular body Patients with malignant tumors; temperature, fever, inflammation, cold symptoms, high blood pressure or any poor Patients with heart disease；...
- Page 5 People with the following health issues should NOT use this chair: Persons for whom massage is not advisable by doctors. Such as persons with thrombosis, serious aneurysm, acute venous aneurysm, various skin inflammations (such as subcutaneous tissue inflammation) or various skin infections. Otherwise it may aggravate or cause serious injury.
- Page 6 The following persons (even if they are physically healthy at present) should consult a physician before using the product. (1) Persons with muscular atrophy; (2) Persons with any spinal or back pain or spinal condition; (3) Persons suffer from sprains or bruising easily; (4) Persons with motion sicknesss;...
- Page 7 Do not put hands or feet between footrest and seat base. Do not put hands or feet between footrest and side panel. Do not put hands or feet between seat base and side panel. Do not put hands or feet between the upper and the lower part of the footrest. Do not put hands or feet in the gap of seat base.
- Page 8 GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for the electric current to reduce the risk of electric shock. This product is equipped with a cord with an equipment-grounding conductor and a grounding plug.
-
Page 9: Product Parts
Speaker Speaker Pillow Back Cushion Wireless charging Quick Control Controller Remote AI.Care Side Panel Footrest... -
Page 10: Things To Know And Do Before Use
Before Use Installation position PLACE THE CHAIR At least �cm Footrest in Chair base in contact with the floor contact with the floor Do not expose the product directly under the sunlight or in a high-temperature place Inspect the Space Around the Chair. Do not place or use the chair near individuals, animals, or any items that might interfere with the chair's... - Page 11 Ensure No Foreign Objects within the Seams of the Chair. Seat Surface Leg/Footrest Mech Examine the Power Cord & Electrical Plug Do not bend or twist the power cord for any reasons. Do not place the power cable under heavy objects Ensure the plug is fully inserted into such as the chair itself.
- Page 12 Power on the Chair Insert the power plug into the power outlet. Ensure that the massage rollers are correctly positioned If the rollers are not positioned correctly at the top of the backrest, press the "ON" button to reset them to the default position.
- Page 13 Ensure that the Fabric is Not Damaged or Cracked. Examine the synthetic leather area where the massaging rollers move along the backrest, and make sure there is no damage or unusual wear. Even if the fabric is slightly damaged, stop using the product immediately.
-
Page 14: How To Use The Remote
The Quick Control Remote Instructions USB charge Power ON/OFF Zero Gravity Demo Massage Back adjustment Chair adjustment Foot roller Footrest adjustment Heating Airbags Pause... - Page 15 Power ON/OFF Long press to power on the chair, long press again to power off the chair. Demo Massage Press the button, start auto massage, experience Demo Massage directly. Zero Gravity There are 4 steps for Zero Gravity, one click enter to Zero Gravity 1, two clicks enter to Zero Gravity 2, three clicks enter to Zero Gravity 3, four clicks reset the chair.
- Page 16 The Controller Instructions ON/OFF Touch Screen...
-
Page 17: Operation Guide
Operation Guide... - Page 18 Registration page please follow the required information to register, and then log in. If you have already registered, please enter your account/password directly to log in. If you forget your password, please touch "Forgot password?" to retrieve your password. NOTE: Foot Roller: Osaki...
- Page 19 User information and Settings Touch on the top left corner, there will have Personal Information/Health records/ Favorites/ Setting/ Function Settings. Personal Information If you are a user, this page will have Email/Nickname/Gender/Height/Weight/Birthday information for editted and record. Health records If you are a user, every health report will be recorded here. Favorites If you are a user, Your favorite programs will be saved here, you can choose the favorite program at any time.
- Page 20 One Key Auto Test • This chair has "One Key Auto Test" function, before massage, touch this icon for chair testing, please make sure people get out of the chair during testing, and return after the testing is completed.
- Page 21 Auto Massage Programs Demo Focus on neck and shoulder/waist massage with kneading and rolling techniques. Smart Care Take care of neck and shoulder/hip, Precision massage on key position. Neck and Shoulder Targets the neck and shoulder, with the goal of alleviating neck and shoulder muscle. Thai Stretch Deep full body stretch, activate the muscles and bones.
- Page 23 Body Scan Detection ● Before entering massage program, there will be a body scan detection function. ● Make sure all accessories removed and sit deep in the seat during body scanning. Tapping ● After detecting, if the position needs to be adjusted,pls touch to adjust;Or touch ●...
- Page 24 Auto Massage Upper Rollers/Lower Rollers Touch Upper Rollers to focus on upper massage, touch Down Rollers to focus on lower massage. You can adjust the strength/speed under 4D/Kneading/Rapping/Airbags. 4D/Kneading/Rapping/Airbags There are 6 levels for adjustment for 4D mechanism ejection, 5 levels for adjustment for Kneading /Rapping/Airbags.
- Page 25 Negative oxygen ion Touch and light up the icon, start to release Negative oxygen ion; touch again to stop releasing Negative oxygen ion. Touch the icon, there are 5 colors of LED light for options. Favorites If you are already logged into the user account, there will be a Favorites option on the top page, touch for favorite program record.
- Page 26 Custom Massage Before entering custom massage, there will be the page massage position selection for setting. There are 5 parts of body for options: shoulder/back/arm/hip/calf, select the part of the body that needs to be massaged. Airbag Setting Under this menu,you can choose the airbag massage for shoulders/armrest/waist/seatrest /footrest you preferred.
- Page 27 Manual Massage Airbag Setting Under this menu,you can choose the airbag massage for shoulders/armrest/waist/seatrest/ footrest you preferred, then touch "Start" to massage. Massage Style There are Kneading/Shiatsu/Thump/Rapping/Clapping/Rolling/Scraping under this menu, choose the style you preferred, then touch "Start" to massage. Massage Area There are Point/Area/All under this menu, choose the massage area you preferred, then touch "Start"...
- Page 29 Bluetooth name: 4D Orion APP download Android : Go to "Google Play", Search "Osaki Home" and download, choose " 4D Orion Duo Mech" to operate APP. Iphone : Go to "App Store", Search "Osaki Home" and download, choose " 4D Orion...
-
Page 30: Voice Control
Hello, I am your health assistant. You can wake Who are you me up by calling“Hey, Osaki”. If you wish to make any adjustments during masssage, please let me know as I am always at yours service. Please enjoy! Now start the massage evaluation, Please press your hands securely against the... -
Page 31: After Massage
User command Chair Reaction Sweet Dreams massage Okay, we have opened the "Sweet Dreams massage" program for you Care massage Okay, we have opened the "Care massage" program for you Thai Stretch massage Okay, we have opened the "Thai Stretch massage" program for you Deep Tissue massage Okay, we have opened the "Deep Tissue massage"... -
Page 32: Cleaning And Maintenance
Cleaning And Maintenance inappropriate mocrofiber... -
Page 33: Faq
Frequently Asked Questions (FAQ) They will not fit comfortably an air pump... -
Page 34: Troubleshooting
If above solutions are not applicable, kindly refer to “Product Warranty Card” and contact service center. - Page 35 If you experience any of the following sensations or sounds while using the chair, please note that they are normal functions and do not indicate a defect. The product upholstery is deformed or abnormally hot.
-
Page 36: Specification
4D Orion Duo Mech Rated current 1.4A Dimension of Packing Carton(LxWxH) 74.4” x 30.5” x 34.4” 209.4 lbs 174.2 lbs Upright: 59.4” x 29.5” x 44.1” Dimension(LxWxH) Recline: 69.7” x 29.5” x 32.3” 50 F-104 F 68 F-140 F This equipment contains a certified radio transmission module: FCC ID：2AOC9-ZENBDM10A...
