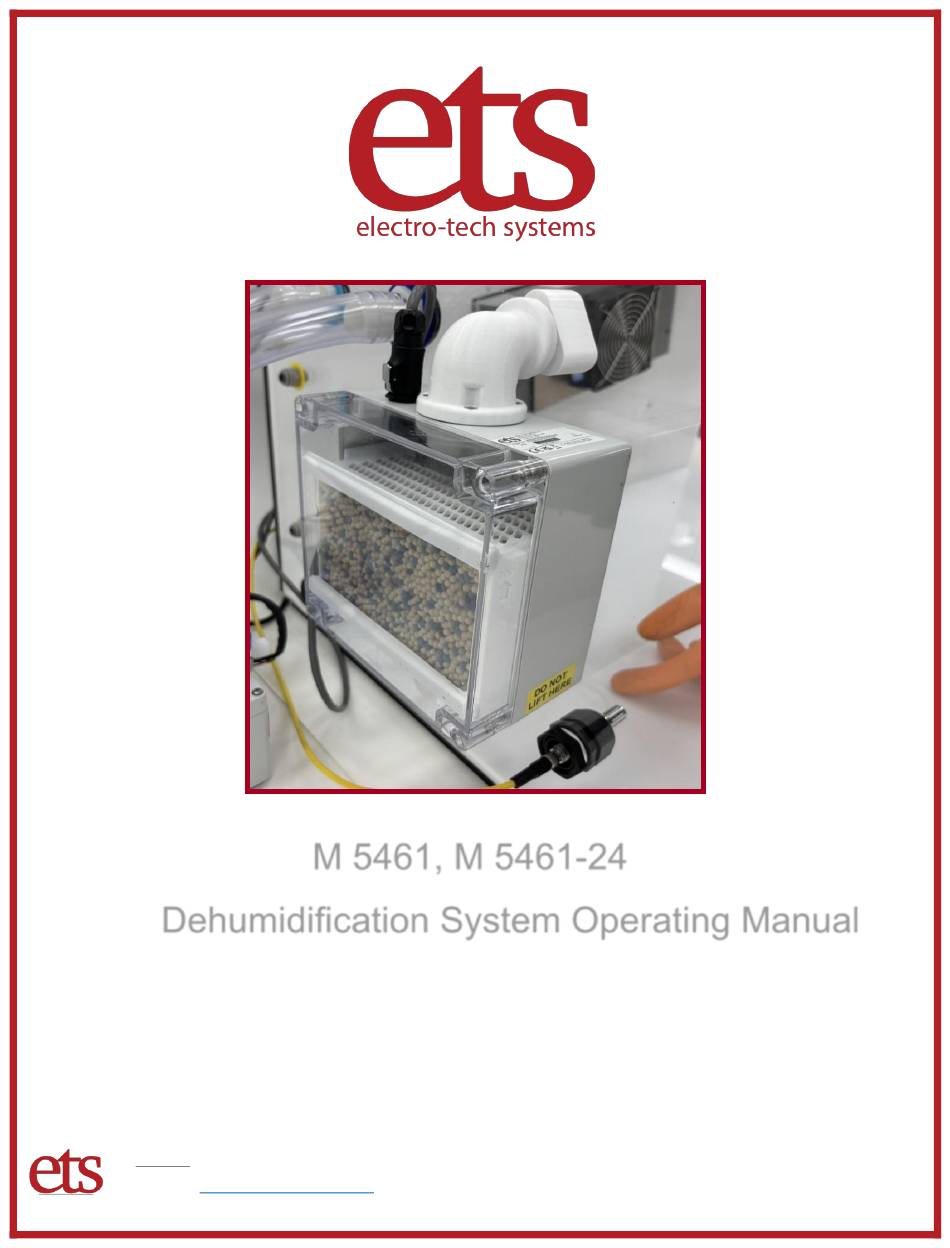

- Page 1 M 5461, M 5461-24 Dehumidification System Operating Manual Products described in this manual are designed and assembled in the U.S.A. by Electro-Tech Systems, Inc. 700 West Park Avenue Perkasie, PA 18944 www.electrotechsystems.com 833-ENV-GURU (833-368-4878) D02122 Revision A...
-
Page 2: Table Of Contents
Table of Contents I. Important Safety Information ..................3 II. Description of Contents ..................... 7 III. Set-Up Guide ......................8 IV. Functionality ......................13 V. Specifications ......................13 VI. Repair and Maintenance ..................15 Preventive Maintenance ................... 15 VII. Troubleshooting ....................16 VIII. -
Page 3: Important Safety Information
I. Important Safety Information This symbol accompanied by the This symbol accompanied by the This symbol indicates the presence word “WARNING” calls attention to word “CAUTION” indicates a of hazardous AC or DC voltages an act or a condition which can potentially hazardous situation constituting the risk of electric lead to serious personal injury or... -
Page 4: Operation
POWER POWER CORD: Use only the power cord specified for this equipment and certified for the country of use. If the power (mains) plug is replaced, follow the wiring connections specified for the country of use. When installing or removing the power plug, hold the plug, not the cord. The AC supply must be single phase, with RMS Voltage in range 90 –... -
Page 5: Consignes De Sécurité
Informations Importantes d’inocuite Ce symbole accompagné du mot « Ce symbole accompagné du mot « Ce symbole indique la présence d’une climatisation dangeureuse AVERTISSEMENT »( WARNING) attire ATTENTION » (CAUTION )indique une ou d’un courant continu constituant l’attention sur un acte ou une situation potentiellement dangereuse le risque de choc électrique. -
Page 6: Opération
ALIMENTATION CORDON D'ALIMENTATION : Utilisez uniquement le cordon d'alimentation spécifié pour cet équipement et certifié pour le pays d'utilisation. Si la fiche d'alimentation (secteur) est remplacée, suivez les connexions de câblage spécifiées pour le pays d'utilisation. Lors de l'installation ou du retrait de la fiche d'alimentation, tenez la fiche, pas le fil. -
Page 7: Description Of Contents
M 5461 or Desiccant Dehumidification System include built-in fittings, locking nut, desiccant basket, and filter. M 5461-24 For use with ETS Controllers, your M 5461 will include the appropriate cable assembly to connect to: Power / Signal Cable • Assembly M 5100, M 5200 PID Controllers •... -
Page 8: Set-Up Guide
II. Set-Up Guide Set-Up Guide Step 1.A. Uninstall system If purchased with a glovebox/chamber, the M 5461 system will have been installed on the inside of the chamber for shipping purposes. The desiccant box will need to be removed and reinstalled on the outside of the chamber. - Page 9 Step 2. Install on outside of chamber Maintaining the same orientation of the desiccant box (connector and fan should be on the top side), reinsert the desiccant fittings through the two holes from the outside the chamber. Reinstall the locking nuts using the provided tool. Note that there is a top and bottom locking nut.
- Page 10 The AC/DC Adapter must be plugged into the back of the PID Controller plug marked DEHUMIDFY Step 6.A. Turn on Dehumidify Function Using the ETS Controller, set the desired set point for the relative humidity in the chamber. Turn on the Controller’s ability to decrease the relative humidity in the chamber.
- Page 11 Set-Up with M 5300 Series EnviroPro PLC Step 7.A. Identify Power / Signal Cable Assembly The Power / Signal Cable is a single 4- wire cable with a quick disconnect connector on each end. Step 7.B. Install Power / Signal Cable Assembly to M 5478-24 Plug the 4 Pin Connector into the 4 Pin Receptable labeled DEHUMIDIFY on...
- Page 12 Step 7.C. Turn on Dehumidify Function Using the ETS Controller, set the desired set point for the relative humidity in the chamber. Turn on the Controller’s ability to decrease the relative humidity in the chamber. See the Operating Manual of the...
-
Page 13: Functionality
The Model 5461 Desiccant Dehumidification System is a closed loop system, designed to reduce the relative humidity within a sealed chamber to as low as 5%. When used with a Controller, such as the ETS Model 5100 or Model 5200 PID controllers or M 5300-24 EnviroPro PLC, the chamber may be maintained to within ± 0.5% RH of the set-point. -
Page 14: Specifications
Max Power Consumption: 2.4 W or 0.10A @24VDC DESICCANT Material: Molecular Sieve Weight: 800 cc total: 650 cc non-indicating / 150 cc indicating) CONTROLLER COMPATIBILITY ETS Model 5100 or 5200 and 5300 Series Controllers www.electrotechsystems.com 833-ENV-GURU (833-368-4878) D02122 Revision A... -
Page 15: Repair And Maintenance
V. Repair and Maintenance To return equipment to ETS for service and repair it is first necessary to obtain a RMA number, please call 215-887-2196 or email service@ets2.com. Preventive Maintenance Preventative maintenance primarily consists of monitoring the indicating desiccant for when it has expired. -
Page 16: Troubleshooting
VI. Troubleshooting Troubleshooting Guide Problem Possible Causes Corrective Actions Ensure the power/signals cable is connected properly. (See pages 10 – 11 in the Setup No Power to Unit Unit is not receiving power Guide). Ensure that Controller Humidity Decrease Controller is not outputting Function is turned on (See Steps 6-7 in Set- Humidity Decrease Signal up Guide, See pages 10 –... -
Page 17: Warranty
VII. Warranty Limited Warranties. Seller warrants that all goods manufactured and delivered hereunder shall (a) conform to any samples, drawings, specifications, or other written documents provided to Seller by Buyer or approved by Buyer to Seller and (b) be free from all defects in workmanship and material.
