Summary of Contents for ETS M 5465-24

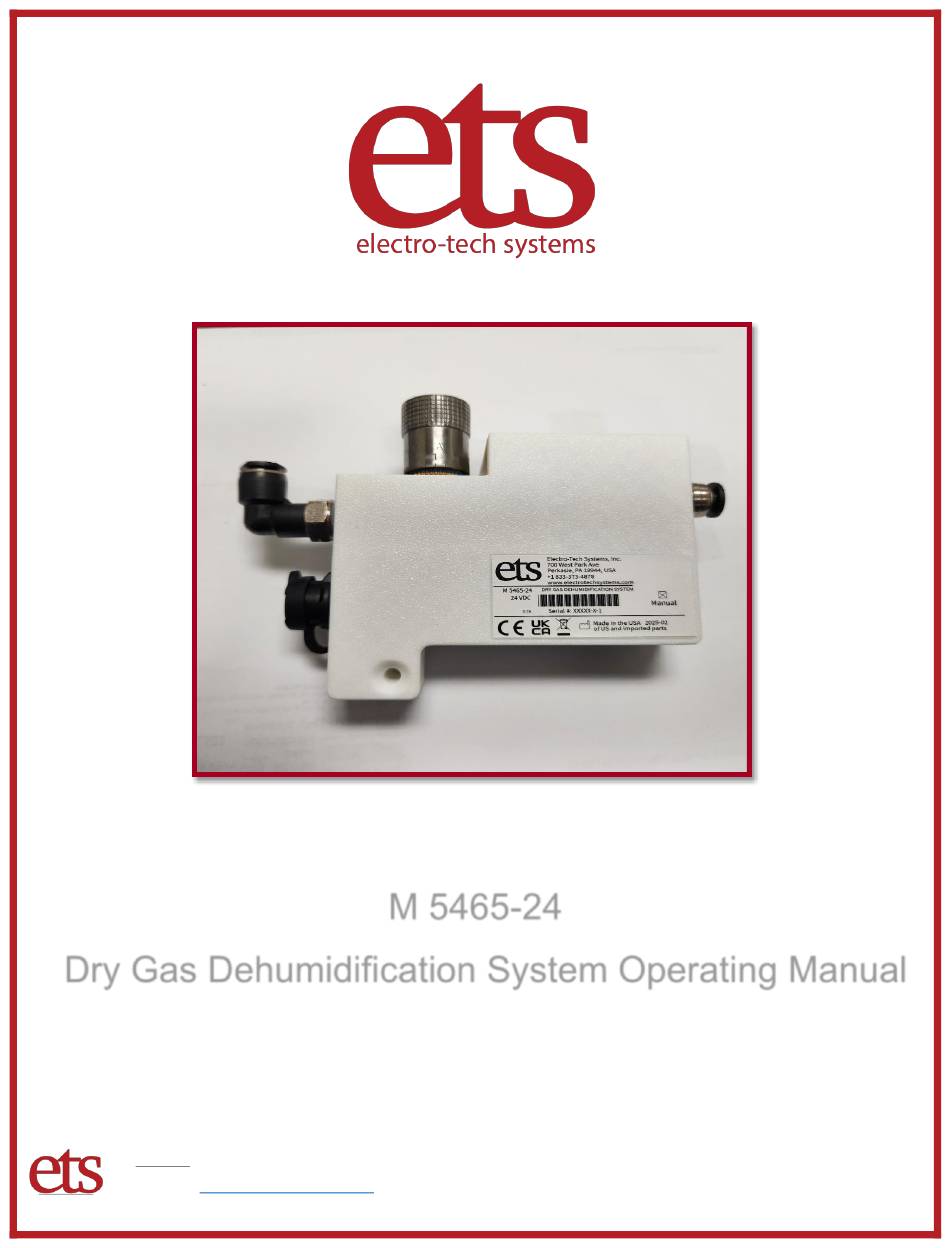

  • Page 1 M 5465-24 Dry Gas Dehumidification System Operating Manual www.electrotechsystems.com 833-ENV-GURU (833-368-4878) D02112 Rev A...
  • Page 2: Table Of Contents

    Table of Contents I. Important Safety Information ..................3 II. Description of Contents ..................... 7 III. Set-Up Guide ......................8 IV. Functionality ......................11 V. Specifications ......................11 VI. Repair and Maintenance ..................15 Preventive Maintenance ................... 15 VII. Troubleshooting ....................16 VIII.
  • Page 3: Important Safety Information

    I. Important Safety Information This symbol accompanied by the This symbol accompanied by the This symbol indicates the presence word “WARNING” calls attention to word “CAUTION” indicates a of hazardous AC or DC voltages an act or a condition which can potentially hazardous situation constituting the risk of electric lead to serious personal injury or...
  • Page 4: Operation

    POWER POWER CORD: Use only the power cord specified for this equipment and certified for the country of use. If the power (mains) plug is replaced, follow the wiring connections specified for the country of use. When installing or removing the power plug, hold the plug, not the cord. The AC supply must be single phase, with RMS Voltage in range 90 –...
  • Page 5: Consignes De Sécurité

    Informations Importantes d’inocuite Ce symbole accompagné du mot « Ce symbole accompagné du mot « Ce symbole indique la présence d’une climatisation dangeureuse AVERTISSEMENT »( WARNING) attire ATTENTION » (CAUTION )indique une ou d’un courant continu constituant l’attention sur un acte ou une situation potentiellement dangereuse le risque de choc électrique.
  • Page 6: Opération

    l'installation, l'utilisation et l'entretien. Lisez les consignes de sécurité suivantes avant d'utiliser l'instrument. ALIMENTATION CORDON D'ALIMENTATION : Utilisez uniquement le cordon d'alimentation spécifié pour cet équipement et certifié pour le pays d'utilisation. Si la fiche d'alimentation (secteur) est remplacée, suivez les connexions de câblage spécifiées pour le pays d'utilisation. Lors de l'installation ou du retrait de la fiche d'alimentation, tenez la fiche, pas le fil.
  • Page 7: Description Of Contents

    Item Item Qty. Description M 5465-24 Dry Gas Dehumidification System. For use with ETS Controllers, your M 5465-24 will include Power / Signal Cable the appropriate cable assembly to connect to: Assembly • M 5300 Series EnviroPro PLC Tubing required for connection of dry gas supply to the dry ¼”...
  • Page 8: Set-Up Guide

    Firmly insert one end of the pre-cut 16-inch ¼” Polyethylene Tubing into the Fitting with the Yellow color-coded ring AIR OUTPUT. Run the tube from the M 5465-24 to the ¼” Fitting with the matching Yellow color-coded on the Chamber.
  • Page 9 Step 4. Install Power / Signal Cable Assembly to M 5465-24 Plug the 4 Pin Connector into the 4 Pin Receptable labeled DEHUMIDIFY on the PLC and connect to the sole connector on the M 5465-24. www.electrotechsystems.com 833-ENV-GURU (833-368-4878) D02112 Rev A...
  • Page 10 Step Turn Dehumidify Function Using the ETS Controller, set the desired set point for the relative humidity in the chamber. Turn on the Controller’s ability to decrease the relative humidity in the chamber. See the Operating Manual of the EnviroPro PLC if you have any questions regarding the functionality of the controller.
  • Page 11: Functionality

    IV. Functionality The M 5465-24 Dry Gas Dehumidification System is an open loop drying system consisting of a valve assembly that allows dry gas such as nitrogen, CO2 or dry air to purge the chamber until the humidity is lowered to the desired level. Humidity levels to <5% are achievable depending on the dry gas source.
  • Page 12 Step 2.A Unlocking Flow Control Knob Unlocking the Knob 1. Tools: You will need a 5/64-inch hex key (also known as an Allen wrench). 2. Loosening: Insert the hex key into the knob's screw. Turn the hex key counterclockwise to loosen the screw. Locking the Flow Control Knob 1.
  • Page 13 Step 2.B Adjusting the Flow Control Knob (After Unlocking) 1. Ensure Unlocked: Make sure the flow control knob is in the unlocked position (the screw should be slightly loosened by turning it counterclockwise with a 5/64-inch hex key). 2. Opening the Flow (Increased Flow Rate): Rotate the knob counterclockwise to incrementally open the valve and increase the flow rate.
  • Page 14: Specifications

    V. Specifications PERFORMANCE: Output Flow Rate120 SCFH @ 90 psig. MECHANICAL External Dimensions: 5.5” W x 1.75” D x 4” H Material: PLA outside cover Weight: 0.8 lbs. HARDWARE PORTS: Two ¼ Inch Quick Connects ELECTRICAL Voltage: 24VDC Max Power Consumption: 4.5W or 0.188A @24VDC CONTROLLER COMPATIBILITY M 5300 Series Controllers www.electrotechsystems.com...
  • Page 15: Repair And Maintenance

    VI. Repair and Maintenance To return equipment to ETS for repair it is first necessary to obtain a RMA number, please call 215-887-2196 or email service@ets2.com. Preventive Maintenance The dry gas dehumidification system is maintenance free. www.electrotechsystems.com 833-ENV-GURU (833-368-4878) D02112 Rev A...
  • Page 16: Troubleshooting

    VII. Troubleshooting Troubleshooting Guide Problem Possible Causes Corrective Actions Ensure power and signals cables are connected properly. (See Steps 3 – 4 in the No Power to Unit Unit is not receiving power Setup Guide). Ensure that Controller Humidity Decrease Controller is not outputting Function is toggled on (See Step 5 in Set-up Humidity Decrease Signal...
  • Page 17 Problem Possible Causes Corrective Actions Verify incoming compressed air supply is Low inlet Pressure greater equal or greater than 50 psi. The recommended value is 90 psi. Disengage the Flow Control Lock (See Steps Flow Control is Locked 2.A, 2B in the Set-up Guide). Flow Control will not rotate counterclockwise Flow Control will not any further.
  • Page 18: Warranty

    VIII. Warranty Limited Warranties. Seller warrants that all goods manufactured and delivered hereunder shall (a) conform to any samples, drawings, specifications, or other written documents provided to Seller by Buyer or approved by Buyer to Seller and (b) be free from all defects in workmanship and material.
