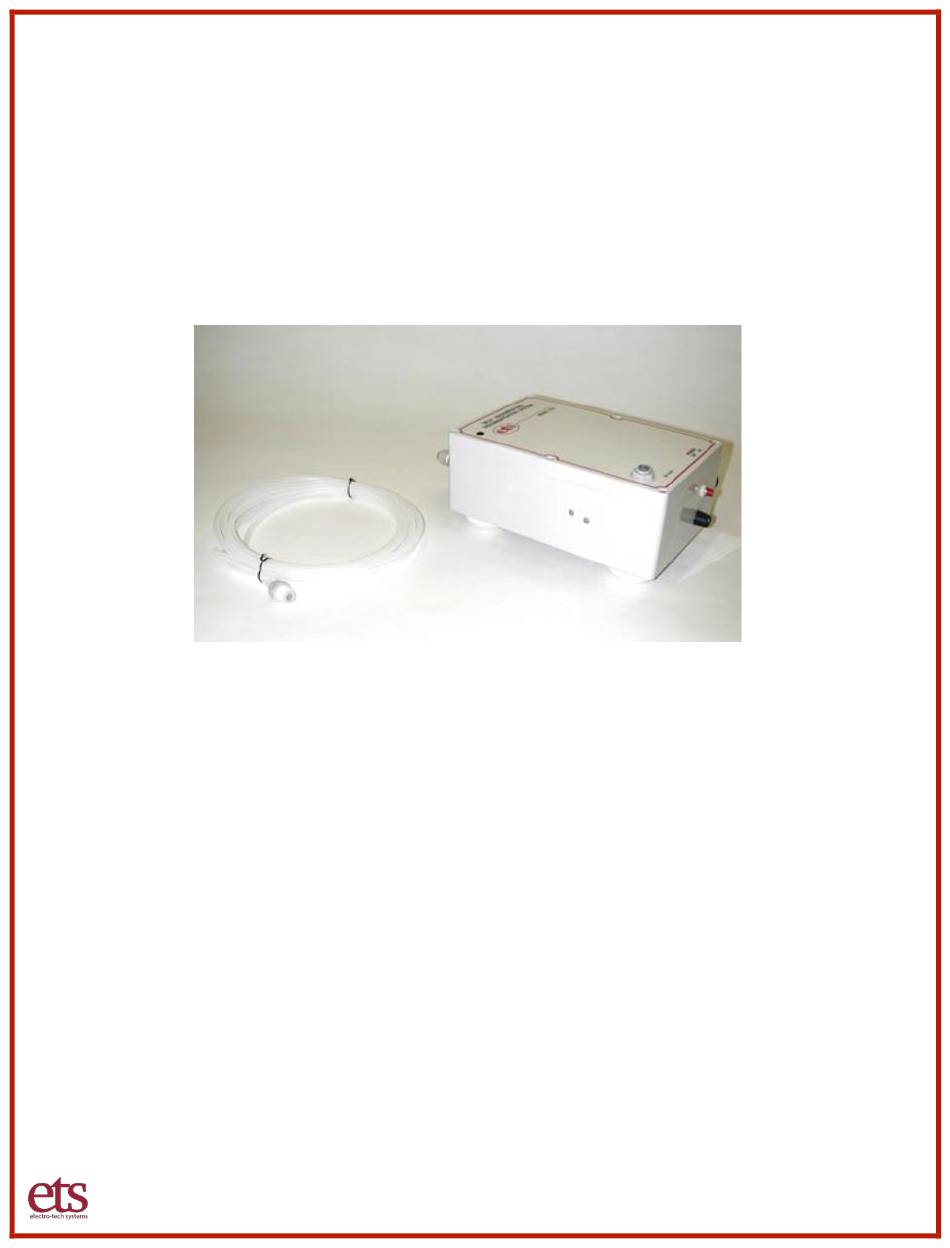

- Page 1 Self-Regenerating Dehumidification System Model 5478 Operating Manual D01602 Rev C - Page 1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Model 5478 Self–Regenerating Dehumidification System I. Important Safety Information ........................ 3 II. Description of Contents ........................4 III. SET-UP GUIDE ........................... 4 IV. Quick Start Guide ..........................6 V. Functionality ............................7 VI. Maintenance/ Troubleshooting ......................8 VII. -
Page 3: Important Safety Information
I. Important Safety Information SAFETY INSTRUCTIONS The equipment described in this Manual is designed and manufactured to operate within defined design limits. Any misuse may result in electric shock, equipment damage, or fire. To avoid injury and damage, the following rules should be observed for installation, use and maintenance. -
Page 4: Description Of Contents
II. Description of Contents The Model 5478 Self-Regenerating Dehumidification System is assembled in a 6” W x 9.5” L x 3.5” H (15.25 x 24.1 x 8.5 cm) plastic enclosure with vibration isolating feet. The power switch and indicator light are both located on the front panel of the enclosure. - Page 5 Step 3 – AC supply for circuitry Power cord #1 is on the left. This power source stays energized at all times, Power is supplied to the air dryer, (100VAC to 240VAC, single phase, 50- 60 Hz) Step 4 – Controlled AC power input Power cord #2 is on the right.
-
Page 6: Quick Start Guide
IV. Quick Start Guide Step 1 -- Turn the Power ON. Turn the power switch on the front panel to the right, or “ON” position. The dryer will begin operating immediately to produce dry air. Some sounds will be made by the mechanism –... -
Page 7: Functionality
3. The indicator light (on the front of the unit) indicates when the 3-way valve is “ON”. 4. The 5478 is a Positive Pressure System. The unit will cause a slight positive pressure in an enclosure if not adequately ventilated. -
Page 8: Maintenance/ Troubleshooting
V. Specifications 1. The average flow rate from the unit is 0.30 cfm (7.3 lpm) at 50 psi, 0.83 cfm at 100 psi. 2. The air will be dried to a minimum dewpoint of -40°F with a saturated input at 90°F. 3. -
Page 9: Warranty
VII. Warranty Limited Warranties. Seller warrants that all goods manufactured and delivered hereunder shall (a) conform to any samples, drawings, specifications or other written documents provided to Seller by Buyer, or approved by Buyer to Seller and (b) be free from all defects in workmanship and material. Buyer’s sole remedy against Seller for breach of either of the specifically mentioned warranty shall be the repair or replacement, at Seller’s sole option, of the defective workmanship or material.
