LEPULSE Lescale P1 User Manual

Hide thumbs Also See for Lescale P1:
Table of Contents

Advertisement

Quick Links

Download this manual
Smart Body Composition Scale
Lescale P1
User Manual (EN)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lescale P1 and is the answer not in the manual?

Questions and answers

Related Manuals for LEPULSE Lescale P1

Summary of Contents for LEPULSE Lescale P1

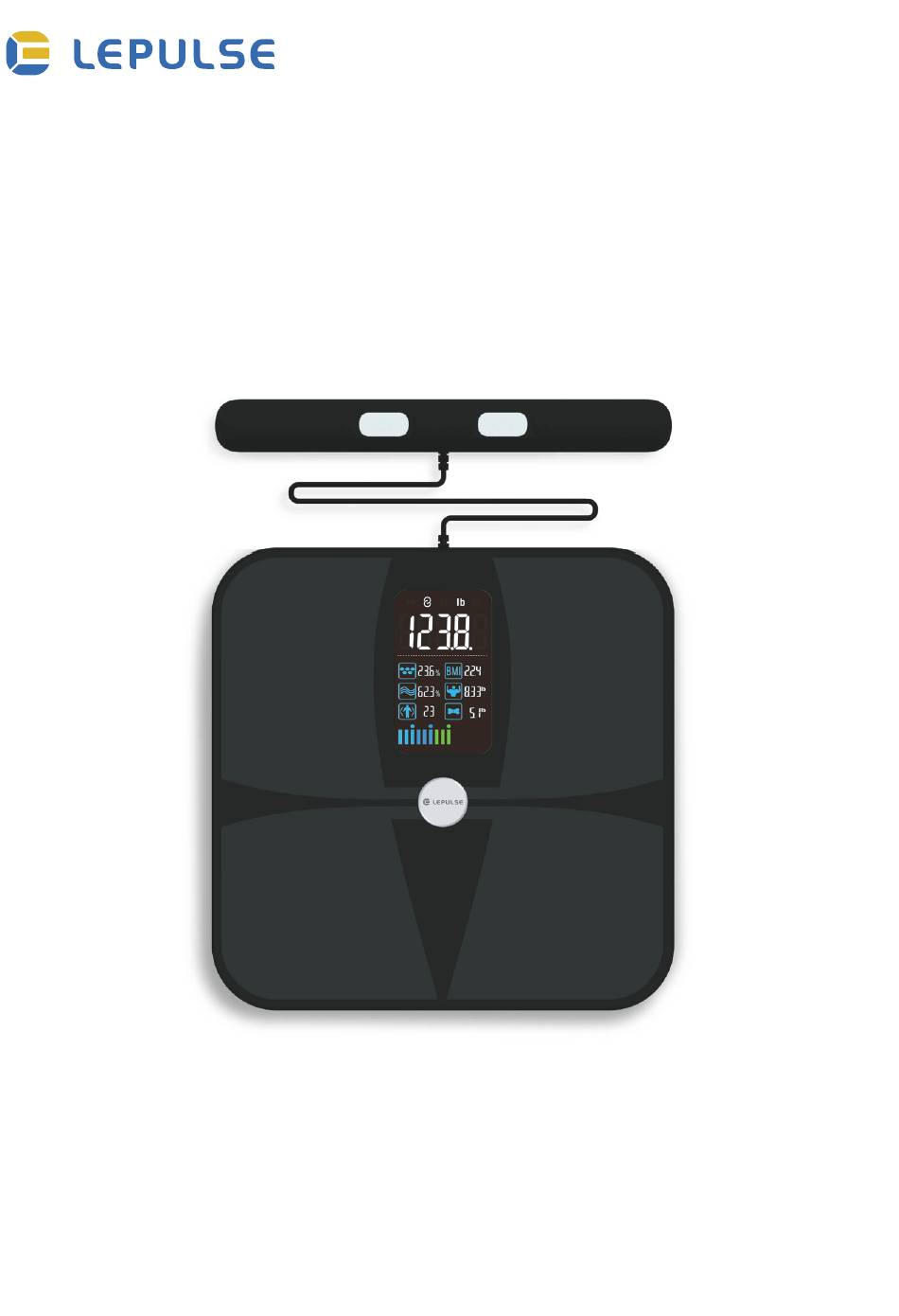

  • Page 1 Smart Body Composition Scale Lescale P1 User Manual (EN)
  • Page 2 ENGLISH...

  • Page 3: Product Specifications

    ENGLISH THANK YOU FOR YOUR PURCHASE! The Scale uses bio-electrical impedance analysis (BIA) technology to help you conveniently measure body weight, body fat rate, visceral fat, body water, skeletal muscle rate, muscle rate, muscle mass, bone mass, protein, BMR, body age and more.

  • Page 4: Product Overview

    PRODUCT OVERVIEW Measuring hand bar Thumb Electrodes Connecting wire Right Foot Left Foot Electrodes Electrodes USB Type-C charging port Fingers Electrodes Reset/Power button Sensor feet Sensor feet...

  • Page 5: Display Screen

    DISPLAY SCREEN Battery Bluetooth Weight units Weight Body fat rate BMI (Body Mass Index) Body water rate Muscle mass Body age Bone mass Body type assessment Note: The pictures shown in this manual are only for illustration. Please refer to the actual product for details.
  • Page 6 Power On the product 1. First time use： Long press the reset button Subsequent use: Start the machine with pressure, and the pressure must be greater than the minimum range of the scale (6kg). Download and Register App 1. Search for "Fitdays" on the App Store or Google Play, or scan the QR code in the user manual to download and install the Fitdays App.
  • Page 7 3.How to revise password： If you forget your password, go back to the login page, enter your email address, and select [I Forgot my password] Then click on [Send] and enter the verification code provided in the sent email within 15 minutes (note: The verification code is easily recognized as spam, please help check if the spam email has been received in a timely manner): If you want to change your current password, select [Account]>[Settings]>...
  • Page 8 Smart Body Fat Scale first time to pair App Bluetooth connection Attention: When the screen of the scale lights up, the Bluetooth of the scale is turned When the screen goes out, the Bluetooth of the scale end is turned o , and the APP cannot scan the device.

  • Page 9: Start Measurement

    START MEASUREMENT 1. Please place the scale on a hard and flat surface before measurement.Carpeted or uneven floor may a ect the accuracy of the weight measurement . (LescaleF6 can be used on carpet or uneven floor). 2. Calibration: Gently step on the scale to wake it up and wait until the scale displays “0.00”, which indicates that the calibration is completed((Remember to re-calibrate the scale if it has been moved).
  • Page 10 BIA MEASURING STEPS Step on the scale with your bare feet. Make sure that your feet are in full contact with the 4 electrodes. Make sure there is no contact between your left and right lower limbs (including thighs, calves and feet). Hold the handle with two hands ,make sure the thumb and other fingers cover the 4 electrodes evenly(especially pay attentions to the thumb electrodes),hands should not touch each other.Keep your arms straight at a 30-to 45-degree angle.
  • Page 11 HOW TO CHECK DETAILED BODY COMPOSITION DATA After the measurement is completed, the Measure interface will display the segmental Fat Standard ratio and Muscle standard ratio). Below will be a progress bar to assist users in understanding the status of goal achieve- ment;Next, 2-3 cards will be displayed, including information claim, the built-in heart rate measurement function of the APP, and analysis report card.
  • Page 12 HOW TO CHECK TREND GRAPHIC Enter[Charts] page to view 15 sets historical data trend graphic. HOW TO CHECK HISTORICAL DATA Tap [ Click to view all data] to view the specific measurement data by all day/Morn- ing/Afternoon/Evening. Click on any measurement data to view the specific body composition values for that measurement.
  • Page 13 DATA SHARING AND EXPORT Method 1: Measure interface ->click on the [Share] icon ->click on Save or Share. Method 2: Measure interface ->click on the "+" in the upper right corner ->Share ->click on Save or Share.
  • Page 14 Method 3: Charts interface -->click to view all data -->click on the measurement data you want to share -->click on the sharing icon in the upper right corner -->click on Save or Share. Trend sharing: Charts interface -->click on the report icon in the upper right corner -->click on the share.
  • Page 15 Professional body report sharing: Method 1: Measure interface ->Report icon below the progress bar ->Click on the share icon in the upper right corner ->Select Save to local or share.
  • Page 16 Method 2: Charts interface ->click to view all data ->click on the measurement data you want to share ->scroll down to the end ->click on Report printing ->click on the sharing icon in the upper right corner ->click on Save or Share. HOW TO SWITCH UNIT Switch on App：When scale is connected with APP：Account page -->...
  • Page 17 NOTE: 1.If the unit is changed on the APP side when the device is not connected to the APP, the device will only synchronize the unit when it successfully connects to the APP next time (i.e. if the device is in a non connected state when the unit is changed on the APP, and after the change, the device has not been connected to the APP, the unit of the device will not change accordingly).

  • Page 18: Baby Mode

    Baby Mode Baby Mode： Measuring page --> Make sure the user profile has been changed to testing baby --> Click upper right corner “+”--> Click Baby Mode --> weigh the adult alone --> hold the baby and weigh together --> View baby weight in the APP.

  • Page 19: Offline Measurement

    OFFLINE MEASUREMENT Prerequisites for offline measurement 1.The user has created correct personal information in the App and completed a measure- ment with the App connected, i.e. the user information is sent via the App and stored on the scale. 2.The scale can recognize the user, which requires the user's weight varies within ±2 kg. If the measured weight change is more than ±2 kg, connect to the App for measurement Offline measurement for multiple users Conditions for the scale to distinguish users: The weight di erence between users is...

  • Page 20: Other Settings

    OTHER SETTINGS Account --> Setting -->can change language /theme settings ,check frequently asked question in 【FAQ】 or send us a message ,ask for help in 【Help】. RECORD MANUALLY Measure Page --> Click upper left corner“+” --> Manual recording --> Type weight/B- WH/Height manually -->...
  • Page 21 THIRD PARTY APPS DATA SYNCHRONIZATION Fitdays can support data synchronization to 4 Apps : Apple Health,Google Fit,Fitbit and Samsung Health. Please see below data that can be synchronized to these 4 Apps: Weight Bodyfat Lean Body Mass Heart Rate Apple Health Googlefit Fitbit Samsung...
  • Page 22 Synchronized data: · Body Fat Percentage · Body Mass Index（BMI） · Heart Rate · Lean Body Mass · Weight Check data in Apple Health： 1.Check health data or edit to show which health data in “Summary”. 2.Click “Apps”in “Sharing”,find “Fitdays”and enter ,then you can check all synchronized data from “Fitdays”.
  • Page 23 3.In “Browse”, health data can be viewed by di erent categories.
  • Page 24 Fitbit data synchronization: According to steps 1-6 in the screenshot, when the setting is successful, the page will display "Sync Successful".

  • Page 25: Google Fit

    Check data in Fitbit： After setting successfully ,the test data will synchronize to Fitbit. Note:If Fitbit cannot receive data, please check the synchronized Fitbit account to see if it matches the actual Fitbit account being viewed. Google Fit Google Fit data synchronization...
  • Page 26 1.Enter “Setting” Page, Click “Google fit”. 2.Turn on the Google Fit switch and go to the Google Fit account selection page. 3.After selecting the account, the setup is successful. Check data in Google Fit: After setting successfully ,the test data will synchronize to Google Fit.
  • Page 27 Samsung Health data synchronization Follow the instruction as below in Samsung Health: 1.Enter “setting ” Page ,Click Samsung Health. 2.Turn on the Samsung Health switch and click “I got it”. 3.Authorize permissions and choose the data you want to synchronize in Samsung Health. Check data in Samsung Health After setting successfully , the test data will synchronize to Samsung Health.

  • Page 28: Need Help

    BRAUCHEN SIE HILFE | HO BISOGNO DI AIUTO | NECESITA AYUDA | BESOIN D'AIDE https://lepulsefit.com/pages/support Prolinx GmbH Brehmstr. 56, 40239 Duesseldorf Germany Telefon: 0049 211 3105 4698 Email: eu@eulinx.eu Prolinx Global LTD 27 Old Gloucester Street London, WC1N 3AX, UK Telefon: 0044 20 39661193 Email: eu@eulinx.eu seivice@lepulsefit.com...
