Summary of Contents for LEPULSE Lescale P3

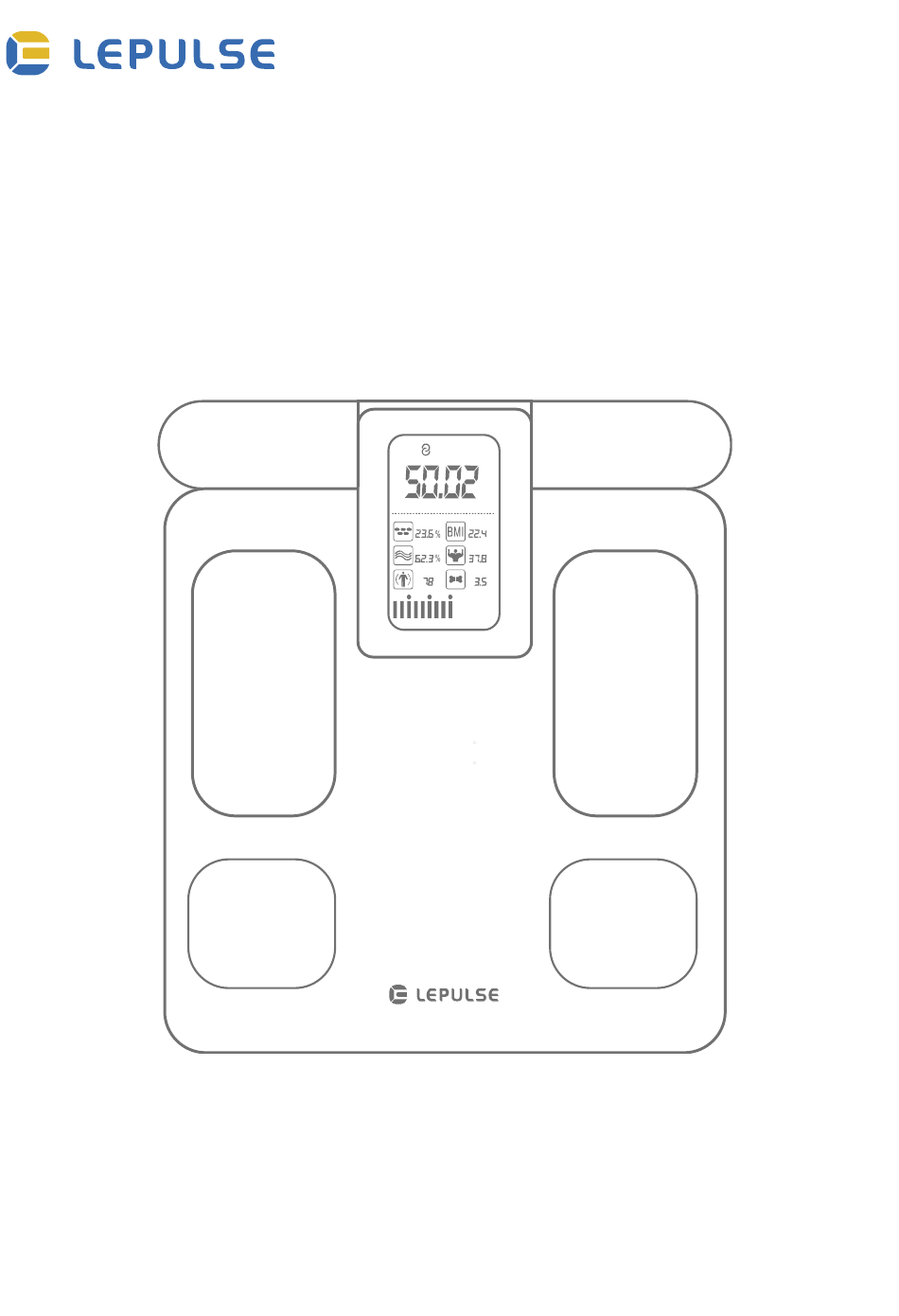

- Page 1 Smart Body Fat Scale Lescale P3 User Manual...
-
Page 2: Product Specifications
THANK YOU FOR YOUR PURCHASE! The Scale uses bio-electrical impedance analysis (BIA) technology to help you conveniently measure body weight, body fat rate, visceral fat, body water, skeletal muscle rate, muscle rate, muscle mass, bone mass, protein, BMR, body age and more. WARNING •... -
Page 3: Product Overview
PRODUCT OVERVIEW Measuring hand bar Electrodes Connecting wire Electrodes Electrodes USB Type-C charging port Electrodes Reset/Power button Sensor feet Sensor feet... -
Page 4: Display Screen
DISPLAY SCREEN Battery Bluetooth Weight units Weight Body fat rate BMI (Body Mass Index) Body water rate Muscle mass Body age Bone mass Body type assessment Note: The pictures shown in this manual are only for illustration. Please refer to the actual product for details. -
Page 5: Download And Install The App
POWER ON For first use Press the reset/power button or charge the scale to cancel the shipping mode and turn on the scale. Reset For subsequent use Press to wake the body composition scale. The pressure should be greater than the minimum range of the scale (5 kg). - Page 6 Enter personal information, including the gender, name, birth date, height, and weight. Tap [Done] to save. Note: Ensure that all the personal information is correct, since age, height, and gender will a ect the accuracy of the measurement results. Change the password. If you forget your password, go back to the login page, select [Forgot password?].
- Page 7 First Connection to the App Note: When the screen of the scale is on, the Bluetooth of the scale is enabled. When the screen is o , its Bluetooth is immediately disabled, and the App cannot find the device. Turn on the Bluetooth of the mobile phone and open the ViHealth App. For the Android system, you need to further enable the location.
-
Page 8: Start The Measurement
Start the Measurement Place the scale on a solid flat surface. Carpeted or uneven floors may a ect the accuracy of the measurement results. Calibration: Gently step on the scale to wake it up and wait until the scale displays “0.00”, which indicates that the calibration is completed (Remember to re-calibrate the scale if it has been moved). - Page 9 Keep your arms straight at a 30- to 45-degree angle. Arms should not be too Arms should be close to your body. straight. 30°-45° measure your weight. Keep the above measurement posture until all the data is displayed on the screen of the scale or the App prompts that the measurement is complete before getting o the scale.
- Page 10 View Detailed Data of Body Composition When the measurement is complete, the measured weight value, segmental fat analysis and muscle balance will be displayed. Swipe down to view the measured values of all body composition items. You can also select a specific indicator for its description and analysis. Tap [Report] to view and share body composition analysis report.
- Page 11 View the Trend Chart Enter [History] page to view the weekly/monthly/yearly trend chart of 15 physical indicators. View Historical Measurement Data Enter [History] page --> tap [More] --> select date range in months. All the measurement history of the selected date will be presented. Tap any measurement data to view the specific body composition value.
- Page 12 Compare Historical Measurement Data Enter [History] page --> tap [Compare] --> select two records--> tap [Compare]. The variation of multiple body composition items will be presented. Share and Export Data Share measurement data details Enter [History] page--> select the record to be shared --> tap in the upper right corner -->...
- Page 13 Share the professional report Enter [History] page--> select the record to be shared --> select [Report]--> tap in the upper right corner --> share the PDF as desired.
- Page 14 Switch the Unit When the device is connected to the App, choose [Profile] --> [Settings] --> [Unit] --> [Weight], and select your preferred unit. Note: If the unit is changed in the App when the device is not connected, the device unit will not be synchronized until it is successfully connected to the App next time.
-
Page 15: Baby Mode
Switch the user: Enter [History] page --> tap the avatar --> select the user. Note: Every new user needs to create his/her own user profile before measurement and ensure that the personal information is correct. Delete the user: Enter [Profile] page --> select [Users]--> select the user --> slide left (iOS) or long press (Android), and tap [Delete]. -
Page 16: Offline Measurement
Offline Measurement Prerequisites for offline measurement The user has created correct personal information in the App and completed a measurement with the App connected, i.e. the user information is sent via the App and stored on the scale. The scale can recognize the user, which requires the user's weight varies ±... -
Page 17: Other Settings
Other Settings Enter [Profile] page, you can check the [FAQ], leave a message for help in [Feedback], and adjust the language or dark mode in [Settings]. Manual Recording Enter [History] page --> tap + in the upper right corner -->select date, time, and weight -->... -
Page 18: Apple Health
Data Synchronization to Third-party APPs ViHealth supports data synchronization across two Apps -- Apple Health, Fitbit and Google Fit. The synced data items are as follows: Body fat Lean body mass Heart rate Weight Apple Health Fitbit Googel Fit Note: The feature is only for the primary user of the account. Apple Health Data synchronization Select [Turn On All]... - Page 19 In [Sharing], tap [Apps]. Select [ViHealth] to view the synced data of ViHealth . In [Browse], you can view health data by health items.
- Page 20 Fitbit Data synchronization View data The data in ViHealth will be synced to Fitbit when the setting is completed. Note: If Fitbit cannot receive the data, check whether the Fitbit account to be synced is the same as the Fitbit account you actually view.
-
Page 21: Google Fit
Google Fit Data synchronization Follow the on-screen instructions in ViHealth App to activate Google Fit. View data The measurement data in the ViHealth App will be synchronized to Google Fit when the setting is completed. -
Page 22: Troubleshooting
TROUBLESHOOTING Battery is low. Please plug in USB to charge. The scale is overloaded. More than 180kg is on the scale. The sensor is incorrectly zeroed. Place the device on a solid flat surface. The sensor cannot be zeroed. Replace the sensor. Accuracy problems Problem Possible Causes... - Page 23 Take your measurements at the The time of measurement, same time every day to due to normal human minimize the deviation caused metabolism, can cause a by natural laws. It is difference of about 1.5kg recommended to take in a person's weight measurements after getting up between morning and or before going to bed with less...
-
Page 24: Measurement Problems
Incorrect personal The calculation of the user's body information (age/height/ composition data involves the gender). user's age, gender and height. To ensure the accuracy of the measurement results, please enter the correct age, gender and height. Measurement problems Problem Possible Causes Solution Description The user must measure with bare... -
Page 25: Connection Problems
Conditions for distinguishing the user during offline measurement: The user's weight varies within The user's weight varies too 2 kg, otherwise the user needs to ± much (greater than 2 kg) ± connect to the App for for the scale to recognize measurement (If the scale cannot the user. - Page 26 Please make sure you allow the App to use the mobile network or The App is disabled to use WiFi for later pairing and using. the network. This is because a server connection is required to store the data in the cloud. When the screen of the scale is on, the Bluetooth of the scale is enabled.
-
Page 27: Power-On Problems
Unit problems Problem Possible Causes Solution Description Switching the unit with the App: The unit When the device is connected to The user does not know cannot be the App, choose [Profile] --> how to switch the unit. switched. [Settings] --> [Unit], and select your preferred unit. -
Page 28: Fcc Statement
FCC STATEMENT FCC Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference... -
Page 29: Need Help
NEED HELP https://lepulsefit.com/pages/support Prolinx GmbH Brehmstr. 56, 40239 Duesseldorf Germany Telefon: 0049 211 3105 4698 Email: eu@eulinx.eu Prolinx Global LTD 27 Old Gloucester Street London, WC1N 3AX, UK Telefon: 0044 20 39661193 Email: eu@eulinx.eu www.lepulsefit.com seivice@lepulsefit.com...
