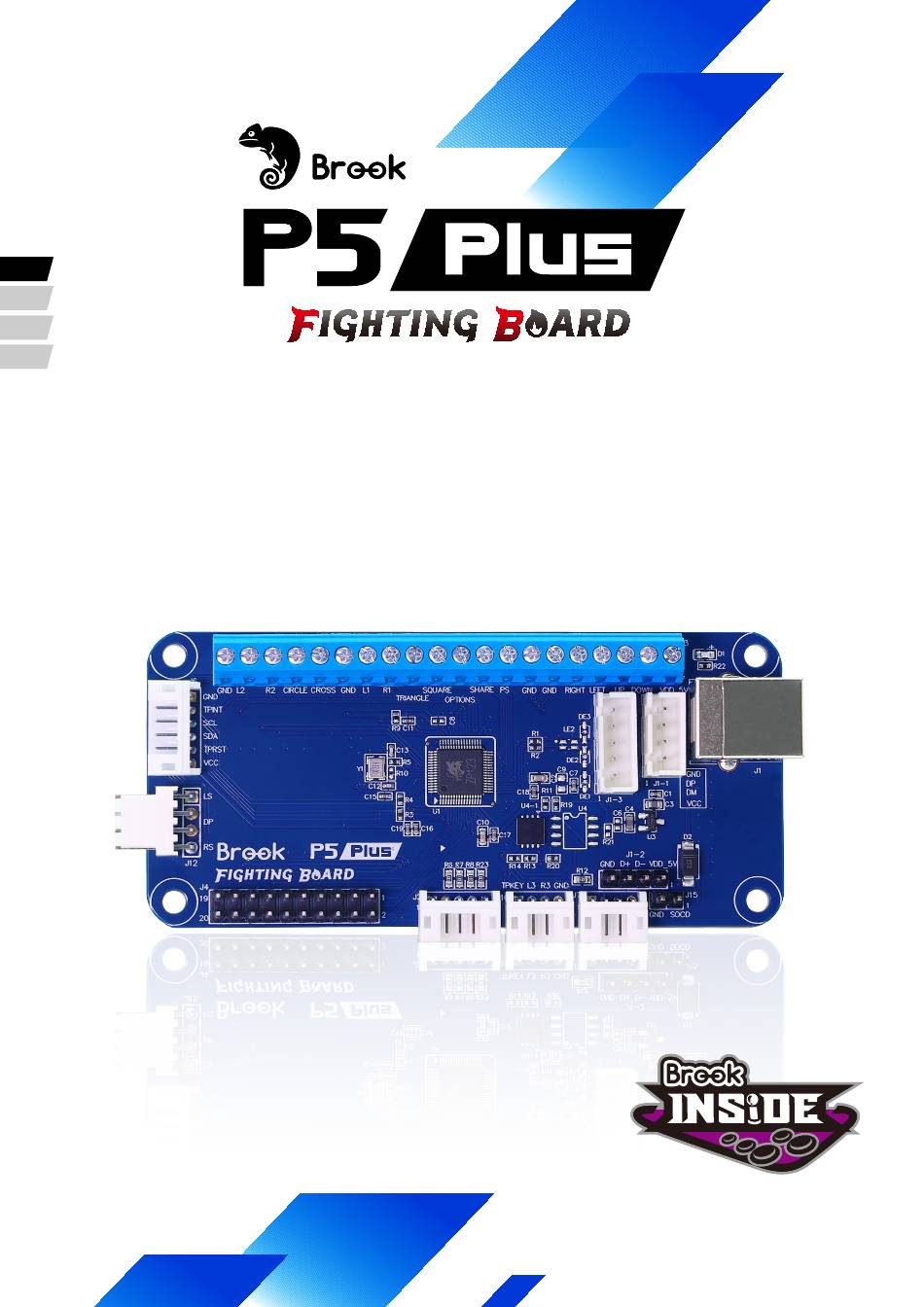

  • Page 1 User Guide User Guide © Brook All Rights Reserved. © Brook All Rights Reserved. www.brookaccessory.com www.brookaccessory.com...
  • Page 2 How to connect D‒ D‒ VDD_5V VDD_5V TURBO PLAYER TURBO TOUCH PAD...
  • Page 3 J1/J1-1/J1-2/J1-3 USB connector Choose one USB interface with a corresponding USB extension cable for the connection. J1-3 J1-1、J1-2 Black Green White D‒ VDD_5V D‒ VDD_5V * Please double-check whether the corresponding pin order is correct. Improper connection may cause the fighting board to burn.
  • Page 4 Basic button conguration Nintendo PCB De ne (X input) Switch Stick in DP Mode D-Pad D-Pad D-Pad D-Pad □ □ △ △ × × ○ ○ LTSB RTSB Create Share Back Minus SELECT Options Options Start Plus START Stick in LS Mode Stick in LS Mode Stick in RS Mode Stick in RS Mode...
  • Page 5 J2 Player LED Guide...
  • Page 6 Console manual selection The P5 PLUS FIGHTING BOARD support manual selection of PS5 , PS4 , PS3 , Switch. Manual Mode DOWN Step.1 Press button. = PS3 = PS4、PS5 = PC = Switch Step.2 While Pressing connect ghtstick to PC / Console * When uses manual mode, the device mode will be saved automatically.
  • Page 7 SOCD Mode Switching Tutorial Simultaneous Opposing Cardinal Directions. 1. Default setting is mode 1 2. SOCD will be automatically saved Switch method Please hold down the corresponding button first, then insert the power cable into the console to switch modes. Mode 3 Mode 4 Mode 1...
  • Page 8 Touchpad Emulate Touch Pad Key SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT DOWN 2K/O/B 1K/X/A Hold the controller stick to the left, then press Touch Pad Key. Touch Pad Key SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT DOWN...
  • Page 9 Use combination keys to set stick control mode OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT DOWN 2K/O/B 1K/X/A Press and hold START and UP for three seconds. OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT...
  • Page 10 Visit our website for more information and assistance. ©2024 Zeroplus Technology Co., Ltd. All Rights Reserved. Brook is the registered trademark of Zeroplus Technology Co., Ltd. The other trademark names are the used marks, trademarks or registered trademarks of the corresponding companies.
