User Guide

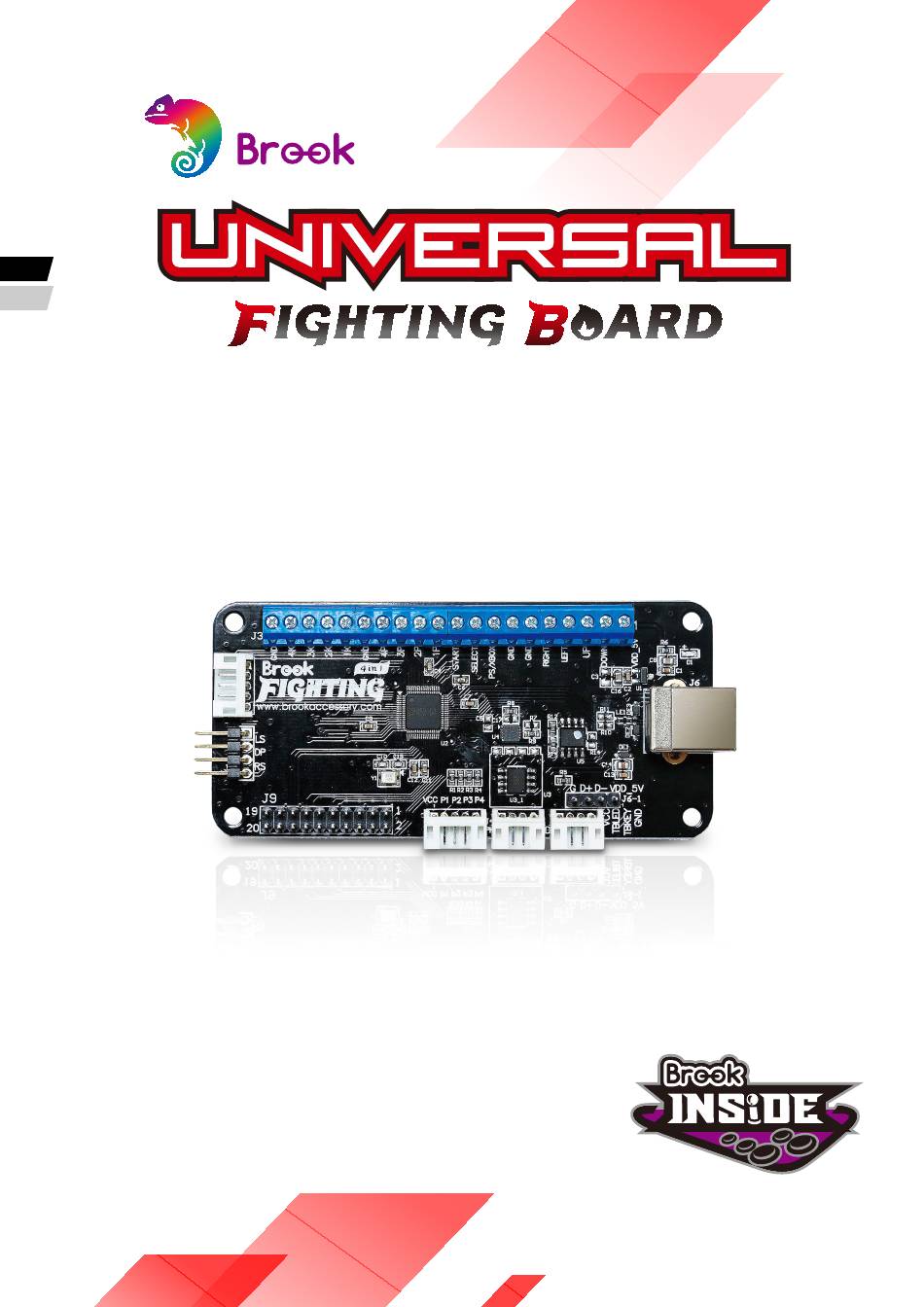

The Universal Fighting Board features a
low-latency design and supports various
models, including Xbox Series X|S, Xbox One,
Xbox 360, PS5 for playing PS4 games, PS4,
PS3, PC, Wii U, Switch, PS Mini, NeoGeo Mini,
and MD mini. It's a multi-platform
compatible universal fighting board.
© Brook All Rights Reserved.
www.brookaccessory.com
Advertisement
Related Manuals for Brook Universal Fighting Board
Summary of Contents for Brook Universal Fighting Board
- Page 1 User Guide The Universal Fighting Board features a low-latency design and supports various models, including Xbox Series X|S, Xbox One, Xbox 360, PS5 for playing PS4 games, PS4, PS3, PC, Wii U, Switch, PS Mini, NeoGeo Mini, and MD mini. It's a multi-platform compatible universal fighting board.
- Page 2 How to connect the keys SHARE OPTIONS SELECT HOME START BACK Power 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT 2K/O/B 1K/X/A DOWN J6-1 DP MODE RS MODE LS MODE TURBO TURBO PLAYER TOUCH PAD KEY L3/LSB R3/RSB SELECT BACK...
-
Page 3: Short Circuit
J2 SOCD resolution mode selection Mode 0: LR Cancel & Up Priority (Default) Mode 1: Second-Input Priority (SIP) Mode 0 Mode 1 Open circuit Short circuit J5 Player LED Guide LED ON LED OFF Player Xbox One Xbox 360... - Page 4 J6 - 1 Detail Black Green White J8 Turbo function setting Hold down the turbo button, then press the button for the function you want to set or cancel. The following buttons can be set to the Turbo function： 1P、2P、3P、4P、1K、2K、3K、4K、L3、R3 J9 Detail...
-
Page 5: Manual Mode
Console manual selection The Brook UNIVERSAL FIGHTING BOARD PCB support manual selection of PS5,PS4, PS3, Xbox One, Xbox 360 mode and Wii U / Switch, suggest be set to Xbox 360 mode on PC. Manual Mode DOWN Step.1 Press button. - Page 6 Visit our website for more information and assistance. ©2023 Zeroplus Technology Co., Ltd. All Rights Reserved. Brook is the registered trademark of Zeroplus Technology Co., Ltd. The other trademark names are the used marks, trademarks or registered trademarks of the corresponding companies.
- Page 7 使用者指南 Universal Fighting Board 擁有低延遲設計， 並支援 Xbox Series X|S/ Xbox One/ Xbox 360/ PS5 玩 PS4 遊戲 / PS4/ PS3/ PC/ Wii U/ Switch/ PS Mini/ NeoGeo Mini/ MD mini 多種型號， 是一款多平台支援的萬能格鬥板。 © Brook All Rights Reserved. www.brookaccessory.com...
- Page 8 如何連接 SHARE OPTIONS SELECT 接地線 HOME START BACK 電源線 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT 2K/O/B 1K/X/A DOWN J6-1 DP MODE RS MODE LS MODE TURBO TURBO PLAYER TOUCH PAD KEY L3/LSB R3/RSB SELECT BACK...
- Page 9 J2 SOCD 方向衝突判定模式選擇 Mode 0: ( 默認 ) 方向左右衝突時，判定取消輸出。 方向上下衝突時，輸出方向為上。 Mode 1: 任意方向衝突時，輸出最後按下的按鈕方向。 Mode 0 Mode 1 Open circuit Short circuit J5 玩家燈號顯示指南 LED ON LED OFF Player Xbox One Xbox 360...
- Page 10 J6 - 1 配線圖 Black Green White J8 連發功能設定 按住連發設定鈕 , 然後按下您要設定或取消連發功能的按鈕。 以下按鈕可以設置 Turbo 功能： 1P、2P、3P、4P、1K、2K、3K、4K、L3、R3 J9 引腳名稱...
- Page 11 手動選擇模式 可手動設定 PS5/PS3 / PS4 / Xbox 360 / Xbox One / Wii U / PS classic / MD mini，在 PC 上建議選用 Xbox 360 模式。 手動模式操作步驟 DOWN 步驟 按住不放。 = PS3 = Wii U - Pokken Tournament = PS4, PS5 = Original Xbox = Xbox 360 = PS Classic...
- Page 12 Brook Gaming www.brookaccessory.com 欲了解更多詳情，請訪問我們的官方網站 ©2023 Zeroplus Technology Co., Ltd. All Rights Reserved. Brook is the registered trademark of Zeroplus Technology Co., Ltd. The other trademark names are the used marks, trademarks or registered trademarks of the corresponding companies. 202309V2.1...
