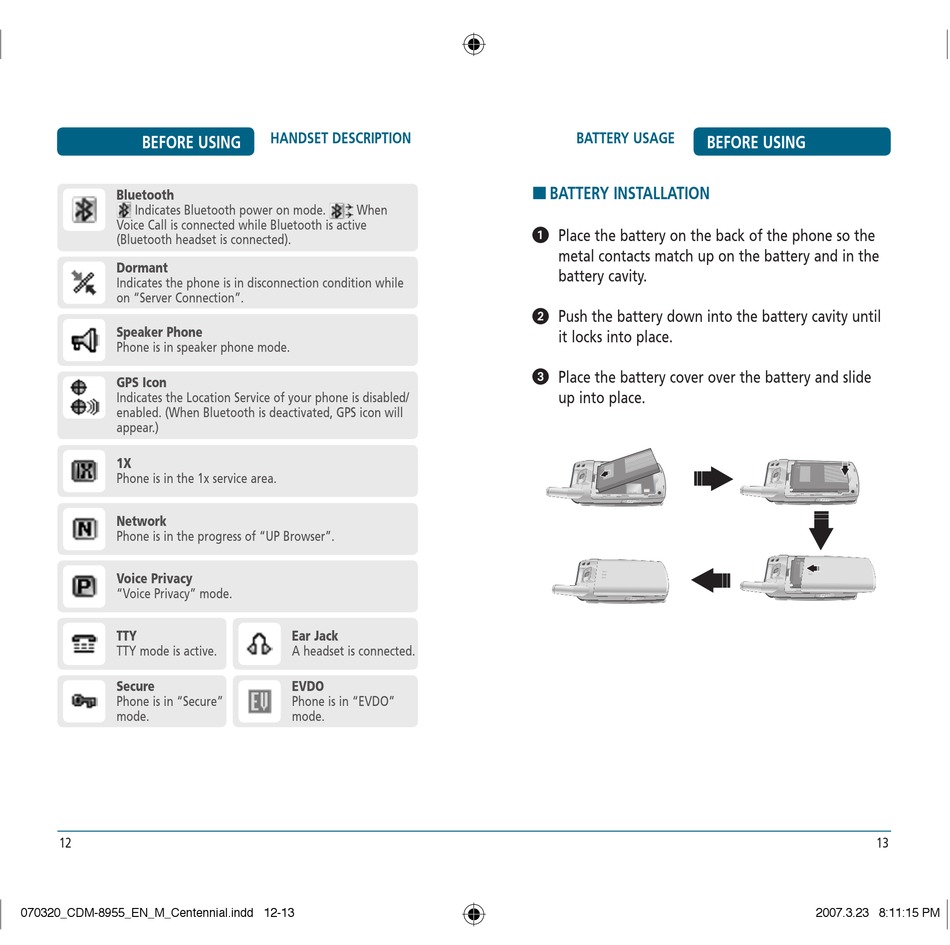

Battery Usage; Battery Installation - UTStarcom CDM8955 User Manual

BEFORE USING
Bluetooth
Indicates Bluetooth power on mode.
Voice Call is connected while Bluetooth is active
(Bluetooth headset is connected).
Dormant
Indicates the phone is in disconnection condition while
on "Server Connection".
Speaker Phone
Phone is in speaker phone mode.
GPS Icon
Indicates the Location Service of your phone is disabled/
enabled. (When Bluetooth is deactivated, GPS icon will
appear.)
1X
Phone is in the 1x service area.
Network
Phone is in the progress of "UP Browser".
Voice Privacy
"Voice Privacy" mode.
TTY
TTY mode is active.
Secure
Phone is in "Secure"
mode.
12
HANDSET DESCRIPTION
When
Ear Jack
A headset is connected.
EVDO
Phone is in "EVDO"
mode.

BATTERY USAGE

H BATTERY INSTALLATION
 Place the battery on the back of the phone so the
metal contacts match up on the battery and in the
battery cavity.
 Push the battery down into the battery cavity until
it locks into place.
 Place the battery cover over the battery and slide
up into place.
BEFORE USING
13
