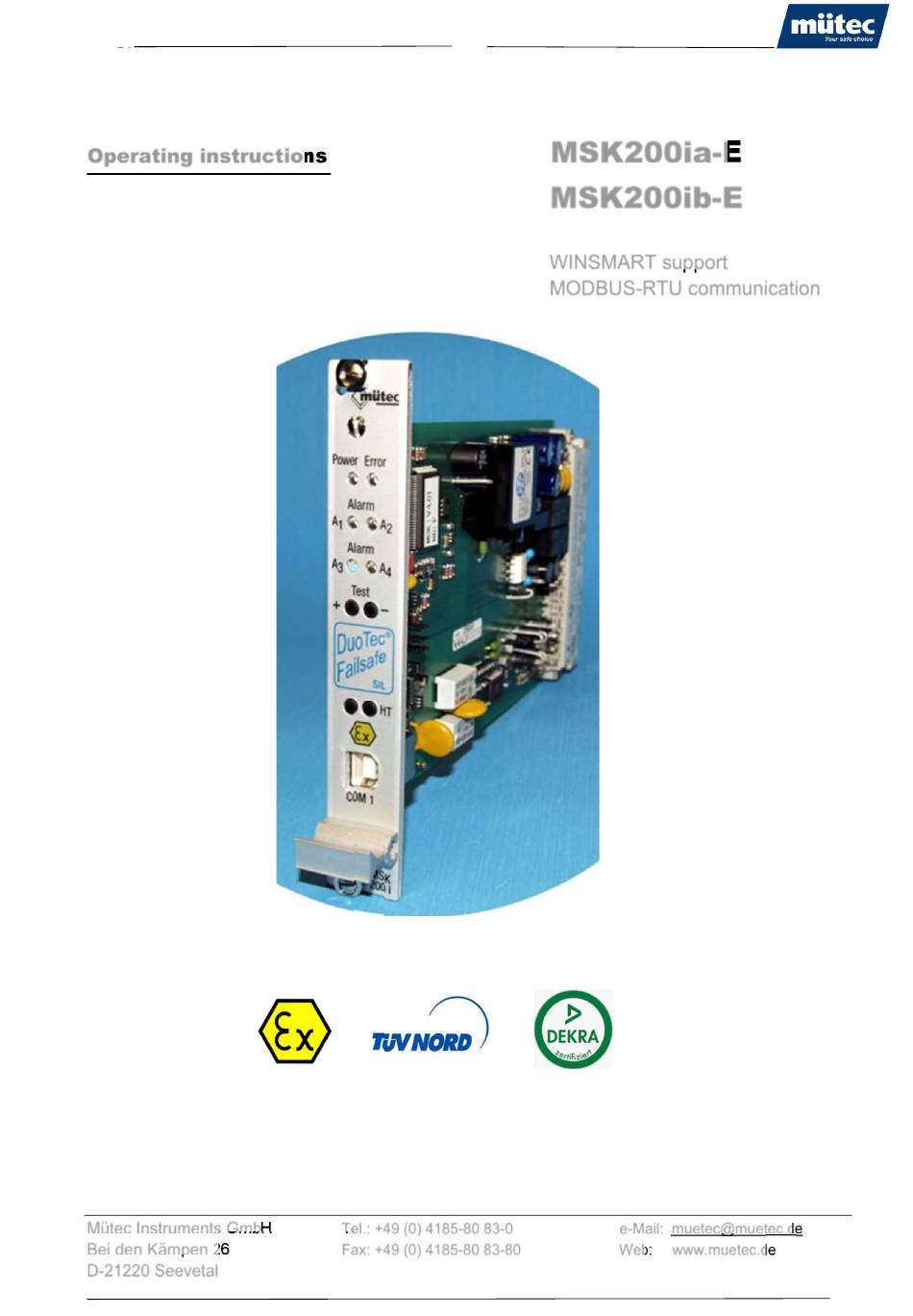

- Page 1 1/2024 MSK200ia-E Operating instructions MSK200ib-E WINSMART support MODBUS-RTU communication Mütec Instruments GmbH Tel.: +49 (0) 4185-80 83-0 e-Mail: muetec@muetec.de Bei den Kämpen 26 Fax: +49 (0) 4185-80 83-80 Web: www.muetec.de D-21220 Seevetal...
- Page 2 1/2024 Operating instructions for MSK200ia-TE-SIL, MSK200ib-TE-SIL WINSMART support from MTP200 version 4.0 MODBUS-RTU communication Publication no.: BA 157 Date of issue: 1/2024 Manufacturer: Mütec Instruments GmbH Bei den Kämpen 26 21220 Seevetal Germany Tel: +49 (0) 4185 8083-0 Fax: +49 (0) 4185 808380 e-mail: info@muetec.de Internet: www.muetec.de License, trademark and copyright notices...
-
Page 3: Table Of Contents
1/2024 Table of contents Table of contents ............................Safety regulations and instructions............installation ....... Classification of the safety instructions ....................General information ..........................Introduction ..............................1.0 General information for installation and operation ................ 2.0 Technical features ..........................3.0 ATEX relevant data .......................... -
Page 4: Safety Regulations And Installation Instructions
1/2024 Safety regulations and instructions Follow the instructions for installation: Note: Installation, operation and maintenance may only be carried out by qualified personnel. The applicable safety guidelines (including the national safety guidelines), accident prevention regulations and general technical regulations must be observed when installing and operating the appliance. -
Page 5: Classification Of The Safety Instructions
1/2024 Classification of the instructions This manual contains instructions that you must observe for your personal safety and to prevent damage to property. The instructions are highlighted by a warning triangle and shown as follows, depending on the degree of danger. DANGER means that death or serious bodily injury will occur, if the appropriate precautions are not taken. -
Page 6: General Information
1/2024 General information This appliance has left the factory in a technically safe condition. In order to maintain this condition and to ensure safe operation of the appliance, the instructions and warnings given in these operating instructions must be observed by the user. NOTE For reasons of clarity, these instructions do not contain all detailed information on all types of the product and cannot take into account every conceivable case of installation, operation or... -
Page 7: Introduction
1/2024 Introduction MSK200ia-E, MSK200ib-E Transmitter supply unit Performance features: ® DuoTec system (2 controllers with mutual monitoring) Failsafe technology for self-monitoring HART signal connection to the supply circuit 4 A/D converters (24-bit, 12-bit and 10-bit) 1 D/A converter (15-bit) 5 Self-monitoring circuits... -
Page 8: General Information For Installation And Operation
1/2024 General information for installation and operation Labeling according to Directive 2014/34/EU: 0158 II (2) G Checkpoint Device group Associated equipment with external circuits for connection to category 2 devices for explosive mixtures of air and flammable substances Gases, vapors or mists Marking of the type of protection: [Ex ia Ga] IIC associated electrical operating... -
Page 9: Installation And Commissioning
1/2024 A "HART" socket is available on the front panel for connecting an intrinsically safe HART terminal for parameterization or for testing a connected 2-Lt. transmitter. The maximum permissible ambient temperature range of -20 °C to +70 °C must not be exceeded or undershot. -
Page 10: Atex Relevant Data
24V AC/DC supply with undervoltage cut-off 3.0 ATEX relevant data Ex certificate BVS 08 ATEX E 124 II (1) G [Ex ia] IIC for MSK200ia-E II (2) G [Ex ib] IIC for MSK200ib-E Conformity EN IEC 60079-0:2018 General requirements EN 60079-11:2012 Intrinsic safety "i"... -
Page 11: Error States And Error Signaling
4 mH Intrinsically safe mA input circuit (contacts d/z30 and d/z32) Protection level Ex ia IIC for MSK200ia-E or Ex ib IIC for MSK200ib-E for connecting an intrinsically safe circuit with the following maximum values: Tension 30 V... -
Page 12: Technical Data
1/2024 mA/supply Alarm value or lim-prio, parameterizable: current circuit: Permanent Frozen value automatically up to 22 mA MAX signal over- light from transgression limit Transmitter- Alarm value lim-prio, with ≥ 20 % Power supply Permanent automatically deviation from circuit light Instantaneous from faulty... - Page 13 1/2024 CONTACT OUTPUTS (REL1, REL2), TRANSISTOR OUTPUTS (DA1, DA2) For devices with intrinsically safe circuits, the contact and transistor outputs may only be used for devices with operating voltages below 250 V! The alarm statuses are indicated by yellow LEDs! Number of alarms: 4 independently adjustable limit values Setting:...
-
Page 14: Supply Voltage
1/2024 SUPPLY VOLTAGE Supply voltage display: green LED signals good status Supply voltage range: 19 ... 30 VDC or 18 ... 28 VAC Power consumption Power supply isolator: 1.6 W (at 24VDC and 4 mA in the analog output) 2.1 W (at 24VDC and 20 mA in the analog output) mA isolating amplifier: 1.1 W (at 24VDC and 4 mA in the analog output) 1.4 W (at 24VDC and 20 mA in the analog output) - Page 15 1/2024 ASSEMBLY The appliance may only be installed outside a potentially explosive atmosphere! Design: 19" Eurocard with 4 HP front panel Protection class: IP20 is prescribed Installation: For the required degree of protection, the device must be installed in an assembly group carrier or an appropriate housing;...
-
Page 16: Configuration Protocol
1/2024 5.1 Configuration protocol The WINSMART command "Export configuration" can be used to create a log (xxx.csv) with all device parameters for each device. The specific identifiers are the device address, the tag no., the serial no. and the version no. of the software. All parameters for input, mA output and the relay/transistor outputs are documented. -
Page 17: Calculation Of The Maximum Line Resistance For The Analog Output
1/2024 Calculation of the max. line resistance for the analog output Data of the analog output (AA) for constant current: Max. Range: 0...22 mA Standard range: 0/4-20 mA Load: max. 500 Ohm at 20 mA Accuracy: 0.02 % of the final value Burden influence: <0,005 % The maximum load for the analog output is the sum of the resistances of the forward and return... -
Page 18: Block Diagram
1/2024 5.3 Block diagram 5.4 Jumper settings Jumper JP1 - JP3: These jumpers can be used to switch the analog output from constant current (mA) to voltage (V). -
Page 19: Hart Terminal Connection
1/2024 HART terminal connection HART terminal connection on the supply circuit HART terminal connection at the HART socket...
