Astor CTX2-CP
Height Adjustable Changing and Showering Table
Installation and User Guide
50.036.80.0002 (Rev1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astor CTX2-CP and is the answer not in the manual?

Questions and answers

Summary of Contents for Astor-Bannerman Astor CTX2-CP

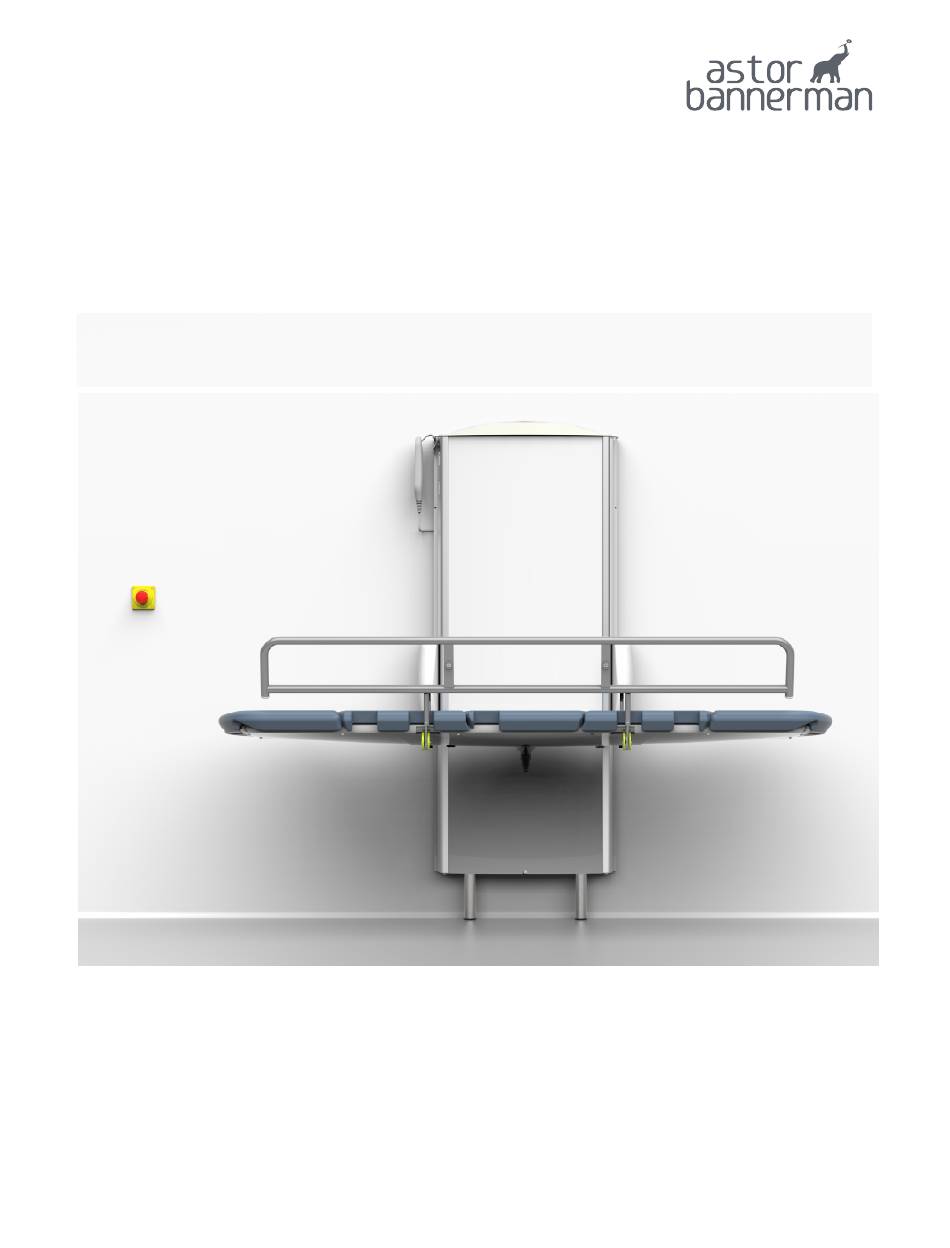

  • Page 1 Astor CTX2-CP Height Adjustable Changing and Showering Table Installation and User Guide 50.036.80.0002 (Rev1)
  • Page 2: Table Of Contents

    Contents Introduction ..............................3 Product labels.............................. 4 Warranty ..............................6 Caution, safety information & checks ....................7 Standard symbols ........................7 General safety ..........................9 EMC declaration ........................10 Regular checks ......................... 11 Finding your way round the product ..................... 12 Quick guide to operation ........................
  • Page 3: Introduction

    I I n n t t r r o o d d u u c c t t i i o o n n 1 Introduction The Astor CTX2-CP height adjustable changing table is the ultimate wall mounted showering and changing table offering features to give an enhanced changing and showering experience S S e e c c t t i i o o n n 1 1 with ensured comfort and safety.
  • Page 4: Product Labels

    Product labels 2 Product labels The labels shown below are labels that will be placed on your CTX2-CP. An explanation of all symbols found on our products can be found in Section 4. The reference number shown identifies the model of your product. For the variants of the CTX2-CP see page 5.
  • Page 5 Product labels CTX2 variants Reference No Product 00.036.17.1528 CTX2-CP Changing Table, Height Adjustable, 1500mm, Front Guard CTX2-CP Changing Table, Height Adjustable, 1500mm, Front Guard, 00.036.17.1529 LH End Guard CTX2-CP Changing Table, Height Adjustable, 1500mm, Front Guard, 00.036.17.1530 RH End Guard CTX2-CP Changing Table, Height Adjustable, 1500mm, Front Guard, 00.036.17.1531 RH End Guard, LH End Guard...
  • Page 6: Warranty

    Warranty 3 Warranty Once registered, this product has a 3 year warranty against all defects in manufacture of the product. This does not affect your statutory rights. To validate your warranty and for full terms and conditions, please register your product and your details immediately: online at: www.astorbannerman.co.uk/services email our support team: support@astorbannerman.co.uk...
  • Page 7: Caution, Safety Information & Checks

    Caution, safety information & checks 4.1 Standard symbols Below are some common symbols used throughout this document and on the product labelling. This product is UKCA Marked and is certifi ed to BS EN 60601-1:2006+A12:2014 Medical electrical Equipment General Requirements for Basic Safety and Essential Performance, and to BS EN 60601-1-2:2015 for EMC. It also complies with Supply of Machinery (Safety) Regulations 2008, Electrical Equipment (Safety) Regulations 2016, BS EN 349:1993+A1:2008 Minimum gaps to avoid crushing parts of the human body, ISO 10535 Hoists for the transfer of disabled persons, ISO 17966 Assistive products for personal hygiene that support users and BS EN 62262.
  • Page 8 Caution, safety information & checks 4.1 Standard symbols (cont.) Parts of this product can be recycled. Parts of this product must be separated when being disposed of. The battery used in this product contains Lead. Details of product manufacturer. Symbol indicated the date of manufacture. This product has been tested for water ingress in accordance with IPX4.
  • Page 9: General Safety

    C C a a u u t t i i o o n n , , S S a a f f e e t t y y i i n n f f o o r r m m a a t t i i o o n n a a n n d d C C h h e e c c k k s s S S e e c c t t i i o o n n 4 4 .
  • Page 10: Emc Declaration

    Caution, safety information & checks 4.3 EMC declaration The CTX2-CP changing table has been tested for compliance to EN 60601-1-2:2015 and is intended for use in the electromagnetic environments specified below. The responsible organisation should assure that it is used in such an environment.
  • Page 11: Regular Checks

    Caution, safety information & checks 4.4 Regular checks Please note that the cover must be removed to complete servicing tasks (this includes all annual tasks) which must only be done by a qualifi ed person. DO NOT carry out these checks or service this changing table when a person is lying on the stretcher.
  • Page 12: Finding Your Way Round The Product

    Finding your way around the product 5 Finding your way round the product Power light indicator Handset label Front cover label Light Front cover End guard LH (optional) Handset Front guard Emergency Gas spring cover stop Stretcher Drain End guard RH (optional) Pads Water collection tray...
  • Page 13: Quick Guide To Operation

    Quick guide to operation 6.1 Daily checks Carry out the following checks daily before using the changing table: • Check the weight of the user and ensure the equipment is rated for the weight to be lifted. • Check the mains electrical supply is connected and turned on, see indicator light information Section 6.4.
  • Page 14: How To Stow The Stretcher

    Quick guide to operation 6.3 How to stow the stretcher The changing table is securely held in the stowed position by gas springs. There is no release mechanism to operate before deploying the stretcher. To move the bed from the stowed position: •...
  • Page 15: Check The Status Of The Changing Table

    Quick guide to operation Astor Invincible 6.4 Check the status of the changing table The changing table has two indicator lights at the side of the main unit. (Fig 6.4a) 6.3 Check the status of the changing table The top indicator light will illuminate green when there is power to the device. The light on the bottom will show the status of the battery.
  • Page 16: Adjusting The Height Of The Changing Table

    Quick guide to operation 6.5 Adjusting the height of your changing table • The changing table is operated using the handset. (Fig 6.5a/b) • The handset buttons will raise or lower the changing table to the desired height. • The handset button with a light symbol will turn the integrated light on and off. •...
  • Page 17: Using The Front Guard

    Quick guide to operation 6.6 Using the front guard The CTX2-CP changing table has a front guard and optional end guards. ACTION: Always deploy the front guard before moving the changing table with a person on the stretcher. To deploy guard into place: Fig 6.6a •...
  • Page 18: Optional Extra - Using The End Guards

    Quick guide to operation 6.7 Optional extra - using the end guards The CTX2-CP changing table has optional end guards. To deploy the end guard into place: • Pull the black index plunger to release the locking pin. • Rotate end guard to highest position. •...
  • Page 19: Cleaning & Care

    Cleaning & care 7 Cleaning & care The Astor CTX2-CP should be regularly cleaned and must be cleaned between users to prevent the risk of cross contamination of infection. Cleaning: • Before cleaning, try a small test fi rst in an inconspicuous area with the cleaning agent you are proposing to use.
  • Page 20: Troubleshooting

    Troubleshooting 8 Troubleshooting Problem: The stretcher won't move up or down Suggestion: Check if the emergency stop has been activated, to release turn the emergency stop button clockwise. Check that the mains power supply is switched on. Check that you are using the correct button for the direction of your choice.
  • Page 21: Technical Specification

    Technical specification 9 Technical specification AC input 110VAC-240VAC, 50/60Hz, 382VA Power supply Class I power supply Applied part Applied part type 'B' Lead acid battery/ "non-spillable" Input 30V - Output 24V Battery specification Supplier reference - TiMotion (TBB2-4307-001) Battery model TiMotion TBB2 1.2A Fuses 5Amp fuses (External to the device, part of the mains supply system)
  • Page 22: Overall Dimensions

    Overall dimensions 10 Overall dimensions Fig 10a Fig 10b 50.036.80.0002 (Rev1)
  • Page 23: Pre-Installation

    Pre-installation 11 Pre-installation Before your CTX2-CP can be installed, the wall and mains electrical supply must have been prepared as set out below. Pre-installation works should be carried out by a competent and qualifi ed professional in compliance with local and national building code standards. •...
  • Page 24 Pre-installation Fig 11.1 Preparing the wall 50.036.80.0002 (Rev1)
  • Page 25: Fitting The Emergency Stop & Switched, Waterproof, Flex Outlet

    Pre-installation Astor Invincible 11.2 Fitting the Emergency Stop & Switched, Waterproof, Flex outlet 11.2 Fitting the emergency stop & switched, waterproof, flex outlet The provided Emergency Stop must be fitted at the position shown in Figure 11.2. • The provided emergency stop must be fitted at the position shown in Fig 11.2. ·...
  • Page 26: Finish The Pre-Installation & Checks

    Pre-installation 11.3 Finished pre-installation & checks • The finished pre-installation should appear like Fig 11.3. • Drywall/plasterboard is fitted to appear flush with the marine plywood. This wall can then be blended/painted so to appear as a finished wall. Fig 11.3 Fixing points of SBU Checks: •...
  • Page 27: Installation

    Installation 12 Installation The CTX2-CP must be installed by a competent and qualified technician in compliance with local and national building code standards. Ensure that all pre-installation works have been carried out & checked in accordance to Section 11. Externally accessed security fixings require specific tools which are provided. Please keep them safe after completing installation for future servicing.
  • Page 28: Connecting The Emergency Stop

    Installation Astor Invincible Astor Invincible 12.2 Connecting the Emergency Stop 12.1 Connecting the emergency stop 12.2 Connecting the Emergency Stop Provision for the emergency stop should have been previously completed in accordance with Section 11. The cable should be hidden in the wall and at least 8” (200 mm) of cable is coming Provision for the Emergency Stop should have been previously completed in accordance with out of the wall.
  • Page 29: Connecting The Battery

    Installation 12.2 Connecting the battery If the product has been provided without the battery connected. • Looking at the rear of the product, locate the female connector, as shown in Fig 12.2a. • Locate the male connector of the emergency stop which should be coming from the SBU. •...
  • Page 30: Connecting The Power Outlet

    Installation 12.3 Connecting the power outlet WARNING: Ensure the mains electrical supply is isolated from power while connecting the product to the mains electrical supply. A switched, waterproof fl ex outlet should have been previously fi tted in accordance with Section 11.
  • Page 31: Attaching The Standard Build Unit To The Wall

    Installation 12.4 Attaching the standard build unit to the wall • The wall must have been suitably prepared and reinforced as explained in Section 11 during the pre-installation phase. • Align the SBU to the wall about the centreline ensuring it is level. If the floor is uneven the feet can be manually adjusted.
  • Page 32 Installation 12.4 Attaching the standard build unit to the wall • With the product in place, mark out the five fixing holes, set the SBU aside and then pilot drill your suitable fixings. • Using suitable fixings fit the top three first and then lower two. Ensure you have used the provided spacers on the bottom two fixings.
  • Page 33: Fit The

    Installation 12.5 Fit the front cover The front cover can now be fitted. Care should be taken not to scratch the front cover. • Pull the light strip connectors through the top of the SBU before fitting the cover (loosely tape to secure). •...
  • Page 34: Fit The Light

    Installation 12.6 Fit the light WARNING: Ensure the electrical mains supply is isolated from power while connecting the light. The light can now be fi tted. • Remove the two screws from the top of the SBU as shown in Fig 12.6a. •...
  • Page 35: Fit The Stretcher

    Installation 12.7 Fit the stretcher CAUTION: Take care when fi tting the stretcher to the product. This is a heavy item and we recommend two people install the stretcher. Remove the pads by lifting them vertically as shown in Fig 12.7a to aid with installation. Fig 12.7a •...
  • Page 36 Installation 12.7 Fit the stretcher • With two people, lift the stretcher vertically and slot the SBU arms in the middle of each stretcher brackets, see Fig 12.7c. Fig 12.7c • Once in position secure the provided M10 x 16 mm bolts and M10 nuts provided. Finish by covering the nut with the caps provided as shown in Fig 12.7d.
  • Page 37: Option Extra - Fit The End Guards

    Installation 12.8 Optional extra - fit the end guards End guards are an optional extra which must be specified during your purchase of the CTX2-CP. They cannot be retrofitted. Please continue to the next section if you did not require end guards. •...
  • Page 38 Installation 12.8 Optional extra - fit the end guards • Once the fixings are secure, the index plunger may be pulled to test the two positions available for the end guards. Ensure bolts are not overtightened which could restrict the movement of the guard.
  • Page 39: Fit The Gas Spring Covers

    Installation 12.9 Fit the gas spring covers The gas spring covers can now be fitted. • Locate the gas spring covers and rotate into position, as shown in Fig 12.9a. Fig 12.9a 50.036.80.0002 (Rev1)
  • Page 40: Testing

    Installation • Align the four screw holes. • Ensure the spacer for the middle horizontal screw is fitted between the internal bracket and cover as shown in Fig 12.9b. Please use the longer M5 x 12 mm screw for this fitting. •...
  • Page 41: Mounting The Wall Sign

    Information 12.11 Mounting the wall sign The wall sign provided must be securely fixed to the wall in a clear and visible position near to the changing table. • It is recommended that the wall sign be mounted next to and at a similar height as the emergency stop.
  • Page 42: Moving & Transporting The Equipment

    Information 13 Moving & transporting the equipment • It is anticipated that once installed, the equipment will not be transported. If you need to transport this equipment after unpacking it, please contact Astor Bannerman customer services team for advice (see contact details at the end of this booklet). 14 Product disposal •...
  • Page 43: Service Record

    Service record 16 Service record Service engineer's name Date of service Actions undertaken Signature 50.036.80.0002 (Rev1)
  • Page 44: Training Record

    Training record 17 Training record Trainee's Date of Type of Trainee's Trainer's name training training signature signature 50.036.80.0002 (Rev1)
  • Page 45 Notes 50.036.80.0002 (Rev1)
  • Page 46 Notes 50.036.80.0002 (Rev1)
  • Page 47 Notes 50.036.80.0002 (Rev1)
  • Page 48: Patient Handling

    Specialist Bathing Patient Handling Changing & Showering Astor Bannerman The Elephant Works, Andoversford Link, Cheltenham GL54 4LB Phone: +44 (0) 1242 820820 Website: www.astorbannerman.co.uk Email: sales@astorbannerman.co.uk support@astorbannerman.co.uk 50.036.80.0002 (Rev1)
