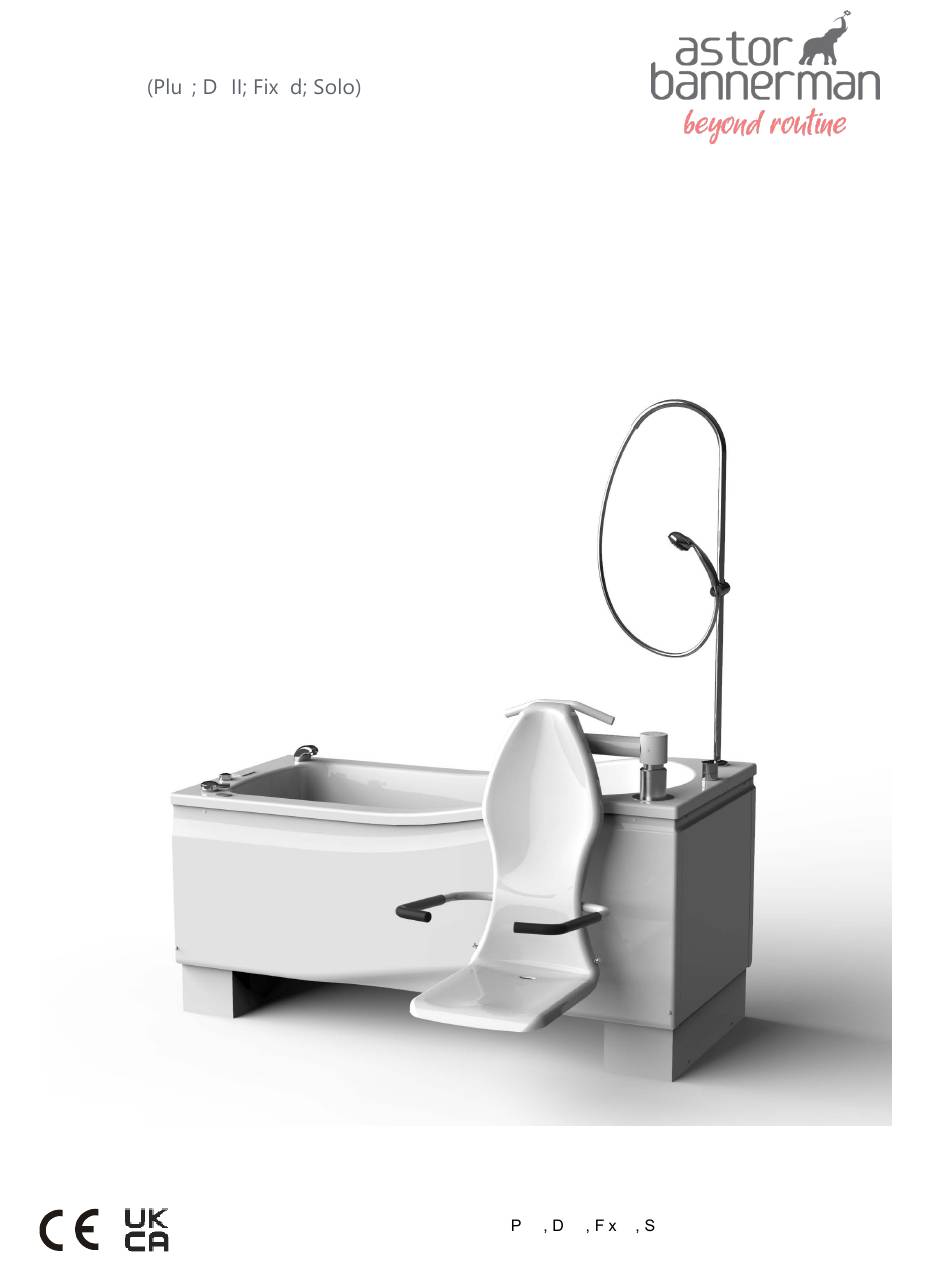

- Page 1 Compact Bath Range Care Baths see separate document for Compact Pure Installation and User Guide Astor Bannerman 50.096.08.0001 (Rev2 03 24) Compact Bath Range ( lus i ed olo) Installation and User Guide Subject to technical modifications & changes...
-
Page 3: Table Of Contents
Protective conductor ..................23 First start-up ....................24 Operating elements and their function ..............25 Handset ......................26 Handset - 2 buttons (COMPACT Fixed Height) ........26 Handset - 2 buttons (COMPACT Solo) ............26 Handset - 4 buttons (only COMPACT Plus and DC versions) ....27... - Page 4 Optional functions ...................35 Operation ......................36 Prior to use .....................36 During use ......................36 Installing the patient in the COMPACT Plus care tub (without removable patient chair) ......................37 Moving the patient out of the COMPACT care tub ........38 Cleaning........................39 Cleaning the COMPACT..................39 Sterilising the COMPACT ................39...
-
Page 5: Company Introduction
Introduction ntroduction 1.1 Acknowledgement Thank you for deciding to choose an Astor Bannerman Bath. Our products are manufactured and tested according to stringent quality criteria, and are designed to support people to live their lives beyond routine. 1.2 Manufacturer’s address Astor Bannerman The Elephant Works Andoversford Link, Cheltenham GL54 4LB... -
Page 6: Introduction
Introduction Introduction 2.1 Preface A correct use of the device is essential in order to ensure that it remains safe and well functioning. Please read the provided operating manual carefully and observe in particular the safety instructions. The maintenance, inspection, assembly and installation as well as further technical interventions on the product must only be executed Astor Bannerman or by specialised companies authorised to do this by Astor Bannerman. -
Page 7: Operating Manual
Operating manual Operating manual 3.1 Validity This operating manual contains information, which is required for the operation and use of the product. In addition to the description of the equipment, the operating manual also includes a number of abstractions and exemplary illustrations. The equipment of the product therefore may differ in part from the descriptions and illustrations. -
Page 8: Product Variants
roduct Variants nd roduct od The Astor Compact Range covered by this document has the following variants, components and configurations: o o in None Operating manual COMPACT Page 8 of 56... -
Page 9: Safety
Safety Safety 4.1 Intended and appropriate use The Astor COMPACT bath has been designed for bathing and giving personal care to dependent bathers in nursing homes, facilities for people with disabilities and private households. It is only suitable for use by children and adults who are capable of maintaining an upright seated position. -
Page 10: Standard Symbols
Safety t nd rd Below are some common symbols used throughout this document and on the product labelling. This product is UKCA/CE Marked and is certified to The Medical Device Regulation (EU) 2017/745. It also complies with Supply of Machinery (Safety) Regulations 2008 and The Medical Device Regulations 2002. - Page 11 Safety Parts of this product can be recycled. Parts of this product must be separated when being disposed of. The battery used in this product contains Lead. Details of product manufacturer. Symbol indicated the date of manufacture. This product has been tested for water ingress in accordance with IPX4. This product is a medical device, rule 1.
- Page 12 Safety These instructions must be read and understood before installing or using this equipment. Failure to comply with these instructions may result in accidents resulting in serious personal injury or the product being damaged. No modification of this equipment is allowed without express authorisation from Astor Bannerman.
-
Page 13: Warnings
Safety 4. Warnings Note ▪ The product may only be installed and maintained by trained professionals. ▪ The product may only be operated by trained staff. ▪ Protect the product against direct sunlight and heat. ▪ The equipment is not authorised for use in potentially explosive atmospheres. ▪... -
Page 14: Transport And Pre Installation
Transport CAUTION In case of unusual noises, damages or malfunctions, the product no longer must be used. Transport Transport the care tub towards the planned place of installation. Use a lift truck or similar for the transport. Position the bath so that it stands stable and cannot tilt. 5.1 Unpacking the product To remove the packaging materials, you will need a cutter knife. -
Page 15: Loosening The Product From The Pallet
Transport Loosening the product from the pallet The tub is strapped to the pallet on both sides. Proceed in the following way to loosen the product from the pallet: Unscrew the 4 fixing screws of the straps Remove the straps t r a s ha th r ar a a... -
Page 16: Requirements For The Place Of Installation
Transport Requirements for the place of installation Instructions for the place of installation: ➢ Any wall decorations including floor coverings and tiles must be complete before the care tub is installed. ➢ Adjacent walls must be perpendicular, flat and free of obstructions. For instance, no electrical showers or towel racks may be installed in the motion range of the height-adjustable bath tub and the patient chair. -
Page 17: Installing The Care Tub At The Place Of Installation/Screw Connections
Transport Installing the care tub at the place of installation/screw connections Before you can fix the care tub to the floor, you must remove the side parts, so that you have smooth access to the screw holes. Raise the tub to its top position to access and install the screws. The care tub is secured to the floor through 7 fixing points. - Page 18 Transport Lifting care tub: (1.1") attachment points Always screw the tub to the appropriate mounting bracket on the opposite side of the seat. t care tub: (5.3") (12.6") (22.7") (5.7") (6.9") (2.4") (15.7") (1.4") Always screw the tub to the appropriate mounting bracket on the opposite side of the seat.
- Page 19 Transport Dimensions from the centre of the tub (19.7") (17.7") (5.9") 2.4") (4.7") (5.5") (5.5") ➢ Prior to the first use, the thermostatic mixer must be set up by a qualified person. Operating manual COMPACT Page 19 of 56...
- Page 20 Transport Connecting own faucet Faucets that are not standard included in the delivery, may only be fitted in the hatched area of the drawing below. (1.3") (9.3") (10.9") (9.3") (1.9") It is the plumber’s responsibility to check whether all connections are correctly realised and do not leak. Astor Bannerman assumes no liability for any losses or consequential damages, which are caused by an inadequate installation.
- Page 21 i in to t Ris o serious in ur through product alling nsure ou ha e met the pre installation re uirements be ore i ing to the loor loor i ing template drill drill bits crosshead scre dri er e recommend installation into either solid concrete or ooden oists his section ill describe both but a structural engineer should be consulted i there is an uncertaint i...
- Page 22 oncr t a the loor i ing template on the loor I using the minimum recommended mm / 3.1" slee e anchor bolts then these should be mm / 0.63" holes unless speci ied di erentl b the anchor manu acturer 3 Clean all holes using a ire brush acuum cleaner or li e to remo e an dust and debris...
-
Page 23: Installation
Installation Installation The bath tub is supplied ready for use. Prior to the assembly of the bath, the local connection pipes must be sufficiently flushed before the care tub is connected. To avoid soiling of the pipes and fittings, dirt filters must be installed on site. -
Page 24: First Start-Up
Installation 6.3 First start-up The equipment is to be used exclusively in accordance with WARNING the accompanying documents. Only when these conditions are met, the manufacturer considers himself responsible for the impact on the safety, the reliability and the function of the device. In the event of a new connection of the COMPACT care tub, the technical data must be observed. -
Page 25: Operating Elements And Their Function
Operating elements and their function Operating elements and their function N° Description N° Description Handset Water drainage Water temperature thermostat - bath Hand shower valve (gantry*) inlet Water inlet/hand shower control panel Patient chair (option) Gantry* with hand shower Temperature sensor Tub inlet Water outlet Temperature indication (ref only) -
Page 26: Handset
Operating elements and their function Note: The equipment of your tub could deviate from the images. 7.1 Handset Handset - 2 buttons ( Button - patient chair in and out of the bath down Handset - 2 buttons (COMPACT Solo) Button - tub up and down Operating manual COMPACT Page 26 of 56... -
Page 27: Handset - 4 Buttons (Only Compact Plus And Dc Versions)
Operating elements and their function Handset - 4 buttons (only COMPACT Plus and DC ) Button - tub up and down (option) Button - patient chair in and out of the bath Unlocking the handset (only DC-version ) To unlock the handset, you must simultaneously push both bottom buttons (button patient chair up and down) for approx. -
Page 28: Functions Of The Patient Chair
Operating elements and their function 7.2 Functions of the patient chair Removing the armrests of the chair Turn the armrest of the chair so that it is positioned approx. in the middle between the sitting surface and the backrest. Now gently pull the armrest to find the point where the pin is released by the slot, as shown in the image aside. -
Page 29: Removable Patient Chair (Option) And Carrier For The Patient Chair (Option)
Operating elements and their function 7.3 Removable patient chair (option) and carrier for the patient chair (option) If your COMPACT tub is optionally equipped with a removable patient chair, you can use an optionally available carrier for the patient chair to facilitate the transport of the patient/resident. -
Page 30: Hooking The Patient Chair
Operating elements and their function Hooking the patient chair: Position the COMPACT tub in the bottommost position. Image 1: Move the patient chair to the lifting column. Please make sure that the hook of the seat is located over the connecting tube. - Page 31 Operating elements and their function Raise the patient chair (button ), so that the carrier is located slightly above the floor. Image 3: To loosen the carrier from the patient chair: Pull the latch located at the rear of the carrier backwards. Image 4: Now, you can remove the carrier from the seat by pulling it either to...
-
Page 32: Unhooking The Patient Chair
Operating elements and their function Unhooking the patient chair: Bring the patient chair out of the tub. CAUTION Please observe that you will have to lift the patient’s legs over the tub edge, if necessary! Install the carrier to the patient chair: Image 1: The carrier can be attached from either... - Page 33 Operating elements and their function Image 3: The carrier audibly engages in the patient chair. CAUTION Detach the patient chair from the tub only when the chair is safely and firmly engaged into the carrier. Detaching the patient chair from the lifting column: Image 4: The patient chair is fixed to the lifting column.
- Page 34 Operating elements and their function You can wheel the patient chair away from the tub. Operating manual COMPACT Page 34 of 56...
-
Page 35: Thermostatic Mixer (Option)
Operating elements and their function 7.4 Thermostatic mixer (option) Please consult s arat r user manual Bath/Shower rotary/button control Temperature rotary/button control Turn the emperature rotary button contro , on the left, up to the stop to obtain an outlet temperature of 38°C / 100.4°F . The temperature is decreased by turning the rotary button clockwise. -
Page 36: Operation
Operation Operation The temperature setting of the thermostat must be checked and set prior to the first use of the tub. Please consult the enclosed user manual of your thermostat. 8.1 Prior to use Please check the proper state and the functional safety of the system prior to use. 8.2 During use Open the water inlet. -
Page 37: Patient Chair)
Operation o in the patient in the COMPACT Plus care tub (without removable patient chair) Position the care tub in the bottommost position. Press the button of the handset until the tub has reached the lowest point. Once the end position is reached, the motor is automatically switched off. -
Page 38: Moving The Patient Out Of The Compact Care Tub
Operation Moving the patient out of the COMPACT care tub If the bathing process is finished, turn the central knob (water drain) to drain the water. You can start towelling the patient, when they are still sitting comfortably in the care tub once the water is drained sufficiently. -
Page 39: Cleaning
Cleaning/disinfection Cleaning CAUTION Make sure that the system is not in operation during the cleaning activities. CAUTION After each treatment, the bath tub must be completely cleaned with a cleaning solution to avoid any cross-contamination. CAUTION Only use the cleaning solution after the patient has left the bath tub. Strictly respect and observe the manufacturer’s instructions for the used cleaner. -
Page 40: Checks/Tests
Checks/tests Checks/tests In order to ensure a safe use of our COMPACT care tub and the protection of the users and the patients, Astor Bannerman prescribes an annual safety check. The execution of the safety checks and maintenance must be documented and proven on request. -
Page 41: Waste Disposal
Waste disposal Waste disposal 11.1 Disposal of the packaging material Please recycle the packaging materials of the product in accordance with the locally applicable regulations and laws. The metal parts as well as the plastic and electronic components must be recycled in accordance with the WEEE. 11.2 Disposal of the product The expected service life of the care tub is approx. -
Page 42: Troubleshooting/Customer Care Service
Troubleshooting/customer care service Troubleshooting or int n nc u i i d Remedy a) Check if the mains voltage is present. b) Check the connections between the control system and the control panel. The height adjustment of the lifting bath tub is not working. c) Check the control panel for damages. - Page 43 Troubleshooting/customer care service a) Check the filter and the inlet and outlet taps for clogging. The water flow rate is too low. b) Check that the flow rate is sufficient for the supply conditions. c) Check if the connecting hoses are buckled. Check the seals for damages, replace seals if The faucet leaks water.
-
Page 44: Appendix
Appendix Appendix 13.1 Technical data Dimensions and weights - Length: 160 cm or 170 cm 62.9 or 66.9 inches - Width: 75.0 cm 29.5 inches Width with extended chair: 142 cm 55.9 inches - Min. stroke height: 78.0 cm 30.7 inches - Max. -
Page 45: Dimensions Of The Compact Care Tub
Appendix 13.2 Dimensions of the COMPACT care tub (3.9") (30.7 - 42.5") (5.2") (24.2") Bath Tub length (160 or 170 cm) (62.9 / 66.9") (16.7 - 36.4") (29.5") (55.9") Operating manual COMPACT Page 45 of 56... -
Page 46: Pare Parts Consumables
Appendix Description Gantry system Air jet whirlpool system Music sound system Bluetooth sound system Colour light system Armrests (set) Trolley for removable seat Emergency function in case of power failure Compact 16 long LHS side panel Compact 16 long RHS side panel Compact 17 long LHS side panel Compact 17 long RHS side panel Compact tail panel (foot end) -
Page 47: Lectromagnetic Compatibilit
Appendix 13. Electromagnetic Compatibility Electrical medical equipment is subject to special precautionary measures with regard to EMC and must be installed and operated in accordance with the EMC instructions included in the accompanying documents. For devices and systems from Astor Bannerman, no special measures must be observed. - Page 48 Appendix Guidance and manufacturer’s declaration - electromagnetic immunity (Table 202) The COMPACT been designed for use in the following listed electromagnetic environment. The customer or the user of the COMPACT must ensure that the appliance is used in such environment. Immunity IEC 60601- Test level Compliance...
- Page 49 Appendix Guidance and manufacturer’s declaration - electromagnetic immunity (Table 204) The COMPACT been designed for use in the following listed electromagnetic environment. The customer or the user of the COMPACT must ensure that the appliance is used in such environment. Immunity testing IEC 60601- Compliance level...
- Page 50 Appendix Recommended distance between portable and mobile communications equipment and the COMPACT (Table 206) The COMPACT is intended for use in an electromagnetic environment with controlled HF interferences. The customer or the user of the COMPACT can avoid electromagnetic interference by respecting and observing the minimum distance between portable and mobile HF telecommunication devices (transmitters) and the COMPACT depending on the rated output of the communication device as given below.
-
Page 51: Ournal
Appendix 13. Journal According to the Medical Device Regulations and Directive, you are compelled to keep a journal for this device. You can use this journal as template. Journal Device: COMPACT nn r n, The Elephant Works, Andoversford Link Manufacturer: Cheltenham, GL54 4LB * see label / rating plate and delete as appropriate _____________________________________________... - Page 52 Appendix Type of Date Result Measure Signature: inspection Operating manual COMPACT Page 5 of 56...
- Page 53 Appendix Your notes: ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. Operating manual COMPACT Page 53 of 56...
- Page 54 Appendix Your notes: ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. Operating manual COMPACT Page 5 of 56...
- Page 55 Appendix Your notes: ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. ……………………………………………………………………………………………………. Operating manual COMPACT Page 5 of 56...
- Page 56 Astor Bannerman ●The Elephant Works, Andoversford Link, Cheltenham GL54 4LB +44(0)1242 820820 ● support@astorbannerman.co.uk...
