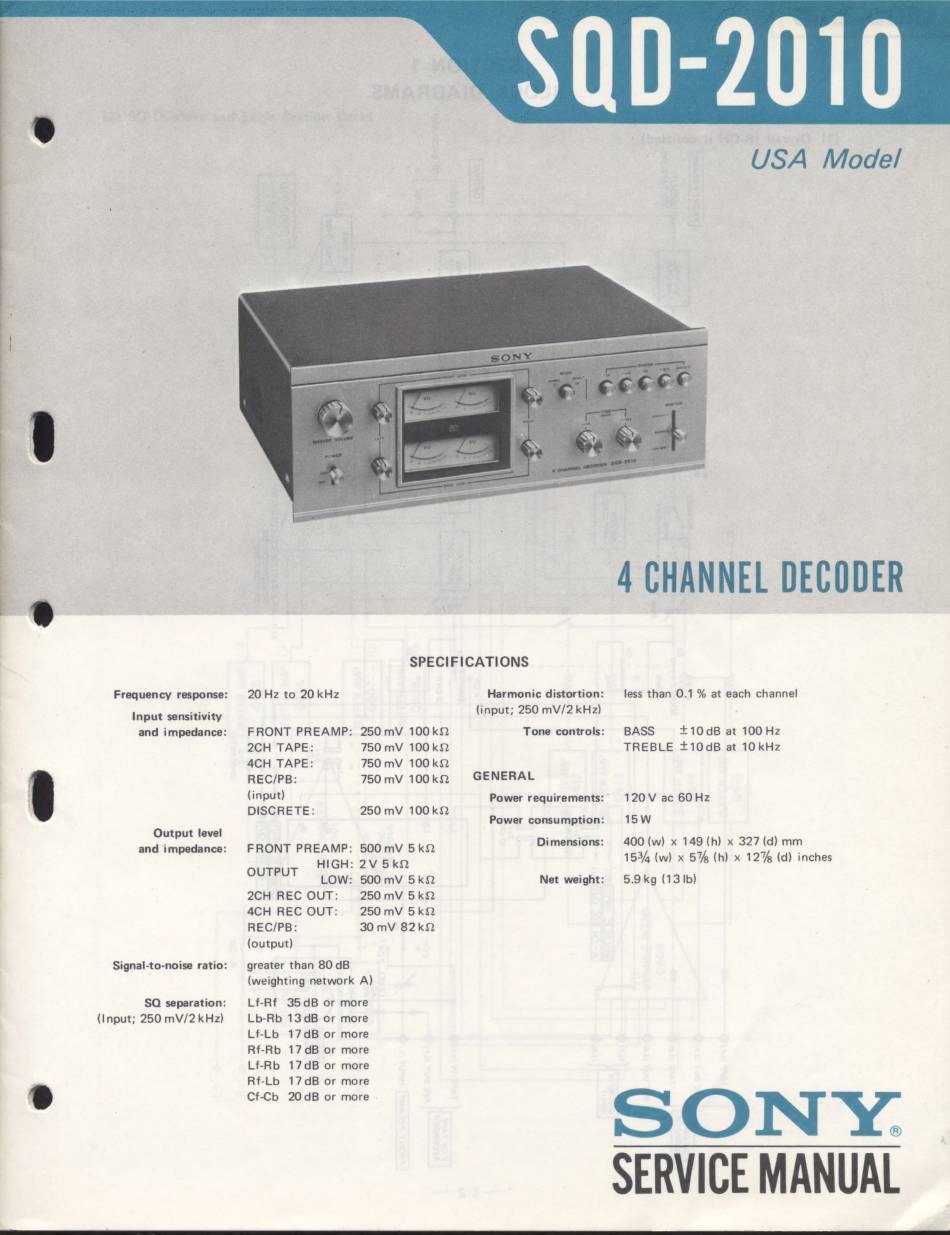

Sony SQD-2010 Service Manual

USA Model
SPECIFICATIONS
|
|
|
Frequency response: 20Hz to 20 kHz Harmonic distortion: less than 0.1 % at each channel
| Input sensitivity (input; 250 mV/2 kHz)
and impedance: FRONT PREAMP: 250mV 100kQ2 Tone controls: BASS +10dB at 100 Hz
| 2CH TAPE: 750 mV 100k2 TREBLE +10dB at 10 kHz
4CH TAPE: 750 mV 100 kQ2
REC/PB: 750mV 100kQ GENERAL
| tl (input) Power requirements: 120V ac 60Hz
| DISCRETE: 250 mV 100 k2 ;
Power consumption: 15W
Output level
and impedance: FRONT PREAMP: 500 mV 5k peere: 4 Ago rw & 240 Khi ie R7 ta) mm
, 1534 (w) x 5% (h) x 12% (d) inches output HIGH: 2V. 5k
| LOW: 500 mV 5k Net weight: 5.9kg (13 Ib)
2CH REC OUT: 250 mV 5k
4CH REC OUT: 250 mV 5k
REC/PB: 30 mV 82k2
(output)
Signal-to-noise ratio: greater than 80 dB
(weighting network A)
SQ separation: Lf-Rf 35dB or more
(Input; 250 mV/2 kHz) Lb-Rb 13dB or more
Lf-Lb 17dB or more
Rf-Rb 17dB or more
Lf-Rb 17dB or more
Rf-Lb 17dB or more
