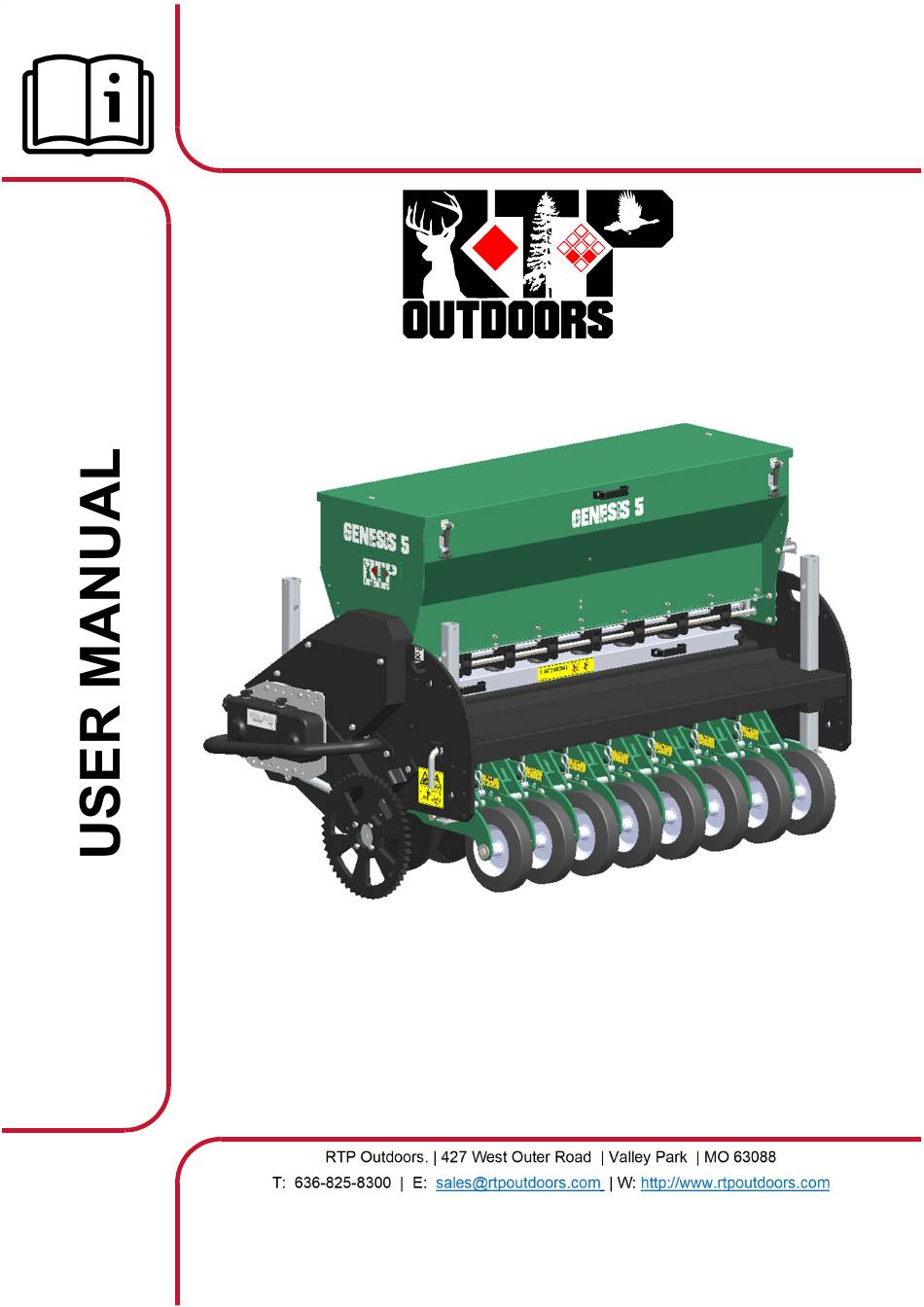

- Page 1 Genesis 5 / 8 Original user manual Version: UM122.153.001EN-2517 Applies to: A122.153.001 Genesis 5 A122.248.001 Genesis 8 RTP Outdoors. | 427 West Outer Road | Valley Park | MO 63088 T: 636-825-8300 | E: sales@rtpoutdoors.com | W: http://www.rtpoutdoors.com...
-
Page 2: Eu - Declaration Of Conformity
EU – DECLARATION OF CONFORMITY Redexim B.V. Kwekerijweg 8 3709 JA Zeist, The Netherlands declare that this “EU - DECLARATION OF CONFORMITY” is issued under our sole responsibility and belongs to the following product: GENESIS SEEDER WITH MACHINE NUMBER AS INDICATED ON THE MACHINE AND IN THIS MANUAL, to which this declaration refers, complies with stipulation of: 2006/42/EC Machinery Directive... -
Page 3: Foreword
FOREWORD Congratulations on your Genesis seeder purchase. For safe and long-lasting operation of this machine, it is necessary to read and to understand this user manual. It is impossible to work safely with this machine without complete knowledge of the content of the user manual. This machine does not operate independently! It is the user’s responsibility to use the correct tractor or other towing vehicle. -
Page 4: Table Of Contents
TABLE OF CONTENTS EU – DECLARATION OF CONFORMITY ....................2 FOREWORD ............................3 WARRANTY CONDITIONS ........................3 PRODUCT REGISTRATION........................3 SAFETY INSTRUCTIONS ......................5 1.1. Obligations of the user ....................... 5 1.2. Maintenance, repairs and adjustments ..................5 1.3. Using the machine ........................6 TECHNICAL DATA ........................ -
Page 5: Safety Instructions
1. SAFETY INSTRUCTIONS This machine is designed for safe use. This can only be achieved if you completely follow the safety instructions described in this manual. Read and understand the manual before you start using this machine. If the machine is not used as described in this manual, this can result in injuries and/or damage to the machine. -
Page 6: Using The Machine
1.3. Using the machine Attach the machine to the towing vehicle according to the regulations. Pay close attention to the risk of injury! Never use the machine in the absence of protective guards and safety stickers. Check the machine for loose bolts, nuts and components before every operation. Check whether you have a clear field of vision –... -
Page 7: Technical Data
2. TECHNICAL DATA Type Genesis 5 Genesis 8 Working width 60” (1.52m) 90” (2.48m) Working depth 1/2” / 1” / 2” (13/25/51mm) Seeding row distance 7-1/2” (190mm) Working speed Depending on the conditions and the required result A safe advisable operating speed is between 3-3.5 mph... -
Page 8: Safety Decalls
4. SAFETY DECALLS Safety decals are placed on the machine. These safety decals must always be clearly visible and legible and must be replaced if they have become damaged. (Fig.1) Fig. 1 In case of maintenance, adjustments and repair, always switch OFF the engine of the towing vehicle. -
Page 9: First Installation
5. FIRST INSTALLATION The machine should be prepared for use as follows: (Fig.2) Make sure that the cable/crane/lift can lift at least 2x the weight of the machine. For the correct machine weight, see chapter 2 "Technical data". Never crawl under the machine. 1. -
Page 10: Attach And Detach The Machine Behind The Tractor
6. Assemble the protection guard (1). (Fig.3) Fig. 3 6. ATTACH AND DETACH THE MACHINE BEHIND THE TRACTOR Attaching and detaching the machine has to be done carefully. Follow the instructions below: Fig. 4... -
Page 11: Attach The Machine
6.1. Attach the machine Check the machine before attaching on the following points: Check if the machine is undamaged and it is safe to attach and use the machine. Check if the fasteners are tightened properly. Check if all safety decals are present on the machine and are undamaged and easily readable. -
Page 12: Transport
7. TRANSPORT The user is responsible for transporting the machine on public roads. Verify the national legislation regarding the regulations. In view of the machine’s weight, it is not advised to drive faster with the tractor than 12.5mph (20 km/h) with a raised machine. Higher speeds can lead to hazardous situations and result in damage to the machine and tractor. -
Page 13: Machine Settings
MACHINE SETTINGS The Genesis seeder has several options for setting the machine for an optimal working condition. Adjusting the working depth The working depth can be adjusted on 2 positions. The coarse setting is done at the back of the machine by adjusting the pin (1) on the packer wheels. Remove the lower R-clip and pin (1) (Fig.6) and place the pin in the hole for the right depth 0.5”... -
Page 14: Gate Setting
Gate setting The machine is suitable for sowing different types of seeds. To adjust the machine to the various factors, the machine’s sowing installation must be adjusted to the correct setting. One of the settings is the gate valve opening. The function of the gate valve (Fig.8): 1. -
Page 15: Setting Seed-Quantity Using The Variable Clutch Or Gearbox
Setting seed-quantity using the variable clutch or gearbox By affecting the setting of the rotational speed of the seed elements, the delivery of seeds can be set to more or fewer seeds. Each seed element contains a rotor that transports the seeds. By affecting the speed of the rotors, the quantity of seeds can be adjusted. -
Page 16: Calibration Test
7. Remove the calibration tray (1) out of the machine and collect the seed in the bin. 8. Weigh the seeds in lbs and apply the multiplier fitting to your model: Genesis 5: 79.5 Genesis 8: 48.7 The result is the weight of the seeds in pounds that are seeded per acre. - Page 17 Fig. 10...
-
Page 18: Putting The Machine Into Operation
9. PUTTING THE MACHINE INTO OPERATION 9.1. Safety Before starting to use the machine, check the following: 1. Are there loose objects in the field? First remove these objects. 2. Are there slopes? The maximum slope is 20 degrees for this machine. Always go from top to bottom. - Page 19 An indication to start with is checking for contamination of the sowing system and clean the system. Attention! If the shaft turns too heavily, a damaging overload of the gearbox can be the result. Check that the seed passage (2) is not blocked. ...
- Page 20 START SOWING The start procedure is VERY important. If this procedure is not executed as described below, it might result in serious damage to the machine. The procedure is as follows: Make sure that the Genesis seeder and tractor cannot move during adjustment. Switch off the tractor engine.
-
Page 21: Maintenance
MAINTENANCE 10.1. Maintenance schedule Timeline Checkpoint Method Before every usage Check if the shaft that drives the If the shaft rotates heavily, check for seed cups rotates smoothly. contamination and clean the seeding system. Check that the machine is not damp, Dry the machine, use compressed air. -
Page 22: Lubrication Points
10.2. Lubrication points The only external lubrication points on the Genesis seeder are the drive chains (1) which are situated behind the covers of the machine. (Fig.12) Check the maintenance table for the intervals. The bearings in the packer wheels are sealed and maintenance free. They are replaceable when worn. -
Page 23: Adjusting Spring Tension Side Wheel
If the settings of the surface meter have disappeared from memory, these are the specific parameters to be filled in: Machine Parameter “C” Parameter “L” Pulses of the speed sensor (Chapter Working width (Chapter 8. Acreage 8.2 Acreage counter manual) counter manual) Setting UN=1 (imperial) Genesis 5 Genesis 8 Table 2 Fig. 14... -
Page 24: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution No seeds come out of the The seeds are damp and stick to Clean the seeding mechanism and machine. each other. use dry seeds. Sowing pipes / funnels are Rectify / clean and remove the blocked / dirty. - Page 25 Problem Possible cause Solution Seeding cuts are shaped Cutting discs are worn. Rectify the discs / remove burrs or poorly. replace the cutting discs. Cutting discs do not rotate / are Check the bearings of the cutting stuck. discs. Wrong working depth Adjust the working depth of the machine.
-
Page 26: Options
The knife kit is an assembly containing all the parts used for 1 section and available under article number 222.153.016. Due to the difference in width of the machine you need the following amounts to equip a complete machine: Genesis 5: 8 x 222.153.016 Genesis 8 13 x 222.153.016 For assembly instructions and parts consult the parts manual or ask your dealer. -
Page 27: Wheel Kit
The machine is trailed behind the tractor and connected to the tractor hydraulics to lift the machine for transport. (Fig.16) The Wheel kit is available under the following article number: Genesis 5: 222.153.002 Genesis 8: 222.248.000 For assembly instructions and parts consult the parts manual or ask your dealer. -
Page 28: Small Seed Box
Genesis seeder. The small seed box has a separate dosing system to set the correct amount of seed output. (Fig.17) The Small seed box is available under the following article number: Genesis 5: 222.153.022 Genesis 8: 222.248.006 For assembly instructions and parts consult the parts manual or ask your dealer. -
Page 29: Shallow Seed Kit
The kit is available under the following article number 222.153.020: (Fig.19) Due to the difference in width of the machine you need the following amounts to equip a complete machine: Genesis 5: 8 x 222.153.020 Genesis 8 13 x 222.153.020 For assembly instructions and parts consult the parts manual or ask your dealer. -
Page 30: Seed Settings Chart
SEED SETTINGS CHART The seeding chart described in this document are an indication of the amount that the machine can sow at the given types of seed and machine settings. The data was obtained by performing a calibration test under factory conditions. The result may therefore differ slightly from your machine due to other circumstances such as, for example, differences in seed mixture, climate conditions, wear of the components of the machine, etc. - Page 31 Variable Clutch / Gearbox setting Seed type Gate Setting Eagle Seeds Fall blend 28.1 GreenCover Spring release 56.1 68.3 GreenCover Fall release 60.8 70.2 GreenCover Winter triticale 93.6 GreenCover Brassica plus release 18.7 GreenCover Buckwheat (Mancan) 32.8 42.1 GreenCover Cereal Rye (Elbon) 93.6 GreenCover...
-
Page 32: Acreage Counter Additional Manual
Variable Clutch / Gearbox setting Seed type Gate Setting Whitetail Institute Beets & greens Whitetail Institute Chick magnet Whitetail Institute Destination 33.1 Whitetail Institute Extreme 21.5 Whitetail Institute Fusion Whitetail Institute Imperial clover Whitetail Institute Power plant 22.5 Whitetail Institute Pure attraction 36.5 46.8... -
Page 33: Universal Counter
UC 300 UNIVERSAL COUNTER USER’S MANUAL NR.1111-EN... - Page 34 UNIVERSAL COUNTER UC 300 This product complies with EMC requirements as defined by Directives 2004/108/CE and successive modifications in accordance with standard EN ISO 14982 applied : MC elettronica S.r.l. Manufacturer : Via E. Fermi, 450/486 Address Fiesso Umbertiano (ROVIGO) – ITALY Tel.
- Page 35 UNIVERSAL COUNTER UC 300 Content 1. Rules and general warning .................. 4 1.1 Introduction ....................... 4 1.2 Terms of guarantee ..................5 1.3 Service ......................5 2. General description ....................6 3. Description of the panel and electrical connections ......... 7 4.
-
Page 36: Rules And General Warning
UNIVERSAL COUNTER UC 300 1. Rules and general warning 1.1 Introduction This manual gives all the specific information that you need for a proper use of the equipment. After buying the instrument, read the manual carefully and refer to it any time you have doubts on how to use the equipment or when you have to carry out maintenance operations. -
Page 37: Terms Of Guarantee
UNIVERSAL COUNTER UC 300 1.2 Terms of guarantee SUBJECT OF THE GUARANTEE: the guarantee is applied to the product and to those parts which are marked with the serial number or any other identification number used by MC elettronica; HOW LONG THE GUARANTEE IS EFFECTIVE: MC elettronica S.r.l. guarantees the UC 300 for a period of 1 year from the manufacturing date... -
Page 38: General Description
UNIVERSAL COUNTER UC 300 2. General description The UC 300 Universal Counter is powered by a rechargeable battery and stores all the main functions of a hectare counter in a small container which can be installed easily on any public works vehicle. You can choose between metric and imperial units of measurement to calculate area, distance and speed. -
Page 39: Description Of The Panel And Electrical Connections
UNIVERSAL COUNTER UC 300 3. Description of the panel and electrical connections UC 300 ha ac Km/h mph m ft RPM PROG Select Reset Rif. Description signal Type Pin connector INput/OUTput S.SEAL 4-way LCD Display: A1-A5: arrows indicating the size selected A6: arrow indicating low battery Selection key size and "-"... -
Page 40: Overall Dimensions
UNIVERSAL COUNTER UC 300 4. Overall dimensions UC 3000 ha ac Km/h mph m ft RPM PROG Select Reset 3.5 jack connector panel for battery charging Cable 50 cm with cigarette lighter plug for charging battery (supplied) cod. CAV-0017 cable 20 cm with conn. s.seal 4-way for connection the magnetic sensor sens. -
Page 41: Operation
UNIVERSAL COUNTER UC 300 5. Operation When the counter is started up for the first time (or after the battery is charged after having run down completely), the total area counter is shown on the display. The UC 300 is set by default to show metric measurements: the area is given in hectares, the speed in km/h and the distance covered in metres. -
Page 42: Standby Mode
UNIVERSAL COUNTER UC 300 the residual autonomy of the UC 300 before it turns off completely is limited and will depend also on use. If the battery runs down completely and the UC 300 turns off, some of the data may be lost (refer to the previous section); to charge the battery, connect the cable with the jack connector (provided) to a 12V battery: Do NOT use car battery charging devices. -
Page 43: Programming The "Un" (Unit Of Measurement) Parameter
UNIVERSAL COUNTER UC 300 8.1 Programming the “Un” (unit of measurement) parameter Programming of this parameter is very important to the work in hand and to the programmable parameters. You need to select either the metric or imperial unit of measurement;... -
Page 44: Automatic Programming Of Parameter "C" (Pulses Of The Speed Sensor)
UNIVERSAL COUNTER UC 300 with “Un” = 1 Name of parameter: Description: Pulses of the speed sensor after every 330 feet covered UC 300 by the machine Programmable range: 20 to 999 Steps of 1 pulse Default value: Prog. Select R eset 8.3 Automatic programming of parameter “C”... -
Page 45: Programming Parameter "L" (Working Width)
UNIVERSAL COUNTER UC 300 8.4 Programming parameter “L” (working width) This parameter is the working width of the machine in metres (or feet). Enter the programming phase as described above and edit the value with the “+” and “-” buttons; pressing and holding either button will speed up the editing process. After setting the required value, press "Prog"... -
Page 46: Maintenance
UNIVERSAL COUNTER UC 300 9. Maintenance This chapter gives instructions on how to carry out ordinary and extraordinary maintenance. Ordinary maintenance refers to those operations which must be carried out periodically. As they do not require specific skills, they can be carried out by the users (operators etc.). -
Page 47: Technical Data
UNIVERSAL COUNTER UC 300 10. Technical data Power supply voltage 3.6 Vdc (internal batteries) Max. energy consumption in stand by < 50µA Protection degree IP 65 Range of operating temperature -20 / +70 °C Range of storage temperature -25 / +85 °C Mechanic vibrations resistance 2 g random WARNING: THIS PRODUCT CONTAINS TIN AND LEAD.
