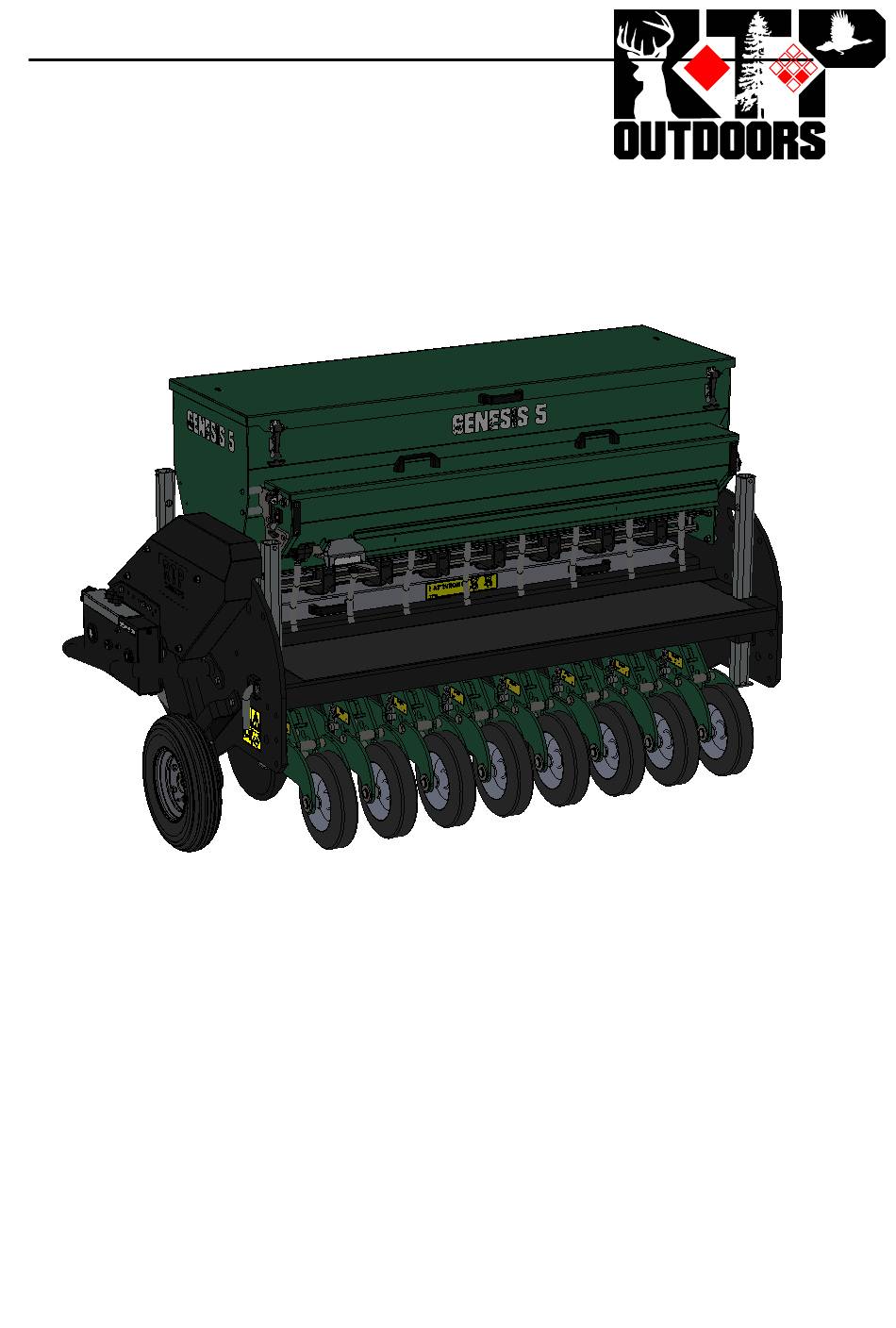

- Page 1 Assembling instructions Small seeds box Genesis 2121 English 922.120.320 427 West Outer Road Valley Park, MO 63088...
- Page 2 FOREWORD Congratulations on your SMALL SEEDS BOX FOR GENESIS purchase. For safe and long-lasting operation of this machine, it is necessary to read and to understand and follow these instructions. All information and technical specifications provided at the moment that this document is published are the most recent ones.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS ................4 TECHNICAL DATA ..................4 GENERAL DESCRIPTION ................4 UNBOXING AND ASSEMBLING THE SMALL SEEDS BOX ......5 MOUNTING THE SMALL SEEDS BOXES ONTO THE GENESIS ....7 COMBINATION WITH BOGEY KIT ............... 11... -
Page 4: Safety Instructions
A means a tip and/or note. TECHNICAL DATA The technical data below concerns the Small seeds box for the machine types stated only Model Genesis 3 Genesis 5 Genesis 8 Genesis 10 Weight 32.4 kg ( 71.3 lbs ) -
Page 5: Unboxing And Assembling The Small Seeds Box
Unboxing and assembling the small seeds box As you purchased this addition to the Genesis machine, this means your Genesis isn’t factory equipped with a small seeds box, the kit for your machine is delivered in separate boxes: Box 1 drive cover Box 2 and further ( when applicable ) - Page 6 1.3. Assemble the drive assembly (3) to the hopper 1.4. Assemble the right mount plate (4) to the hopper ( Genesis 3,5 and 8) ( see figure 2 1.5. Assemble the right mount plate to the right hopper ( Genesis 10 ) ( see figure 3)
-
Page 7: Mounting The Small Seeds Boxes Onto The Genesis
Mounting the Small seeds boxes onto the Genesis Step 2A: Genesis 3,5 and 8 Bolt the complete hopper onto your Genesis ( figure 4) (Genesis 10 see below) !! Please note that the bushes for the left and right side may not be of the same... - Page 8 Figure 6 2.3. place the right hopper onto the Genesis and loosely tighten all bolts and nuts Figure 7 2.1. fix the driveshaft connector (1), make sure the seedcups (4) are positioned identical position on the left and right hopper 2.2.
- Page 9 Figure 8 Step 3 Assemble the drive onto the Genesis ( see figure 9) 3.1. Place the new double chainwheel (3) on the Genesis agitator shaft (4) 3.2. Place both drive chains (1 and 2) on the genesis 3.3. Bolt the chaintensioner (5) onto the Genesis The slothole fits over the cover bar, the bolt replaces the upper right hopper mount bolt 3.4.
- Page 10 Step 4. Bolt the seeddropper onto the seed element (see figure 10) This is easely possible without disassembling the seed element !! Please note that the cutting discs are sharp objects 4.1. Place the dropper hose (3) onto the seedcups (1), connect the clip (2) and place into the droppertube (4) 4.2.
-
Page 11: Combination With Bogey Kit
Figure 11 Combination with bogey kit If your Genesis machine is equipped with a bogey kit, the new drive cover will not fit without an additional cut-out. On the figure below this cut-out is shown. Remove section Figure 12 !! Please note that this cut-out needs to be repainted in order to prevent rust and to ensure durability of the cover.
