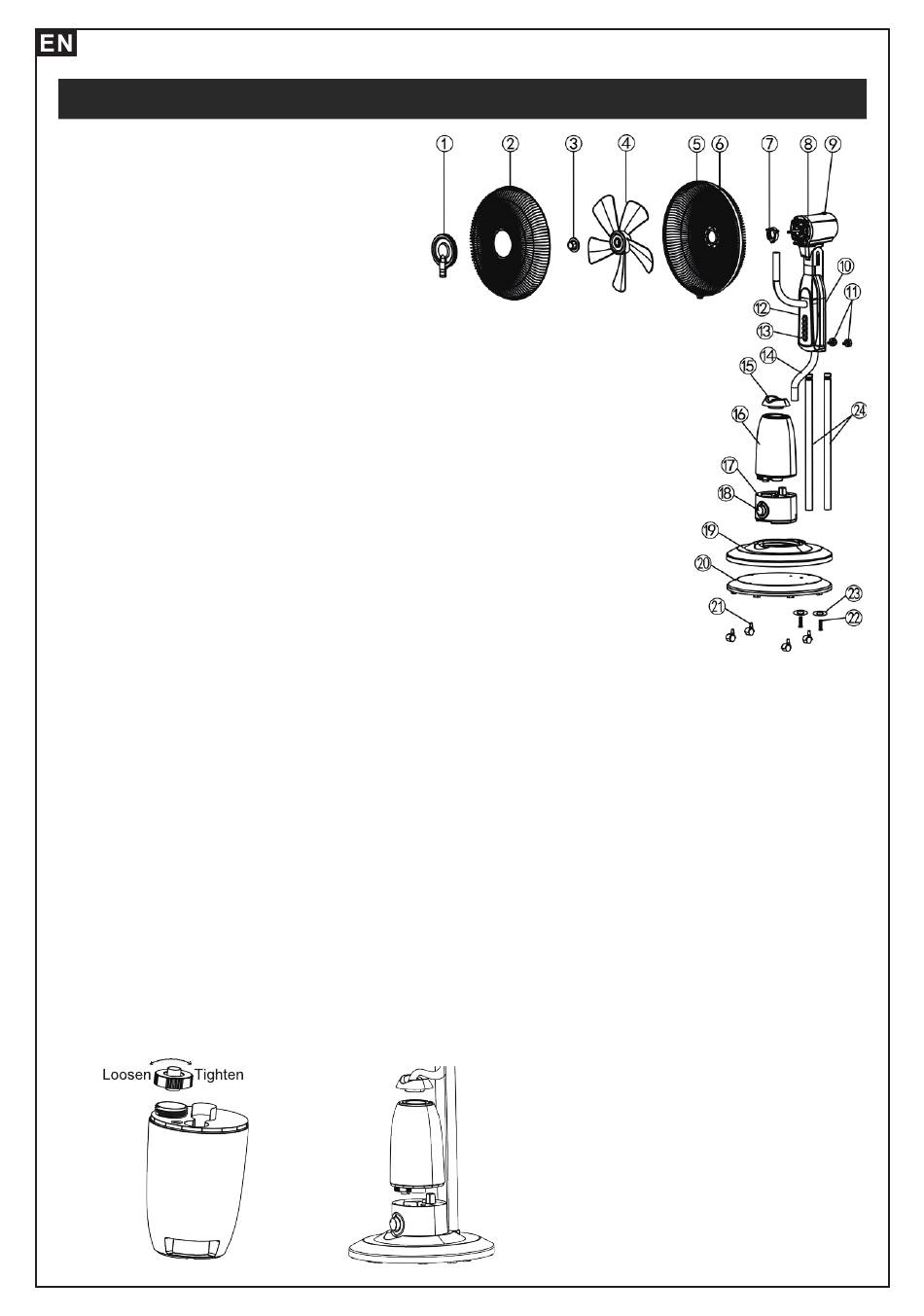

Technical information
1. Misting Board
2. Front Grill
3. Blade Lock Nut
4. Blades
5. Back Grill
6.Grill Ring
7.Grill Lock Nut
8. Motor Holder
9.Oscillation Button
10. Back Shell
11. Nut
12.Panel
13. Switch
14. Misting Tube
15. Top Cap
16. Water Tank
17. Tank Bracket
18.Knop
19.Base
20.Weight Rubber
Instructions for use
1. Insert the support tube (24) into the base (19), and tight up by the screw (16) and the
gasket(23).
2. Insert the main body into the support tube (24), and tight up by the nut (11).
3.Insert the 4pcs wheels (21)into the weight rubber (20).
4. Put the back gril (5) on the motor shell (8), and tighten up by the grill lock nut (7) to the
motor cover. insert the blade (4) on the motor shaft, and tighten up by the blade lock nut (3).
5. Fixed the misting board (1) on the front grill (2), and tight up by misting board lock screws.
6. Connection the front grill (2) and back grill (5) by grid ring (6), and tighten up by grill lock
nut .
7.Insert the misting tube (14), connection to the misting board (1)
Fill the water tank:
Unscrew the valve cover to open the tank turning it anticlockwise, fll the tank with cold and
clean water making sure not to overfll it, To close the tank, screw the valve cover back on
securely turning it clockwise.
21.Wheels
22.Screw
23.Gasket
24. Support Tube
