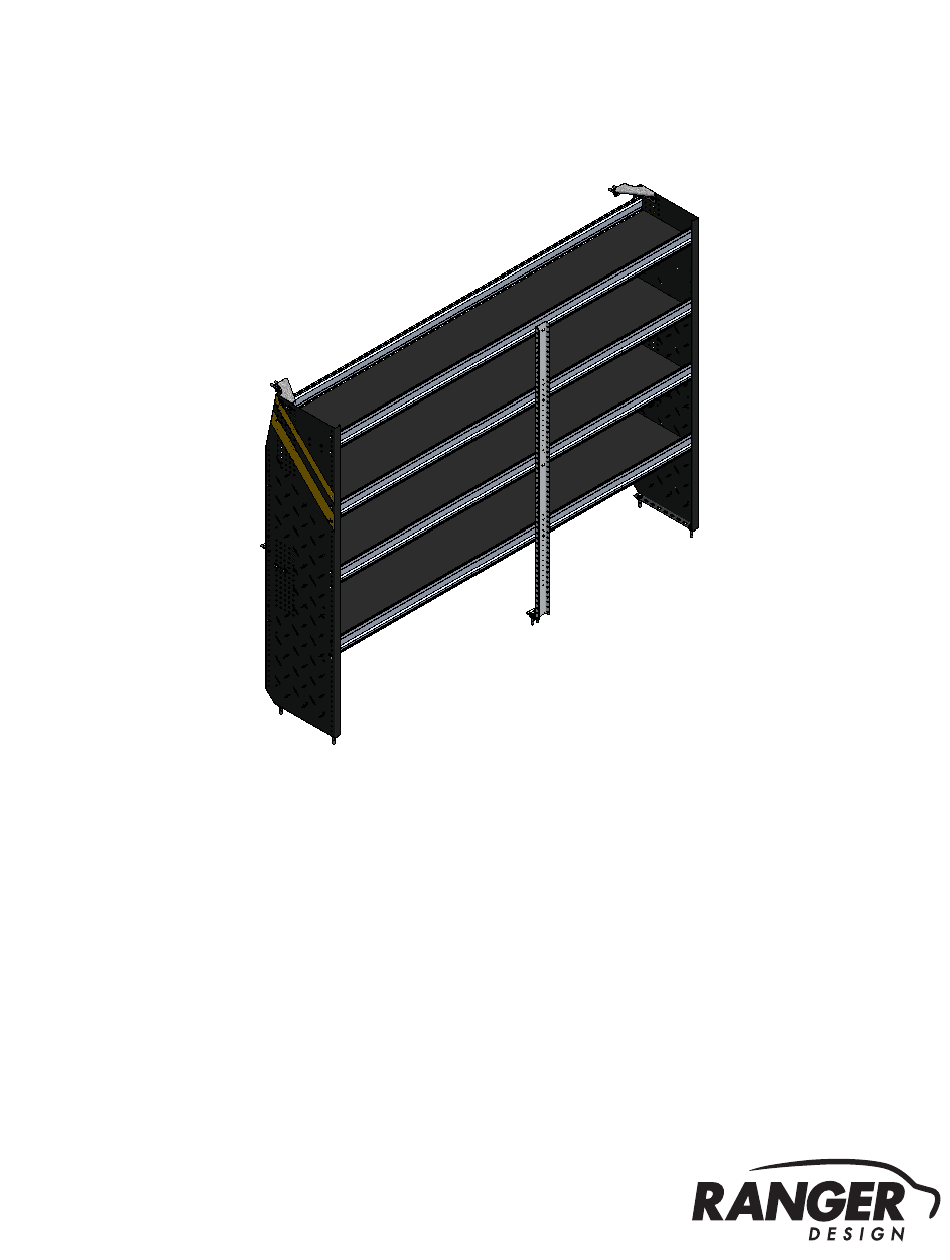

- Page 1 INSTALLATION GUIDE N5-RS84-4 Shelving steel Transit High Roof & Medium Roof Promaster Standard Roof & High Roof Nissan NV High Roof Sprinter Low Roof & High Roof Box Truck / Trailer...
-
Page 2: Required Items
QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 4 q 1.2 Shelf Assembly..........................5 - 6 Phase 2 - Installation q 2.1 Attach Wall Brackets To The End Panels..................q 2.2 Mark Holes For Plus Nuts....................... q 2.3 Attach Plus Nut.......................... -
Page 3: Phase 1 - Assembly
60 - 13.875 × 84 Shelf Tray, Black Plywood, Usable 14" × 84" 94 - 4026 Assembly Fastener Kit 96 - 4026 Install Fastener Kit N5-RS84-4 Installation Guide | REV. B1 | Page 3 For technical support, contact us at 1-800-565-5321... - Page 4 ( QTY = G ap beTween floor and end panel #94-132 5/16" Plusnut Spacer 6× 6× 0.375" ID, × 1.0" OD × 0.25" LONG # 98-157 NYLON N5-RS84-4 Installation Guide | REV. B1 | Page 4 For technical support, contact us at 1-800-565-5321...
-
Page 5: Shelf Assembly
13 - 11/16" Box Truck / Trailer 13 - 11/16" TOOLS q Cordless Impact q 3/8" Driver Bit HARDWARE USED 32× #92-102 Screw #14 × 1" N5-RS84-4 Installation Guide | REV. B1 | Page 5 For technical support, contact us at 1-800-565-5321... - Page 6 TOOLS q Cordless Impact q 3/8" Driver Bit HARDWARE USED 8× #92-200 Screw #10 - 16 × 3/4" N5-RS84-4 Installation Guide | REV. B1 | Page 6 For technical support, contact us at 1-800-565-5321...
-
Page 7: Phase 2 - Installation
1/2" Socket HARDWARE USED 8× hand tighten the bolts #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut HORIZONTAL RIM N5-RS84-4 Installation Guide | REV. B1 | Page 7 For technical support, contact us at 1-800-565-5321... - Page 8 2 holes of the center post on the vehicle floor. NOTE: If you are using Ranger floor, please go to page TOOLS q Marker MARK N5-RS84-4 Installation Guide | REV. B1 | Page 8 For technical support, contact us at 1-800-565-5321...
- Page 9 1/2" Drill Bit w/ Drill Collar ( Set at 1/2" ) q Plus Nut Tool ( 5/16" ) HARDWARE USED 14× #94-132 Plus Nut DRILL COLLAR 1/2" ) seT aT N5-RS84-4 Installation Guide | REV. B1 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 1/2" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE N5-RS84-4 Installation Guide | REV. B1 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 Fastener should always be installed as close to the vertical face as possible. most vehicle use spacer when not over ribs W/ Spacer W/O Spacer W/ Spacer W/O Spacer N5-RS84-4 Installation Guide | REV. B1 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 #92-102 Screw 1" HARDWARE USED 2× floor fastener kit #90-490 Carriage Bolt 5/16" × 1" #98-116 Lock Washer #98-122 Flat Washer #94-104 Hex Nut N5-RS84-4 Installation Guide | REV. B1 | Page 12 For technical support, contact us at 1-800-565-5321...
-
Page 13: Attach Wall Brackets
Cordless Impact q 1/2" Socket HARDWARE USED 8× #90-212 Hex Bolt 5/16" × 1-1/4" #98-122 Lock Washer #98-116 Flat Washer #94-132 5/16" Plusnut N5-RS84-4 Installation Guide | REV. B1 | Page 13 For technical support, contact us at 1-800-565-5321... - Page 14 1/2" Socket FASTENERS USED 8× wall kits fastener kit #90-208 Hex Bolt 5/16" × 1" #98-122 Lock Washer #98-116 Flat Washer #94-150 Channel Nut N5-RS84-4 Installation Guide | REV. B1 | Page 14 For technical support, contact us at 1-800-565-5321...
- Page 15 “You have successfully installed your N5-RS84-4 Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: N5-RS84-4 Installation Guide | REV. B1 | Page 15 For technical support, contact us at 1-800-565-5321...
