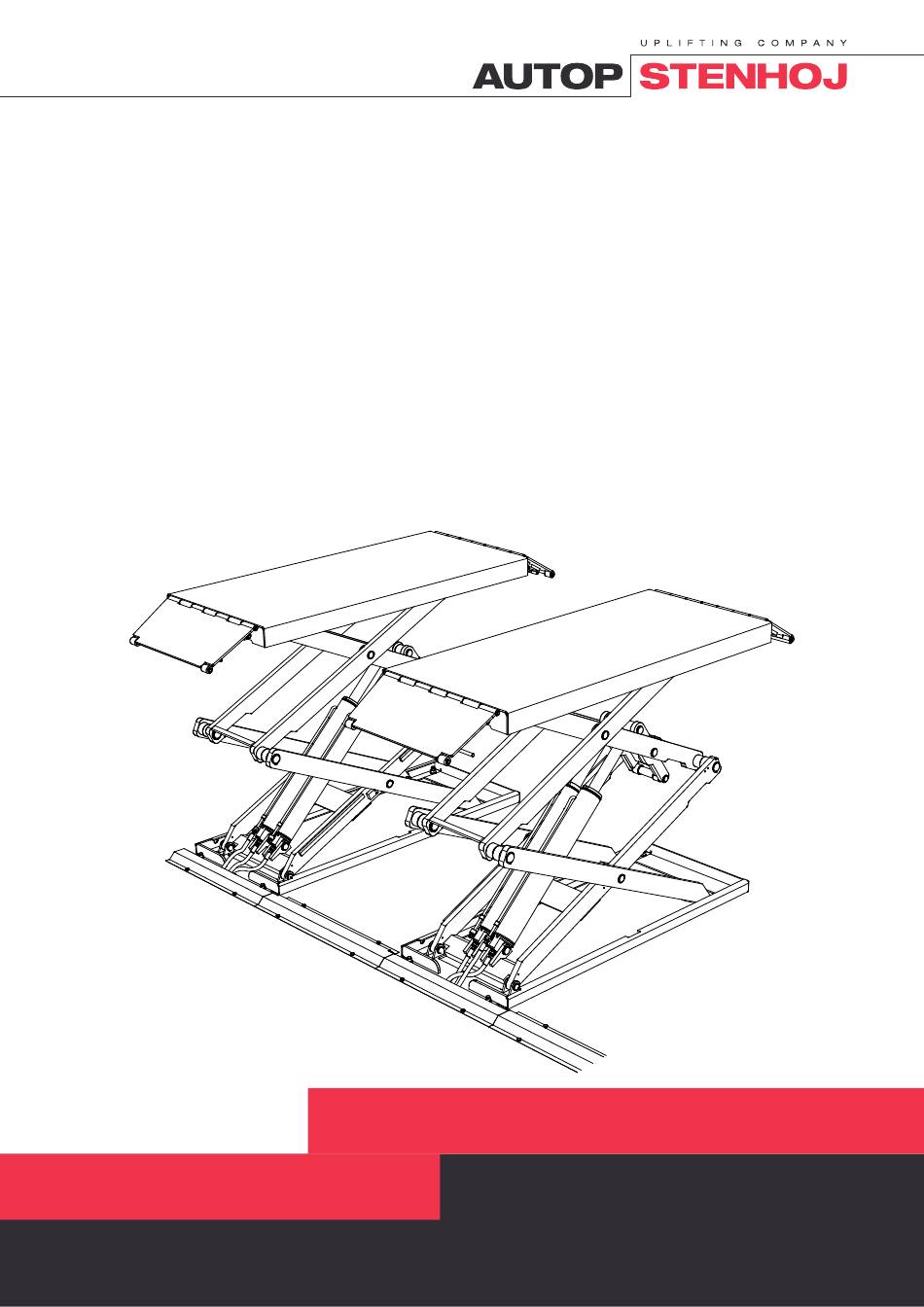

- Page 1 MagiX 30 Operation and maintenance instructions (TRANSLATED VERSION) Instruction manual Read the operating ALWAYS KEEP instructions before ready to hand working with the on the unit unit Manual no.: T62351-GB Date: 20.10.2023...
- Page 2 2 / 33 MagiX 30 T62351-GB Before taking into operation check system compo- nents, control, emer- gency stop and safety equipment for conditi- on, damage and correct function! © AUTOPSTENHOJ GmbH Sandkampstraβe 90 D-48432 Rheine Tel. (DK) +45 76 82 13 30...
-
Page 3: Table Of Contents
T62351-GB MagiX 30 3 / 33 Table of contents General ............................4 Information about the operating manual ..................4 Explanation of symbols ........................4 Warranty and liability ........................5 Spare parts .............................5 Copyright protection ........................6 Waste disposal ..........................6 Safety ............................6 General ............................6 Customer’s responsibility .......................8 Intended use ..........................8... -
Page 4: General
4 / 33 MagiX 30 T62351-GB General Information about the operating manual This operating manual describes the installation, operation and maintenance of the machine. Strict compliance with all the specified notes on safety and instructions is essential for safe working and proper handling of the equipment. Apart from that, all accident prevention instructions valid at the place of use and the general safety regulations must also be adhered to. -
Page 5: Warranty And Liability
T62351-GB MagiX 30 5 / 33 Warranty and liability All information and notes in this operation manual are provided under due consideration of valid regulations, the latest technical status of development as well as our years of expertise and experience. -
Page 6: Copyright Protection
6 / 33 MagiX 30 T62351-GB Copyright protection This operating manual is to be treated as confidential. It is solely intended for persons having to work on or with the equipment. Passing this operating manual on to third parties without a written confirmation is not permitted. If this should be required, please contact the manufacturer. NOTE! Contents, texts, drawings, pictures and other representations are protected by copyright law and are subject to further commercial protection rights. Any misuse is punishable. - Page 7 Harmonized standards applied: - EN 1493:2010 - EN ISO 12100: 2013 - EN 60204-1:2019 - EN ISO 138491: 2016 Responsible for documentation: CEO for AUTOPSTENHOJ GmbH, Sandkampstraβe 90, D-48432 Rheine Place, date: Barrit, Signature: ___________________________________ Signer information: Wolfgang Naber, Engineering Manager...
-
Page 8: Customer's Responsibility
8 / 33 MagiX 30 T62351-GB Customer’s responsibility This operating manual should always be kept in the immediate vicinity of the machine, accessible for the per- sonnel entrusted with installation, operation, maintenance and cleaning. The machine must only be operated in technically perfect and safe condition. -
Page 9: Work Safety
T62351-GB MagiX 30 9 / 33 Work safety Compliance with the notes on safety can help to avoid personal injury and material damage when working on the machine. Failure to comply with these notes will cause a considerably risk of injury for persons and danger of damage or destruction of the machine. -
Page 10: Operating Personnel
10 / 33 MagiX 30 T62351-GB Operating personnel The device must only be operated and serviced by authorized, trained and instructed expert persons who: • are at least 18 years of age and • have been thoroughly instructed in operation and can provide evidence of their suitability to operate lifting platforms and •... -
Page 11: Technical Data
T62351-GB MagiX 30 11 / 33 Technical data Type designation Example: MagiX 230-400/3/50 Mains voltage Installation: S = Surface mounted version = In-ground version Capacity: 30 = 3.000 kg Series designation: MagiX Name plate The name plate is located on the control post and contains following information: •... -
Page 12: Technical Specifications
12 / 33 MagiX 30 T62351-GB Technical specifications Max. lifting capacity 3000 kg * Max. lifting height 1950 mm Height of platform 105 mm Length of platform 1490 mm Width of platform 670 mm Lifting time ≤45 s Lowering time ≤40 s... - Page 13 T62351-GB MagiX 30 13 / 33 Type of vehicle to be lifted on the lift: This lift is suitable for virtually all vehicles with total weight and with dimensions not exceeding the below data. Max. dimension of vehicle: The following diagrams illustrate criteria used to define the operating limits of the lift. 3,0 T Min.
-
Page 14: Structure And Function
14 / 33 MagiX 30 T62351-GB Structure and function Description The MagiX is a scissor lift for 3000 kg capacity, especially suitable for passenger cars and light vans. The lift is operated by means of push buttons and can be stopped at any height between the min height and the max height. -
Page 15: Symbols Of Short Operating Instructions
T62351-GB MagiX 30 15 / 33 Symbols of short operating instructions The lifting platform must only be operated by authorized persons. Strict compliance with the comprehensive operating manual is mandatory, especially in case of faults Climbing up or standing on lifted load or load bearing device is strictly prohibited. -
Page 16: Transport, Packing And Storage
16 / 33 MagiX 30 T62351-GB Transport, packing and storage Safety notes WARNING! Danger of injury! There is a danger of injury from falling parts when lifting, swinging and lowering. The machine can be damaged or destroyed by improper transporting. For this reason, fundamentally observe the following safety notes: Only use permissible lifting tackle and sling gear with sufficient bearing capacity. Only secure the machine on the fastening points provided; do not fasten onto projecting machine parts or eye- lets of attached components. -
Page 17: Storage
T62351-GB MagiX 30 17 / 33 Storage Keep packed goods packed up until installation and store such items as specified on the externally attached installation and storage information. Store packing units only under the following conditions: Do not keep in the open-air. • Store in a dry and dust-free environment. • • Do not subject to aggressive media. -
Page 18: Instructions For Start-Up And Bleeding
18 / 33 MagiX 30 T62351-GB Instructions for start-up and bleeding NOTE: These operations must be performed without load 1. Turn main switch onto ON. 2. Fill tank with oil. 3. Check that all valves are completely closed. 4. Push UP button until max height is reached. If lift does not move, check motor: if motor is spinning, check if direction of rotation is correct;... -
Page 19: Operation
T62351-GB MagiX 30 19 / 33 Operation Safety Please read the paragraphs “Work safety”, “Personal safety equipment” and “Operating personnel”. WARNING! Danger of injury! During lifting and lowering movements the lifting platform generates dangers which could lead to seve- re injury, such as crushing or shearing off of limbs or by heavy objects slipping off or falling down. In order to avoid accidents the following should be noted when operating lifting platforms: During the up or down movement of the lifting platform the danger zone and the immediate vicinity of the •... -
Page 20: Emergency Lowering
20 / 33 MagiX 30 T62351-GB Lowering: • Check that no persons, tools, equipment or the like are in immediate vicinity of vehicle or lift. Push DOWN button ; lift will lower. Keep an eye on both vehicle and •... -
Page 21: Adjustment Of Top Limit Switch
T62351-GB MagiX 30 21 / 33 Adjustment of top limit switch: Raise lift to 1950 mm. Turn cam disc on left scissor member (according to drive-on direction) until breaking switch is activated; tighten afterwards pointed screws on cam disc. Raise and lower lift a couple of times and check once again that height still is 1950 mm. -
Page 22: Maintenance
22 / 33 MagiX 30 T62351-GB Maintenance Safety WARNING! Danger of injury! Improperly performed maintenance work can lead to severe physical injury or damage to property. Any work related with care and maintenance must only be carried out by qualified and authorized expert personnel. Strictly observe when performing maintenance work: Switch off the system and secure against switching on again. • Perform work only with the device stopped. • Secure movable parts against unintended movement. • • See paragraph “Personal safety equipment”... -
Page 23: Intervals For Preventive Maintenance
T62351-GB MagiX 30 23 / 33 Intervals for preventive maintenance Lift should be checked at shorter intervals if used a lot. Intervals Action At every lifting move- Check that no loose items (e.g. screws, spare parts, stones, etc.) are lying on •... -
Page 24: Cleaning
24 / 33 MagiX 30 T62351-GB Cleaning: Cleaning of lifts to prevent corrosion damages. Corrosive fluids as brake fluid, oil, fuel or other solvents must be wiped off immediately, otherwise damage will occur to the coating. Special attention must be paid to the corrosive effect of salt in fall and winter periods. The cleansing agents must not have any abrasive effect, nor contain solvents. The lift must be cleaned at least once a week. The lift must be cleaned with a non-corrosive cleansing agent. -
Page 25: Malfunctions
T62351-GB MagiX 30 25 / 33 10. Malfunctions 10.1 Actions in case of malfunctions In case of breakdown check the following points: 1. Electricity cut 2. Main fuses 3. Electric motor 4. Obstruction under lift If these points are found in order but the lift is still not working, the safety system has probably been activated, and the lift must not be started or repaired by unqualified staff. Contact the nearest authorized service shop. -
Page 26: Service
26 / 33 MagiX 30 T62351-GB Trouble shooting chart - continued Symptom: Possible cause: Solution: Lift does not lower when Lowering solenoid valve does not work Check that valve is powered and that DOWN-button is acti- solenoid coil is not damaged (replace if... -
Page 27: Oil Specifications
T62351-GB MagiX 30 27 / 33 12. Oil specifications - Semi-hydraulic lift - Full-hydraulic lift - Scissor lift (3T) Lubrication oil for (oil in lift cylinder) - High-pressure No lift - 2-post hydraulic high-pressure lift - 4-post hydraulic lift surface-mounted... -
Page 28: Overview: Electrical Diagrams
28 / 33 MagiX 30 T62351-GB Overview: Electrical diagrams 13.1 T50587: Electrical diagram 230-400/3/50 (24V) - Page 29 T62351-GB MagiX 30 29 / 33...
- Page 30 30 / 33 MagiX 30 T62351-GB...
-
Page 31: Overview: Hydraulic Diagrams
T62351-GB MagiX 30 31 / 33 Overview: Hydraulic diagrams 14.1 T61050 - Hydraulic diagram... - Page 32 32 / 33 MagiX 30 T62351-GB...
- Page 33 T62351-GB MagiX 30 33 / 33...
