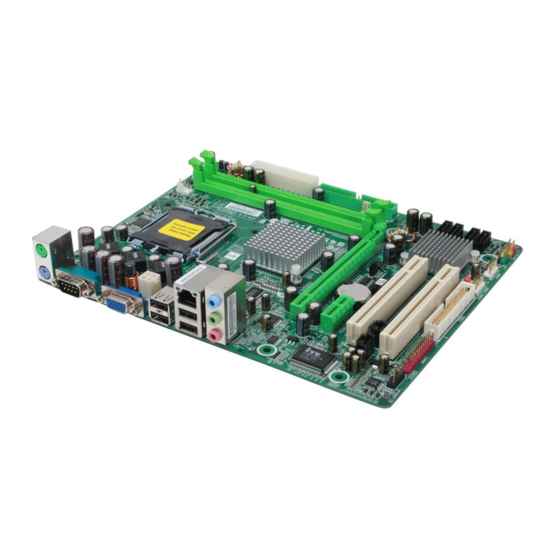

Biostar GF7050V-M7 Manual

Bios setup
Hide thumbs Also See for GF7050V-M7:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual
GF7050V-M7 BIOS Setup
BIOS Setup ................................................................................................ 1
1 Main Menu ............................................................................................. 3
2 Standard CMOS Features..................................................................... 7
3 Advanced BIOS Features ...................................................................... 9
4 Advanced Chipset Features................................................................. 17
5 Integrated Peripherals......................................................................... 20
6 Power Management Setup................................................................... 26
7 PnP/PCI Configurations...................................................................... 29
8 PC Health Status .................................................................................. 32
9 Performance Booster Zone.................................................................. 35
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GF7050V-M7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Biostar GF7050V-M7

Summary of Contents for Biostar GF7050V-M7

  • Page 1: Table Of Contents

    GF7050V-M7 BIOS Setup BIOS Setup ....................1 1 Main Menu ..................... 3 2 Standard CMOS Features..............7 3 Advanced BIOS Features ..............9 4 Advanced Chipset Features..............17 5 Integrated Peripherals................. 20 6 Power Management Setup..............26 7 PnP/PCI Configurations..............29 8 PC Health Status ..................

  • Page 2: Bios Setup

    GF7050V-M7 BIOS Setup Introduction The purpose of this manual is to describe the settings in the Phoenix-Award™ BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to CMOS RAM.

  • Page 3: Acpi Support

    GF7050V-M7 ACPI Support Phoenix-Award ACPI BIOS support Version 1.0b of Advanced Configuration and Power interface specification (ACPI). It provides ASL code for power management and device configuration capabilities as defined in the ACPI specification, developed by Microsoft, Intel and Toshiba.

  • Page 4: Main Menu

    GF7050V-M7 1 Main Menu Once you enter Phoenix-Award BIOS™ CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions. Use the arrow keys to select among the items and press <Enter>...

  • Page 5: Advanced Bios Features

    GF7050V-M7 Advanced BIOS Features This submenu allows you to configure advanced features of the BIOS. Advanced Chipset Features This submenu allows you to configure special chipset features. Integrated Peripherals This submenu allows you to configure certain IDE hard drive options and Programmed Input/ Output features.

  • Page 6: Set Supervisor Password

    GF7050V-M7 Set Supervisor Password Setting the supervisor password will prohibit everyone except the supervisor from making changes using the CMOS Setup Utility. You will be prompted with to enter a password. Set User Password If the Supervisor Password is not set, then the User Password will function in the same way as the Supervisor Password.
  • Page 7 GF7050V-M7 Upgrade BIOS This submenu allows you to upgrade bios.

  • Page 8: Standard Cmos Features

    GF7050V-M7 2 Standard CMOS Features The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the<PgUp> or <PgDn> keys to select the value you want in each item.
  • Page 9 GF7050V-M7 Item Options Description 360K, 5.25 in 1.2M, 5.25 in Select the type of floppy 720K, 3.5 in Drive A/B disk drive installed in your 1.44M, 3.5 in system. 2.88M, 3.5 in None EGA/VGA CGA 40 Select the default video Video device.

  • Page 10: Advanced Bios Features

    GF7050V-M7 3 Advanced BIOS Features Figure 3: Advanced BIOS Setup Cache Setup...
  • Page 11 GF7050V-M7 CPU L3 Cache Depending on the CPU/chipset in use, you may be able to increase memory access time with this option. Enabled (default) Enable cache. Disabled Disable cache. Boot Seq & Floppy Setup This item allows you to setup boot sequence & Floppy.
  • Page 12 GF7050V-M7 Removable Device Priority Select Removable Boot Device Priority. The Choices: Floppy Disks, Zip100, USB-FDD0, USB-FDD1, USB-ZIP0, USB-ZIP1, LS120. Hard Disk Boot Priority The BIOS will attempt to arrange the Hard Disk boot sequence automatically. You can change the Hard Disk booting sequence here.

  • Page 13: Boot Other Device

    GF7050V-M7 CD-ROM Boot Priority The Choices: Pri. Master, Pri. Slave, Sec. Master, Sec. Slave, USB CDROM0, USB CDROM 1. First/Second/Third Boot Device The BIOS will attempt to load the operating system in this order. The Choices: Removable, Hard Disk, CDROM, Legacy LAN, Disabled.

  • Page 14: Cpu Feature

    GF7050V-M7 CPU Feature PPM Mode The Choices: Native Mode (default), SMM Mode. Limit CPUID MaxVal Set Limit CPUID MaxVal to 3, it should be “Disabled” for Windows XP. The Choices: Disabled (default), Enabled. C1E Function This item allows you to configure the Enhanced Halt State (C1E) function, which may reduce the power consumption of your system when the system is idle.

  • Page 15: Virus Warning

    GF7050V-M7 Virtualization Technology Virtualization Technology can virtually separate your system resource into several parts, thus enhance the performance when running virtual machines or multi interface systems. The Choices: Enabled (default), Disabled. Core Multi-Processing The Choices: Enabled (default), Disabled. Virus Warning This option allows you to choose the VIRUS Warning feature that is used to protect the IDE Hard Disk boot sector.

  • Page 16: Typematic Rate Setting

    GF7050V-M7 Typematic Rate Setting When a key is held down, the keystroke will repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be configured. The Choices: Disabled (default), Enabled. Typematic Rate (Chars/Sec) Sets the rate at which a keystroke is repeated when you hold the key down.

  • Page 17: Summary Screen Show

    GF7050V-M7 OS Select For DRAM > 64MB A choice other than Non-OS2 is only used for OS2 systems with memory exceeding 64MB. The Choices: Non-OS2 (default), OS2. Small Logo(EPA) Show This item allows you to select whether the “Small Logo” shows. Enabled (default) “Small Logo”...

  • Page 18: Advanced Chipset Features

    GF7050V-M7 4 Advanced Chipset Features This submenu allows you to configure the specific features of the chipset installed on your system. This chipset manage bus speeds and access to system memory resources, such as DRAM. It also coordinates communications with the PCI bus.

  • Page 19: Spread Spectrum Control

    GF7050V-M7 Spread Spectrum Control CPU Spread Spectrum This item allows you to select the CPU Spread Spectrum function. The Choices: 0.50% H.Kiss Cntr, 0.50% H.Kiss Down, 0.75% H.Kiss Cntr, 0.75% H.Kiss Down, Disabled (default). SATA Spread Spectrum This item allows you to select the SATA Spread Spectrum function.

  • Page 20: Frame Buffer Size

    GF7050V-M7 Frame Buffer Size This item allows you to choose the frame buffer size of on-chip VGA. The Choices: 64M (default), 16M, 32M, 128M, 256M, Disabled. System BIOS Cacheable Selecting the “Enabled” option allows caching of the system BIOS ROM at F0000h-FFFFFh, which is able to improve the system performance.

  • Page 21: Integrated Peripherals

    GF7050V-M7 5 Integrated Peripherals Figure 5. Integrated Peripherals IDE Function Setup Highlight the “Press Enter” label next to the “IDE Function Setup” label and press enter key will take you a submenu with the following options:...

  • Page 22: Ide Dma Transfer Access

    GF7050V-M7 On-chip IDE Channel 0 The motherboard chipset contains a PCI IDE interface with support for two IDE channels. Select “Enabled” to activate the first and/or second IDE interface. Select “Disabled” to deactivate an interface if you are going to install a primary and/or secondary add-in IDE interface.

  • Page 23: Mcp Storage Config

    GF7050V-M7 MCP Storage Config SATA Operation Mode This option allows you to choose SATA function. The Choices: IDE (default), RAID, AHCI, Linux AHCI. SATA 1/2/3/4 RAID This option allows you to enable or disable SATA Primary/Secondary RAID. The Choices: Disabled (default), Enabled.

  • Page 24: Onboard Lan Boot Rom

    GF7050V-M7 USB Keyboard/Storage Support This item allows you to enable or disable the USB Keyboard / storage Legacy Support. Enabled Enable USB Keyboard / storage Support. Disabled (default) Disable USB Keyboard/ storage Support. USB Mouse Support This item allows you to enable or disable the USB mouse Legacy Support.

  • Page 25: Ide Hdd Block Mode

    GF7050V-M7 IDE HDD Block Mode Block mode is also called block transfer, multiple commands, or multiple sectors read / write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read / write per sector where the drive can support.

  • Page 26: Onboard Parallel Port

    GF7050V-M7 Onboard Parallel Port This item allows you to determine access onboard parallel port controller with which I/O Address. The Choices: 378/IRQ7 (default), 278/IRQ5, 3BC/IRQ7, Disabled. Parallel Port Mode This item allows you to determine how the parallel port should function. The default value is SPP.

  • Page 27: Power Management Setup

    GF7050V-M7 6 Power Management Setup The Power Management Setup Menu allows you to configure your system to utilize energy conservation and power up/power down features. Figure 6. Power Management Setup ACPI Function This item displays the status of the Advanced Configuration and Power Management (ACPI).

  • Page 28: Power Management

    GF7050V-M7 Power Management This category allows you to select the power saving method and is directly related to the following modes: 1. HDD Power Down. 2. Suspend Mode. There are three options of Power Management, three of which have fixed mode settings Min.

  • Page 29: Hpet Support

    GF7050V-M7 Soft-Off by PBTN This item determines the behavior of system power button. Instant off turn off the power immediately, and Delay 4 Sec. will require you to press and hold the power button for 4 seconds to cut off the system power.

  • Page 30: Pnp/Pci Configurations

    GF7050V-M7 7 PnP/PCI Configurations This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.

  • Page 31: Resources Controlled By

    GF7050V-M7 “Disabled” mode. The above settings will be shown on the screen only if “Manual” is chosen for the resources controlled by function. Legacy is the term, which signifies that a resource is assigned to the ISA Bus and provides non-PnP ISA add-on cards. PCI / ISA PnP signify that a resource is assigned to the PCI Bus or provides for ISA PnP add-on cards and peripherals.

  • Page 32: Maximum Payload Size

    GF7050V-M7 PCI / VGA Palette Snoop Some old graphic controllers need to “snoop” on the VGA palette and then map it to their display as a way to provide boot information and VGA compatibility. This item allows such snooping to take place.

  • Page 33: Pc Health Status

    GF7050V-M7 8 PC Health Status Figure 8: PC Health Status Smart Fan Option...

  • Page 34: Shutdown Temperature

    GF7050V-M7 CPU Smart Fan This item allows you to control the CPU Fan. The Choices: Disabled (default), Auto, 4-pin, 3-pin.. Smart Fan Calibration Choose this item and then the BIOS will auto test and detect the CPU fan functions and show CPU fan speed.
  • Page 35 GF7050V-M7 CPU Vcore, NB Voltage, +3.3V, +5.0V, +12.0V, DDR Voltage, VTT Voltage, 5V(SB), Voltage Battery Detect the system’s voltage status automatically. CPU Temperature This field displays the current temperature of CPU. CPU FAN Speed This field displays the current speed of CPU fan.

  • Page 36: Performance Booster Zone

    GF7050V-M7 9 Performance Booster Zone FSB-Memory Clock Mode This item allows you to choose the memory clock mode. The Choices: Auto (default), Linked, Unlinked. FSB-Memory Ratio This item allows you to choose the memory clock mode. The Choices: Auto (default) FSB (QDR), MHz This item allows you to choose the memory clock mode.

  • Page 37: Memory Timing Setting

    GF7050V-M7 Memory Timing Setting Memory Timing Setting This item allows you to choose to manually or automatically regulate the DDR Timing. The Choices: Optimal (default), Expert tCL (CAS Latency) The Choices: Auto (default), 3 CLK ~ 6 CLK. tRCD The Choices: Auto (default), 3 CLK ~ 6 CLK.

  • Page 38: Ddr Voltage

    GF7050V-M7 tRRD The Choices: Auto (default), 2 CLK ~ 5 CLK. The Choices: Auto (default), 11 CLK ~ 26 CLK. The Choices: Auto (default), 3 CLK ~ 6 CLK. tWTR The Choices: Auto (default), 1 CLK ~ 3 CLK. tREF The Choices: Auto (default), 7.8 us, 3.9 us.
