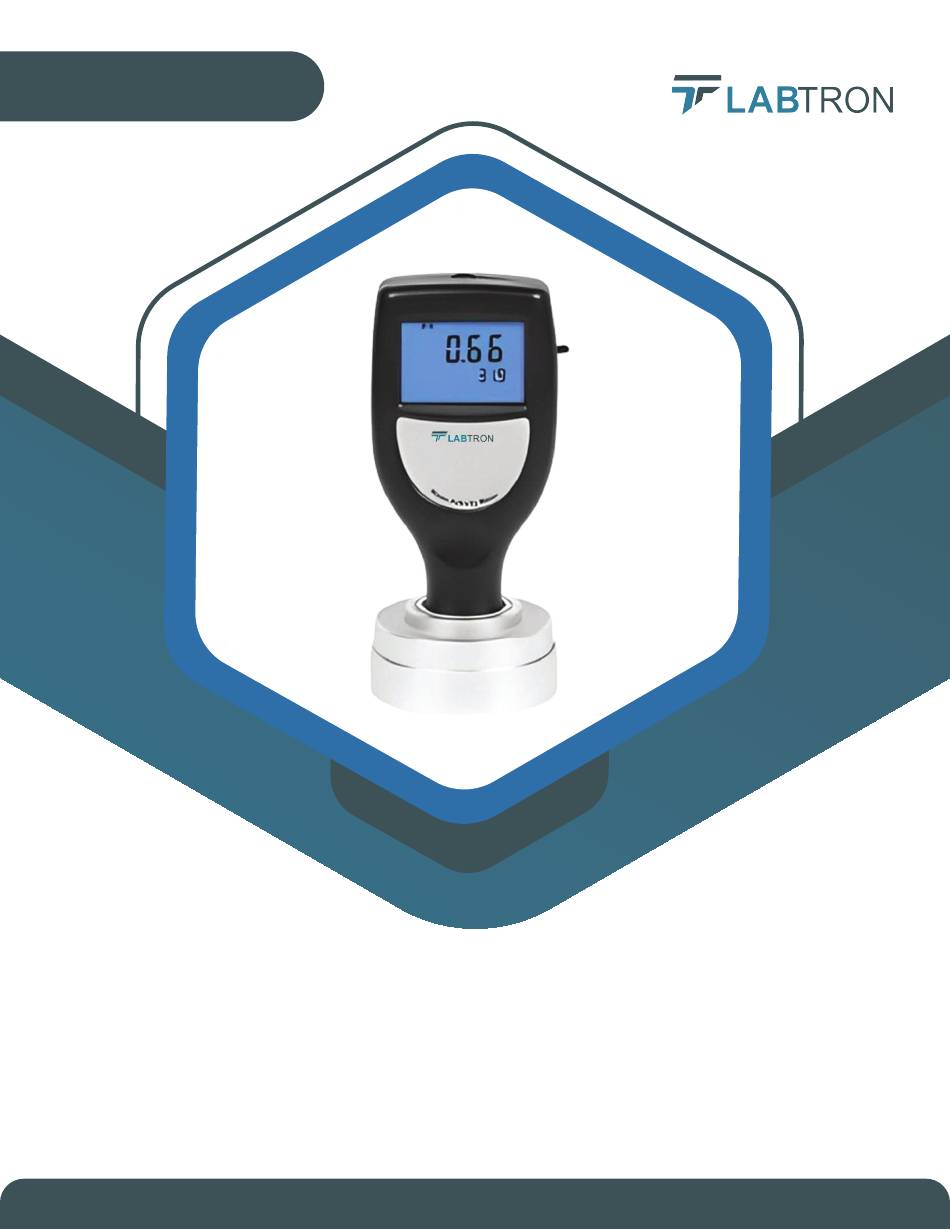

- Page 1 Operation manual Water Activity Meter Water Activity Meter LWTM-A10 LWTM-A10 www.labtron.com info@labtron.com...
-
Page 2: Table Of Contents
Water Activity Meter LWTM-A10 Index Sr.no Title Page no Introduction Features Specifications Applications Instrument Introduction Operations Accessories Replacement... -
Page 3: Introduction
Water Activity Meter LWTM-A10 1. Introduction Water Activity Meter LWTM-A10 is a real portable water activity meter, with a weight of only 1.5 kg, lighter than a mobile phone. It has a 0 to 1.0 aw range and offers an operating temperature range from 0 to 50˚C. -
Page 4: Specifications
Water Activity Meter LWTM-A10 3. Specifications Model no. LWTM-A10 Range 0 to 1.0 aw Resolution 0 to 1.0 aw Accuracy ± 0.02 aw Sensor Nonconductive humidity sensor Sampling Time 5 Minutes Display 6-bit backlight LCD digital display, (3-bit humidity aw, 3-bit temperature display) Operating Temperature 0 to 50˚C... -
Page 5: Instrument Introduction
Water Activity Meter LWTM-A10 5. Instrument introduction Front panel descriptions Figure-1 1. Display 2. Water Activity Value 3. Temperature Value 4. Data Cable Interface 5. Battery Cover on the Back 6. Power key 7. Sensor... -
Page 6: Operations
Water Activity Meter LWTM-A10 6. Operations 6.1 Measurement procedure 1) Press the power key to switch on the power and the gauge enters the auto mode which can automatically test the water activity. 2) Put the samples into the sample plate, and then cover the sensor of the gauge onto the sample plate. -
Page 7: Accessories
Water Activity Meter LWTM-A10 7. Accessories Standard accessories S.no Accessory name Main Unit Standard Sample Plate Carrying Case (B04) Operation Manual Optional accessories S.no Accessory name F probe nF probe RS232C+software/BLUETOOTH... -
Page 8: Replacement
Water Activity Meter LWTM-A10 8. Replacement Battery replacement 1) When it is necessary to replace the battery, the battery symbol “ ”will appear on the Display. 2) Slide the Battery Cover (Figure 1), away from the instrument and remove the batteries.
