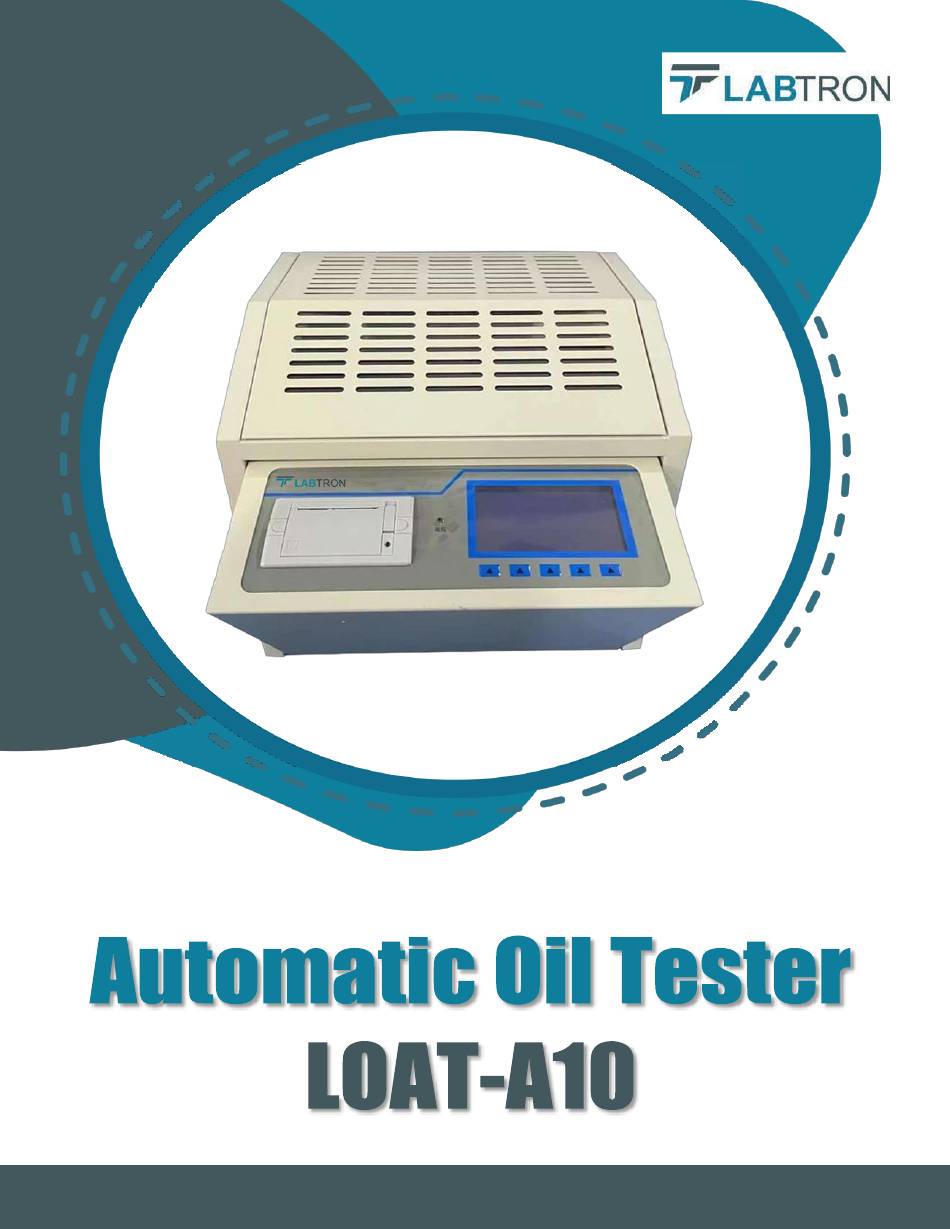

  • Page 1 info@labtron.com...
  • Page 2 Automatic Oil Tester LOAT-A10 Index Sr.no Title Page no Safety Measures Introduction Features Specifications Applications Instrument Introduction Installation Software Operations Troubleshooting Accessories...

  • Page 3: Safety Measures

    Automatic Oil Tester LOAT-A10 1. Safety Measures • Before using the instrument, read this operation manual in detail. • The instrument operator should be familiar with the general use of electrical equipment or analytical instruments. • The instrument can be used indoors and outdoors but should avoid rain, corrosive gas, high dust concentrations, high temperature or direct sunlight and other places to use.
  • Page 4 Automatic Oil Tester LOAT-A10 2. Introduction Automatic Oil Tester LOAT-A10 features a booster capacity of 1.5 kVA. It has an adjustable boost speed ranging from 0.5 kV/s to 5.0 kV/s, with ten increments of 0.5 kV/s for precise voltage testing. This tester is controlled by a powerful microcomputer, which ensures stable and reliable performance.

  • Page 5: Specifications

    430 × 350 × 370 mm Three Cups Dimension 670 × 420 × 410 mm Single Cup Weight 36 Kg Three Cups Weight 42 kg 5. Applications Automatic Oil Tester LOAT-A10 is commonly used in power generation, transmission, and distribution industries to maintain equipment reliability.

  • Page 6: Instrument Introduction

    Automatic Oil Tester LOAT-A10 6. Instrument Introduction Figure-1 Front View Figure-2 Back view Component Component Description name Liquid crystal The date, time, operation parameters, test results, display and operation menu information are displayed. Function keys Select Set operation parameters. Printer Print test results.
  • Page 7 Automatic Oil Tester LOAT-A10 Temperature Celsius temperature and relative humidity are and humidity measured and converted to digital signals for sensor display. Grounding Reliable ground connection column. column Power sockets Properly plug the AC220V 50Hz power cable. and switches...

  • Page 8: Installation

    Automatic Oil Tester LOAT-A10 7. Installation Conditions of use 1) Ambient temperature: 0-40°C. 2) Relative humidity: ≤ 85%. 3) Power supply: AC 220V ± 20%. 4) Power frequency: 50 Hz ± 5 Hz. 5) Power consumption: < 200 W.

  • Page 9: Software Operations

    Automatic Oil Tester LOAT-A10 8. Software Operations 1) Plug in the power cable, turn on the power switch, and the LCD screen displays the startup page (Figure 3). Figure-3 Boot Interface 2) Under the page shown in Figure 3, press the Sel button to enter the next page (Figure...
  • Page 10 Automatic Oil Tester LOAT-A10 3) In Figure 4, press the Sel button to move the cursor √, and press the Ent button to enter the setting sub-page (Figure 5). Figure-5 Sub-page Under The page shown in Figure 5, press + or - to set the stop V, whose default value is 80 kV, and the optional range is 10 kV ~ 80 kV (tap increment of 10 kV).
  • Page 11 Automatic Oil Tester LOAT-A10 5) Under the page shown in Figure 4, press the "Sel" button to move the cursor √ to the place of time setting, and press the "Ent" button to enter the sub-page of time setting (Figure 7).
  • Page 12 Automatic Oil Tester LOAT-A10 Still Optional range 1-99 min (tap increment 1 min). Gap T Optional range 1-99 min (tap increment 1 min). Stir Optional range 1-99s (tap increment 1s). Optional range of 10-80 kV (gear increment of 10kV). When the...

  • Page 13: Troubleshooting

    Automatic Oil Tester LOAT-A10 9. Troubleshooting 1) If there is no response when the instrument is opened, check whether the power cord is plugged well and whether the fuse is intact. 2) If the instrument does not boost the pressure, check whether the lid of the oil cup is properly closed.
  • Page 14 Automatic Oil Tester LOAT-A10 Accessories Standard Accessories S. No Accessory Name Quantity 36 mm Oil test vessels stainless steel spherical electrodes 36 mm Oil test vessels stainless steel mushroom electrodes 2.5 mm Electrode spacing gauge Protective Cover Power Supply lead...
