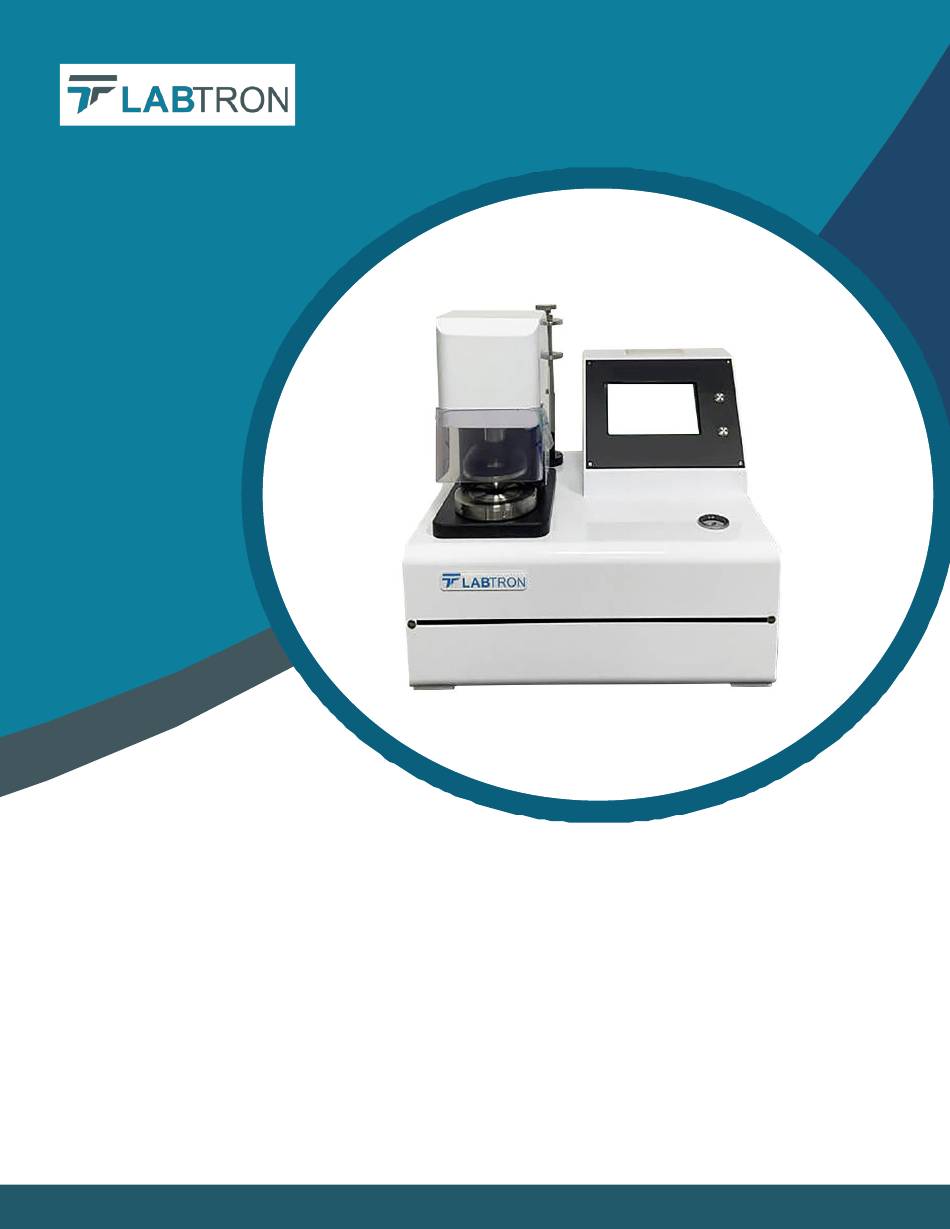

- Page 1 Mullen Burst Tester TP-K11 www.labtron.com | info@labtron.com...
- Page 2 Mullen Burst Tester TP-K11 Index Sr. No Title Page no Introduction Features Specifications Applications Instrument Introduction Installation Operations Maintenance Troubleshooting...
- Page 3 Mullen Burst Tester TP-K11 1. Introduction Mullen burst tester TP-K11 is used to measure the bursting strength of paper submitted to increasing hydraulic pressure. Used in testing bursting strength of all types of papers in the 0 to 1600 kPa range depending on clamp pressure. It has mechanically & electrically integrated modern design, with compact structure &...
- Page 4 Mullen Burst Tester TP-K11 3. Specifications Model No. TP-K10 50 to 1600 kPa-paper and 50 to 5600 Measurement range kPa-paper Resolution 0.01kPa Accuracy ≤± 0.5 % Compression speed 95 ± 5 ml/min Clamp pressure 400 kPa to 1200 kPa(adjustable) Diameter of upper clamp 30.5 ±...
- Page 5 Mullen Burst Tester TP-K11 5. Instrument Introduction Equipment descriptions Power Switch Located in front of the instrument, used to control the power supply, the green light indicates power on, off the light indicates power off. Operation Keys The instrument operation control system is centrally arranged on the operation panel. The operation keys are arranged as shown in the figure below.
- Page 6 Mullen Burst Tester TP-K11 Button response when testing the interface: The upper right corner shows the current running status; Button "Test": perform the test. Button "Stop": Click this button to end the test during the test. Button "return to zero": return the force and maximum force equivalent to zero; Button "Print": print test results.
- Page 7 Mullen Burst Tester TP-K11 6. Installation 1) Open the upper cover of the instrument packing box and take out the technical documents and accessories (wrench, silicone oil, rubber film, gas pipe, power cord). 2) Remove the surrounding box plates, remove the bolts, fix the instrument on the bottom...
- Page 8 Mullen Burst Tester TP-K11 7. Operations Trial Machine • Connect one end of the randomly equipped air intake pipe to the air source and insert the other end into the air intake joint on the right side of the fuselage.
- Page 9 Mullen Burst Tester TP-K11 Testing • Connect the power cable and start the machine (the power switch is located behind the machine, and the red light indicates the machine is started). • Press "Setting" to complete the test setting in it. Generally, it only needs to change the unit.
- Page 10 Mullen Burst Tester TP-K11 Pin printers Loading roll and paper Step 1: Press the round button to open the front cover of the printer; Take out the remaining paper core, as shown below: Step 2: Put in a new roll of paper, as shown below...
- Page 11 Mullen Burst Tester TP-K11 8. Maintenance 8.1 General maintenance items The operator should read the instruction manual thoroughly, strictly abide by the operating procedures, and do the following maintenance work: Keeping the instrument clean and dustproof should be added when not used for a long time.
- Page 12 Mullen Burst Tester TP-K11 Description of each button: Release: click to release pressure, only after the boot meets the release limit can run and click release pressure. Compress: click to add pressure, only when the boot meets the release limit can you run and click add pressure.
- Page 13 Mullen Burst Tester TP-K11 Press the "cylinder" key, the upper-pressure disc will compress the lower-pressure disc in 1 second. (At this time, the upper-pressure plate is in the state of pressing the lower- pressure plate) After the upper-pressure plate compacts the lower-pressure plate, tighten the lower- pressure plate with a wrench (be sure to tighten).
- Page 14 Mullen Burst Tester TP-K11 2. After selecting the channel to be calibrated in the upper left corner, the first step must be to calibrate the "zero point". Firstly, click the "Clear" button to clear the data in the calibration data table, then click the "Force return to zero" button to make the force sensor does not bear any load, and then press the "Take point"...
- Page 15 Mullen Burst Tester TP-K11 9. Troubleshooting 9.1 The cardboard cannot be broken • The common cause of this problem is that the oil cup is not tightened or there is air in the oil cylinder. • The solution is to loosen the nut of the oil cup and press down firmly on the rubber film with your fingers several times to drain the air from the oil cup.
