SPORTSMAN
WINCH KIT
P/N 2884832; 2884833; 2884834
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain these
installation instructions for future reference and parts ordering information.
APPLICATION
Verify accessory fitment at www.polaris.com.
KIT CONTENTS

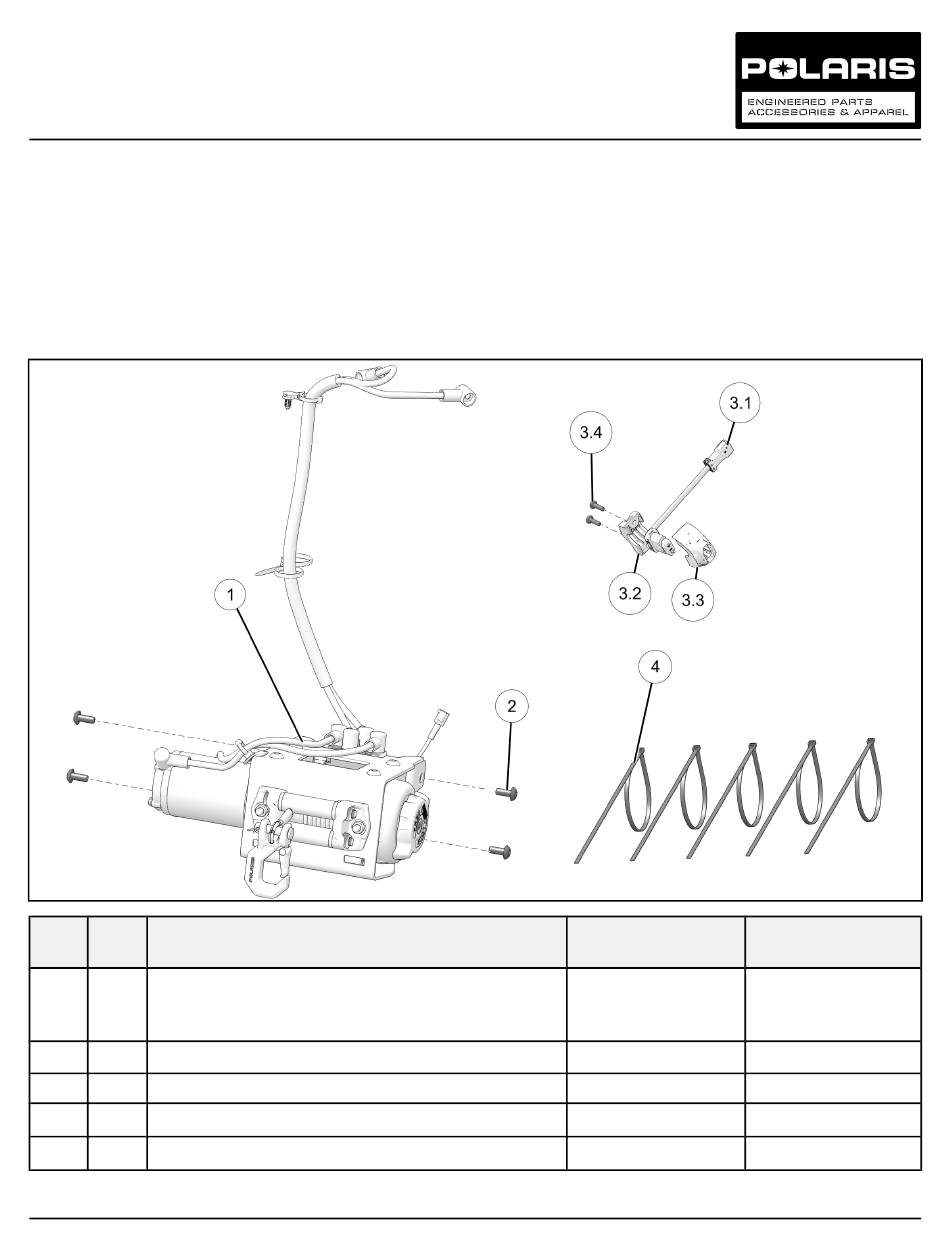

BASIC WINCH P/N 2884832; HD WINCH P/N 2884833 KIT CONTENTS
REF
QTY
PART DESCRIPTION
1
1
Assembly - Winch, 2500 lb, Basic (see winch
detail)
Assembly - Winch, 3500 lb, HD (see winch detail)
2
4
Screw - Torx
3.1
1
Switch
3.2
1
Switch Housing, Rear
3.3
1
Switch Housing, Front
®
BASIC, HD, AND PRO HD
®
Truss Head, M8 x 1.25 x 20 mm
Instr 9931239
Rev 01 2020-08
P/N AVAILABLE
SEPARATELY
2638071
2638072
n/a
n/a
n/a
n/a
Page 1 of 10
AVAILABLE
SERVICE KIT
n/a
2208932
2207175
2207175
2207175
