RANGER XP 900 CREW 6000 WINCH KIT
P/N 2881668
APPLICATION
RANGER XP 900 CREW
BEFORE YOU BEGIN
Before you begin, read these instructions twice and check to be sure all parts and tools are accounted for.
Please retain these installation instructions for future reference and parts ordering information.
NOTE: You must order power cables separately to connect your battery to the vehicle bus bar.
• 2879388: 3 Seat Models
• 2879685: Crew Models

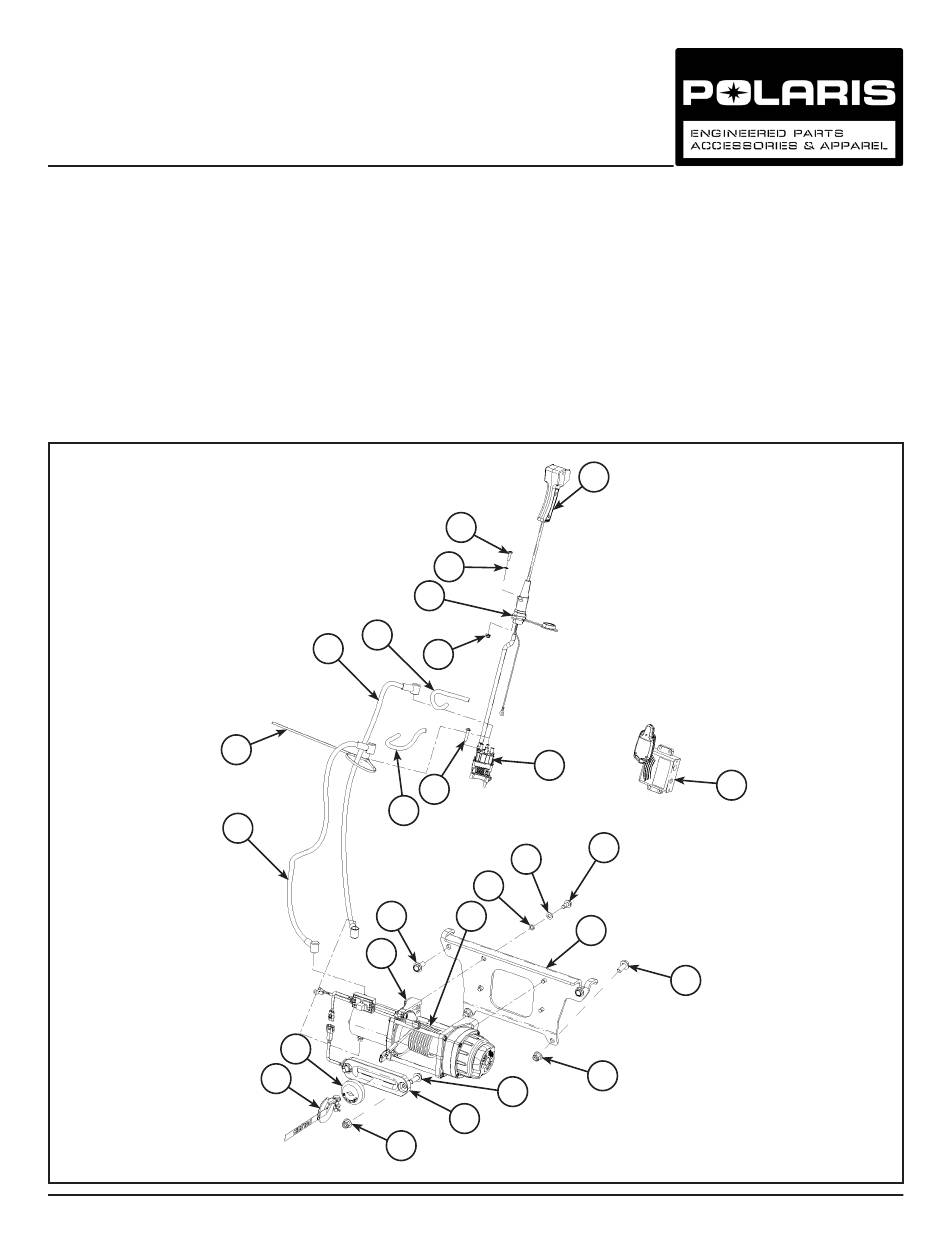

KIT CONTENTS
15
9
8
10
7
19
1
13
2
21
P/N 9926740 Rev 01 06/15 Page 1 of 12
6
18
25
11
22
5
17
20
24
23
3
14
21
16
12
4
19
