PRO HD 6000 WINCH KIT
P/N 2882237
APPLICATION
Verify accessory fitment at Polaris.com.
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain these
installation instructions for future reference and parts ordering information.
KIT CONTENTS
This kit contains parts for installation of the winch only. Prior installation of a Battery Connection Kit (PN
2879388, 2879685, or equivalent) is also required (sold separately).
Winch Kit 2882237 also contains Wireless Winch Remote Kit 2879316 (i.e., a kit within a kit).

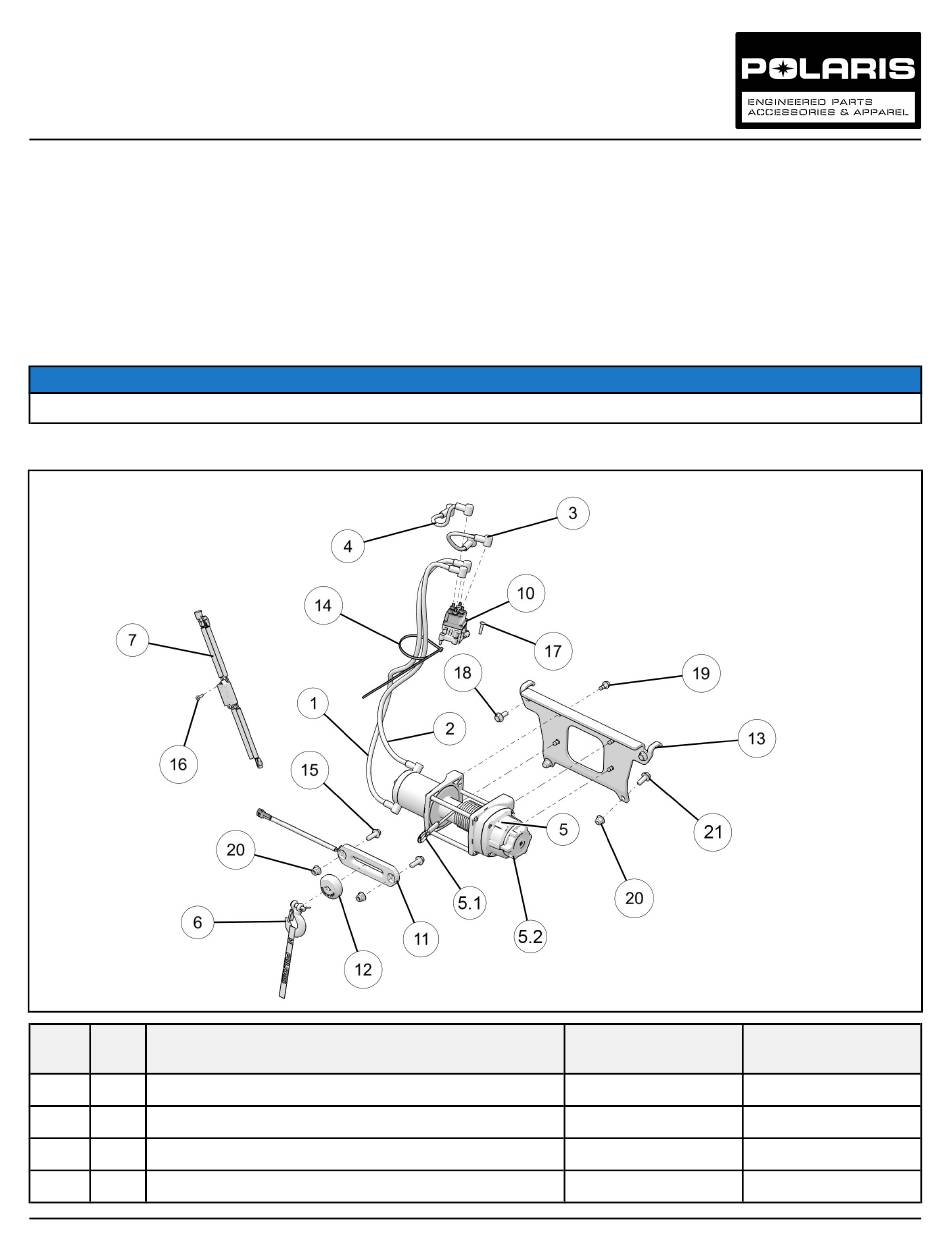

Winch Kit 2882237 includes:
REF
QTY PART DESCRIPTION
1
1
Winch Cable, Yellow - 800 mm
2
1
Winch Cable, Blue - 800 mm
3
1
Power Cable, Black - 250 mm
4
1
Power Cable, Red - 250 mm
NOTE
Instr 9927470
Rev 02 2018-11
PART NUMBER
4013468-800
4013469-800
4013470-250
4013471-250
Page 1 of 13
INCLUDED IN
SERVICE KIT
-
-
-
-
