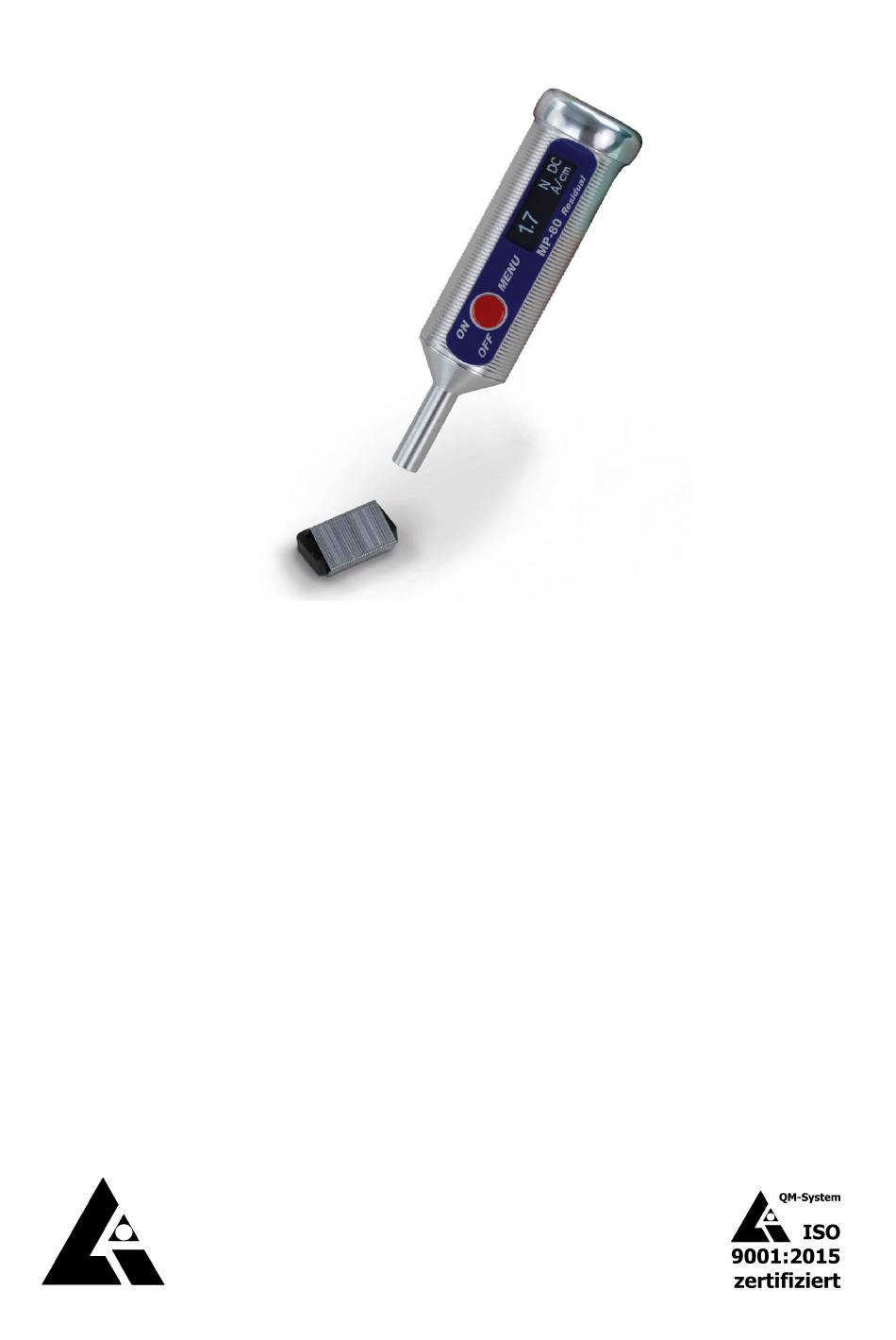

- Page 1 OPERATION MANUAL MAGNETIC FIELD METER MP-80 V2 Revision number 1.185.0 and up 2025-03 List-Magnetik Dipl.-Ing. Heinrich List GmbH D-70771 Leinfelden-Echterdingen Max-Lang-Str. 56/2 Fon: + 49 (711) 903631-0 Internet: https://www.list-magnetik.com E-mail: info@list-magnetik.de...
-
Page 2: Table Of Contents
Battery replacement ..........18 6.1 Using a rechargeable battery ........... 18 Technical Data ............19 Available applications ........... 20 8.1.1 Lima Connect for Windows ................20 8.1.2 Lima Connect App for Android and iOS .............21 List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 3: Welcome
ELCOME The small, compact residual magnetic field meter List-Magnetik MP-80 works just as precisely as the big ones. It is easy to operate and precisely measures DC fields in the range of up to 100 A/cm. The device has different measuring ranges and units of measurement such as A/cm, Gauss/Oersted and (milli)Tesla so that you can carry out your measuring task. -
Page 4: Warnings And Hazard Information
AZARD NFORMATION List-Magnetik expressly advises that the MP-80 magnetic field measurement device may only be used for its proper intended purpose, the measurement of magnetic fields. Any other use is impermissible and involves the deliberate involvement of incalculable risks for the device and the operator. -
Page 5: Checking With Calibration Standard
The measurement display shows the most recent measurement and its unit at a glance. At the bottom left, the type of measurement (DC/PK=Peak) and the polarity (N=North/S=South) are displayed. In addition, the used memory and its current allocation with measured values are displayed. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 6: Operating The Device With The Red Button
By pressing the key for a long time (long signal tone), the device is switched off manually. The automatic turnoff time is 30 minutes in the delivery state and can be changed under the menu item Setup / Switch Off Time. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 7: Calibration
The currently selected measurement type (DC, Peak) is displayed in the lower left corner next to the measurement value. The active probe mode is indicated by an asterisk ( ) behind the entry. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 8: Peak Value Measurement
The measured value is only updated if it is higher than the previous maximum value. The polarity is irrelevant. To reset the peak value, select Reset Peak, a menu item that only appears in Peak mode. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 9: Memory
The function can be repeated and then de- letes the second to last value, the third to last value and so on. Deletion is only possible for values of the current memory batch (here: batch 2). List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 10: Disable Memory
(here: 15) are displayed in the bottom line in a slightly smaller size. To view and manage the memory batch in detail, press the red button long. To jump to the next memory batch, press the red button briefly. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... - Page 11 A displayed Count 15 (13) means that there are two crossed-out but not yet optimized (and so finally deleted) values in the batch. Only the 13 values that are active are taken into account in the statistics (see chapter: Optimize). List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc...
- Page 12 A deleted value can be reactivated by pressing and holding the key again. The crossed-out value is only finally deleted by Optimize. To exit the function, please wait until the display returns to the menu after a few seconds. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc...
- Page 13 5.4.3.6 Delete The memory batch is deleted. The batch number (here number 2) can be reused later by creating a new memory batch. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc...
-
Page 14: New Memory Batch
If the maximum 9 batches have already been created, this menu item is not displayed. 5.4.5 ELETE ALL BATCHES All memory batches are deleted. The storage is switched off. The next memory batch that is newly created is again assigned the number 1. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 15: Settings
5.5.2 The unit is set to A/cm by default. If the unit is changed, the new unit will remain in effect even after the instrument is turned off. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 16: Switch-Off Time
/ off = the device is always switched on). Off should only be selected in special cases, as this can greatly increase the power consumption. The active switch-off time is displayed with an asterisk ( ) after the entry. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 17: Beep Volume
The zero point is on the left. If 5 is exceeded, the scale changes to 20 and then to 80. If this is also exceeded, an overflow is displayed with ">>". The polarity (N/S) and the type of measurement (D=DC / P=Peak) are displayed at the top right. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 18: Contrast
• Date and time. The values cannot be changed in the device itself, but they can be changed via the List-Magnetik apps for Windows, Android and iOS. • Battery voltage: If the value is below 1.2 volt, you should change the battery. -
Page 19: Battery Replacement
NiMH battery. The output voltage of 1.2V is too low. Voltage fluctuations may even alter the memory in the device. We have had good experience with rechargeable Li-ion batteries that can be charged via USB cable and have an output power of 1.5V. List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 20: Technical Data
Google Play Store, Apple App Store, List- Magnetik website Power supply: 1x 1.5V AA Mignon Operating time: approx. 40 hours Dimensions: Ø 28 x 103 mm Weight: 70 g with battery List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... -
Page 21: Available Applications
VAILABLE APPLICATIONS 8.1.1 ONNECT FOR INDOWS On https://www.list-magnetik.com/en/lima-connect, you may obtain the free of charge data transfer application Lima Connect, to transfer measurement data to your PC. With Lima Connect, you can measure online or read the device’s memory, you can evaluate the data statistically or visualize as chart. -
Page 22: Lima Connect App For Android And Ios
Lima Connect app you can manage projects and assign the measuring points on a photo. The measurement results can be statistically evaluated and graphically displayed. The app for Android, iOS and Windows is free of charge. Android List-Magnetik Dipl.-Ing. Heinrich List GmbH EN MP-80 V2 2025-03.doc... - Page 23 (Permeability and Ferrite content) We provide expert advice and design metrology solutions tailored to your specific needs. Fast calibration and repair service List-Magnetik Dipl.-Ing. Heinrich List GmbH D-70771 Leinfelden-Echterdingen Max-Lang-Str. 56/2 Fon: + 49 (711) 903631-0 Fax: + 49 (711) 903631-10 Internet: https://www.list-magnetik.com...
