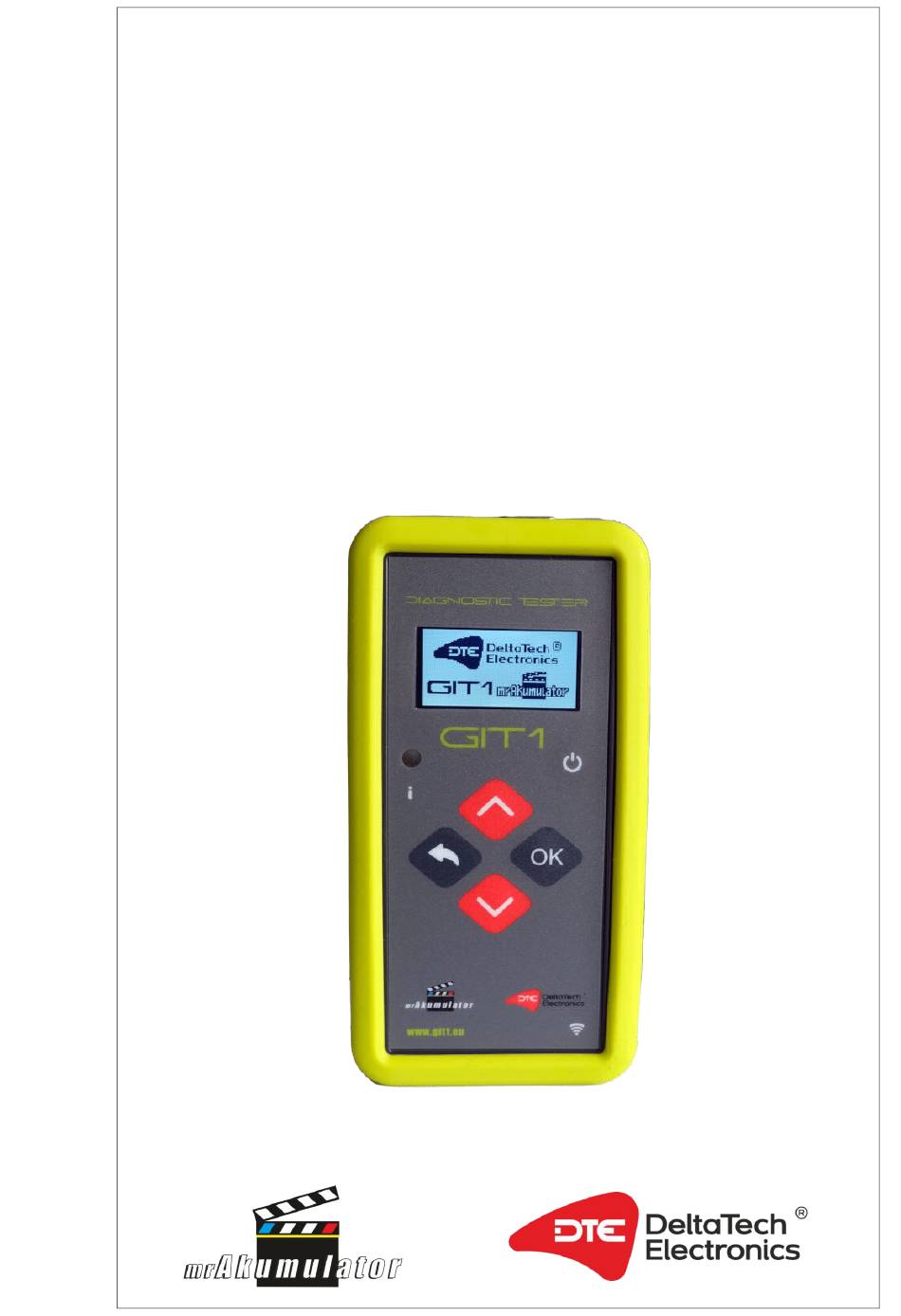

  • Page 1 Battery tester GIT 1 User manual Read the user manual carefully before using this device. Ignorance of this user manual may cause damage to the device or components and subassemblies operated by it. Persons who are unfamiliar with the user...

  • Page 2: Table Of Contents

    3.6 Charging – dedicated charging test................10 3.7 Recorder – voltage logging...................10 3.8 Results – display last results..................11 3.9 Settings – enter settings menu..................11 4. GIT 1 PC software.......................13 4.1 Software installation......................13 4.2 Driver installation (Windows 7)..................13 4.3 Driver installation (Windows 8/8.1)................14 4.4 Driver installation (Windows 10/11)................14...

  • Page 3: Specifications

    GIT 1 User Manual 1. Specifications Power supply: internal Li-ion battery Charging requirement: 5V, 500mA Operating conditions: temp. 0 – 40°C Voltage measurement: 0 – 50V DC Accuracy: 0,5% + 2 counts (voltage) Tested batteries: SLI, EFB, AGM, GEL (starting and deep cycle)

  • Page 4: Internal Battery Charging

    GIT 1 User Manual report printing). [ ] – switches the device on and off. [►] Confirms menu or function selection, moving to the next stage of test. [◄] Return from function to menu, return from submenu to menu, cancel selection.

  • Page 5: Battery - Perform Battery Test

    GIT 1 User Manual List of available menus: 3.1 Battery – perform battery test This menu allows the user to carry out a standard battery test outside or inside the vehicle. It is also possible to test batteries intended for cyclic or buffer operation, which do not have a specified starting current.

  • Page 6: Quick - Perform Rapid Battery Test

    GIT 1 User Manual SOC - state of charge of the battery in %, SOH – expresses state of health of the battery in %. SOC: 100% SOH: 90% To display the internal resistance of the battery select [▼], to return to the result evaluation display press [▲].

  • Page 7: Starting Test

    GIT 1 User Manual The system test consists of three stages: I Battery test The test may include one battery (6V and 12V systems) or two batteries (24V or 12V installations with 6V batteries). If a second battery needs to be connected, a message will appear.

  • Page 8: Charging Test

    GIT 1 User Manual III Charging test After completing starting test press [OK] to begin charging test. Before that, make sure that major receivers such as ventilation, radio, lights, heated windows, etc. are off. Then follow test stages according to the instructions on the screen. Depending on the option selected in the Settings->...

  • Page 9: Comparison - Battery Comparison Mode

    GIT 1 User Manual Correct Incorrect (diode failure) Incorrect (phase failure) Interpretation of charge result: Test result Comment Normal The charging system works properly. Low voltage Alternator does not provide sufficient voltage. Check condition of the driving belts and alternator wiring. Check main ground connections in vehicle.

  • Page 10: Starting - Dedicated Starting Test

    GIT 1 User Manual 3.5 Starting – dedicated starting test The Starter Test is an extension of the charging system test test which is part of the System test (see 3.3 II Starting test). To run a starting test, select Starting from the menu and press [OK], and then follow these steps: 1.

  • Page 11: Results - Display Last Results

    GIT 1 User Manual After selecting the threshold (Normal is default) and starting the recording with the [OK] button, voltage recording will continue until it will be stopped. During this time, display backlight is off and the voltage value is displaced on the top of display.

  • Page 12: Erase Results

    GIT 1 User Manual To connect to a WiFi network, you need to set up a connection. To set up a WiFi connection, connect the device to the computer using a USB cable, then select Menu → WiFi and enter the necessary parameters.

  • Page 13: Lcd Contrast

    After inserting the CD into the drive the installation program window should appear (if not, run Start.exe from the CD-ROM). To install GIT 1 software click Install. In the next steps you must accept the license agreement, specify the destination folder, and choose whether you want to create a desktop icon.

  • Page 14: Driver Installation (Windows 8/8.1)

    GIT 1 User Manual 2. Right-click the Computer and select Properties. Click Device manager, this will invoke the list of devices. Among other devices there should be DeltaTech Electronics... on the list. Right-click DeltaTech Electronics... and select Update device driver from the pop-up menu.
  • Page 15 GIT 1 User Manual Buttons description: Update results – reads measurement data from the device. Customers – opens customer database window. Test result – displays the results of selected measurement. - enables to assign the measurement to a specific customer.

  • Page 16: Result Display

    GIT 1 User Manual Delete measurement list - deletes all measurements from the computer. • Tester date and time - allows you to set the clock time on your device. • Device status - displays the connection status, date and time of the device and version •...

  • Page 17: Customer Database

    GIT 1 User Manual Result printing When displaying the results it is possible print a test report. To do this, click Print. Customer database The software allows the user to create customer database. This makes possible to assign measurements to specific customers.

  • Page 18: Troubleshooting

    If the Manual configuration option is selected it is possible to give a static IP address. Ensure that port 7050 (TCP) is available for the GIT 1. To do this, check your firewall configuration - see the security software manual for details.
  • Page 19 GIT 1 User Manual Warning !!! DeltaTech Electronics company is liable up to the amount paid for the device and is not responsible for any damage and consequences of misuse. In case of device failure please contact manufacturer. Do not try to modify or repair the device by yourself as this will void the warranty.
