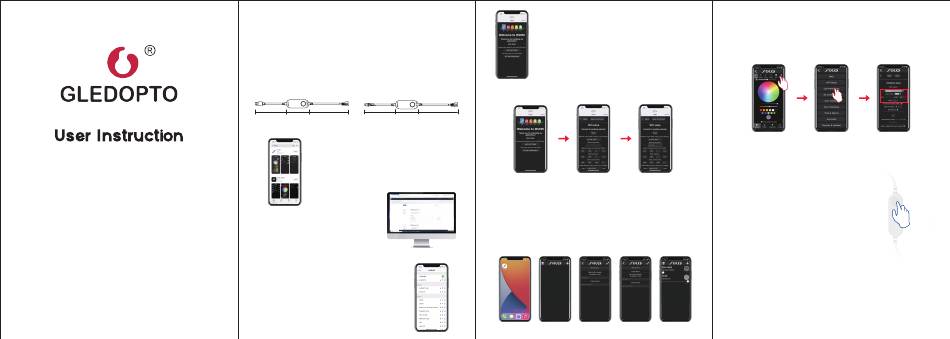

Gledopto GL-MC-001WL User Instruction

Mini WLED Digital LED Controller
ESP32: GL-MC-001WL、GL-MC-002WL
ESP8266: GL-MC-003WL、GL-MC-004WL
Product parameters
Input voltage: DC 5V / DC 12~24V Input current: 3A Max
Total output current: 3A Max Material: PC
communication methods: WiFi Temperature: -20~45℃
Supported digital LED strip IC model: WS2811， WS2812， WS2812B，
FL19038， SK6812， SM16703P， SM16703SP3, etc.
GL-MC-001WL / GL-MC-003WL GL-MC-002WL / GL-MC-004WL
DC: 5V DC: 12~24V
13cm 6.3cm 14.7cm 14.7cm
13cm 6.3cm
APP Download method
1. IOS : "App Store" Search and download
WLED or WLED Native within the app.
2. Android: Download from the website
https://github.com/Aircoooke/WLED-App
/releases.
APP configuration steps
1. Power on the WLED controller.
2. Open the phone settings and enter WiFi settings,
find"WLED-AP" and connect to it with the password
"wled1234".
3. After successful connection, it will automatically jump to
the WLED page (or enter the website 4.3.2.1 in the browser
to enter the WLED page).
4. Click "WIFI SETTINGS", set the WiFi account and password, and the click
"Save & Connect" at the top of the screen to save.
5. Keep the phone and WLED controller connected to the same WIFI connection,
enter the WLED APP (See figure 5-1), click the "+" in the upper right corner of
the screen (See figure 5-2), and then click "DISCOVER LIGHTS..." (See figure
When the button below displays "Found WLED!", it means that the WLED
controller has been found (See figure 5-4). Click the checkmark in the upper
right corner to return to the main page. The found WLED controller will be
displayed in the list (See figure 5-5).
Welcome!
please use the "+" button to add your WLED
lights!
Figure 5-1 Figure 5-2 Figure 5-3 Figure 5-4 Figure 5-5
LED strip configuration
Go to the WLED control page and click on the "Config" button in the upper
right corner. Then, select "LED Preferences" and navigate to "Hardware
setup" to configure the LED strip information.
Note: GL-MC-001WL、GL-MC-002WL controller default output is GPIO16;
GL-MC-003WL、GL-MC-004WL controller default output is GPIO2.
Description of button functions
OPT :
1. Short press: Power on/off.
5-3).
2. Long press for 1 second: Switch colors.
3. Long press for 10 seconds: Reset the WLED
controller and activate the WLED-AP hotspot.
Microphone configuration (If this feature is available)
1. Go to the WLED control page, click on "Config" in the top right
corner, select "Usermods", find "Digitalmic" after entering,
configure according to the configuration information, click
"Save" after configuration is complete, and then power off the
controller.
