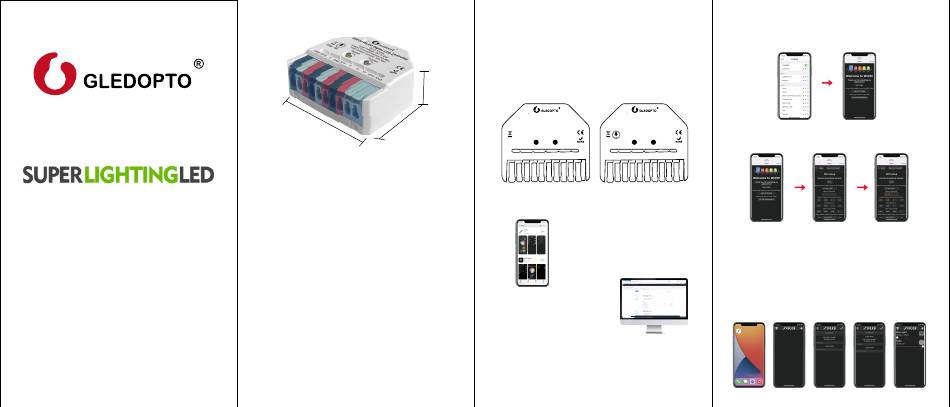

ESP32 WLED Digital LED Controller
User Instruction
GL-C-309WL/GL-C-310WL
Product Parameter
17mm
42mm
38mm
Product Model: GL-C-309WL/GL-C-310WL
Input Voltage: DC 5-24V
Output Current/Channel: 6A Max
Total Output Current: 10A Max
Communication Protocol: WiFi
Microphone: No/Yes
Suggested Wire Type: 0.5-1.5mm² (24-16AWG)
Stripping Length: 8-9mm
Material: Fireproof PC
IP Rate: IP20
Operating Temperature: -20~45℃
Size: 42x38x17mm
IO Port Description
GL-C-310WL:
(1) Function: GPIO0
(5) IO33: GPIO33
(2) IO16: GPIO16
(6) Pin 12S SD: GPIO26
(3) IO2: GPIO2
(7) Pin 12S WS: GPIO5
(4) IO12: GPIO12
(8) Pin 12S SCK: GPIO21
GL-C-309WL:
(1) Function: GPIO0
(4) IO12: GPIO12
(2) IO16: GPIO16
(5) IO33: GPIO33
(3) IO2: GPIO2
Wiring Terminal Instructions
The WLED controller can support a total of three output channels.
The output terminal connections "G D V" correspond to the "GND
DATA VCC" pins of the digital LED strips. Among them, D refers to
the default output group for GPIO16, so please prioritize using this
group. The other group, D for GPIO2, can only be used after
configuration in the APP. IO22 and IO33 is an extended GPIO signal
port that can be customized for use.
ESP32 WLED
ESP32 WLED
Digital LED Controller
Digital LED Controller
GL-C-309WL
GL-C-310WL
lnput Voltage: DC 5~24V
lnput Voltage: DC 5~24V
Output Current/Channel: 6A Max
Output Current/Channel: 6A Max
Total Output Current: 10A Max
Total Output Current: 10A Max
Restart
Function
Restart
Function
IP20
IP20
Mic
GND
IO16
V
GND
IO2
V
V-
V+
IO12
IO33
GND
IO16
V
GND
IO2
V
V-
V+
IO12
GL-C-309WL
GL-C-310WL
without Microphone
with Microphone
APP Download Method
1. IOS : "App Store" Search and
download WLED or WLED Native
within the app.
2. Android: Download from the
website https://github.com/Air
coooke/WLED-App/releases.
APP Configuration Steps
1.
Power on the WLED controller.
2.
Open the phone settings and enter WiFisettings, find"WLED-AP"
and connect to itwith the password "wled1234".
3.
After successful connection, it will enter the WLED page
automatically.(or enter the website 4.3.2.1 in the browser to
enter the WLED page).
4. Click "WIFI SETTINGS", set the WiFi account and password, and
click"Save & Connect" at the top of the screen to save.
IO33
5. Keep the phone and WLED controller connected to the same
WIFI connection, enter the WLED APP
(See figure
"+" in the upper right corner of the screen
then click "DISCOVER LIGHTS..."
(See figure
below displays "Found WLED!", it means that the WLED controller
has been found
(See figure
5-4). Click the checkmark in the upper
right corner to return to the main page. The WLED controller that
you found will be displayed in the list
(See figure
Welcome!
please use the "+" button to add your WLED
lights!
Figure 5-1
Figure 5-2
Figure 5-3
5-1), click the
(See figure
5-2), and
5-3). When the button
5-5).
Figure 5-4 Figure 5-5
