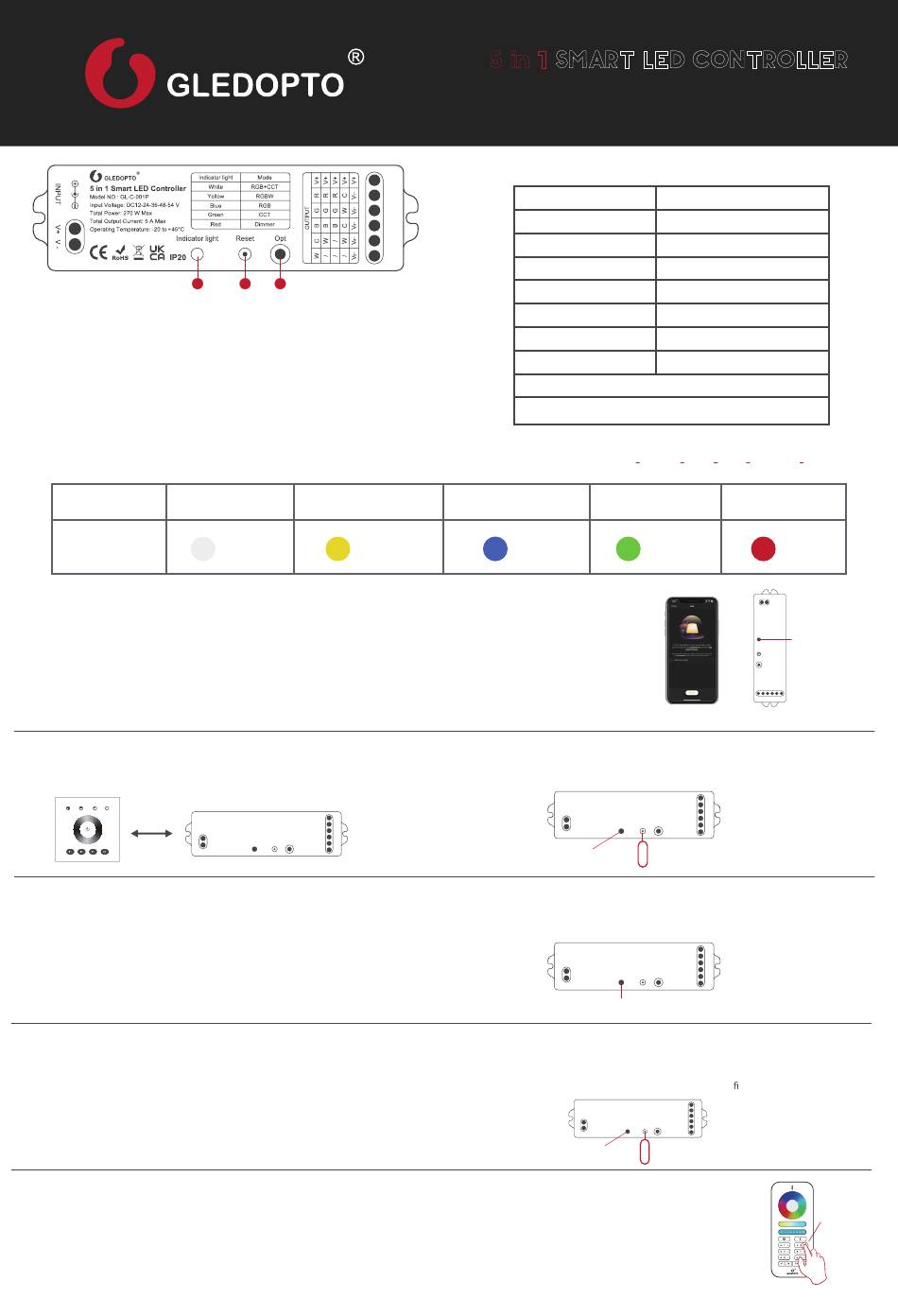

Gledopto GL-C-001P User Instruction

5 in 1 smart led controller

Advertisement

Quick Links

1
LED indicator
Different color indicators correspond to different functions.
Reset
Short press once to switch frequency; Short press twice to enter find and binding;
Short press three times to enter touchlink; Short press four times to clear the
zigbee network.
OPT
Short press once to switch the function; Press and hold for more than 5 seconds
to set the power-on status.
FUNCTIONS OF DIFFERENT INDICATOR COLORS SHOWN AS FOLLOWING TABLE:
RGBCCT
Indicator
Color
. NETWORK PARING:
1. Pairing with Zigbee Hub
Add the device to a zigbee network via coordinator or hub
Please ensure the device wasn't be paired.
Otherwise, please "RESET" the device according to the part Ⅱ "RESET".
After STEP 1, there will be a pairing process about 90s.
Once times out, you need to repeat the ①.
2. TouchLink to a Zigbee Remote Control / Touch Panel
Please make sure the distance between the device and
remote control/ touch panel less than 10cm;
<10cm
Method 2: Re-power on the device, Touchlink Commissioning will
start after 15 seconds if it's not added to a ZigBee network, 165
seconds timeout. Or start immediately if it's already added to a
network, 180 seconds timeout. Once timeout, repeat the operation.
Set the remote / touch panel to enter "Touchlink
Commissioning".
Please refer to the manual of the corresponding remote / touch
panel.
*Note:
If the device & remote control in different zigbee network,
each remote can link with one device.
If the device & remote control in the same zigbee network, max 30
remotes can link with one device.
For the Philips Hue /Amazon Echo Plus, the device & remote control
should in the same network before TouchLink.
Set the remote control / touch panel (target node) to enter
the "Find and Bind" mode to search for "Bind Initiator".
Please refer to the manual of the corresponding remote / touch panel.
"Find and Bind" is completed, the remote / touch panel shall
have indication.
Now the device shall be remote control / touch panel controllable.
2
3
RGBW
White
Yellow
5 in 1
SMART LED CONTROLLER
User instruction

SPECIFICATION

Product Name
Model NO.
Size
Input Voltage
Protection Rate
Total Power
Total Output Current
Operating Temperature
(RGBCCT >RGBW >RGB >CCT >DIMMER >RGBCCT)
RGB
Blue
Open the zigbee App
(hue or Amazon Alexa),
add the device.
If the pairing done successfully
after the above steps, the device
will
blink 3 times.
Method 1: Please short press key "Reset" 3 times or power on/off the
device 3 times to enter into "Touchlink Commissioning" mode, the device
will
blink 5 times.
(Flash 5 times)
There shall be indication on the remote or touch panel for successful pairing,
the device will
blink 2 times.
Now the device shall be controllable via the remote
/ touch panel.
(Flash 2 times)
3. Find and Bind Mode
*Note: Make sure that the device & remote are in the same network.
Short press "Reset" button (or re-power on the device)for 2 times.
The device will
blink
twice, and start "Find and Bind" mode to nd the "Target Node".
(Flash 2 times)
4. Pairing with 2.4GHz RF Remote Control / Touch Panel
The pairing will be timeout after 4 seconds
when the device powered on.
The pairing will be done successfully by pressing any
zone "On" key of the 2.4G RF Remote or touch panel.
The indications from the device will
blink 3 times.
5 in 1 Smart LED Controller Max
GL-C-001P
125x37x24mm
DC12-24-36-48-54 V
IP20
270 W Max
5 A Max
-20℃~45℃
Common Anode
Constant Voltage
CCT
Dimmer
Green
Red
(Flash 3 times)
Reset
(Short press for 3 times)
Reset
(Short press for 2 times)
Short press once
(Power on the device, within 4s)
GL-CM-I-001
Any zone "On"
