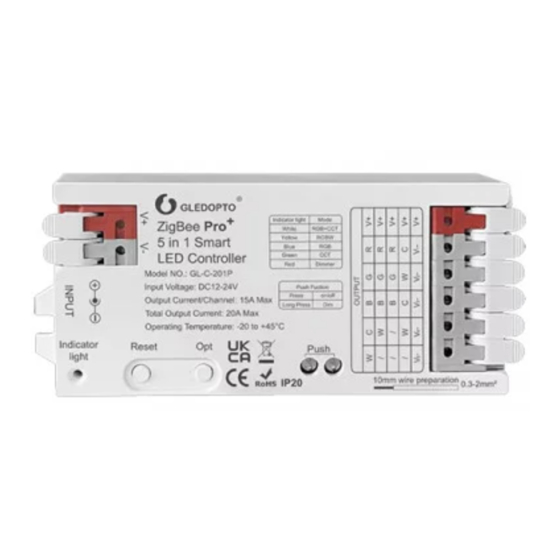

Gledopto GL-C-201P User Instruction

Indicator
Reset Opt
light
①
4 1 2
Reset
Short press: Switch the frequency.
Long press for 5 seconds: Reset the controller.
(After reset, it defaults back to RGBCCT).
②
OPT
Short press: Switch the current device function.
Long press for 5 seconds: Power-on status settings.
(power-on status settings is disabled by default.)
③
Push
Short press: Power On/Off
Long press: Adjust brightness (Assuming: Long press increases brightness,
release and long press again decreases brightness).

Reset method

1. Button reset: Long press the RESET button for 5 seconds, the LED strip will flash 3 times to indicate that the reset is complete.
2. Power On/Off reset:
1. Power on the light strip controller.
2. Within 2 seconds, disconnect the power.
3. Wait for at least 5 seconds to ensure a complete power-off.
within 2s
on
off
>5s

Connecting with the Gateway

Network Connection:
1. Connect the controller to the power source correctly.
2. Use the gateway's app to initiate device search and wait for a certain period of time (refer to the instructions of each gateway). If the gateway
doesn't find the controller, try powering off and on the controller again, or reset the controller.
3. Once the gateway finds the controller, add the controller to the specified room or group.
4. After successful network connection, you can start using the controller.
The product works with many ZigBee 3.0 Gatewayslike Philips Hue, Amazon ECho Plus or SmartThings.

ZigBee Touch Link Pairing

Method 1: Quickly press the device's reset button three times to enter touch link pairing mode.
Method 2: Re-power the unconnected device and it will immediately enter touch link pairing mode.
Method 3: Connected devices will enter touch link pairing mode immediately after being connected to the network.
To ensure a successful touch link pairing, the distance between the device
and the remote control or touch panel must be less than 10cm.
Set the remote control or touch panel to enter touch link pairing mode (refer to the instructions for each Touchlink remote control or touch
panel for details).
If the connection is successful, the remote control or touch panel will indicate success. After successful TouchLink, the remote control can
control the device.
*Note:
Direct TouchLink (when two devices are not added to the same ZigBee network), each device can only be connected to one remote control.
After the device and remote control are added to the same ZigBee network, a device can be connected to a maximum of 30 remote controls.
For Philips Bridge and Amazon Echo Plus, the device and remote control need to be added to the same network before performing TouchLink.
ZIGBEE
ZIGBEE
User instruction
Push
3
the 5th on
3in1 LED Smart Controller Pro
5in1 LED Smart Controller Pro
Wireless Communication
Material
④
Indicator light
Different color indicators correspond to different functions.
4. Repeat the above steps 5 times.
5.The light strip will flash 3 times, indicating that the reset is complete.
flash
3 times
Homey
GL-C-201P GL-C-202P
DC12-24V
15A Max
20A Max
ZigBee, 2.4G RF
Flame Retardant PC
-20~45℃
IP20
108x45x18mm
+
+
GL-CP-I-201
v1.1
on
Tuya Smart
