Dorel Home Products 4151639N Manual

Dorel Home Products 4151639N Manual

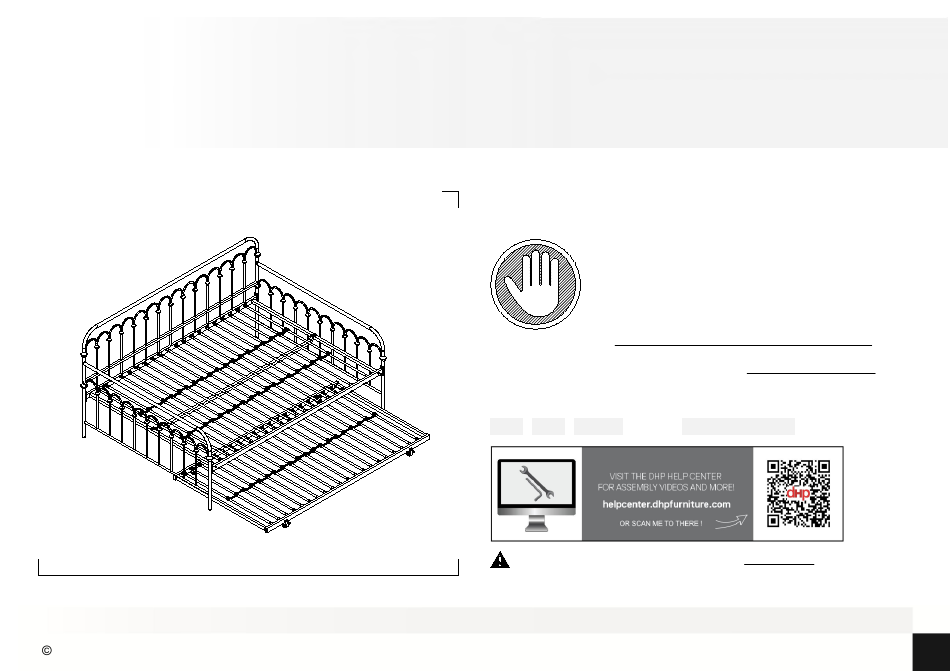

Metal day bed with trund e
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

Weight Limit:
Daybed: 400 Lb / 181 kg
Trundle: 250 Lb / 113 kg
C.W. - 2022/6/15
2022 Dorel Home Products All Rights Reserved
4151639N(Black),4151939N(White)
Metal Day bed With Trund e l
Thank you for purchasing from DHP!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739.
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Full - Twin
Lot Number (TAKEN FROM CARTON)
B344151639N00-067846-C
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4151639N and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Home Products 4151639N

Summary of Contents for Dorel Home Products 4151639N

  • Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. C.W. - 2022/6/15 B344151639N00-067846-C 2022 Dorel Home Products All Rights Reserved...

  • Page 2: Limited 1-Year Warranty

    Limited 1 year Warranty Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.

  • Page 3: Parts List

    PARTS LIST...
  • Page 4 Plug 40 PCS 38 PCS 1 PC 2 PCS 40 PCS IMPORTANT: PART NUMBERS Each part has a unique part number. Please 4151639N 4151939N PART reference the appropriate part number when (Black) (White) LABELS contacting customer service for replacement parts.
  • Page 5 2 PCS Plug Spacer Spacer 40 PCS 20 PCS 19 PCS IMPORTANT: PART NUMBERS Each part has a unique part number. Please 4151639N 4151939N PART reference the appropriate part number when (Black) (White) LABELS contacting customer service for replacement parts. T949290...
  • Page 6 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. 4151639N(Black) HP # : T4151639N-00 The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the...
  • Page 7 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. 4151639N(Black) HP # : T5585196-02 The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the...
  • Page 8 Step 1 To Protect the Rear Guard Rail G, we've added two extra Bars. Please remove and discard the Bars before starting the assembly. Discard...
  • Page 9 Wide side of the slot should assemble the Daybed from Step 2 to Step 7. be facing up ! Please use the Daybed Hardware Pack: 4151639N(Black): T4151639N-00. 4151939N(White): T4151939N-00. Attach Side Rail J to End Guard Rail F and End...
  • Page 10 Step 3 Please strictly follow the assembly from Step 3 to Step 4, or you may experience difficulty with the assembly. 3.1 Insert Rear Guard Rail G onto End Guard Rail F and End Guard Rail F 3.2 Attached Rear Guard Rail G to End Guard with bolts Rail F and End Guard Rail F...
  • Page 11 Step 4 Screw Rear Guard Rail G to End Guard Rail and End Guard Rail F with bolts Screw End Guard Rail F1 and End Guard Rail F to Rear Guard Rail G with bolts Make sure all bolts before this step are loose so that you can move parts to align .
  • Page 12 Step 5 5.1 Attach End Brace H X 2 to Rear Guard Rail G and Side Rail J with bolts 5.2 Attach Center Brace X to End Brace H X 2 with bolts and nuts...
  • Page 13 Step 6 Insert Slats P into Rear Guard Rail G and Side Rail J as illustrated,then lock Slats P into place with Plugs Y.
  • Page 14 Step 7 7.1 Press Spacers W onto Slats P as illustrated. 7.2 Attach Spacers Q to Spacers W alternating left and right as illustrated. For better performance, attach the Slat Spacers W & Q at equal spaces. (Approximately = 17.5 inches or 445 mm for upper bed).
  • Page 15 The following instructions will illustrate how to assemble the Trundle from STEP 8 to STEP 12. Please use the Trundle Hardware Pack: 4151639N (Black) : T5585196-02 4151939N (White) : T5585096-02. Attach Locking Caster N X 2 to one Side Rail E with bolts and nuts The Lever "OFF"...
  • Page 16 Step 9 Attach Caster N X 2 to the other Side Rail E with bolts and nuts...
  • Page 17 Step 10 Attach End Rail M X 2 to Side Rail E X 2 with bolts Note: The lever "ON" should be oriented on the outer side.
  • Page 18 Step 11 Insert Slats O into Side Rail E X 2 as illustrated,then lock Slats O into place with Plugs Y.
  • Page 19 Step 12 12.1 Press Spacers W onto Slats O approximately in the middle of Slats O as illustrated. 12.2 Attach Spacers Q to Spacers W alternating left and right as illustrated. 12.1 12.2...

  • Page 20: Helpful Hints

    Helpful Hints How to lock caster! How to unlock caster! To use Trundle: Pull out the trundle completely from underneath daybed. Once positioned, make sure casters are locked by pushing down the lever " " as illustrated "How to lock caster!".
  • Page 21 To optimize use of trundle, use a standard twin size mattress which is 74" - 75" long and 37 " - 3 wide, no thicker than 8". ● Do not use risers under this bed. 4151639N(Black):T919100 4151939N(White):T919400 4151639N(Black):T920530 4151939N(White):T392670 Weight Limit:...
  • Page 22 Preguntas, inquietudes, partes que faltan? CONTACTE 4151639N(Negro),4151939N(Blanco) NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. Si le faltan piezas o las que se incluyen est n da adas, con mucho Div n de metal con cama deslizable gusto le enviaremos sus piezas de reemplazo sin cargo extra.
  • Page 23 Paquete de componentes Canapé Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts # de Paquete : T4151639N-00 4151639N(Negro) IMPORTANTE La lista de n meros de piezas que aparece a continuaci n es exclusiva de su producto. Por favor, mant ngalo a mano cuando solicite piezas de repuesto.
  • Page 24 Mueva sus muebles nuevos con cuidado, se requiere de dos al Paso 7. Utilice el paquete Daybed Hardware: personas para levantar y trasladar su producto a su nueva ubicaci n. 4151639N(Negro): T4151639N-00 Sus muebles se pueden desmontar y volver a ensamblar en caso de 4151939N (Blanco):T4151939N-00.

  • Page 25: Informations Sur La Garantie

    Des questions, des pr occupations ou des pi ces 4151639N(Noir),4151939N(Blanc) manquantes? CONTACTEZ NOTRE SERVICE LA CLIENT LE AVANT DE RETOURNER LE PRODUIT AU D TAILLANT. Si des pi ces sont manquantes ou endommag es, nous Lit de jour en m tal avec lit gigogne exp dierons volontiers vos pi ces de rechange gratuitement.
  • Page 26 (illustrations disponibles dans la section en anglais). 4151639N(No i r) # de Paquet : T5585196-02 # de Paquet : T5585096-02 4151939N(Blanc)

  • Page 27: Conseils Utiles

    2 Les instructions suivantes illustrent comment assembler la M ridienne de tape tape 7. s'il vous pla t utiliser le l'emballage coque: T. 4151639N (Noir): T4151639N-00 Conseils utiles 4151939N (Blanc): T4151939N-00. Attacher J danc F & F...
