Dorel Home Products 4128239WE Manual

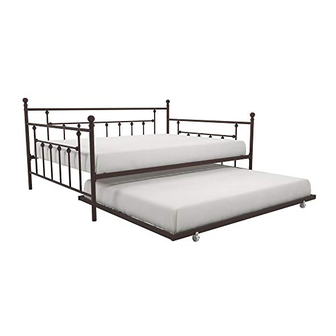

Metal daybed and trundle twin gold
Hide thumbs

Advertisement

Quick Links

Download this manual
Enlarged version
Weight Limit:
Daybed: 400 Lb / 181 Kg
Trundle: 250 Lb / 113 Kg
J.Z. - 2018/7/20
2014 Dorel Home Products All Rights Reserved
Metal Daybed and Trundle
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4128239WE
Lot Number
B344128239WE00 - 10125-M
Twin
Gold
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4128239WE and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Home Products 4128239WE

Summary of Contents for Dorel Home Products 4128239WE

  • Page 1 Visit www.dhpfurniture.com/eng/replacement-parts or call Toll-Free 1-800-267-1739 Date of Purchase Lot Number THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B344128239WE00 - 10125-M J.Z. - 2018/7/20 2014 Dorel Home Products All Rights Reserved...
  • Page 2 Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
  • Page 3 Parts for Daybed Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Post Post Post Post Rear Guard Rail Check Box to identify the parts and ensure that T962660 T962670 T962680...
  • Page 4 Parts for Trundle Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Side Rail End Rail Slats Locking Caster Check Box to identify the parts and ensure that T951680 T947200 T945890...
  • Page 5 Hardware Pack for Daybed Hardware Pack #: T4128139WE-00 5/16" X 3/4" 1/4" X 7/8" X 12 1/4" X 2 3/4" Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Hardware Pack for Trundle Hardware Pack #: T5585096-02 1/4" 1/4" X 5/8" Wrench 1/4" X 1 5/16" Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.
  • Page 7 Step 1 The following instructions will illustrate how to assemble the Daybed from Step 1 to Step 7. Please use the Daybed Hardware Pack: T4128139WE-00. Attach T to A and B with Attach I to A and B with...
  • Page 8 Step 2 Attach T to C and D with Attach I to C and D with...
  • Page 9 Step 3 Wide side of the slot should be facing up ! Attach J X 2 to sub-assemblies from Step 1 and Step 2 with...
  • Page 10 Step 4 Attach F to B and C with...
  • Page 11 Step 5 5.1 Insert O into J X 2 as illustrated. 5.2 lock O into place with Y.
  • Page 12 Step 6 6.1 Press W onto O as illustrated. 6.2 Press Q onto W alternating left and right as illustrated.
  • Page 13 Step 7 Manually screw S X 4 into A, B, C, and D as illustrated.
  • Page 14 Step 8 Wide side of the slot should be facing up ! The following instructions will illustrate how to assemble the Trundle from Step 8 to Step 12. Please use the Trundle Hardware Pack: T5585096-02. Attach N x 2 to one of E with The Lever "OFF"...
  • Page 15 Step 9 Wide side of the slot should be facing up ! Attach N x 2 to the other E with...
  • Page 16 Step 10 Attach M X 2 to E X 2 with...
  • Page 17 Step 11 11.1 Insert O into E X 2 as illustrated. 11.2 lock O into place with Y. 11.1 11.2...
  • Page 18 Step 12 12.1 Press W onto O as illustrated. 12.2 Press Q onto W alternating left and right as illustrated. 12.1 12.2...

  • Page 19: Helpful Hints

    How to lock caster! Helpful Hints How to unlock caster! To use Trundle: Pull out the trundle completely from underneath daybed. Once positioned, make sure casters are locked by pushing down the lever " " as illustrated "How to lock caster!".
  • Page 20 Helpful Hints Helpful Hints Weight Limit: Daybed: 400 Lb / 181 Kg Trundle: 250 Lb / 113 Kg Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move.
  • Page 21 4128239WE NO LO REGRESE A LA TIENDA ! Si le faltan piezas o las que se incluyen est n da adas, con Metal Daybed and Trundle mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. Individual Visite www.dhpfurniture.com/spa/replacement-parts...
  • Page 22 Partes Instrucciones Las instrucciones siguientes ilustrar n c mo ensamblar el Div n del Paso 1 al Paso 7. Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts Utilice el paquete Daybed Hardware: T4128139WE-00. Una T con A y B con Todo se incluye en 1 caja grande! Una I con A y B con Hay 1 caja(s) interna(s) que incluyen los componentes necesarios para Paso 2...
  • Page 23 L mites de peso div n: 400 Lb / 181 Kg Deslizable: 250 Lb / 113 Kg Consejos tiles Mueva sus muebles nuevos con cuidado, con dos personas levantando y llevando el aparato a su nueva ubicaci n. Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de mudanza.

  • Page 24: Avant De Commencer L'assemblage

    4128239WE NE RETOURNEZ PAS AU MAGASIN ! Si une pi ce est manquante ou endommag e, nous vous Metal Daybed and Trundle exp dierons avec plaisir vos pi ces de remplacement gratuitement. Lit une place Visitez www.dhpfurniture.com/fre/replacement-parts ou appelez au 1-800-267-1739...
  • Page 25 Pi ces Instructions Pi ces de rechange, visitez www.dhpfurniture/fre/replacement-parts tape 1 Les instructions suivantes illustrent comment assembler la M ridienne de l' tape 1 Tout dans 1 grosse bo te! l' tape 7. s'il vous pla t utiliser le l'emballage coque: T4128139WE-00. Attacher T A et B avec Il y a des bo tes int rieures qui contiennent les composants pour completer...

  • Page 26: Conseils Utiles

    Limite de Poids lit d'appoint: 400 Lb / 181 Kg Gigogne: 250 Lb / 113 Kg Conseils utiles D placez votre nouveau mobilier avec soin, nous recommandons deux personnes pour soulever et transporter le mobilier vers son nouvel emplacement. Votre mobilier DHP peut tre d mont et reassembl pour faciliter les d m nagements.
