Dorel Home Products 4151019N Instructions Manual

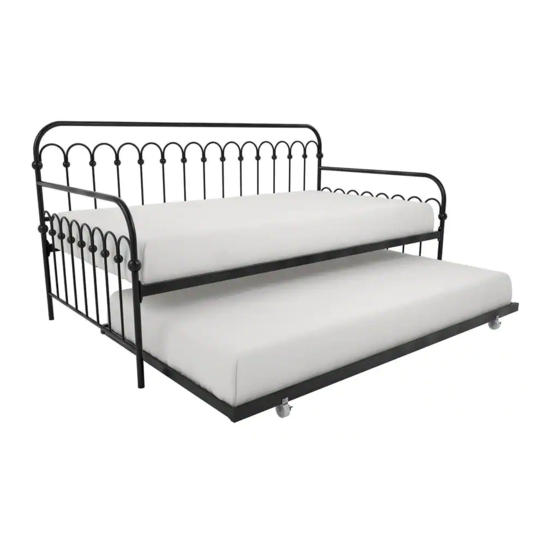

Metal daybed and trundle
Hide thumbs

Advertisement

Quick Links

Download this manual
Weight Limit:
Daybed: 400 Lb / 181 Kg
Trundle: 250 Lb / 113 Kg
J.Z. - 2019/9/25
2014 Dorel Home Products All Rights Reserved

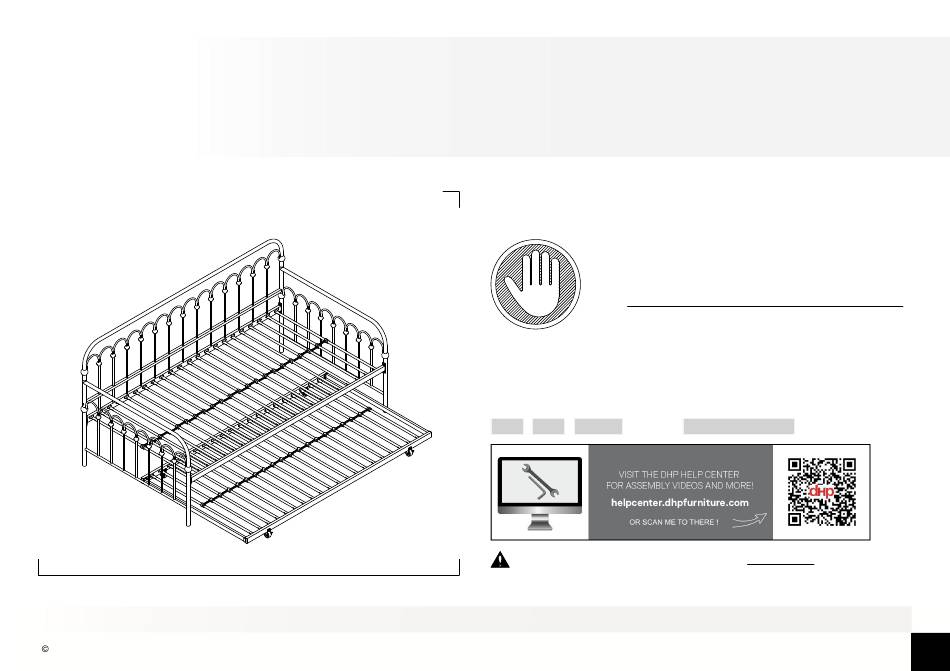

4151019N(Black) 4151119N(White) 4151619N(Turquoise)
Metal Daybed and Trundle
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
www.dhpfurniture.com/eng/replacement-parts
Visit
or call Toll-Free
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Twin/Twin
1-800-267-1739
Lot Number
B344151019N02
1
