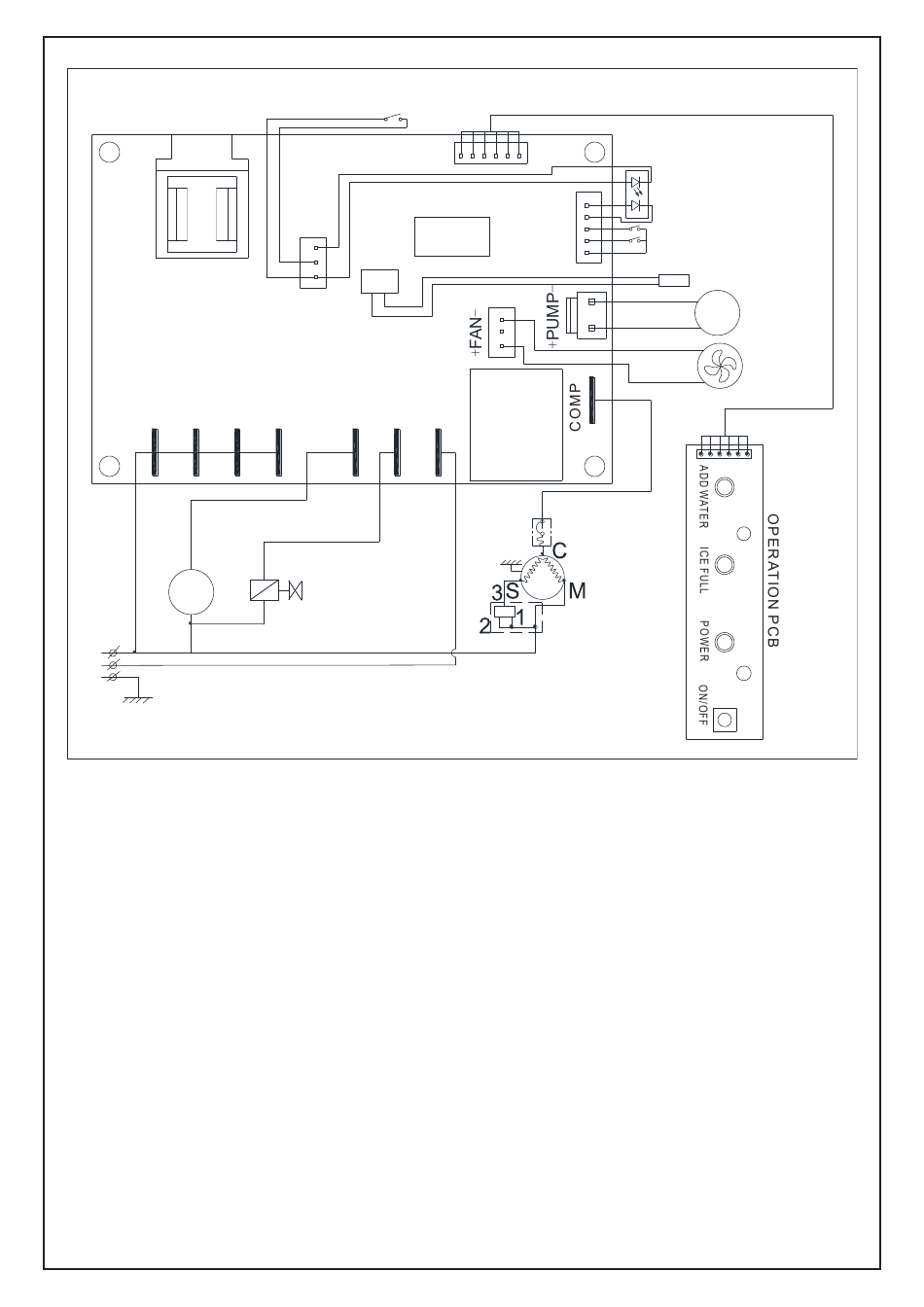

ELECTRICAL DIAGRAM
T1
MAIN CONTROL PCB
AC-N
Motor For Ice shovel
SM
POWER
SUPPLY
N
L
G
WATER LEVEL
DETECTING
WATER
MCU
MOTOR VALVE AC-L
Solenoid Valve
RELAY
Overload
Protector
COMP
Start Lelay
10
INFRARED
SENSOR
DETECTOR
MICRO SWITCH
MICRO SWITCH
COND TEMP SENSOR
DC WATER
PUMP
DC FAN
MOTOR
