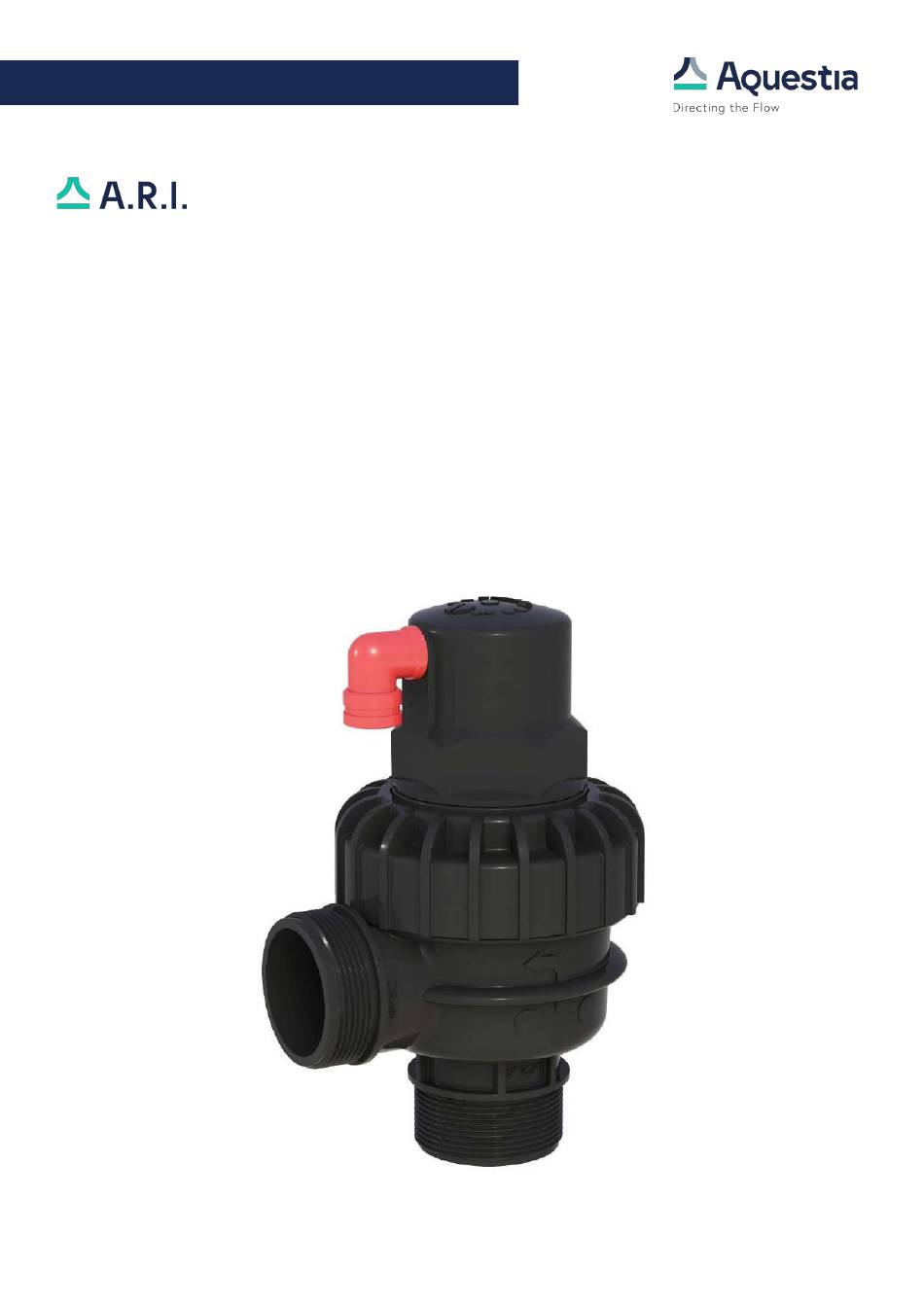

D-070-P Dynamic Combination Air Valve The following is a step by step narrated description of the A.R.I. D-070-P Dynamic Combination Air Valve installation, operation and maintenance processes. A.R.I. D-070-P Combination Dynamic Air Valve is a unique valve, operating without a float and utilizing the rolling diaphragm principle.
Except as provided herein and to the full extent permitted by law, Aquestia shall not be responsible and/or liable for direct, special, incidental or consequential damages or loss resulting from any breach of the above or under any other legal theory.
10. Use the product only for its intended use as designed by Aquestia. Any misuse of the product may lead to undesired damages and may affect your warranty coverage. Please consult with Aquestia prior to any non-regular use of this product and make no change or modification to the product without a prior written consent to be provided by Aquestia at Aquestia's sole discretion.
Extra safety considerations should be taken on hazardous environment sites. 4. In cases where formal commissioning procedure is required, it should be done by an authorized Aquestia technician prior to the first operation of the product.
Page 5
IOM A.R.I. D-070-P Before returning to regular operation 1. Re-assemble any protection covers or protection mechanisms removed during service or maintenance operations. 2. Make sure that all the tools, ladders, lifting devices, etc. used during the maintenance procedures are taken away from the product area and stored.
IOM A.R.I. D-070-P 2. Installation Important: Before performing any work on the air valve make sure that all workers on site are familiar with the safety instructions and the relevant local and general safety instructions and work regulations. 2.1. Installation Recommendations Single Air Valve on an Isolating Valve at 45°...
Page 7
IOM A.R.I. D-070-P 2.2. Conventions and Measurements This paragraph presents and explains the terms and measurements used for the Installation process. Isolation Valve D = Diameter of pipeline d = diameter of riser H = Height of riser on the pipeline (Measured from crown of pipeline) •...
3. Install an isolating valve below the air valve, connected by a riser to the crown of the pipe. 4. The A.R.I. D-070-P Dynamic Combination Air Valve should be installed vertically on a riser on the crown of the pipeline.
IOM A.R.I. D-070-P 3. Operation When the system is charged and the pipeline begins to fill with water, air flows in the pipeline and enters into the dynamic air valve, raising the rolling diaphragm sealing assembly to the open position.
IOM A.R.I. D-070-P 5. Periodic Maintenance Please note that the periodic maintenance of the air valve is an integral part of the proper pipeline maintenance regime; it should be maintained at least once a year in accordance with the quality and composition of the fluid in the system.
IOM A.R.I. D-070-P 5.2. Removing the Pilot • Unscrew and remove the Pilot Body [1], [2] 5.2.1. Cleaning of the Air Valve • Thoroughly wash and clean the air valve components under clean running water to remove all grime; Pay special attention to the internal parts.
IOM A.R.I. D-070-P 5.3. Maintenance of the Pilot • Hold the Pilot Body, turn it to the side. Remove the Clamping Stem [1] and the Float [2] together with the Rolling Seal [3]. • Thoroughly but gently wash and clean all the components under clean running water. Pay attention to the sealing area inside...
Page 13
IOM A.R.I. D-070-P • Visually check the condition of the Rolling Seal [1]. If any cracks or tears are found, remove it from the Float [2] and replace it. • When required, replace the seal by inserting a new Rolling Seal into its designated groove. Please note: side [1] of the groove is slightly wider than the other [2];...
Page 14
IOM A.R.I. D-070-P • Dip the head end of the Rolling Seal into the liquid soap solution [1] • Reassemble the Pilot by inserting the loose end of the Rolling Seal into its designated groove in the Pilot Body [2]; making sure...
Page 15
IOM A.R.I. D-070-P • Insert the Float halfway into the Pilot Body [1], insert the Clamping Stem into the Rolling Seal groove of the Pilot Body; make sure that it is inserted in the direction of the arrow [2]. Push the Float and the Clamping Stem together downwards into the Pilot Body until they are locked [3].
IOM A.R.I. D-070-P 5.4. Maintaining the Dynamic Valve Body • Unscrew and remove the Pilot Body [1], [2] • Unscrew and remove the Locking Ring [1], [2]...
Page 17
IOM A.R.I. D-070-P • Remove the Rolling Diaphragm Sealing Assembly from the Body [1], [2]. Thoroughly but gently wash and clean all the components under clean running water, remove coarse grime and accumulated scale. Pay attention to the sealing area inside the Body [3].
IOM A.R.I. D-070-P • Separate the Supporting Ring from the Rolling Diaphragm Sealing [1], [2]. • Fold backwards the rubber part of the Rolling Diaphragm Sealing [1] and check for any cracks and tears [2]. Replace the entire Rolling Diaphragm Sealing Assembly if any damage is detected. Do not open screws of the assembly under any circumstances! 5.5 Assembly and Testing for Leaks...
IOM A.R.I. D-070-P 6. Assembly BOM Table and Drawing No. Part name QTY. Discharge Elbow Pilot Body O-ring Clamping Stem Rolling Seal Pilot Float Assy. Locking Ring Adaptor Rolling Diaphragm Sealing Assy. Supporting Ring Body...
