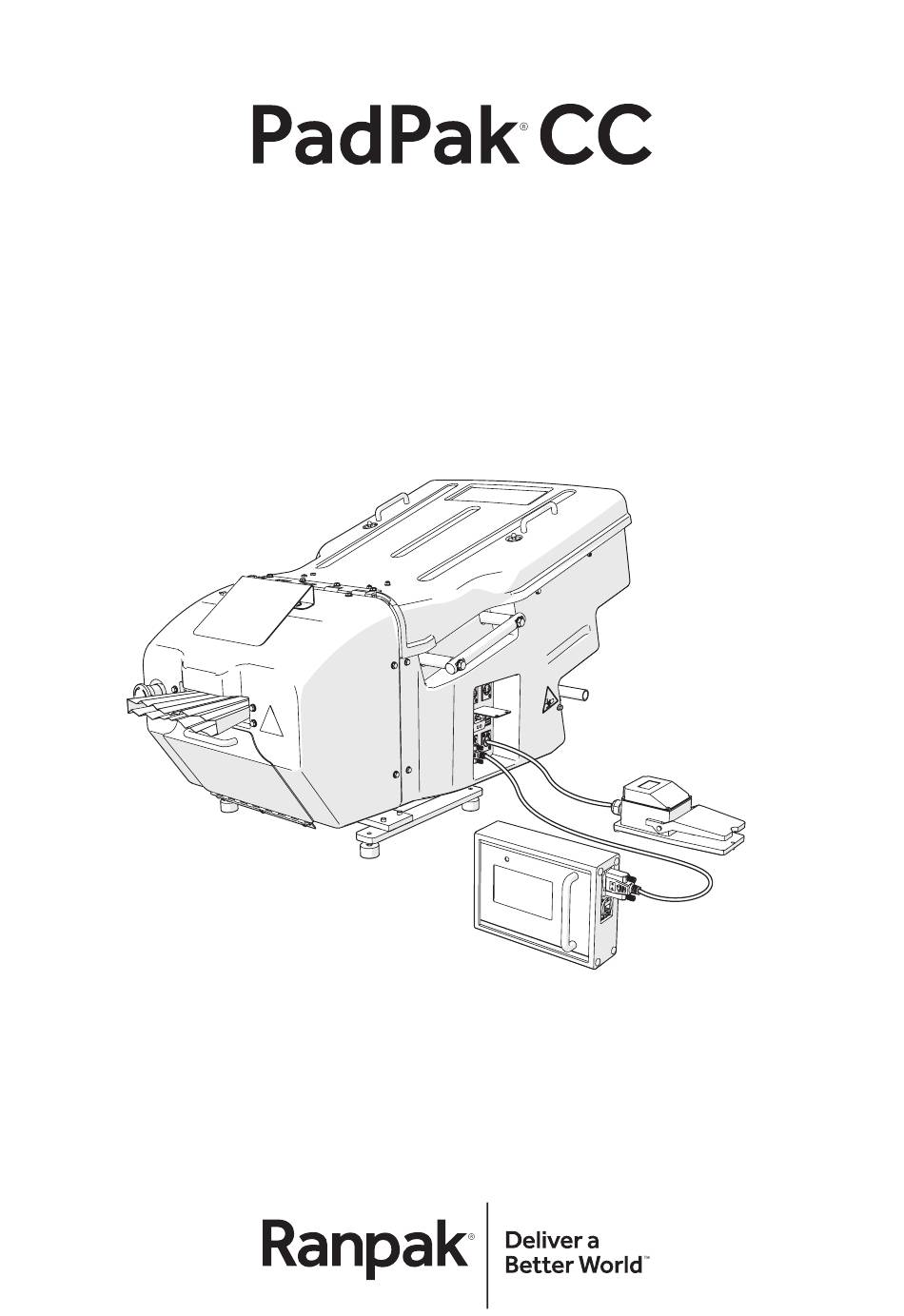

  • Page 1 OPERATOR MANUAL...
  • Page 2 Figure 1 PadPak © THIS EQUIPMENT IS PROPERTY OF CUSHIONING SYSTEM RANPAK BV P.O.BOX 139 6400 AC HEERLEN THE NETHERLANDS PPCCxxP MODEL SERIAL 31-45-5470470 100 - 240 VAC 1PH 1.2 - 2.4 A RANPAK CORP Painesville, OH 44077-8004 270 W...
  • Page 3 Figure 3 Figure 4...
  • Page 4 | PadPak Compact Plus ®...
  • Page 6 | PadPak Compact Plus ®...
  • Page 8 Figure 5 | PadPak Compact Plus ®...
  • Page 10 Figure 6 | PadPak Compact Plus ®...

  • Page 11: Table Of Contents

    PadPak® CC Plus. This document is product-specific and Ranpak EUROPE therefore only applies to the product as Sourethweg 4-6 indicated in paragraph 1.1. In this manual, the 6422 PC Heerlen PadPak®...

  • Page 12: Introduction To This Manual

    • Use of materials other than those produced The converter is designed for safe use in by Ranpak and intended for use in the conformance with the application, conditions converter and rules described in this operator manual.

  • Page 13: Personal Safety

    Anyone that works with, or on this converter • Do not use cable reels. When using an must read the operator manual and follow the extension cable, note that the diameter instructions carefully. must be at least 1,5 mm (14 AWG) with a maximum length of 10 m (33 ft).

  • Page 14: Work Area

    • Current (AC): 1.2 - 2.4 A Table 2 - Labels used on the converter • Power (P): 270 W • Fuse rating (230 AC): 2.0 A Rotating parts, danger to • Fuse rating (110 AC): 4.0 A crush • Electric receptacle: 16 A (230 VAC) •...

  • Page 15: Instructions For Use

    Instructions for use 5.2 Switching the converter on/ 5.1 Safety provisions Before switching the converter ON, check that 5.1.1 Emergency Stop the following conditions are met: The converter is equipped with an Emergency • The foot pedal is plugged in. Stop button.

  • Page 16: 12 5.3.2 Loading A Bundle Of

    5.4 Operating the converter 5. Put the paper in the concave plastic housing. 6. Pull the paper through the housing and There are four modes to produce PadPak® push it into the gears of the gear wheel. material: 7. Close the top door. 8.

  • Page 17: Using The Hmi

    To produce an incidental longer pad, press the foot pedal while the pad is produced. Push 'Stop' to stop pad production. Release the foot pedal to stop the conversion and the pad is cut to length. 5.4.4 Preset mode To exit EDS-mode , push 'Home'. In Preset mode you can produce pads with 12 To produce an incidental longer pad, press preset lengths.

  • Page 18: Machine Statistics

    Cut pad. 2. The display shows the hours and minutes the feed motor has run. Machine statistics To exit Machine statistics, push 'Home'. For Ranpak distributor Service Technicians. Start pad production. Maintenance and troubleshooting Stop pad production. Before performing maintenance on the...

  • Page 19: Troubleshooting

    4. Close the door(s). Push 'Reset' on the HMI. Push 'Pre-feed' on HMI and remove the pad. 5. Check the cable connections (*). 6. Contact your Ranpak distributor Service Technician. No pad detected in exit chute. Push ‘Reset’ on the HMI and RESET follow instructions.

  • Page 20: 14 7 Transport, Storage

    Place new paper and load into RESET paper. converter. 'Paper out' (*) Contact your Ranpak distributor Service Technician if the problem has not been solved. The converter weighs ± 62 kg (137 Transport, storage lbs.). Be careful the converter is and environment top-heavy and can fall over.

  • Page 21: Environment

    To these, the local regulations apply. When replacing these substances, use the recommended or supplied type from the manufacturer, Ranpak. 7.3.3 Calamities There are no special regulations for calamities. In case of fire, use a normal extinguishing agent.
