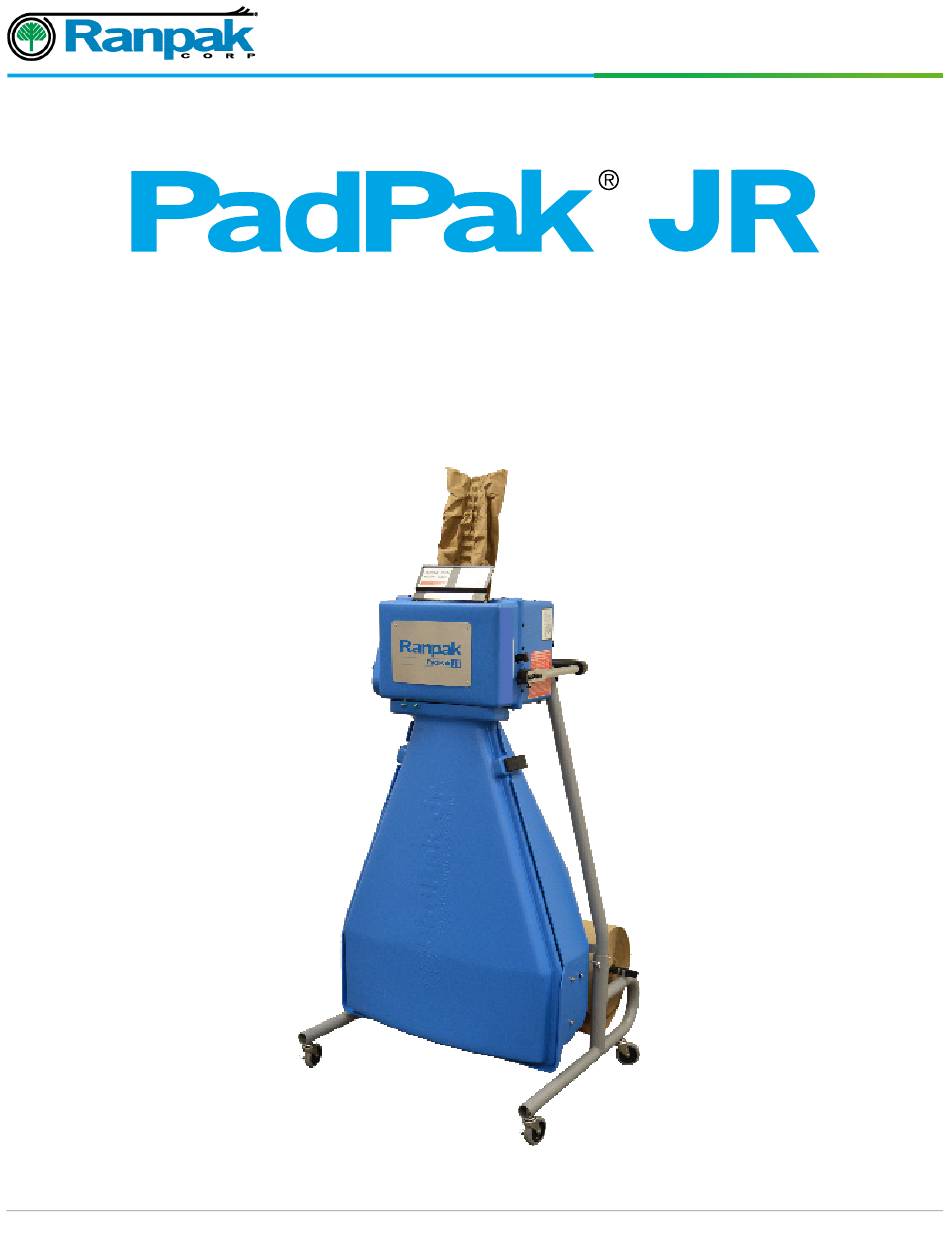

- Page 1 Operator Manual EI-0124 Rev. B The Paper Packaging Experts © Copyright 2019 Ranpak Corp.
-
Page 2: Safety Labels
PadPak JR ® PREFACE SAFETY LABELS On Converter: This operator manual is intended for the operator of this Section 5.2 “Safety Labels” converter. for a complete list of safety labels This operator manual belongs In Manual: with the converter. A copy should... -
Page 3: Table Of Contents
Dangerous Substances for Humans and the Environment ..........2 OPERATOR INSTRUCTIONS .....................3 Construction and Control ....................3 Turning the Converter On ....................3 Loading the Paper ......................3 Operating the PadPak JR ....................4 Turning the Converter Off....................4 Reverse Switch .........................4 Moving the Converter ......................4 Cleaning ..........................5... -
Page 4: Introduction
(+5°C to +40°C) 1.1.1 Converter Description Ambient temperature during transport/storage: -13°F to 131°F The PadPak JR system consists of a converter and (-25°C to +55°C) a roll of kraft paper. The converter is mounted on an Relative humidity: 30% to 95%, upright stand with casters and uses 27”... -
Page 5: Safety
• Oil or grease in the bearings of the converter • Grease used when mounting screws and bolts in 2.2.2 Service Technicians aluminum parts Only trained service technicians employed by Ranpak Ranpak distributor are permitted to conduct service These substances must be treated as chemical waste on the converter. -
Page 6: Operator Instructions
• Plug the power plug into the wall socket • Set the power switch to “On”. The illuminated switch Separate the two is located on the front of the PadPak JR converter. plies and feed When the switch is illuminated it indicates that the between the rollers machine is operational. -
Page 7: Operating The Padpak Jr
Reverse Switch connect properly. The PadPak JR converter is equipped with a reverse Secure the latches switch to assist you in the event that the paper jams. on the former cover. Simultaneously press the reverse switch and activate the feed handle until the jam is cleared. -
Page 8: Cleaning
Repairs can only be carried out by a qualified service TRANSPORT / STORAGE technician. Transport • Only Ranpak supplied parts are permitted for use as The converter has been provided with swivel wheels to replacement parts. be able to move it to various packing stations. These • Parts can be ordered by a Ranpak distributor. -
Page 9: Converter Labels
The labels are always located on the can be locked by pushing the black spring loaded stop head. pin on the right side of the PadPak JR converter and turning the knob 90 degrees. PadPak JR Operator Manual... - Page 10 PadPak JR ® Only authorized distributor service personnel should attempt to service the PadPak JR converter. If machine service is needed, call your local authorized distributor. If you need further information, call Ranpak at 1-800-RANPAK7. WARNING: THE SAFETY FEATURES THAT ARE...
-
Page 11: Appendix
Paper may be jammed. Simultaneously press the reverse switch and activate the feed handle until the jam is clear. If it is severe, call your distributor. For any other troubleshooting resolutions, please contact your Ranpak Distributor Service Technician. PadPak JR Operator Manual... - Page 12 Ranpak Corp 7990 Auburn Road Concord Twp., OH 44077 1.800.RANPAK7 www.ranpak.com inquiries@ranpak.com The Paper Packaging Experts...
