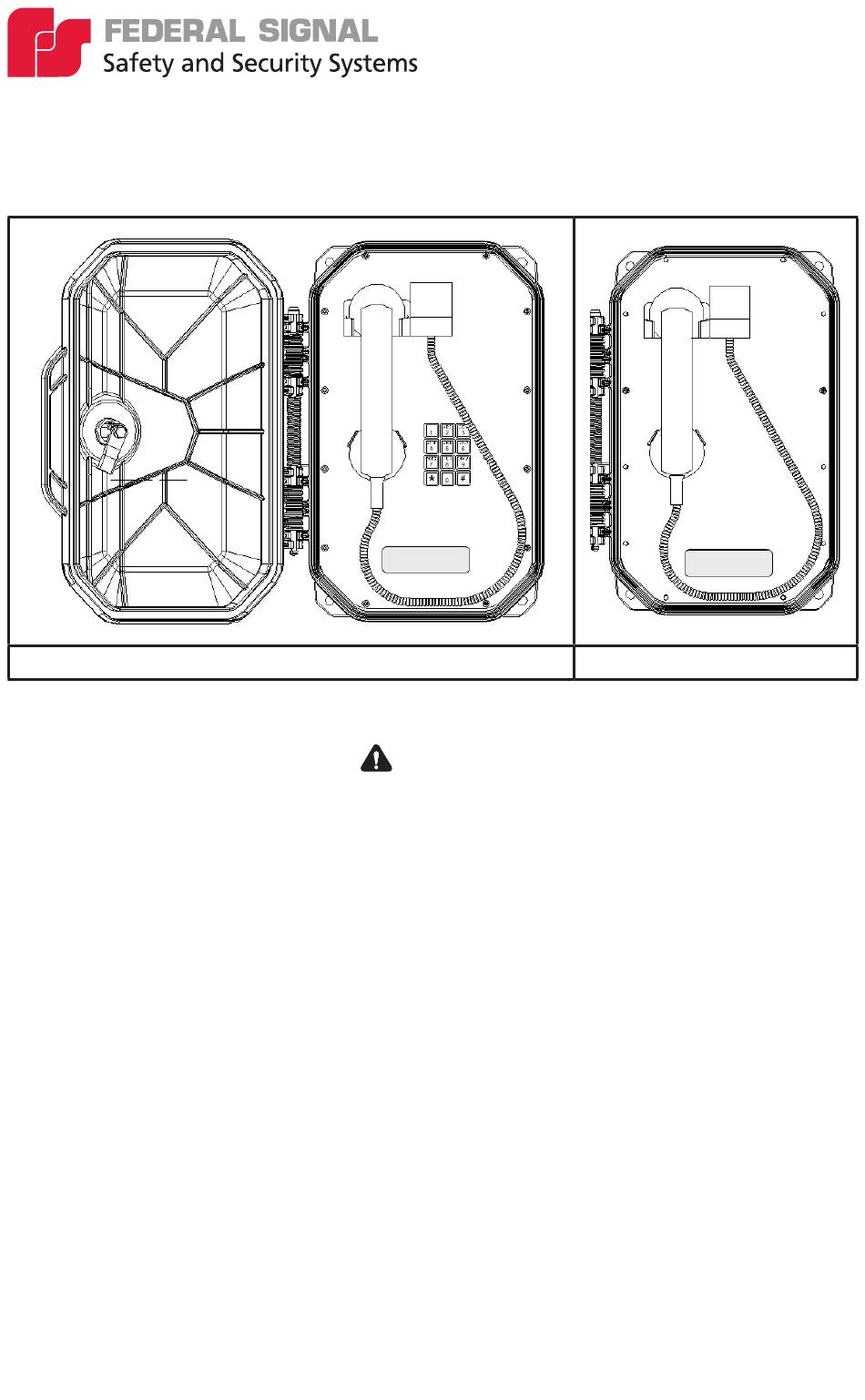

FT300A-V and FT350A-V VoIP
Water and Dust Tight VoIP Telephones
25500985 Rev A0 0225
Limited Warranty: This product's limited warranty can be found at www.fedsig.com/SSG-Warranty.
SAFETY MESSAGES TO INSTALLERS AND USERS
The equipment is not intended for repair by the user. Repair of this equipment shall be carried out by the manufacturer
or manufacturer's authorised agent.
It is the responsibility of the end user to take suitable precautions to prevent exposure to aggressive chemicals that
may attack metals or the polymeric materials used in the construction of this equipment. Specific details of vulnerable
materials shall be provided in the instructions.
•
Read and understand instructions before installing or operating equipment.
•
Do not install this device near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
•
Only use attachments and accessories specified by the manufacturer.
•
Refer all servicing to qualified service personnel.
•
Prior to installation, consult local building and electrical code requirements.
•
WARNING: ELECTRICAL HAZARD — This product should be installed by a licensed electrician accoring to all
electrical and building codes.
•
WARNING: DISLOCATION HAZARD — To prevent injury, this apparatus must be attached securely to the floor/wall
in accordance with the installation instructions.
Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death to you or
others.
FT300A-V
:
FT350A-V
Advertisement
Table of Contents
Related Manuals for Federal Signal Corporation FT300A-V
Summary of Contents for Federal Signal Corporation FT300A-V
- Page 1 FT300A-V and FT350A-V VoIP Water and Dust Tight VoIP Telephones 25500985 Rev A0 0225 FT300A-V FT350A-V Limited Warranty: This product’s limited warranty can be found at www.fedsig.com/SSG-Warranty. SAFETY MESSAGES TO INSTALLERS AND USERS The equipment is not intended for repair by the user. Repair of this equipment shall be carried out by the manufacturer or manufacturer’s authorised agent.
- Page 2 Hardware Packet: Faceplate screws, ferrite bead (if required) Reference FT Series VoIP Telephone Setup and Configuration Manual 25500857 Models • FT300A-V: VoIP telephone with keyboard and armored handset cord • FT350A-V: VoIP Ringdown telephone (no keypad) with armored handset cord Options •...
- Page 3 Cloud-Based) servers that comply with SIP RFC 3261. Users can remotely monitor and program settings through a web browser to configure telephones on the network. FT300A-V is equipped with a keypad, and FT350A-V is a ringdown telephone. Both FT300A-V and FT350A-V are vandal- resistant with armored handset cords and volume control handsets.
- Page 4 Configurable audio files • Event Monitoring / Triggers – (Refer to VoIP Configuration Guide – 25500857A) • Peer-to-peer capable Figure 1 FT300A-V features (FT350A-V is the same but with no keypad) Magnetic Reed Hook Switch Faceplate - 14 GA Steel, Satin Coat...
-
Page 5: Typical System Installation
Figure 2 Overall dimensions 11.6" (296 mm) 7.9" (200 mm) 8.0" (203 mm) Ø 0.41" (10.4 mm) Typical System Installation The Voice-over-IP (VoIP) Telephones support either Power-over-Ethernet (PoE 802.3at) and/or external 24 Vdc. They provide full duplex two-way communications and easily connect into existing local area networks (LANs) with a single cable connection. -
Page 6: Circuit Board Connections
JHS – Handset Connector 1. Handset Mic (+) 2. Handset Mic (–) JSW – Hook Switch Hookswitch connector (no polarity) JKP – Keypad Keypad interface for FT300A-V. JIO – Optically Isolated 1. Input 1 Input/Outputs 2. Input 2 3. Input 3 Refer to section on Opto I/O 4. -
Page 7: Installation
Installation Follow all appropriate electrical codes and use only approved electrical fittings for the installation. NOTE: The VoIP PCBA is susceptible to damage from electrostatic discharge (ESD) and is protected by a metal shield. If it is necessary to remove the shield, take suitable precautions. Determine whether power to operate the telephone will be provided via the Ethernet, if external power will be required, or both will be applied. -
Page 8: Operation
Operation Dialing FT300A-V and FT350A-V VoIP telephones may be set up for either keypad dialing or auto-dialing. If the telephone is configured for keypad, dialing operation is identical to most other single line telephones. Lift the handset off the cradle, confirm dial-tone is heard, and then dial the desired number. A ring or busy signal should be heard, depending on the state of the receiving telephone. -
Page 9: Functional Features
Functional Features This section provides additional technical details if there is a requirement to use some of the extra features of the VoIP controller. RTFM – Reset Test Function Management Switch A small mechanical button switch is located on the VoIP Controller, allowing the user to easily obtain the phone IP address if not accessible through the web interface. -
Page 10: Optically Isolated Inputs
For relay control options, refer to manual 25500857. For the following conditions, the operation state can be set to: • Disable: Relay will not activate. • Enable: Relay will turn on and remain on until the condition changes. • Oscillate: Relay will repeatedly turn on and off (cadence = 1sec Off, 2sec On) •... -
Page 11: Optically Isolated Outputs
Opto-Input Tagging The Inputs can be names (tagged) in the telephone web Interface. Optically Isolated Outputs There are four optically isolated outputs which act as transistor switches that can be used to trigger external devices or monitoring hardware. Of the four outputs, two are fixed function and two are user-configurable. The phone will issue an XML-coded message for input into an alternate monitoring device. - Page 12 The user configurable opto-outputs can be names (tagged) in the telephone web Interface on the events page. Inputs can be names (tagged) in the telephone web Interface. Product Supported Protocols The FT300A-V and FT350A-V VoIP Telephones suport: • SIP (Session Initiation Protocol) •...
-
Page 13: Supported Sip Servers
Supported SIP Servers As a SIP device, this product will operate with most IP PBX servers (on-premesis or cloud based). In some minor cases, the use of an SBC device may be necessary. Network Connectivity, and Data Rate When you plug in the Ethernet cable or power supply: •... - Page 14 Main Circuit Board Replacement Label any wiring attached to the circuit board. Disconnect the wiring and ribbon cable. Remove the two screws holding the circuit board in place. Carefully remove the board. Install the new board and reconnect the wiring. If the configuration had been changed from the factory default settings, reprogram the telephone.
-
Page 15: Maintenance And Service
Maintenance and Service Technical Assistance: Contact our Technical Support Team at +1 708-587-3587 or signalsupport@fedsig.com. Repair Service: A return authorization is required. Contact your Authorized Distributor or Federal Signal Customer Support. Defective products under warranty will be repaired or replaced at Federal Signal’s discretion. Product Returns: Returns require authorization from Federal Signal. - Page 16 2645 Federal Signal Drive, University Park, Illinois 60484 Additional translations available at signaling.fedsig.com Traducciones adicionales disponibles en signaling.fedsig.com Customer Support 1-800-344-4634+1-708-534-4756, iordersup@fedsig.com Technical Support 1-800-755-7621+1-708-587-3587, signalsupport@fedsig.com signaling.fedsig.com © 2025 Federal Signal Corporation. All rights reserved worldwide. All trademarks are property of their respective owners.
