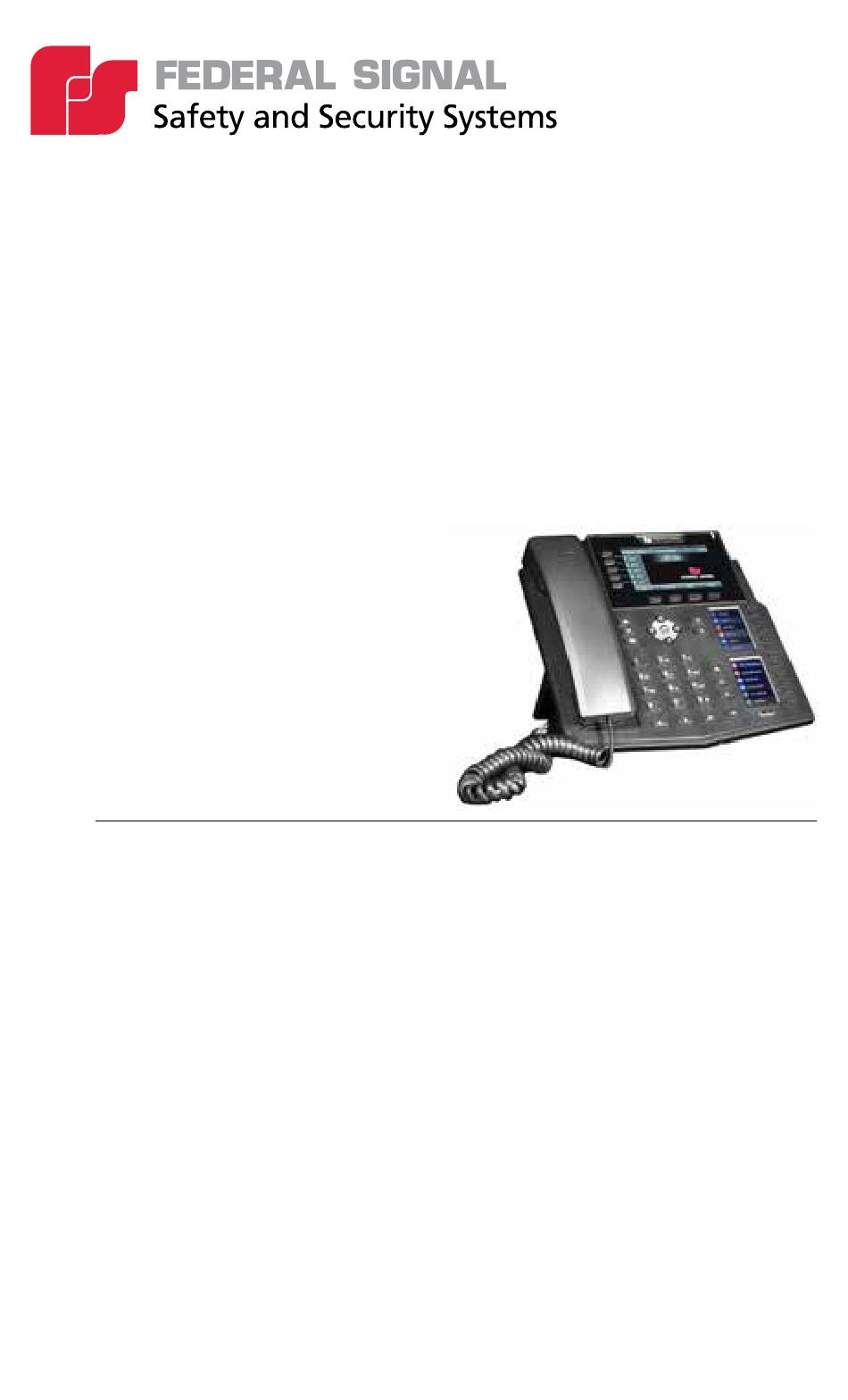

- Page 1 IP Phone for Intelligent Systems Model: I-IPTEL1 Description, Installation, and Configuration Manual 25500823 Rev. A1 0123 Printed in U.S.A. © Copyright 2022-2023 Federal Signal Corporation...
- Page 2 A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400.
-
Page 3: Table Of Contents
Contents Safety Messages.....................4 General Description ..................4 Features ....................5 Applications....................6 Overview ....................7 Unpacking the Device ..................8 Specifications ....................8 Introduction of the Keypad ................9 Connecting the IP Phone ................14 Configuring the Network Interface ..............15 Configuring Static Settings..............18 Configuring DHCP Settings ..............19 Configuring PPPoE Settings ..............19 Configuring SIP Settings .................20 Basic Setting ....................20 Language setting ..................20... -
Page 4: Safety Messages
This allows the creation of zones for wide areas or specific notification groups. You can use multiple phones to create multi-location control and activation points. The phones can IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com... -
Page 5: Features
I-IPTEL1 phones. The Informer IP Speaker also has remote volume control for optimizing sound levels across your alerting area. The remote volume control also includes an ambient-noise-monitoring capability to adjust volume automatically depending on external noise levels. -
Page 6: Applications
• Desktop stand • Ability to synchronize with Network Time Protocol (NTP) clock Applications The I-IPTEL1 has the following applications. • Indoor and outdoor speaker locations • Muster or call stations • Campuses or school alerting • Use with video security systems •... -
Page 7: Overview
General Description Table 1 Ordering Information Model Description I-IPTEL1 IP Phone with 60 programmable buttons I-IP15 15 W PoE+ indoor/outdoor speaker I-IP100 100 W indoor/outdoor speaker I-IPIO* 1/2 W desktop speaker I-IPW* 1/2 W wall mount speaker I-IP2* Two-channel 1/2 W audio outputs module... -
Page 8: Unpacking The Device
Desktop Stand (Angles 1): 9.4 x 7.8 x 7.3 inches (239 x 199.3 x 185.8 mm) Desktop Stand (Angles 2): 9.4 x 7.4 x 7.7 inches (239 x 188.5 x 195.6 mm) IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com... -
Page 9: Introduction Of The Keypad
Introduction of the Keypad Introduction of the Keypad The following figure illustrates the front view and the keypad of the IP Phone, and the table describes the keys. Figure 1 Keypad of IP Phone Description, Installation, and Configuration Manual Federal Signal www.fedsig.com... - Page 10 Enter the PIN to unlock the keypad. Voice Mail Press the Voice Mail key to enter the interface of SMS and the voice mail list. Headset Press the Headset key to open the headset channel. IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com...
- Page 11 Introduction of the Keypad Interface Description Redial Press the Redial key to redial the last number dialed. Hands-free Press the Hands-free key to open the audio channel of the speakerphone. Next Page Scrolls through multiple screens. DSS KEY Short press a DSS key to select a function. Long press a DSS key to display the settings interface.
- Page 12 Call Hold Network Disconnected Open VLAN Open VPN Keypad Locked Call forward calls Outgoing calls Incoming calls Missed calls New voice message waiting Do Not Disturb inactivated on phone Call forward activated IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com...
- Page 13 Introduction of the Keypad Screen Icon Description Auto-answering activated Hands-free (HF) Mode Headphone (HP) Mode Handset (HS) Mode Mute Microphone The Voice quality of calling The Voice encryption of calling Speech High Definition Record SIP Hotspot Bluetooth Wi-Fi USB Insert USB overload Description, Installation, and Configuration Manual Federal Signal www.fedsig.com...
-
Page 14: Connecting The Ip Phone
USB Port USB device connection Power Port Power adapter connection Network Port LAN or Internet connection PC Port Network port for computer connection Headset Port Headset connection Handset Port Handset connection IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com... -
Page 15: Configuring The Network Interface
Configuring the Network Interface Figure 3 Typical IP Phone Setup Configuring the Network Interface NETWORK INSTALLATION PRECAUTIONS: Review network settings with your Network Administrator before connecting to an existing network. To view the IP Address of the phone, press the down arrow navigation key below the OK button on the phone. - Page 16 4. The login window appears. 5. Enter the Username: admin 6. Enter the Password: fedsig NOTE: The password is case sensitive. 7. Click Login. IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com...
- Page 17 Configuring the Network Interface The System > Information screen appears. Description, Installation, and Configuration Manual Federal Signal www.fedsig.com...
-
Page 18: Configuring Static Settings
Static IP option button. Populate the settings for your network and click apply. NETWORK CAUTIONS: Coordinate with your Network Administrator before assigning addresses and connecting to an existing network. IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com... -
Page 19: Configuring Dhcp Settings
Configuring the Network Interface Configuring DHCP Settings If you are connecting the phone on a network with a DHCP server and want to dynamically allocate an IP address to the phone, select the Network menu option on the left side menu, then select the Basic tab on the top menu (Network >... -
Page 20: Configuring Sip Settings
The following section describes the basic functions of the phone. Language setting 1. Press the Menu key > Basic > Language. 2. Select the desired language and press the OK soft key. IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com... -
Page 21: Making A Call
Basic Setting Making a call 1. Pre-dialing: enter the phone number and pick up the handset. 2. Direct dialing: lift the handset and enter the phone number. 3. Handsfree: enter the phone number and press or vice versa. 4. Headset: enter the phone number and press or vice versa. -
Page 22: Call Transfer
Menu > CallLog > Local Call up navigation Logs. 2. Scroll through the list using the navigation keys 3. To dial an entry, press the Dial soft key or pickup handset or press IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com... -
Page 23: Phonebook
Basic Setting Phonebook To access your phonebook: 1. Press Contact soft key or Menu > PhoneBook > Local Contacts. 2. Select All Contacts or other group. 3. To dial an entry, press the Dial soft key or pickup handset or press To add a new entry: 1. -
Page 24: Bluetooth
Customer Support at 800-548-7229 or 708-534-3400 extension 7511 or Technical Support at 800-524-3021 or 708-534-3400 extension 7329 or e-mail at techsupport@fedsig.com. For instruction manuals and information on related products, visit http://www.fedsig.com. IP Phone for Intelligent Systems (I-IPTEL1) Federal Signal www.fedsig.com...
