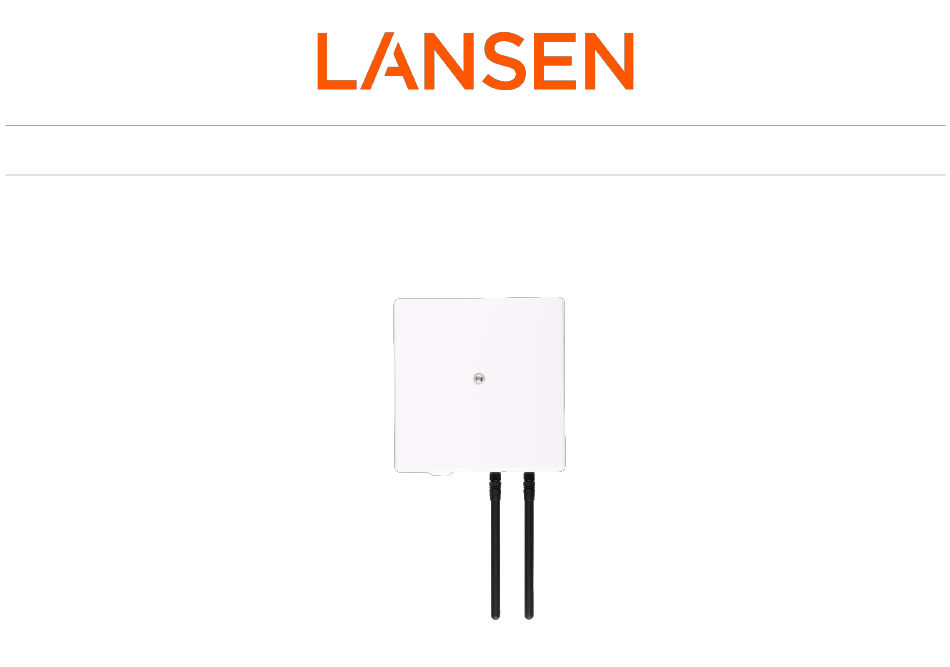

- Page 1 QUICK INSTALLATION GUIDE OUTDOOR LONG RANGE MAINS REPEATER WITH TWO EXTERNAL ANTENNAS [LAN-WMBUS-RX4-M-LR-A2-X] Version: 01...
- Page 2 Appropriate disconnection device, such as a power supply cable with socket, shall be mount a repeater on a recommended to use Lansen pole used as part of the building instruction. It should be close to the device and easily mounting kit (article number LAN-910-0066).
- Page 3 Please contact place of purchase. Step 6 (Mounting on a pole/mast) Install the Lansen pole mounting kit (article number LAN-910-0066) on the back of the repeater. Pull the straps through the holes and wrap it around the pole or pipe which the repeater is going to be mounted on and tighten the straps, so it is securely mounted.
- Page 4 Step 9 Additional information Attach the cover and mount the screw (marked with a red circle on the image Please note that antennas and antenna cables are not included. See our full range below). Make sure the clips at both sides of the cover are firmly attached. of antennas, cables, and other accessories Note: The screw is a Security Torx T20H (with a small pin in the middle).
