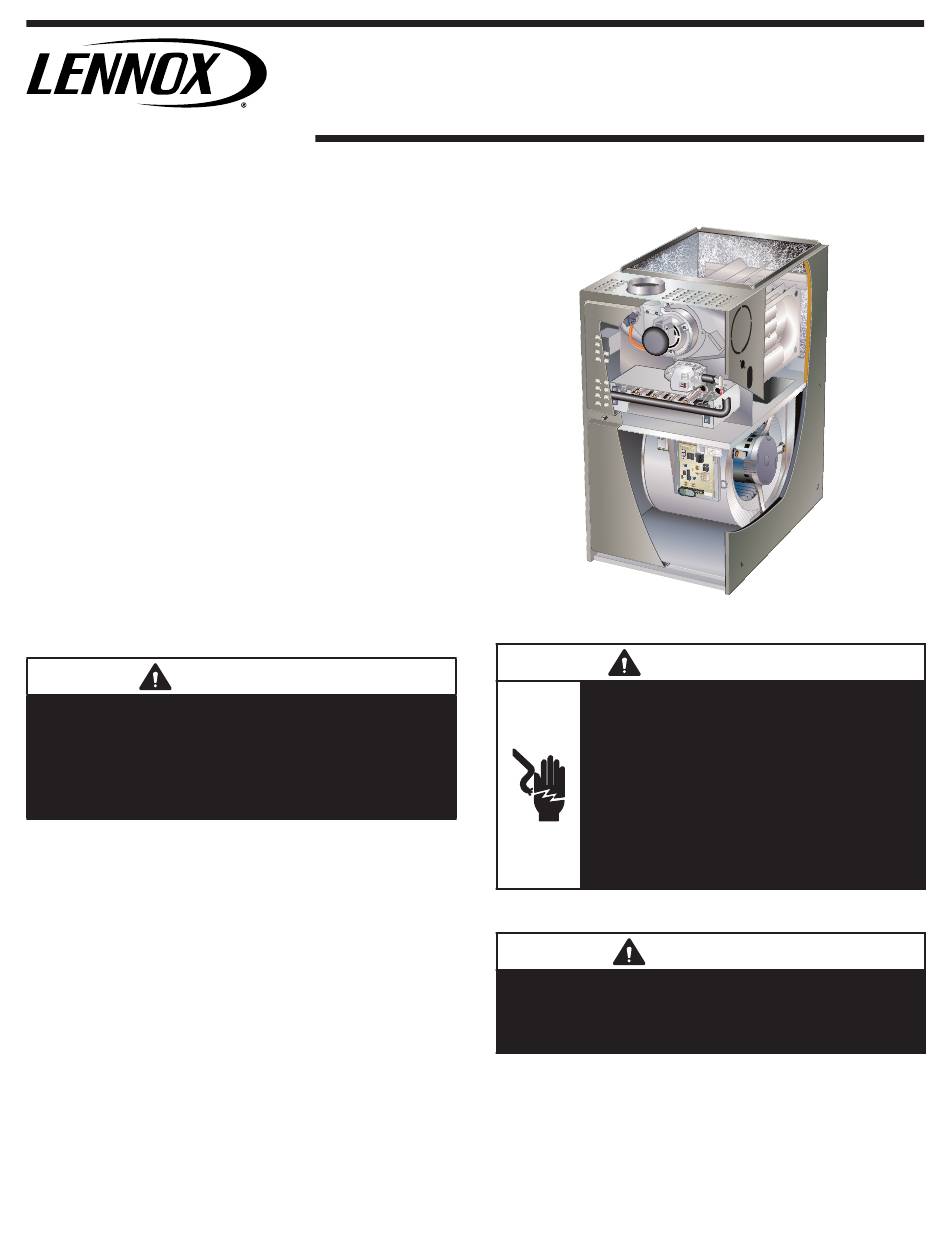

S e r v i c e L i t e r a t u r e
ML180UHEK series units are mid-efficiency gas furnac-
es used for upflow or horizontal applications only, man-
ufactured with Lennox Duralok heat exchangers formed
of aluminized steel. ML180UHEK units are available in
heating capacities of 44,000 to 132,000 Btuh and cooling
applications 2 to 5 tons. Refer to Engineering Handbook
for proper sizing.
Units are factory equipped for use with natural gas. Kits
are available for conversion to LP/Propane operation.
ML180UHEK model units are equipped with a hot surface
ignition system. The ML180UHEK unit meets the Califor-
nia Nitrogen Oxides (NOx) Standards and California Sea-
sonal Efficiency requirements.
All units use a redundant gas valve to assure safety shut-
off as required by C.S.A. All specifications in this manual
are subject to change. Procedures outlined in this manual
are presented as a recommendation only and do not su-
persede or replace local or state codes. In the absence
of local or state codes, the guidelines and procedures
outlined in this manual (except where noted) are recom-
mended only and do not constitute code.
WARNING
This furnace is equipped with an ignition control
factory enabled for use with A2L refrigerant systems.
Disabling the refrigerant detection functionality on
A2L system is prohibited by safety codes. Refer
to furnace installation instructions for refrigerant
system setup.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Blower Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Twinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
I Unit Components . . . . . . . . . . . . . . . . . . . . . . . . Page 9
II Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 25
III Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 25
V Typical Operating Characteristics . . . . . . . . . Page 29
VI Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . Page 30
VII Low GWP Application. . . . . . . . . . . . . . . . . . . Page 33
IX Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .Page 37
UNIT INFORMATION
UNIT INFORMATION
ML180UHEK With R-454B SERIES UNITS
100161
Electric Shock Hazard. Can cause injury
or death. Unit must be properly grounded
in accordance with national and local
codes.
Line voltage is present at all components
when unit is not in operation on units
with single-pole contactors. Disconnect
all remote electric power supplies before
opening access panel. Unit may have
multiple power supplies.
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal
injury. Take care while handling this equipment and
wear gloves and protective clothing.
Page 1
ML180UHEK
WARNING
CAUTION
