OPERATOR'S
Comfort Control DD Series
Description
CCWKAV19CE, Walk Behind Mower
CCWKAV25CE, Walk Behind Mower
Description
CCW/48CE, 48" Cut Mower Deck
CCW/52CE, 52" Cut Mower Deck
Description
CCWKAV1948CE
CCWKAV2552CE
CCWKAV1948SDCE
CCWKAV2048RDCE
CCWKAV2652RDCE
CCWKAV2452RDCE
CCWKAV2148RDCE
MANUAL
Walk-Behind Mowers
5102309
Rev S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comfort Control DD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ferris Comfort Control DD Series

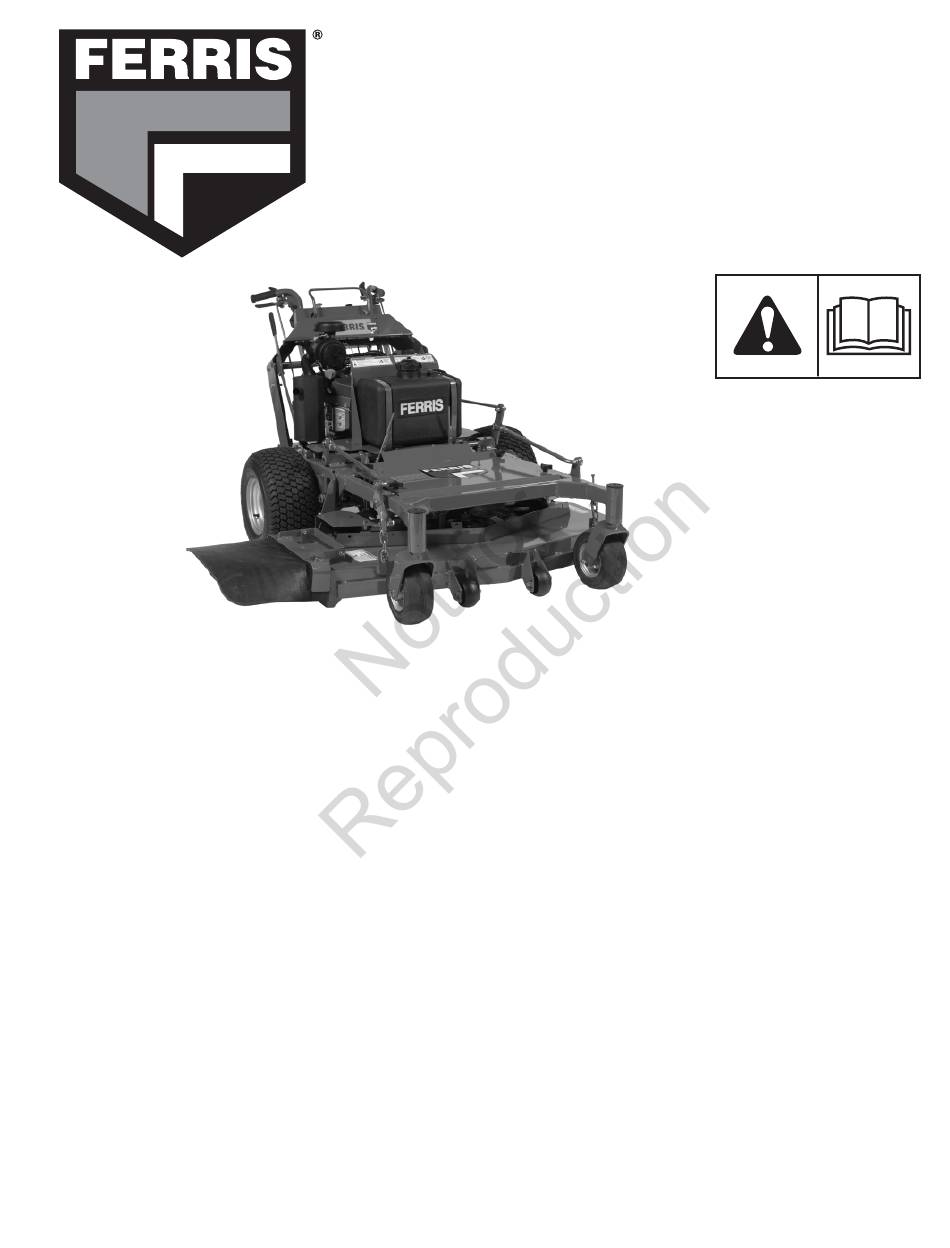

  • Page 1 OPERATOR’S MANUAL Comfort Control DD Series Walk-Behind Mowers Tractor: Model Number: Description 5900637 CCWKAV19CE, Walk Behind Mower 5900638 CCWKAV25CE, Walk Behind Mower Mower Deck: Model Number: Description 5900646 CCW/48CE, 48” Cut Mower Deck 5900647 CCW/52CE, 52” Cut Mower Deck Combo Models:...
  • Page 2 Briggs & Stratton Power Products Group, LLC Copyright © 2012 Briggs & Stratton Corporation Milwaukee, WI, USA. All rights reserved. FERRIS is a trademark of Briggs & Stratton Corporation Milwaukee, WI, USA. Contact Information: Briggs & Stratton Power Products Group, LLC 5375 N.
  • Page 3: Table Of Contents

    Table of Contents Safety Rules & Information ....... 2 Identification Tags ..........8 Safety Decals ............9 Safety Interlock System ........10 Safety Icons ............11 Features & Controls ......... 12 Control Functions ..........12 Operation General Operating Safety ........14 Checks Before Starting .........14 Starting the Engine ..........15 Stopping the Mower ..........15 Driving the Mower ..........16...
  • Page 4: Safety Rules & Information

    Safety Rules & Information Operating Safety Congratulations on purchasing a superior-quality piece of lawn and garden equipment. Our products are designed and manufactured to meet or exceed all industry standards for safety. Do not operate this machine unless you have been trained. Reading and understanding this operator’s manual is a way to train yourself.
  • Page 5: Slope Operation

    Safety Rules & Information Slope Operation You could be seriously injured if you use this unit on too steep of a slope. Using the unit on a slope that is too steep where you do not have adequate footing and unit traction (and control) can cause you to lose control and possibly slip and fall or roll the unit over.
  • Page 6: Enclosed Areas

    Safety Rules & Information Fuel and Maintenance Always disengage all drives, shutoff the engine and remove the key before doing any cleaning, refueling or servicing. Gasoline and its vapors are extremely flammable. Do not smoke while operating or refueling. Do not add fuel while engine is hot or running.
  • Page 7: Operation

    Safety Rules & Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects. The triangle in text signifies important cautions or warnings which must be followed.
  • Page 8 Safety Rules & Information 23. Use care when approaching blind corners, shrubs, 6. Keep all movement on the slopes slow and trees or other objects that may obscure vision. gradual. Do not make sudden changes in speed 24. To reduce fire hazard, keep unit free of grass, or direction.
  • Page 9: Service And Maintenance

    Safety Rules & Information SERVICE AND MAINTENANCE mufflers, and engine to prevent fires. Clean up oil or fuel spillage. To avoid personal injury or property damage, use 10. Let engine cool before storing and do not store extreme care in handling gasoline. Gasoline is near flame.
  • Page 10: Identification Numbers

    Identification Numbers Identification Numbers Power Head Identification Tag North American Models PRODUCT IDENTIFICATION XXXX Mower Deck XXXXXXXXXXXXXXX MODEL XXXXXXX Identification Tag CE Models SERIAL XXXXXXXX Fig. 1 Location of Identification Tags. 0 123456 789012 20xx Briggs & Stratton Power Product Group, LLC XXXXXXXXXXXXXXXXXX Assembled in U.S.A XXXXXXXXXXXXXXXXXX...
  • Page 11: Safety Decals

    Safety Decals SAFETY DECALS This unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effectively, we have placed several safety labels on the unit to remind you of this important...
  • Page 12: Safety Interlock System

    Safety Interlock System / Safety Icons Safety Icons SAFETY INTERLOCK The alert symbol is used to identity safety information about hazards that can result in personal SYSTEM injury. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate This unit is equipped with safety interlock switches.
  • Page 13: Ce Safety Icons

    CE Safety Icons Danger: Dismemberment. NORTH AMERICAN SAFETY ICONS This machine can amputate limbs. Safety Safety Hazard Hazard Keep bystanders and children Icon Icon away when engine is running. Amputation Danger: Dismemberment. Alert Foot in This mower deck can amputate Blade limbs.
  • Page 14: Features & Controls

    Features & Controls S/N: 2014550197 & Below Please take a moment and familiarize yourself with the name, location, and function of these controls so that you will better understand the safety and operating instructions provided in this manual. CONTROL FUNCTIONS The information below briefly describes the function of individual controls.
  • Page 15 Features & Controls Ignition Switch Neutral Return Pedal The ignition switch starts and stops the engine, it has The neutral return pedal provides a hands-free return to neutral. This is used in conjunction with the three positions: Reverse Speed Control Levers (B) to properly stop Stops the engine and shuts off the the machine.
  • Page 16: Operation

    Operation GENERAL OPERATING SAFETY CHECKS BEFORE STARTING Before first time operation: • Check that crankcase is filled to full mark on dipstick (B, Figure 2). See the engine Operator’s • Be sure to read all information in the Safety and Manual for instructions and oil recommendations.
  • Page 17: Starting The Engine

    Operation WARNING If you do not understand how a specific control functions, or have not yet thoroughly read the FEATURES & CONTROLS section, do so now. Do NOT attempt to operate the tractor without first becoming familiar with the location and function of ALL controls.
  • Page 18: Driving The Mower

    Operation DRIVING THE MOWER NOTE: Before attempting to drive the mower make sure you have read the Features and Controls section and understand the location and function of the controls. The hydrostatic transmission has an infinite number of speeds between full speed forward and reverse, with the faster speeds being achieved by moving the forward speed control lever and reverse steering control levers farthest in the direction of travel.
  • Page 19 Operation To make a right-hand turn (See Figure 6): Gently squeeze the right hand steering control lever (A, Figure 6). A sharp or gentle turn is determined by the amount of force applied to the steering control lever. Figure 6. Right Turn Travel. A.
  • Page 20: Mowing

    Operation MOWING Before mowing, set the cutting height as described in the Troubleshooting, Adjustments & Repair section. 1. Engage the parking brake. Make sure the PTO switch is disengaged and the motion control lever is in the NEUTRAL position. 2. Start the engine (see STARTING THE ENGINE). 3.
  • Page 21: Mowing Methods

    Operation When and How Often to Mow The time of day and condition of the grass greatly affect the results you’ll get when mowing. For the best results, follow these guidelines: 1. Mow when the grass is between three and five inches high.
  • Page 22: Pushing The Mower By Hand

    Operation Proper Mulching PUSHING THE MOWER BY HAND Mulching consists of a mower deck which cuts and DO NOT TOW MACHINE recuts clippings into tiny particles and which then Towing the machine will cause hydraulic blows them down INTO the lawn. These tiny particles transaxle damage.
  • Page 23: Storage

    Operation STORAGE WARNING Temporary Storage (30 Days Or Less) Never store the unit, with gasoline in engine or fuel tank, in a heated shelter or in enclosed, Remember, the fuel tank will still contain some poorly ventilated enclosures. Gasoline fumes gasoline, so never store the unit indoors or in any may reach an open flame, spark or pilot light other area where fuel vapor could travel to any...
  • Page 24: Regular Maintenance

    Regular Maintenance MOWING HEIGHT ADJUSTMENT See Figure 10. The mowing height adjustment can be changed by turning the cutting height adjustment handle. To Raise the Mower Deck: Turn the cutting height adjustment handle (A, Figure 10) clockwise. To Lower the Mower Deck: Turn the cutting height adjustment handle counter clockwise.
  • Page 25: Specifications

    Specifications SPECIFICATIONS CHASSIS: Fuel Tanks Capacity: 5 Gallons (18.9 L) NOTE: Specifications are correct at time of printing Rear Wheels Tire Size: 17 x 7.50 -12 and are subject to change without notice. Inflation Pressure: 15 psi (1,03 bar) Front Wheels Tire Size: 9 x 3.5 - 6 ENGINE: TRANSMISSION:...
  • Page 27 Notes...
  • Page 28 Notes...
  • Page 30 ABOUT YOUR WARRANTY We welcome warranty repair and apologize to you for being inconvenienced. Warranty service is available only through FERRIS Authorized Service Dealers. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. This warranty only covers defects in materials or workmanship. It does not cover damage caused by improper use or abuse, improper maintenance or repair, normal wear and tear, or stale or unapproved fuel.
  • Page 31 California, U.S. EPA, and Briggs & Stratton Corporation Emissions Control Warranty Statement September 2012 Your Warranty Rights And Obligations The California Air Resources Board, U.S. EPA, and Briggs & Stratton (B&S) are pleased Owner’s Warranty Responsibilities: to explain the emissions control system warranty on your Model Year 2012--2013 As the engine/equipment owner, you are responsible for the performance of the ...
  • Page 32 OPERATOR’S MANUAL Comfort Control DD Series Walk-Behind Mowers Briggs & Stratton Power Products Group, LLC 5375 North Main Street Munnsville, NY 13409 800-933-6175 www.ferrisindustries.com...
