JVC KD-R628 Instructions Manual
  1. Manuals
  2. Brands
  3. JVC Manuals
  4. Car Receiver
  5. KD-R628
  6. Instructions manual

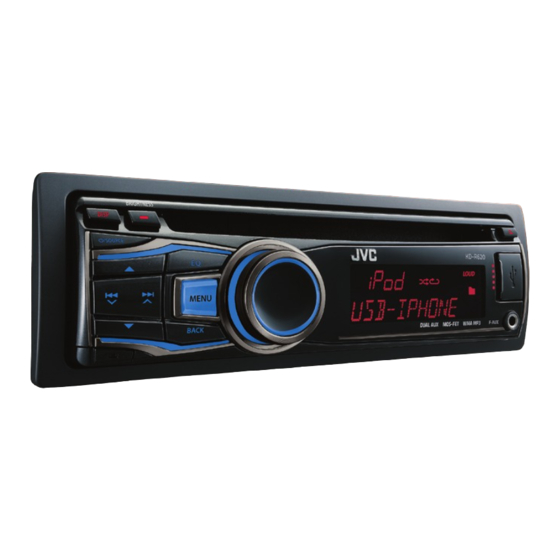

JVC KD-R628 Instructions Manual

JVC KD-R628 Instructions Manual

Hide thumbs Also See for KD-R628:

Advertisement

Quick Links

Download this manual
KD-R628/KD-A625/KD-R620
CD RECEIVER / RECEPTOR CON CD /
RÉCEPTEUR CD
For canceling the display demonstration, see page 4. / Para cancelar la demostración en pantalla,
consulte la página 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l'installation et les raccordements, se référer au manuel séparé.
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
All manuals and user guides at all-guides.com
INSTRUCTIONS
ENGLISH
ESPAÑOL
FRANÇAIS
For customer Use:
Enter below the Model
No. and Serial No. which
are located on the top or
bottom of the cabinet.
Retain this information
for future reference.
Model No.
Serial No.
GET0735-001A
[J]

Advertisement

loading
Need help?

Need help?

Do you have a question about the KD-R628 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JVC KD-R628

Summary of Contents for JVC KD-R628

  • Page 1 All manuals and user guides at all-guides.com ENGLISH ESPAÑOL FRANÇAIS KD-R628/KD-A625/KD-R620 CD RECEIVER / RECEPTOR CON CD / RÉCEPTEUR CD For canceling the display demonstration, see page 4. / Para cancelar la demostración en pantalla, consulte la página 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.
