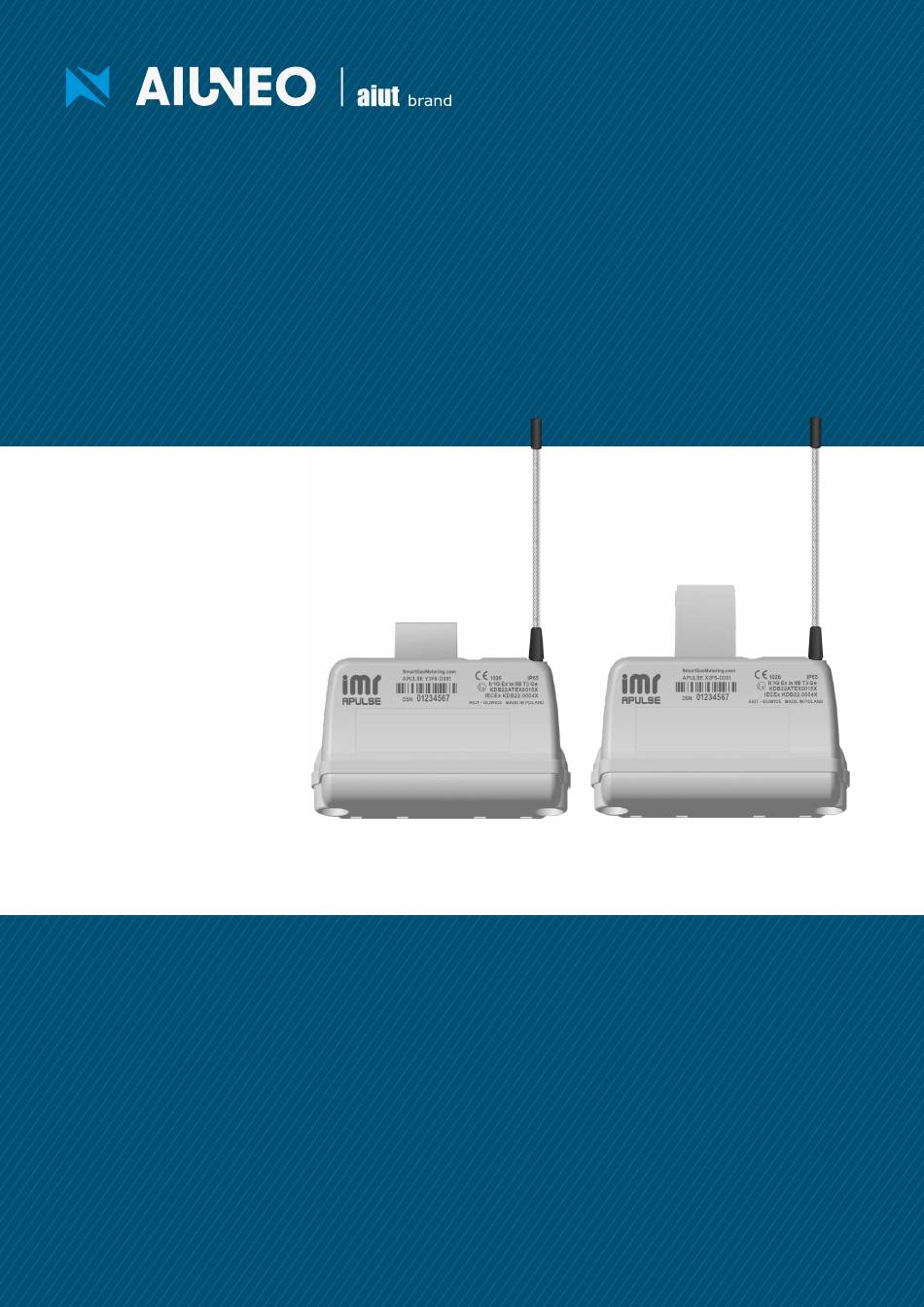

- Page 1 Operation manual APULSE x3F6 Smart Gas Meter Data Logger Document version: 2025/02/03 www.aiuneo.com www.aiut.com AIUT Sp. z o.o. ul. Wyczółkowskiego 113, 44-109 Gliwice, Poland Tel.: (+48 32) 77 54 000 Fax: (+48 32) 77 54 001...
-
Page 2: Table Of Contents
• device registering in the system All rights reserved. This document is the property of AIUT sp. z o.o. and may only be used for its intended purpose. Disclosure, copying, or distribution without the owner’s consent is prohibited. AIUT reserves the right to amend this document without prior notice. -
Page 3: Precautions
APULSE x3F6 OPERATION MANUAL v.20250203 PRECAUTIONS Please read the user manual and familiarize yourself with the benefits of our device. Failure to follow the instructions outlined in this document may result in the loss of warranty. Before first use, check the device for any visible damage. Do not use the device if it is damaged. In case of any issues, contact customer support. -
Page 4: General Information
Local data access & configuration installed on gas meter with SITA mobile application MANUFACTURER Designed and manufactured in Poland by: AIUNEO AIUT Sp. z o.o. Poland, 44-109 Gliwice, ul. Wyczółkowskiego 113 www.aiut.com • www.aiuneo.com tel.: +48 32 775 40 00, e-mail: biuro@aiut.com... -
Page 5: Device Structure
APULSE x3F6 OPERATION MANUAL v.20250203 DEVICE STRUCTURE ORDER NUMBER ANTENNA Embedded, wired radio APULSE x3F6-vz** antenna interface for local communication version with connector OVERPRINT/LABEL version with built-in pulse sensor type of battery* CERTIFICATES additional hardware versions* *Details about the available device versions and type of battery can be found in the Device Versions section. -
Page 6: Device Versions
APULSE x3F6 OPERATION MANUAL v.20250203 DEVICE VERSIONS The table below provides a detailed overview of the available APULSE x3F6 versions, covering technical parameters such as battery type and hardware version. Choose the solution that best fits the characteristics of your infrastructure and operational needs. -
Page 7: Technical Parameters
APULSE x3F6 OPERATION MANUAL v.20250203 TECHNICAL PARAMETERS LOW POWER COMMUNICATION LoRa communication Power +14dBm Protocol version LoRa WAN, specification 1.0.2 Regional parameters EU868, IN865, AU915 Activation type OTAA and ABP Sigfox Power +14dBm Protocol version Radio Specification 1.5 Regional parameters RC1 / RC2 / RC4 / RC6 IMR radio Power +14dBm WMBUS T1... -
Page 8: Device Installation
APULSE x3F6 OPERATION MANUAL v.20250203 DEVICE INSTALLATION The installation procedure is highly intuitive and can be completed within minutes. The APULSE logger is installed on the gas meter in just a few simple steps, secured with plastic seals. The entire process is supported by the SITA mobile application, which guides you through the installation step by step and registers the APULSE device at the selected location. - Page 9 APULSE x3F6 OPERATION MANUAL v.20250203 OPERATING THE DEVICE WITH THE SITA APP SITA - CONVENIENT DATA ACCESS AND CONFIGURATION SITA is a mobile application designed for Android devices, supporting on-site procedures such as installation and configuration of various IoT data loggers and gateways. Communication between the SITA application and the APULSE data logger is carried out using Bluetooth communication.
- Page 10 APULSE x3F6 OPERATION MANUAL v.20250203 REPLICATED PULSE MEASUREMENT Thanks to the replicated pulse output, APULSEx3F6 can be connected to 3rd party data acquisition system. It is located in a dedicated adapter and can provide meter pulse output connections to other meter pulse utilization devices, without interfering or disrupting the collection of data and having minimal drain on any power source within the AMR device.
-
Page 11: Device Operating Modes
APULSE x3F6 OPERATION MANUAL v.20250203 DEVICE OPERATING MODES The device is initially set to SEAL mode after production and can be activated to RUN mode by following the installation procedure using the SITA application. SEAL MODE APULSE x3F6 is set to SEAL mode after production to ensure safe transport and reduce battery consumption. In this mode, it only counts pulses without enabling radio communication. -
Page 12: Archive Data
APULSE x3F6 OPERATION MANUAL v.20250203 ARCHIVE DATA The APULSEX3F6 is equipped with a large archive (up to 10 years, depending on the configuration). The device offers two main types of archives: daily and monthly. The archives can be accessed remotely or locally using the SITA mobile application. - Page 13 APULSE x3F6 OPERATION MANUAL v.20250203 ADAPTERS Adapters are designed for the mechanical installation of the APULSE x3F6 on various gas meters. Compact and robust, they are engineered to withstand harsh conditions and ensure compatibility with a wide range of popular gas meter models.
- Page 14 APULSE x3F6 OPERATION MANUAL v.20250203 IC Rx15 (active) GAS METER TYPE Itron/Actaris/Schlumberger RF1, ACD VERSIONS With replicated pulse output - IC R115 EMBEDDED SENSOR - Yes IC Kx15 (active) GAS METER TYPE Elektrometal EM G1.6, EM G2.5, EM G4 Kale Kalip VERSIONS With replicated pulse output - IC K115 EMBEDDED SENSOR...
- Page 15 APULSE x3F6 OPERATION MANUAL v.20250203 ACCESSORIES ABAT E145-1202 Rated capacity : 2600 mAh Rated voltage: 3,6V Type of connection: Scotchlock connector (SL-UY) Dimensions [mm]: 14x49 ABAT E145-2103 Rated capacity : 5200 mAh Rated voltage: 3,6V Type of connection: Scotchlock connector (SL-UY) Dimensions [mm]: 49x28x14...
