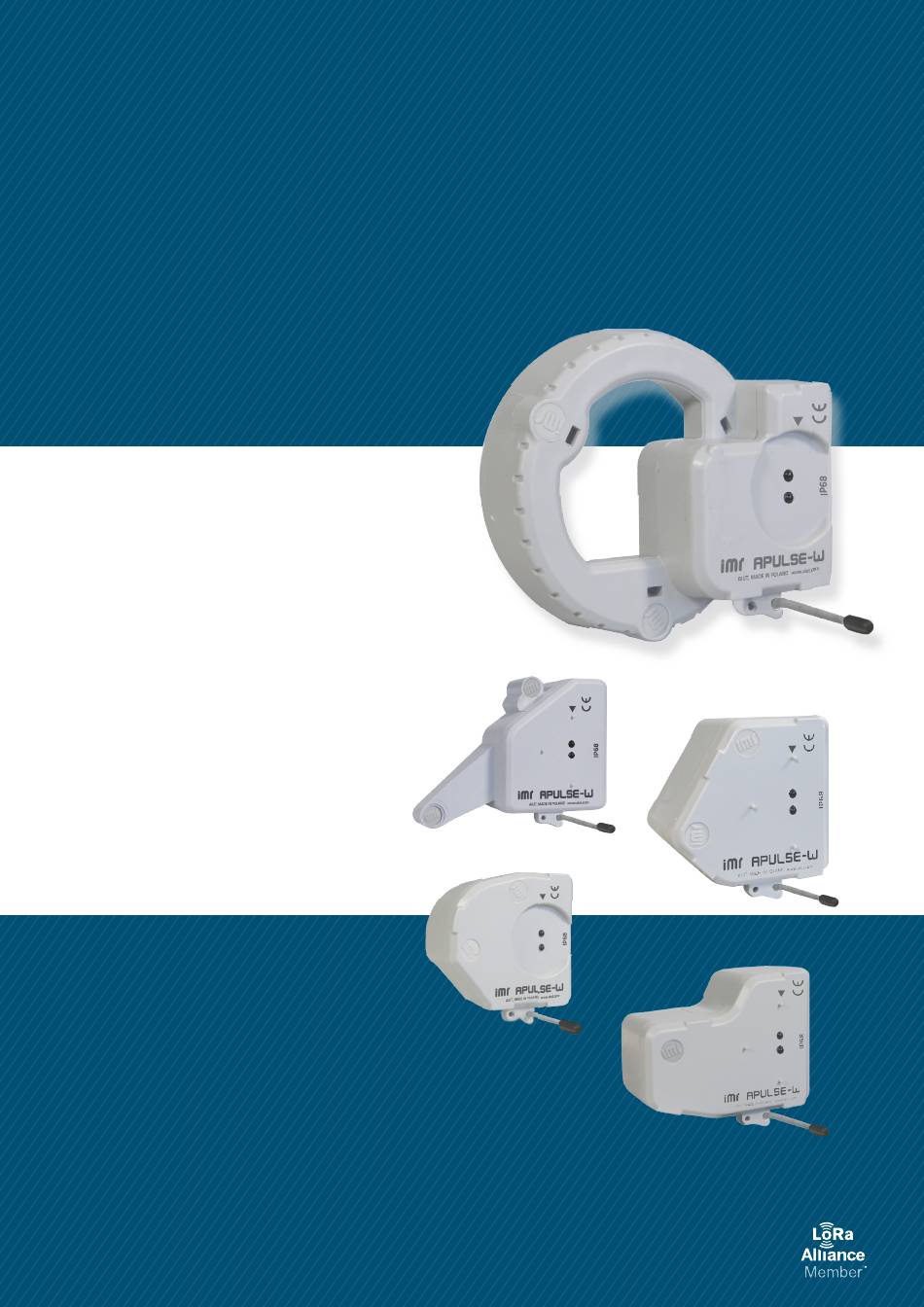

- Page 1 APULSE-W x1F5 IoT data logger for Smart Water Metering Operation manual Document version: 2022/06/13 aiut www.aiut.com AIUT Sp. z o.o. ul. Wyczółkowskiego 113, 44-109 Gliwice, Poland Phone: (+48 32) 77 54 000 Fax: (+48 32) 77 54 001...
- Page 2 APULSE-W x1F5 OPERATION MANUAL TABLE OF CONTENTS DISCLAIMER • conditions of use • safety instructions • environmental protection • manufacturer GENERAL INFORMATION • intended use & general description • device structure • order number • technical parameters INSTALLATION • mechanical assembly • device registering with mobile application •...
- Page 3 APULSE W x1F5 OPERATION MANUAL v. 20220613 Thank you for choosing APULSE-W x1F5. Please take a few minutes to read and become familiar with the advantages of our device. Failure to follow the instruction or any modifications/alternations in the operations described in this instruction may void the warranty.
- Page 4 APULSE W x1F5 OPERATION MANUAL v. 20220613 APULSE-W x1F5 are autonomous, battery powered IoT data loggers that can be installed on various AMR-ready water meters and register consumption profile as well as magnet and tamper detection. The devices transmit the received data via LoRa low power network.
- Page 5 APULSE W x1F5 OPERATION MANUAL v. 20220613 THE STRUCTURE OF THE DEVICE SPACE FOR LOGO Space available for logo allows flexible customization OPTO PORT For quick diagnostics and other service operations. IMR SEAL(s) Protection against tampering, unauthorized attempts of repairs or parts replacement ANTENNA Wired antenna or external SMA antenna OVERPRINT/LABEL...
- Page 6 APULSE W x1F5 OPERATION MANUAL v. 20220613 TECHNICAL PARAMETERS Low power radio LoRa Transmission unlicensed 868MHz band (EU868), hourly readouts, communication radio frames - twice a day (by default) IMR IoT 868MH, 25mW, range: 1000m (open space), radio frame - twice a day (scheduled) or on request, bidirectional communication after transmission (data archive, diagnostics, configuration) Walk-by readout...
- Page 7 INSTALLATION APULSE W x1F5 OPERATION MANUAL v. 20220613 The installation procedure is very intuitive and can be performed in a couple of minutes. You simply fix APULSE-W to a water meter with screw(s) and secure it with plastic seal(s). The whole procedure is supported by SITA - a mobile application that guides you step by step throughout the installation process and registers the APULSE-W in selected location.
- Page 8 APULSE W x1F5 OPERATION MANUAL v. 20220613 MECHANICAL ASSEMBLY OF APULSE-W I1F5 Supported ITRON water meters Necessary equipment • APULSE-W I1F5 • Flodis DN: 15/20/25/32 • Woltex M DN: 50-500 • 1 x IMR seal • Aquadis+ DN: 15/20/25/32/40 • Unimag Cyble –...
- Page 9 APULSE W x1F5 OPERATION MANUAL v. 20220613 MECHANICAL ASSEMBLY OF APULSE-W S1F5 Supported SENSUS water meters Necessary equipment • APULSE-W S1F5 • Sensus: 120, 120C, 405S, 420, 420PC, 620, 620C, 820 • 2 x IMR seal • 2 x Philips head screw •...
- Page 10 APULSE W x1F5 OPERATION MANUAL v. 20220613 APULSE-W INSTALLATION WITH SITA APPLICATION Together with mechanical assembly of APULSE-W, the operation of its registration in the system must be performed. Such procedure is performed with SITA application, where the user fills the installation form and the gathered data are sent to the server.
- Page 11 APULSE W x1F5 OPERATION MANUAL v. 20220613 Press Configure device Rewrite the mechanical volume Set alarm parameters from water meter Event occurs - information is sent immediately to the system once the Choose the type of communication NOTE Please make sure that your alarm occurs between APULSE-W and SITA.
- Page 12 FUNCTIONALITY APULSE W x1F5 OPERATION MANUAL v. 20220613 Congratulations! Your device is already installed and successfully registered in your location. From now on you can enjoy its full functionality. Here you can find information on data types received from your device, possible ways of data access and how to perform the walk-by readouts.
- Page 13 APULSE W x1F5 OPERATION MANUAL v. 20220613 DATA ACCESS & CONFIGURATION Data received from APULSE-W can be acquired by IMR Server - a high performance, multiprotocol data collection system that enables data presentation on the web application, supervise on-site installations, device handling and daily system maintenance.
- Page 14 APULSE W x1F5 OPERATION MANUAL v. 20220613 WALK-BY READINGS WITH SITA APPLICATION Walk-by reading is a highly efficient radio data acquisition system that enables Necessary equipment: to get exact consumption data without the need of entering consumer’s • APULSE-W installed in location and premises.
- Page 15 CERTIFICATIONS APULSE W x1F5 OPERATION MANUAL v. 20220613 LoRa WAN...
- Page 16 APULSE W x1F5 OPERATION MANUAL v. 20220613...
- Page 17 APULSE W x1F5 OPERATION MANUAL v. 20220613 DECLARATION OF CONFORMITY (1/2)
- Page 18 APULSE W x1F5 OPERATION MANUAL v. 20220613 DECLARATION OF CONFORMITY (2/2)
