Nokia 800, TA-1186, TA-1176, TA-1189, TA-1180 Manual

KEYS AND PARTS

Explore the keys and parts of your new phone.

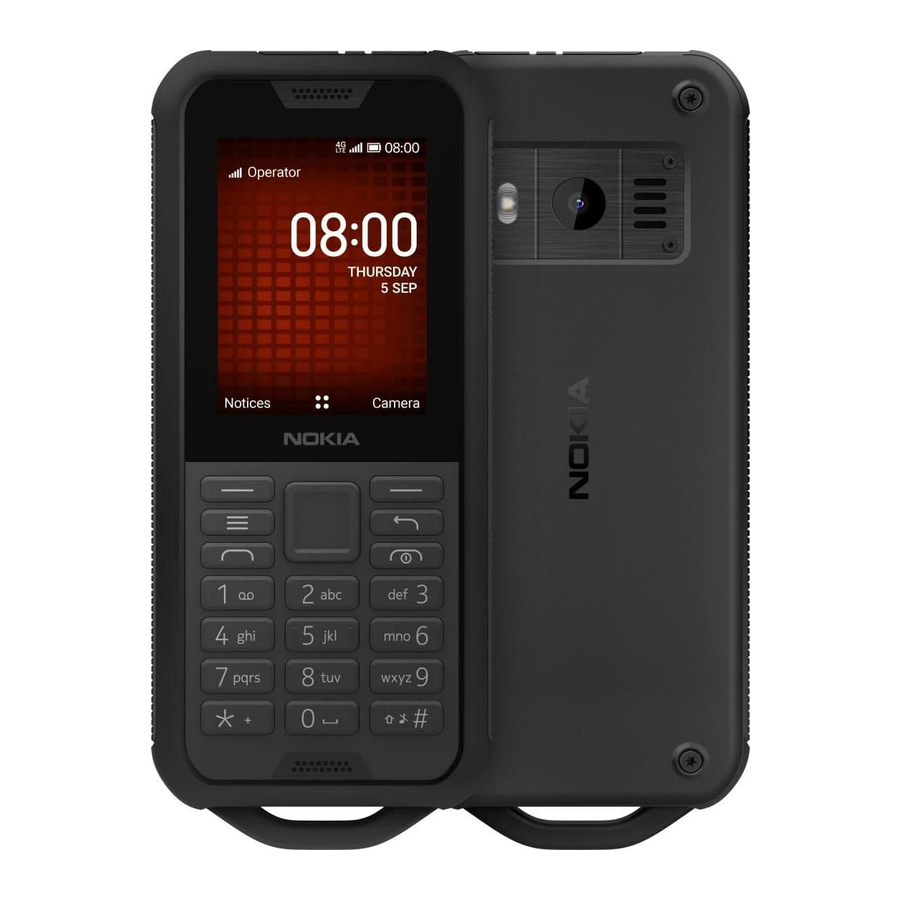

Your phone

This user guide applies to the following models: TA-1186, TA-1176, TA-1189, TA-1180.

The keys and parts of your phone are:

1. Call key
2. Multi-function key
3. Left selection key
4. Scroll key
5. Earpiece
6. Flashlight
7. USB connector
8. Headset connector
9. Flash
10. Camera
11. Loudspeaker
12. Right selection key
13. Back key
14. Power/End key
15. Microphone

Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the communication quality and may reduce battery life due to higher power level during operation.

Do not connect to products that create an output signal, as this may damage the device. Do not connect any voltage source to the audio connector. If you connect an external device or headset, other than those approved for use with this device, to the audio connector, pay special attention to volume levels. Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not place credit cards or other magnetic storage media near the device, because info stored on them may be erased.

Some of the accessories mentioned in this user guide, such as charger, headset, or data cable, may be sold separately.

The strap with the utility clip (available only in selected markets) must be used only for carrying the phone. Usage for any other purposes is prohibited. Do not use the strap without the utility clip. Do not use in close proximity of hazardous machines and always follow extra care in extreme situations.

SET UP AND SWITCH ON YOUR PHONE

Learn how to insert the SIM card, memory card, and battery, and how to switch on your phone.

Nano-SIM

MicroSD memory cards

Use only compatible memory cards approved for use with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card.

Open the card tray

1. With your phone facing down, put your fingernail in the slot above the SIM and memory card tray cover and pull the cover down.
2. Push the tray opener pin in the tray hole and slide the tray out.

Insert the SIM and memory cards

1. If you have a single-SIM phone, put a nano-SIM card in slot 1 and a memory card in slot 2 on the tray with the contact areas face down.
2. If you have a dual-SIM phone, put a nano-SIM card in slot 1 and either a second SIM or a memory card in slot 2 with the contact areas face down. Both SIM cards are available at the same time when the device is not being used, but while one SIM card is active, for example, making a call, the other may be unavailable.
3. Slide the tray back in the slot.
4. Press the cover firmly back in place to prevent dust or water entering the phone and damaging it.

Switch on your phone
Press and hold the power key until the phone vibrates.

Select which SIM card to use

1. Press the scroll key and select Settings > Network & Connectivity > SIM manager .
2. To choose which SIM to use for calls, select Outgoing Calls , and select SIM1 or SIM2 .
3. To choose which SIM to use for messages, select Outgoing messages , and select SIM1 or SIM2 .
4. To choose which SIM to use for mobile data, select Data , and select SIM1 or SIM2 .

Tip: To be able to distinguish your SIM cards, give them a descriptive name. In the SIM manager settings, select each SIM card, type in the name, and select Save .

Access codes
Your phone and SIM card use different codes for security.

• PIN or PIN2 codes: These codes protect your SIM card against unauthorized use. If you forget the codes or they aren't supplied with your card, contact your network service provider. If you type in the code incorrectly 3 times in a row, you need to unblock the code with the PUK or PUK2 code.
• PUK or PUK2 codes: These codes are required to unblock a PIN or PIN2 code. If the codes are not supplied with your SIM card, contact your network service provider.
• Screen lock: The screen lock helps you protect your phone against unauthorized use. You can set your phone to ask for the screen lock code that you define. Keep the code secret and in a safe place, separate from your phone. If you forget the code and your phone is locked, your phone will require service. Additional charges may apply, and all the personal data on your phone may be deleted. For more info, contact the nearest care point for your phone, or your phone dealer.
• IMEI code: The IMEI code is used to identify phones in the network. You may also need to give the number to your care point services or phone dealer. To view your IMEI number, dial *#06#. Your phone's IMEI code is also printed on your phone label, which is located under the battery. The IMEI is also visible on the original sales box.

CHARGE YOUR PHONE

Your battery has been partially charged at the factory, but you may need to recharge it before you can use your phone.

Charge the battery

1. Plug the charger into a wall outlet.
2. Open the top cover of the phone: put your fingernail in the seam between the phone and the cover and pull the cover down.
3. Connect the charger to the phone. When done, unplug the charger from the phone, then from the wall outlet.
4. Press the cover firmly back in place to prevent dust or water entering the phone and damaging it.

If the battery is completely discharged, it may take several minutes before the charging indicator is displayed.

Save power
To save power:

1. Charge wisely: always charge the battery fully.
2. Select only the sounds that you need: mute unnecessary sounds, such as keypad sounds.

3. Use a wired headset, rather than the loudspeaker.

4. Change the phone screen settings: set the phone screen to switch off after a short time.
5. Lower the screen brightness.
6. When applicable, use network connections, such as Bluetooth, selectively: switch the connections on only when you are using them.

EXPLORE YOUR PHONE

Open the apps list
Press the scroll key.

Open an app or select a feature
Scroll to the app or feature and select SELECT .

Go back to the previous view
Press the back key.

Go back to the home screen
Press the end key.

CHANGE THE VOLUME

Turn the volume up or down
Trouble hearing your phone ringing in noisy environments, or calls too loud? You can change the volume to your liking.

To change the volume during a call, press the scroll key up or down.

To change the volume of your media apps, ringtones, alerts, and alarms, press the scroll key and select Settings . Scroll right to Personalization , and select Sound > Volume .

To change the volume when listening to the radio or music, select Options > Volume .

WRITE TEXT

Writing with the keypad is easy and fun.

Write using the keypad
Press a key repeatedly until the letter is shown.

To type in a space, press 0 .

To type in a special character or punctuation mark, press * .

To switch between character cases, press # repeatedly.

To type in a number, press and hold a number key.

The writing method may vary between applications.

CALLS

Make a call
Learn how to make a call with your new phone.

1. Type in the phone number. To type in the + character, used for international calls, press * twice.
2. Press . If asked, select which SIM to use.

End a call
To end a call, press the end key.

CONTACTS

Add a contact
Save and organize your friends' phone numbers.

1. Press the scroll key and select Contacts .
2. Select New and whether to save the contact to the phone memory or the SIM card.
3. Write the name and phone number of the contact.
4. Select SAVE .

Copy contacts
Copy contacts between your SIM card and the phone.

To copy contacts between your phone and SIM card, in the contacts list, select Options > Copy contacts , and select whether to copy contacts from the phone or SIM card.

To share a contact with a friend, scroll to the contact, select Options > Share , then select whether to share the contact using e-mail, messaging, or Bluetooth, for example.

Call a contact
You can call a contact directly from the contacts list.

1. Press the scroll key and select Contacts .
2. Scroll to a contact and press .

SEND MESSAGES

Write and send messages

1. Press the scroll key, and select Messages > New .
2. In the To field, press # until you are able to enter numbers and then type in a phone number, or select Add to add a contact from your contacts list.
3. Write your message. If you need to remove a character, press the back key.
4. Select Send. If asked, select which SIM to use.

SEND MAIL

You can use your phone to read and reply to mail when you're on the go.

Add a mail account
When you use the E-Mail app for the first time, you are asked to set up your e-mail account.

1. Press the scroll key and select E-Mail .
2. Select Next and type in your name and e-mail address.
3. Select Next and type in your password.

CHANGE THE TONES

You can choose a new ringtone.

Change your ringtone

1. Press the scroll key and select Settings .
2. Scroll right to Personalization and select Sound > Tones > Ringtones .
3. Scroll to a ringtone and press the scroll key.

CHANGE THE LOOK OF YOUR HOME SCREEN

You can change the look of your phone with wallpapers.

Choose a new wallpaper

1. Press the scroll key and select Settings .
2. Scroll right to Personalization and select Display > Wallpaper .
3. Select Camera to take a new photo for the wallpaper, Wallpaper to select from predefined wallpapers, or Gallery to choose a wallpaper from the photos on your phone.

PHOTOS

You don't need a separate camera when your phone has all you need for capturing memories.

Take a photo
Capture the best moments with your phone camera.

1. To switch the camera on, press the scroll key and select Camera .
2. To take a photo, press the scroll key.

View a photo you have taken
To view the photo right after taking it, select Preview . To view the photo later, on the home screen, press the scroll key and select Gallery .

VIDEOS

You don't need a separate video camera - record video memories with your phone.

Record a video
Besides taking photos, you can also record videos with your phone.

1. Press the scroll key and select Camera .
2. To start recording, scroll right and press the scroll key.
3. To stop recording, press the scroll key.

Watch the recorded video
To view the video right after recording, select Preview . To watch the video later, on the home screen, press the scroll key and select Video .

BROWSE THE WEB

Connect to the internet
Catch up on the news, and visit your favorite websites on the go.

1. Press the scroll key and select Browser.
2. Select Search .
3. Write a web address, and select Go .
4. Use the scroll key to move the mouse cursor in the browser.

Clear your browsing history

1. Press the scroll key and select Settings .
2. Scroll right to Privacy & Security and select Browsing privacy .
3. Select Clear browsing history .

BLUETOOTH

Connect your phone with Bluetooth to other devices.

Switch on Bluetooth

1. Press the scroll key and select Settings > Network & Connectivity > Bluetooth .
2. Switch Bluetooth to On .
3. Select Nearby devices to find a new device or Paired devices to find a device you have paired your phone with previously.

WI-FI

Switch on Wi-Fi

1. Press the scroll key and select Settings > Network & Connectivity > Wi-Fi .
2. Switch Wi-Fi to On .
3. Select Available networks and the network you want, enter a password if needed, and select Connect

Use your phone as a Wi-Fi hotspot
Need a network connection on your laptop? You can use your phone as a Wi-Fi hotspot.

1. Press the scroll key and select Settings > Network & Connectivity > Internet sharing .
2. If you have a dual-SIM phone, select which SIM to use for sharing.
3. Turn Wi-Fi hotspot on.

You can now, for example, switch Wi-Fi on in your laptop and connect it to the phone's Wi-Fi hotspot.

MUSIC PLAYER

You can listen to your MP3 music files with the music player.

Listen to music

1. Press the scroll key and select Music .
2. Select whether you want to view your playlists, artists, albums, or songs.
3. Scroll to a song, and select Play .

Tip: To set a song as ringtone, scroll right to Songs , scroll to the song you want, and select Options > Save as ringtone .

LISTEN TO RADIO

Search for radio stations
You need to connect a compatible headset to listen to the radio. The headset acts as an antenna. Troubleshooting tip: if the radio does not work, make sure that the headset is properly connected.

Press the scroll key and select FM Radio > TURN ON .

To search for available radio stations, select Stations > Options > Scan stations .

To save a radio station, select Stations > Options > Add to favorites .

To switch to a saved station, select Stations > Favorites and the station.

To adjust the volume, select Options > Volume and scroll up or down.

To turn off the radio, select TURN OFF .

Tip: To listen to a radio station using the phone's speakers, select Options > Switch to speaker . Keep the headset connected.

VIDEO PLAYER

Watch your favorite videos wherever you are.

Play a video

1. Press the scroll key and select Video .
2. Scroll to the video you want to watch and press the scroll key.
3. Press the scroll key to pause and resume playback while watching the video.

To watch the video in full screen, select Full Screen .

To adjust the volume, select Options > Volume .

To share the video with a friend, select Options > Share , and select to share using e-mail, messaging, or Bluetooth, for example.

Tip: Not all video formats are supported.

RECORDER

Record a sound clip

1. Press the scroll key and select Recorder .
2. To record, select New and press the scroll key.
3. To stop recording, select Done .

CLOCK

Learn how to use the clock and timers to be on time.

Set an alarm
No clock around? Use your phone as an alarm clock.

1. Press the scroll key and select Clock .
2. Select New alarm > Time , use the scroll key to set the time, and select SAVE .
3. If needed, set the alarm to repeat or give the alarm a name.
4. Select Save .

If you often need an alarm at the same time, but don't want to set in on repeat, just scroll to the alarm and select TURN ON . The alarm sounds at the time you have specified.

Countdown timer
If you need an alarm but don't want to create one in the alarm clock, use the countdown timer. You can, for example, time something that's cooking in the kitchen.

1. Press the scroll key and select Clock .
2. Scroll right to Timer .
3. Select SET , and use the scroll key to set the needed time.
4. Select START .

Stopwatch

1. Press the scroll key and select Clock .
2. Scroll right to Stopwatch and select START .
3. Select Lap when a lap has been completed.

To stop the stopwatch, select PAUSE > Reset .

CALENDAR

Need to remember an event? Add it to your calendar.

Add a calendar reminder

1. Press the scroll key and select Calendar > CALENDAR .
2. Scroll to the date you want and select Add .
3. Enter the event details.
4. Select whether to add a reminder to the event.
5. Select Save .

CALCULATOR

Learn how to add, subtract, multiply and divide with your phone calculator.

Make a calculation

1. Press the scroll key and select Calculator .
2. Enter the first factor of your calculation, use the scroll key to select the operation, and enter the second factor.
3. Press the scroll key to get the result of the calculation.

NOTES

Write a note

1. Press the scroll key and select Note > New .
2. Write the note and select Save .

To share the note, select Options > Share and the sharing method.

CONVERTER

Need to convert Celsius to Fahrenheit or centimeters to inches? Use the converter.

Convert measurements

1. Press the scroll key and select Unit Converter .
2. Select the conversion type.
3. Press the scroll key to open a list of available measurements, and select the one you want to convert from.
4. Scroll to the second measurement, press the scroll key, and select the measurement you want to convert to.
5. Use the number keys to enter the value you want to convert. The converter shows the converted value automatically.

COPY CONTENT

Copy content created by you between your phone and computer.

Copy content between your phone and computer

1. Press the scroll key and select Settings .
2. Scroll right to Storage and set USB storage to Enabled .
3. Connect your phone to a compatible computer with a compatible USB cable.
4. On your computer, open a file manager, such as Windows Explorer, and browse to your phone. You can see the content stored on your phone and on the memory card, if inserted.
5. Drag and drop items between your phone and computer.

FILE MANAGER

Need to find those important files quickly? Open the File manager.

Find your files
To find your files quickly, press the scroll key and select File Manager . To find items on your phone, select Internal . To find items on your memory card, select SD Card .

MEMORY

When needed, you can check how much used and how much free memory you have on your phone.

Check the amount of used and free memory

1. Press the scroll key and select Settings .
2. Scroll right to Storage and check Media and Application data to see how much memory is consumed and how much is available.

SECURITY SETTINGS

You can edit the available security settings.

BATTERY AND CHARGER INFORMATION

Battery and charger safety info
To unplug a charger or an accessory, hold and pull the plug, not the cord.

When your charger is not in use, unplug it. If left unused, a fully charged battery will lose its charge over time.

Always keep the battery between 59°F and 77°F (15°C and 25°C) for optimal performance. Extreme temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily. Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery. This may damage the battery or the other object.

Do not dispose of batteries in a fire as they may explode. Obey local regulations. Recycle when possible. Do not dispose as household waste.

Do not dismantle, cut, crush, bend, puncture, or otherwise damage the battery in any way. If a battery leaks, do not let liquid touch skin or eyes. If this happens, immediately flush the affected areas with water, or seek medical help. Do not modify, attempt to insert foreign objects into the battery, or immerse or expose it to water or other liquids. Batteries may explode if damaged.

Use the battery and charger for their intended purposes only. Improper use, or use of unapproved or incompatible batteries or chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe the battery or charger is damaged, take it to a service centre or your phone dealer before continuing to use it. Never use a damaged battery or charger. Only use the charger indoors. Do not charge your device during a lightning storm.
