Nokia 110 (TA-1192) - Cell Phone 2019 Manual

About this user guide

For important information on the safe use of your device and battery, read "Product and safety information" before you take the device into use. To find out how to get started with your new device, read the user guide.

Get started

KEYS AND PARTS

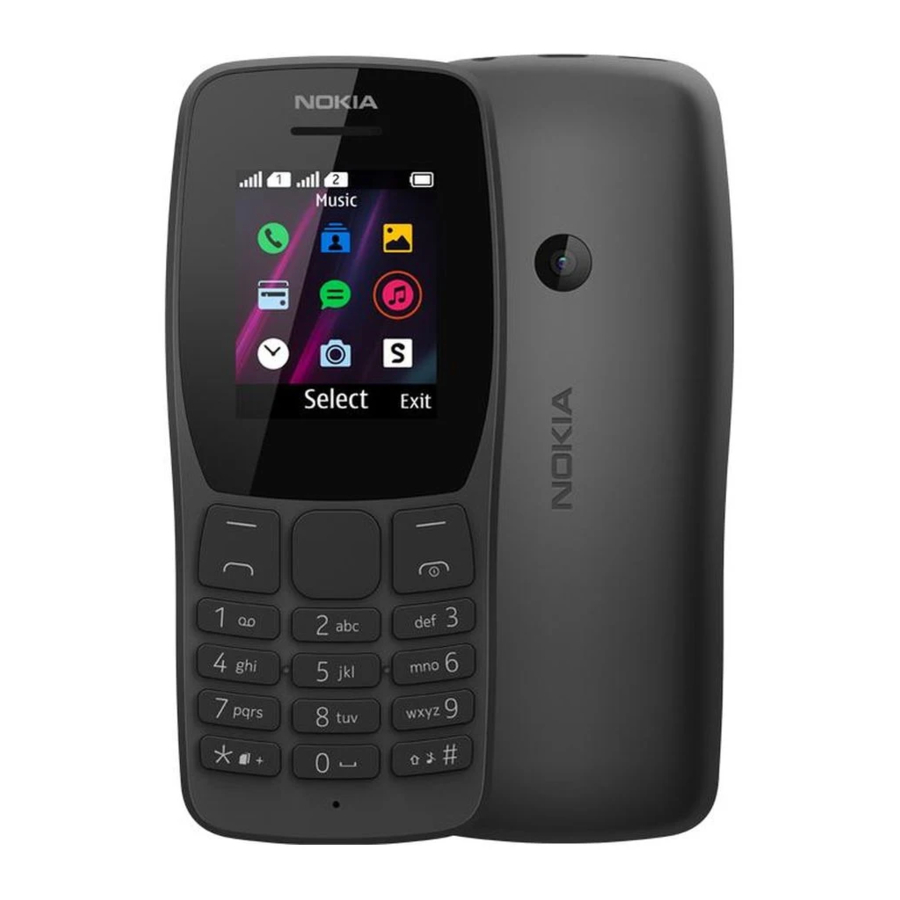

Your phone

This user guide applies to the following model: TA-1192

1. Call key
2. Left selection key
3. Scroll key. Press to access your apps and select items.
4. Earpiece/Loudspeaker
5. USB connector
6. Flashlight

Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the communication quality and may reduce battery life due to higher power level during operation.
Do not connect to products that create an output signal, as this may damage the device. Do not connect any voltage source to the audio connector. If you connect an external device or headset, other than those approved for use with this device, to the audio connector, pay special attention to volume levels. Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not place credit cards or other magnetic storage media near the device, because info stored on them may be erased.
Some of the accessories mentioned in this user guide, such as charger, headset, or data cable, may be sold separately.

SETUP AND SWITCH ON YOUR PHONE
Mini SIM


This device is designed to be used with a mini SIM card only. Use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card.
Note: Switch the device off and disconnect the charger and any other device before removing any covers. Avoid touching electronic components while changing any covers.
Always store and use the device with any covers attached.

Set up your phone

1. Put your fingernail in the small slot at the bottom of the phone, lift and remove the cover.
2. If the battery is in the phone, lift it out.
3. Slide the SIM card into the SIM1 slot with the contact area face down. If you have a second SIM, slide it into the SIM2 slot. Both SIM cards are available at the same time when the device is not being used, but while one SIM card is active, for example, making a call, the other may be unavailable.

Switch on your phone
Press and hold .

CHARGE YOUR PHONE
Your battery has been partially charged at the factory, but you may need to recharge it before you can use your phone.

Charge the battery

1. Plug the charger into a wall outlet.
2. Connect the charger to the phone. When done, unplug the charger from the phone, then from the wall outlet.
   If the battery is completely discharged, it may take several minutes before the charging indicator is displayed.

Tip: You can use USB charging when a wall outlet is not available. The efficiency of USB charging power varies significantly, and it may take a long time for charging to start and the device to start functioning.

KEYPAD
Use the phone keys

• To see the apps and features of your phone, on the home screen, select Menu.
• To go to an app or feature, press the scroll key up, down, left, or right. To open the app or feature, press the scroll key.

Lock the keypad
To avoid accidentally pressing the keys, lock the keypad: select Go to > Lock keypad. To unlock the keypad, select Unlock.

Switch on the flashlight
On the home screen, quickly scroll up twice to switch on the flashligt.
To switch off the flashlight, scroll up once.
Do not shine the light in anyone's eyes.

Write with the keypad
Press a key repeatedly until the letter is shown.
To type in a space press 0.
To type in a special character or punctuation mark, select Opt. > Insert options > Insert symbol.
To switch between character cases, press # repeatedly.
To type in a number, press and hold a number key.

Calls, contacts, and messages

CALLS
Make a call
Learn how to make a call with your new phone.

1. Type in the phone number. To type in the + character, used for international calls, press * twice.
2. Press the call key. If asked, select which SIM to use.
3. To end the call, press the end key.

Answer a call
Press .

CONTACTS
Add a contact
Save and organize your friends' phone numbers.

1. Select Menu > > Add contact.
2. Select where you want to save it, on Phone or SIM card
3. Write the name, and type in the number.
4. Select OK.

Save a contact from call log

1. Select Menu >> Missed calls, Received calls, or Dialled numbers depending on from where you want to save the contact.
2. Highlight the number you want to save, select Opt. > Save, and select where you want to save the contact.
3. Add the contact's name, check that the phone number is correct, and select OK.

Call a contact
You can call a contact directly from the contacts list.

1. Select Menu > > Names.
2. Scroll to a contact and press the call key.

SEND MESSAGES
Write and send messages

1. Select Menu >> Create message.
2. Write a message on the message field.
3. Select Opt. > Send, to add a recipient. You can enter a phone number or add a recipient by selecting Search to open Contacts.
4. Select OK.

Writing options
You can find different options for writing a message under Opt. when you are in the message field. You can, for example, insert symbols and save messages.
To switch on predictive text, select Opt. > Dictionary.

Personalize your phone

CHANGE YOUR RING OR MESSAGE TONE
Change your ringtone

1. Select Menu > > Tone settings > Ringing tone.
2. If asked, select a SIM card.
3. Scroll to a ringtone and select OK.

Tip: Is your ringtone too loud or too silent? Select Ringing volume and scroll left or right.

Change your message tone

1. Select Menu > > Tone settings > Message alert tone.
2. If asked, select a SIM card.
3. Scroll to a tone and select OK.

CHANGE THE LOOKOF YOUR HOME SCREEN
Choose a new wallpaper

1. Select Menu > > Display settings > Wallpaper.
2. Select Default to choose from pre-defined wallpapers, or select Photos to choose a wallpaper from the photos you have taken with the camera.
3. Select the wallpaper, and then the option to position the wallpaper on the screen.

Show date and time
You can choose if you want to see date and time on the home screen of your phone.

1. Select Menu > > Time settings > Display of time and date.
2. Select Show clock to have them visible on the home screen.
   If you want your phone to have time updated automatically, set Auto-update of date and time to On.

PROFILES
Your phone has different profiles for different situations. You can edit the profiles to your liking.

Personalize profiles
There are several profiles that you can use in different situations. There is, for example, a silent profile for when you cannot have sounds on, and an outdoor profile with loud tones.
You can personalize profiles further.

1. Select Menu > > Profiles.
2. Select a profile and Personalise.
   For each profile you can set a specific ringtone, ringtone volume, message sounds and so on.

Tip: You can add different profiles to Go to menu for quick access.

SETTINGS FOR GO TO
You can add quick links to different applications and settings to Go to.

Edit Go to settings
On the bottom left of the home screen, you have Go to, and when you select it, you can quickly access different applications and settings. You can change the applications and settings to your liking.

1. Select Menu > > Go to settings.
2. Select Select options.
3. Scroll to a shortcut you want to add on the Go to list on the home screen and Mark them.
4. Select Done to exit the list, and Yes to save changes.

You can also reorganize your Go to list.

1. Select Organise.
2. Scroll to an item you want to move and select Move.
3. Select if you want to move it up, down, to top, or to bottom of the list.
4. Select Back to exit the list, and OK to save changes.

PERSONALIZE YOUR SIM CARDS
Edit the SIM card settings

1. Select Menu >> Dual SIM settings.
2. Select SIM name, and enter a name for your SIM card.
3. Select an icon for the SIM card.

Camera

PHOTOS AND VIDEOS
Take a photo

1. Select Menu > .
2. To take a photo, press the scroll key.
   To see the photo you just took, select Opt. > View photos.

Record a video

1. To switch the video camera on, select Menu >and scroll right.
2. To start recording, select.
3. To stop recording, select.
   To see the video you just recorded, select > View videos.

Radio

FIND AND SAVE RADIO STATIONS
Connect a compatible headset. It acts as an antenna.

Find your favorite radio stations

1. Select Menu > .
2. When the phone asks if you want to search all available channels, select OK.
3. To switch between stations, scroll up or down.
4. To save a found channel, select Opt. > Save channel.

LISTEN TO THE RADIO
Listen to your favorite radio stations
Select Menu > . To change the volume, scroll left or right. To listen to the radio using the loudspeaker, select Opt. > Loudspeaker. Keep the headset connected. To close the radio, select Stop.

Clock, calendar, and calculator

SET THE TIME AND DATE MANUALLY
Change the time and date

1. Select Menu >> Time settings.
2. Switch Auto-update of date and time to Off.
3. To set the time, scroll down, and select Clock > Set the time. Use the scroll key to set the time, and select OK.
4. To set the date, scroll down, and select Date setting. Use the scroll key to set the date, and select OK.

ALARM CLOCK
Set an alarm

1. Select Menu > > Set alarms.
2. Select an alarm.
3. To set the hour, scroll up or down. To set the minutes, scroll right and then up or down.
4. Select OK.

CALENDAR
Add a calendar reminder

1. Select Menu > .
2. Select a date and Opt. > Add reminder.
3. Type in a name for the event, and select OK.

CALCULATOR
Learn how to add, subtract, multiply and divide with your phone calculator.

How to calculate

1. Select Menu >.
2. Enter the first factor of your calculation, use the scroll key to select the operation, and enter the second factor.
3. Select Equals to get the result of the calculation.
   Select Clear to empty the number fields.

Empty your phone

REMOVE PRIVATE CONTENTFROM YOUR PHONE
If you buy a new phone, or otherwise want to dispose of or recycle your phone, here's how you can remove your personal info and content. Note that it is your responsibility to remove all private content.

Remove content from your phone
When removing private content from your phone, pay attention to whether you are removing content from the phone memory or the SIM card.

1. To remove messages, select Menu > > Delete messages. Select from the available options the messages you want to delete.
2. To remove contacts, select Menu > > Delete, and select if you want to delete contacts One by one or Delete all.
3. To remove your call info, select Menu >> Delete recent call lists, and select All.
4. Check that all your personal content has been removed.

RESTORE FACTORY SETTINGS
You can restore factory settings in this setting. Be careful, however, since you lose all personalization and all data you have added on the phone.

Reset your phone
If you are disposing your phone, note that you are responsible of removing all private content.
Select Menu > > Restore factory set. . There is no more confirmation, but the phone is reset and all data is removed.

Product and safety information

FOR YOUR SAFETY
Read these simple guidelines. Not following them may be dangerous or against local laws and regulations. For further info, read the complete user guide.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile device use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas.

ROAD SAFETYCOMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect performance.

AUTHORIZED SERVICE

Only authorized personnel may install or repair this product.

BATTERIES, CHARGERS, AND OTHER ACCESSORIES

Use only batteries, chargers, and other accessories approved by HMD Global Oy for use with this device. Do not connect incompatible products.

KEEP YOUR DEVICE DRY

If your device is water-resistant, see its IP rating in the device's technical specifications for more detailed guidance.

PROTECTYOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long periods.
Exercise caution when holding your device near your ear while the loudspeaker is in use.

SAR

This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 1.5 centimetres (5/8 inch) away from the body. The specific maximum SAR values can be found in the Certification Information (SAR) section of this user guide. For more information, see the Certification Information (SAR) section of this user guide or go to www.sar-tick.com.

EMERGENCY CALLS

Connections in all conditions cannot be guaranteed. Never rely solely on any wireless phone for essential communications like medical emergencies.
Before making the call:

• Switch the phone on.
• If the phone screen and keys are locked, unlock them.
• Move to a place with adequate signal strength.

1. Press the end key repeatedly, until the home screen is shown.
2. Type in the official emergency number for your present location. Emergency call numbers vary by location.
3. Press the call key.
4. Give the necessary info as accurately as possible. Do not end the call until given permission to do so.

You may also need to do the following:

• Put a SIM card in the phone.
• If your phone asks for a PIN code, type in the official emergency number for your present location, and press the call key.
• Switch the call restrictions off in your phone, such as call barring, fixed dialling, or closed user group.

TAKE CARE OF YOUR DEVICE
Handle your device, battery, charger and accessories with care. The following suggestions help you keep your device operational.

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits.
• Do not use or store the device in dusty or dirty areas.
• Do not store the device in high temperatures. High temperatures may damage the device or battery.
• Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form inside the device and damage it.
• Do not open the device other than as instructed in the user guide.

During extended operation, the device may feel warm. In most cases, this is normal. To avoid getting too warm, the device may automatically slow down, close apps, switch off charging, and if necessary, switch itself off. If the device is not working properly, take it to the nearest authorized service facility.

BATTERY AND CHARGER INFORMATION
Battery and charger safety info
To unplug a charger or an accessory, hold and pull the plug, not the cord.
When your charger is not in use, unplug it. If left unused, a fully charged battery will lose its charge over time.
Always keep the battery between 59°F and 77°F (15°C and 25°C) for optimal performance. Extreme temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily. Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery. This may damage the battery or the other object.
Do not dispose of batteries in a fire as they may explode. Obey local regulations. Recycle when possible. Do not dispose as household waste.
Do not dismantle, cut, crush, bend, puncture, or otherwise damage the battery in any way. If a battery leaks, do not let liquid touch skin or eyes. If this happens, immediately flush the affected areas with water, or seek medical help. Do not modify, attempt to insert foreign objects into the battery, or immerse or expose it to water or other liquids. Batteries may explode if damaged.
Use the battery and charger for their intended purposes only. Improper use, or use of unapproved or incompatible batteries or chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe the battery or charger is damaged, take it to a service centre or your phone dealer before continuing to use it. Never use a damaged battery or charger. Only use the charger indoors. The environmental temperature must be between 0 and 50 degrees Celsius. Do not charge your device during a lightning storm.

SMALL CHILDREN
Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.

MEDICAL DEVICES
Operation of radio transmitting equipment, including wireless phones, may interfere with inadequately shielded medical devices' function. Consult a physician or the medical device's manufacturer to determine if it is adequately shielded from external radio energy.

IMPLANTED MEDICAL DEVICES
To avoid potential interference, manufacturers of implanted medical devices (such as cardiac pacemakers, insulin pumps, and neurostimulators) recommend a minimum separation of 15.3 centimeters (6 inches) between a wireless device and the medical device. Persons who have such devices should:

• Always keep the wireless device more than 15.3 centimeters (6 inches) from the medical device.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical device.

• Switch the wireless device off if there is any reason to suspect that interference is taking place.
• Follow the manufacturer directions for the implanted medical device.

If you have any questions about using your wireless device with an implanted medical device, consult your health care provider.

HEARING

When you use the headset, your ability to hear outside sounds may be affected.
Do not use the headset where it can endanger your safety.
Some wireless devices may interfere with some hearing aids.

PROTECT YOUR DEVICE FROM HARMFUL CONTENT
Your device may be exposed to viruses and other harmful content. Take the following precautions:

• Be cautious when opening messages. They may contain malicious software or otherwise be harmful to your device or computer.
• Be cautious when accepting connectivity requests, browsing the internet, or downloading content. Do not accept Bluetooth connections from sources you do not trust.
• Only install and use services and software from sources that you trust and that offer adequate security and protection.

VEHICLES
Radio signals may affect improperly installed or inadequately shielded electronic systems in vehicles. For more info, check with the manufacturer of your vehicle or its equipment. Only authorized personnel should install the device in a vehicle. Faulty installation may be dangerous and invalidate your warranty. Check regularly that all wireless device equipment in your vehicle is mounted and operating properly. Do not store or carry flammable or explosive materials in the same compartment as the device, its parts, or accessories. Do not place your device or accessories in the air bag deployment area.
